Product details

Huizhou Antenk Electronics Co., Ltd. manufactures UAFS07B series straight DIP USB A type receptacles with 15.1mm length and crimping bend legs for stable USB 2.0 data transmission and power supply on PCBs, equipped with standardized dimensional tolerances to guarantee accurate through-hole soldering matching official PCB layout specifications. This USB receptacle provides multiple customizable materials: LCP UL94V0 flame retardant insulator, 0.25mm thick copper alloy contacts and 0.30mm nickel-plated iron shell, with diverse plating options including tin, gold flash and graded selective/full gold plating from 3u" to 30u", electrically rated for maximum 1.5A DC current, 30V DC rated voltage, 500V AC dielectric withstand voltage, below 30 milliohm contact resistance and over 1000 megohm insulation resistance, fully compliant with HSF lead-free and RoHS environmental standards, four packing solutions tray bag tube tape and reel fit both manual assembly and automated DIP production lines. This compact crimp bend leg USB A socket is widely applied in liquid crystal display modules, digital cameras, communication equipment, industrial control panels, portable storage devices, digital household appliances, electronic toys, computer peripherals, automotive electronic assemblies and precision measuring instruments requiring standard USB interface connection. Operators should confirm insulator color shell material and plating thickness based on circuit design, implement standard through-hole soldering strictly following PCB pad drawings, avoid excessive bending force to prevent copper contact fracture and LCP insulator cracking, and store finished USB receptacles in dry sealed packages to slow oxidation of gold and tin plating layers. Unlike competitors outsourcing mold production and electroplating Antenk carries out a full independent production workflow covering self-designed plastic and metal precision mold manufacturing, high-speed copper terminal stamping, high-temperature LCP injection molding, multi-layer nickel gold electroplating and complete high-low temperature reliability laboratory testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications while conforming to REACH global environmental regulations. We own more than two hundred fifty proprietary plastic connector molds and one hundred eighty metal terminal molds, provide customizable structural sizes plating layers and packaging types, deliver round-the-clock professional engineering technical support, and over seventy percent of our USB receptacle products are exported worldwide relying on our Guangdong Famous Trademark ANTENK and consistent stable mass production quality.

UL94V0 LCP USB Insulator delivers superior flame retardancy and stable performance under continuous high temperature operation.

Gold Plated Copper Alloy Contact maintains low contact resistance and reliable signal transmission for long-term USB plugging cycles.

Nickel Plated Iron USB Shell provides effective electromagnetic shielding and outstanding anti-rust protection for the USB interface.

1. Electrical Performance

1.1 Max Rated Current: 1.5A

1.2 Rated Voltage: 30V DC

1.3 Max Contact Resistance: 30 milliohms

1.4 Min Insulation Resistance: 1000 Megohms

1.5 Dielectric Withstanding Voltage: 500V AC

2. Material Options

2.1 Insulator

2.1.1 Standard: LCP, UL94V-0 flame retardant

2.1.2 Optional: PBT+30%GF

2.1.3 Color: White, Black

2.2 Contact: Copper Alloy, thickness 0.25mm

2.3 Shell Materials: Brass, Iron, Stainless Steel; standard iron shell thickness 0.30mm with nickel plating

3. Contact Plating Options

3.1 Full plating: Tin, gold flash, 3μ",5μ",10μ",15μ",30μ" gold

3.2 Selective plating: Gold flash/Ni, 3μ"/Ni,5μ"/Ni,10μ"/Ni,15μ"/Ni,30μ"/Ni

3.3 Solder tail surface: Tin plating; mating area surface: gold plating

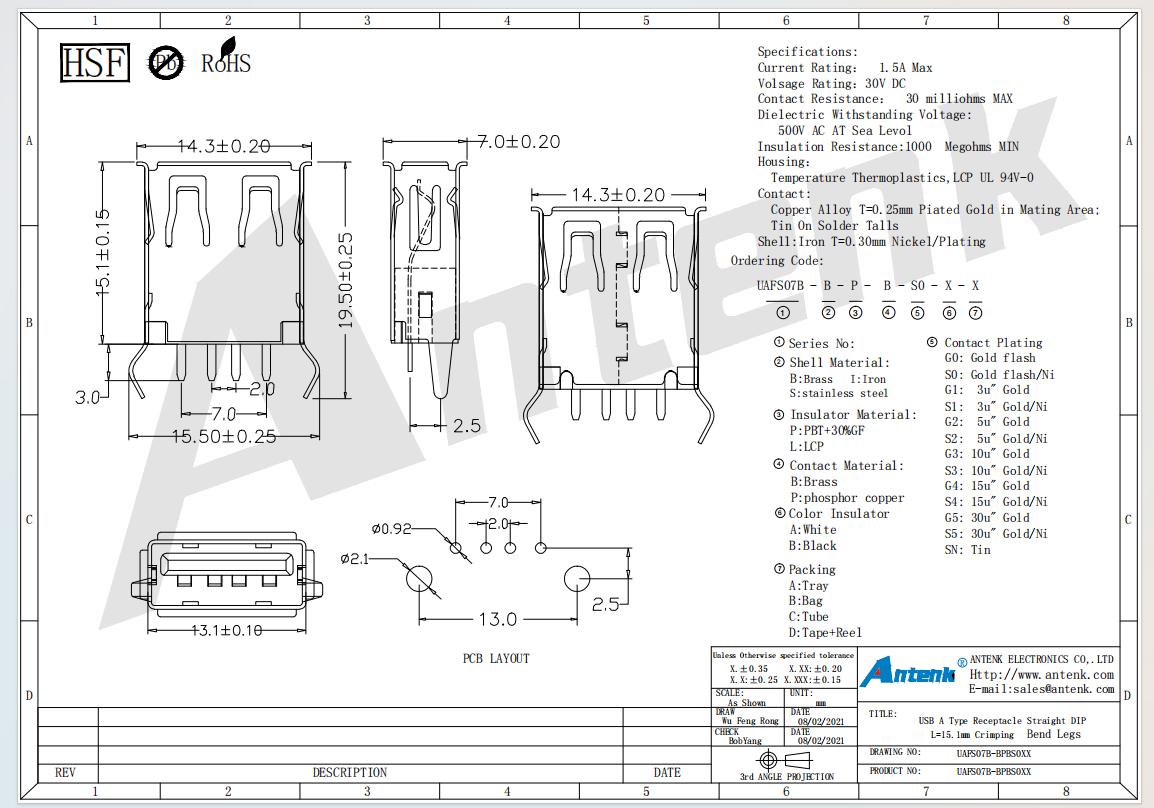

4. Dimension & Structure (Unit: mm)

4.1 Overall Length: L=15.1

4.2 Structure Type: Straight DIP with crimping bend legs

4.3 General Tolerance Rules: X.±0.35, X.X±0.25, X.XX±0.20, X.XXX±0.15

5. Packaging Types

5.1 A: Tray

5.2 B: Bag

5.3 C: Tube

5.4 D: Tape+Reel

6. Environmental Compliance

6.1 Standards: HSF, RoHS lead-free

7. Application Scenarios

7.1 Liquid crystal display modules, digital cameras

7.2 Communication equipment, industrial control panels

7.3 Portable storage devices, digital household appliances

7.4 Electronic toys, computer peripheral hardware

7.5 Automotive electronics, precision measuring instruments

8. Operation & Storage Precautions

8.1 Match shell material, insulator material, plating type and color with PCB design requirements

8.2 Complete DIP soldering strictly follow official PCB layout drawing

8.3 Avoid forced bending to prevent copper alloy contact fracture and LCP insulator damage

8.4 Store finished USB receptacles in dry sealed packaging to prevent oxidation of gold and tin plating layers

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

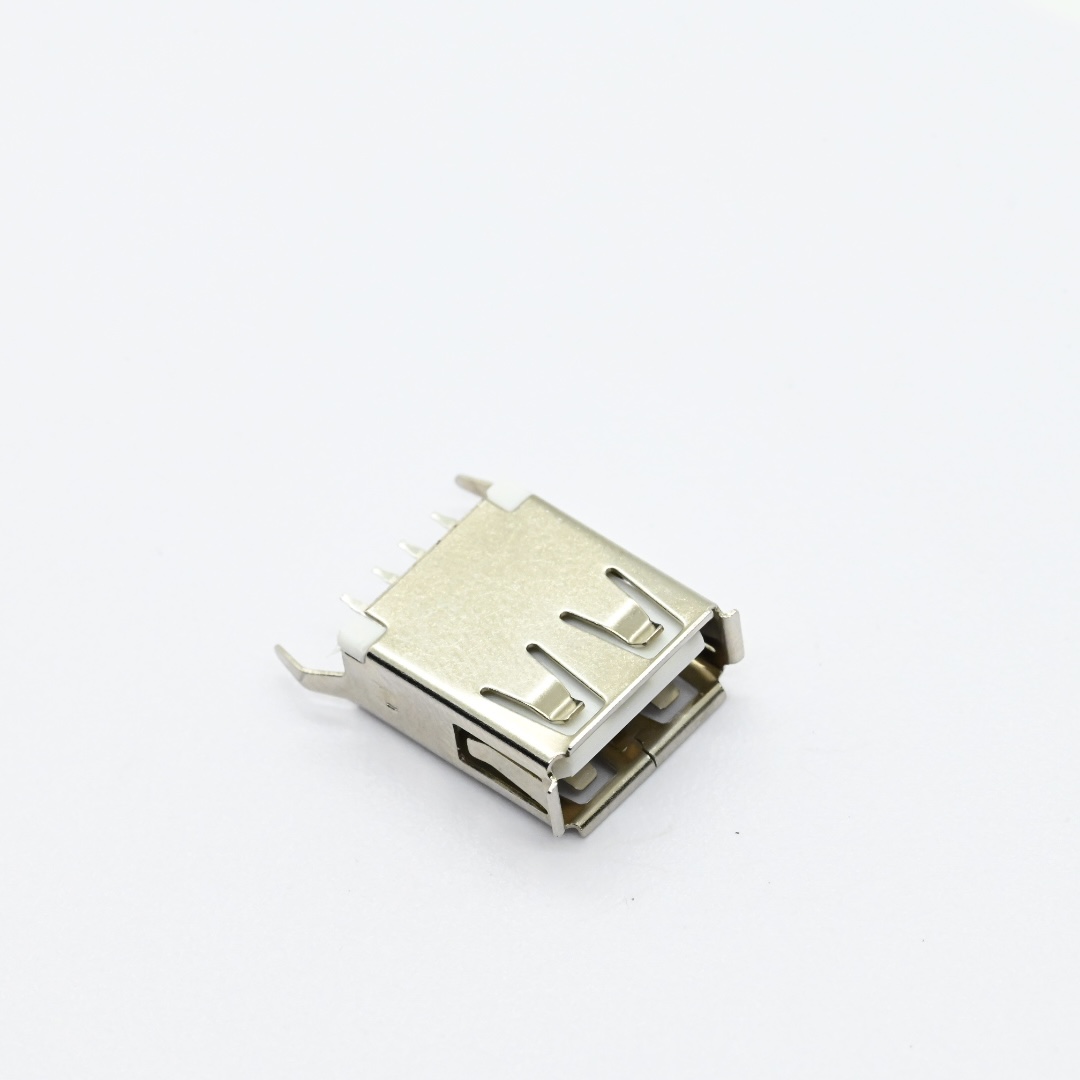

UAFS07B-BPBS0AD+USB A Type Receptacle Straight DIP L=15.lmm Crimping Bend Legs（6）

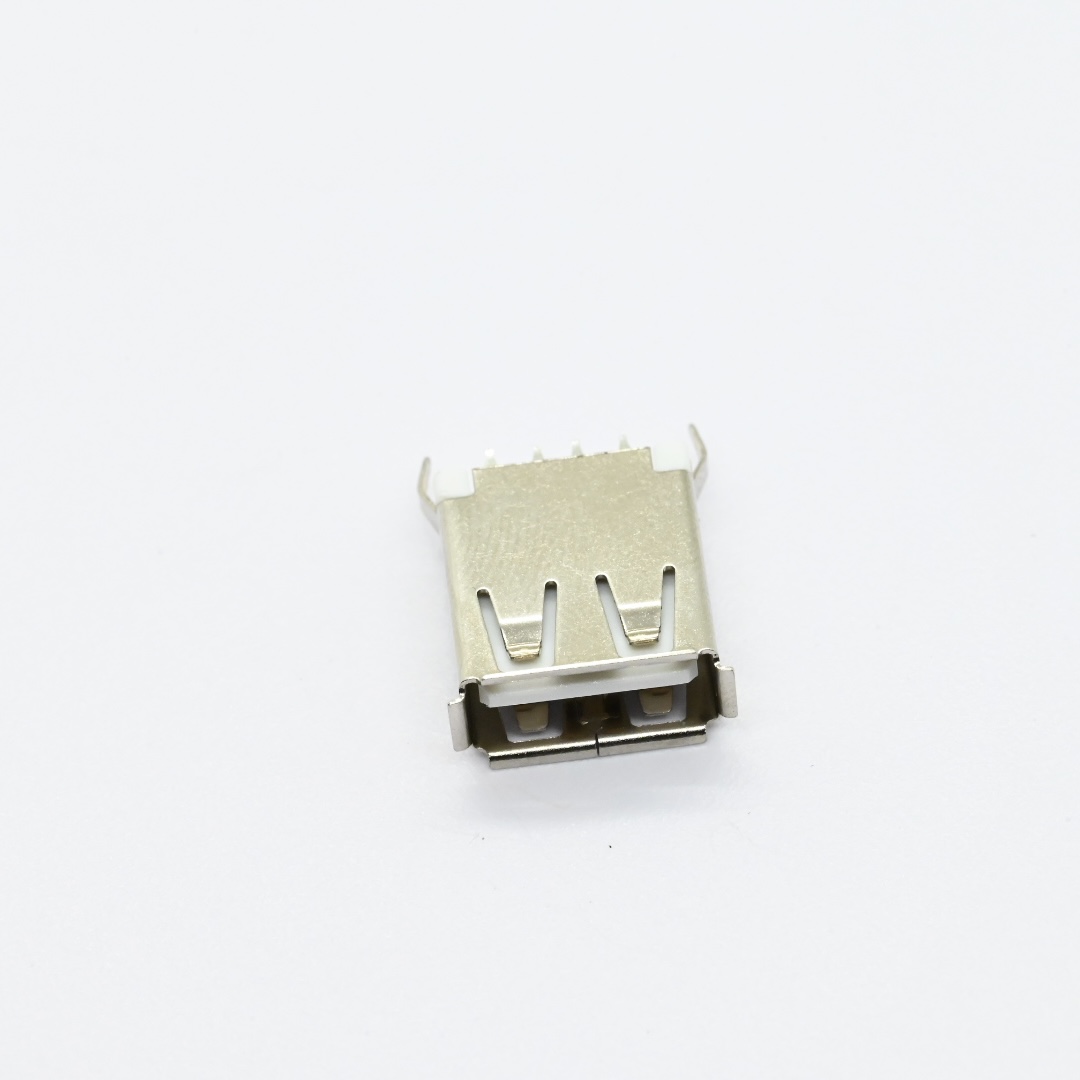

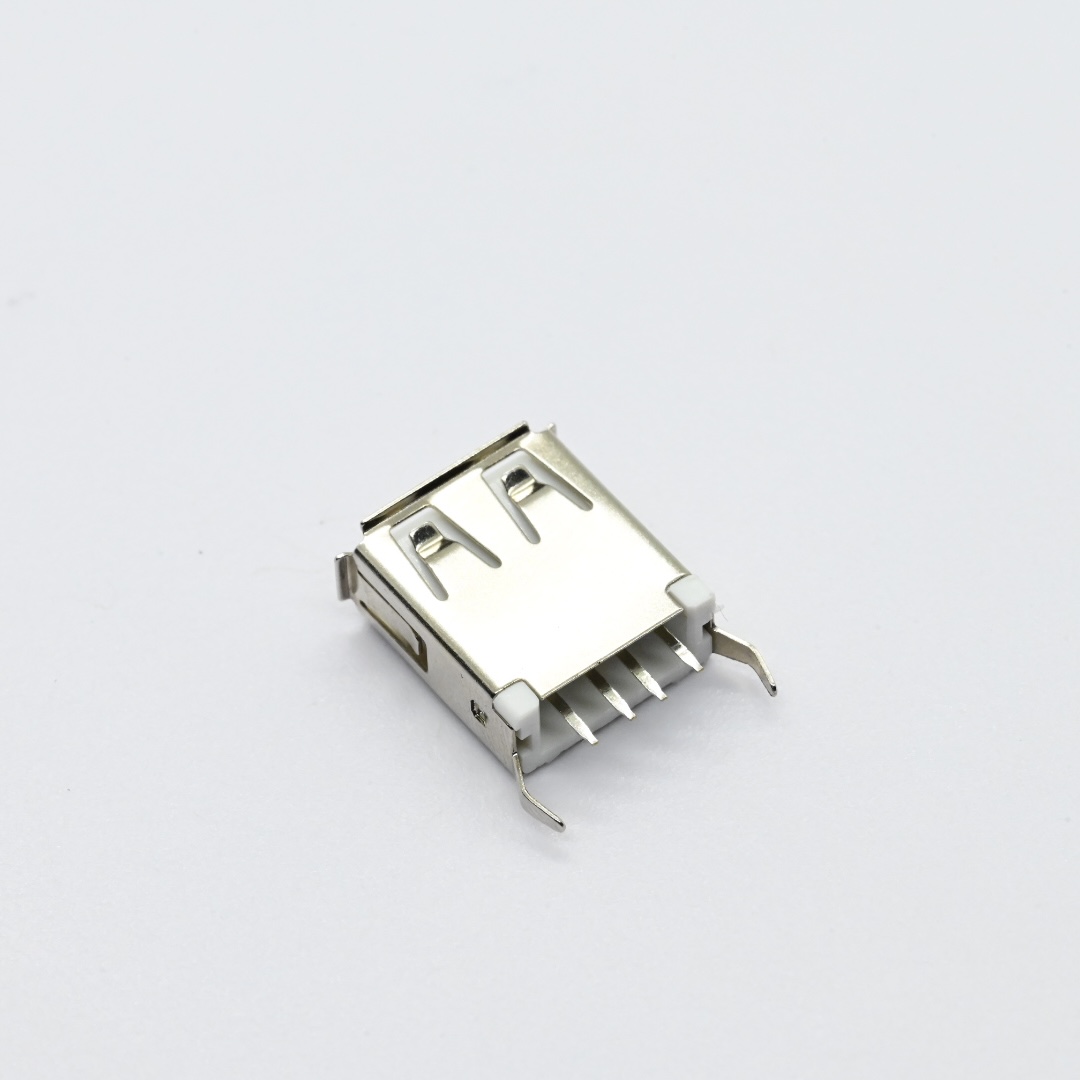

UAFS07B-BPBS0AD+USB A Type Receptacle Straight DIP L=15.lmm Crimping Bend Legs（1）

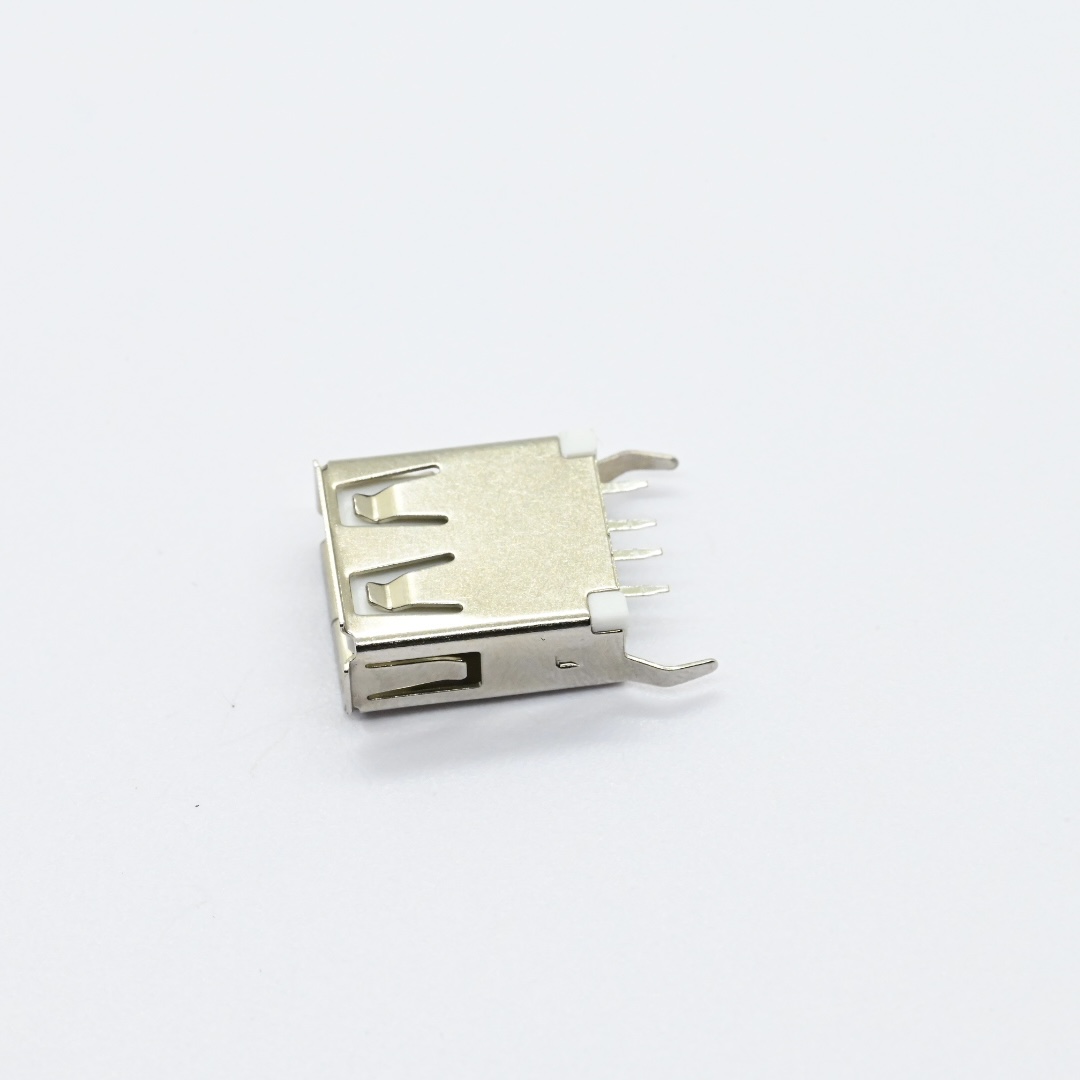

UAFS07B-BPBS0AD+USB A Type Receptacle Straight DIP L=15.lmm Crimping Bend Legs（2）

UAFS07B-BPBS0AD+USB A Type Receptacle Straight DIP L=15.lmm Crimping Bend Legs（5）

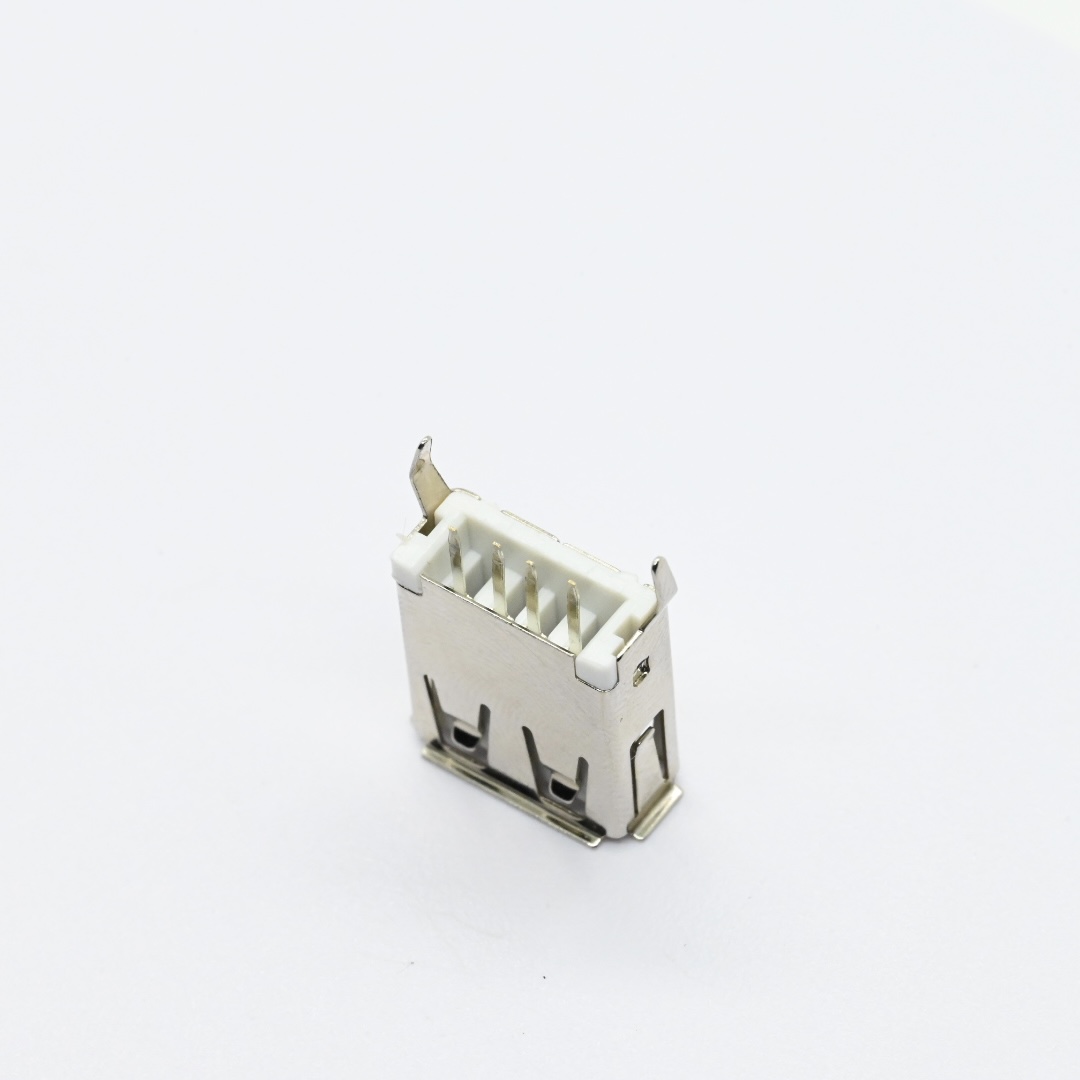

UAFS07B-BPBS0AD+USB A Type Receptacle Straight DIP L=15.lmm Crimping Bend Legs（4）

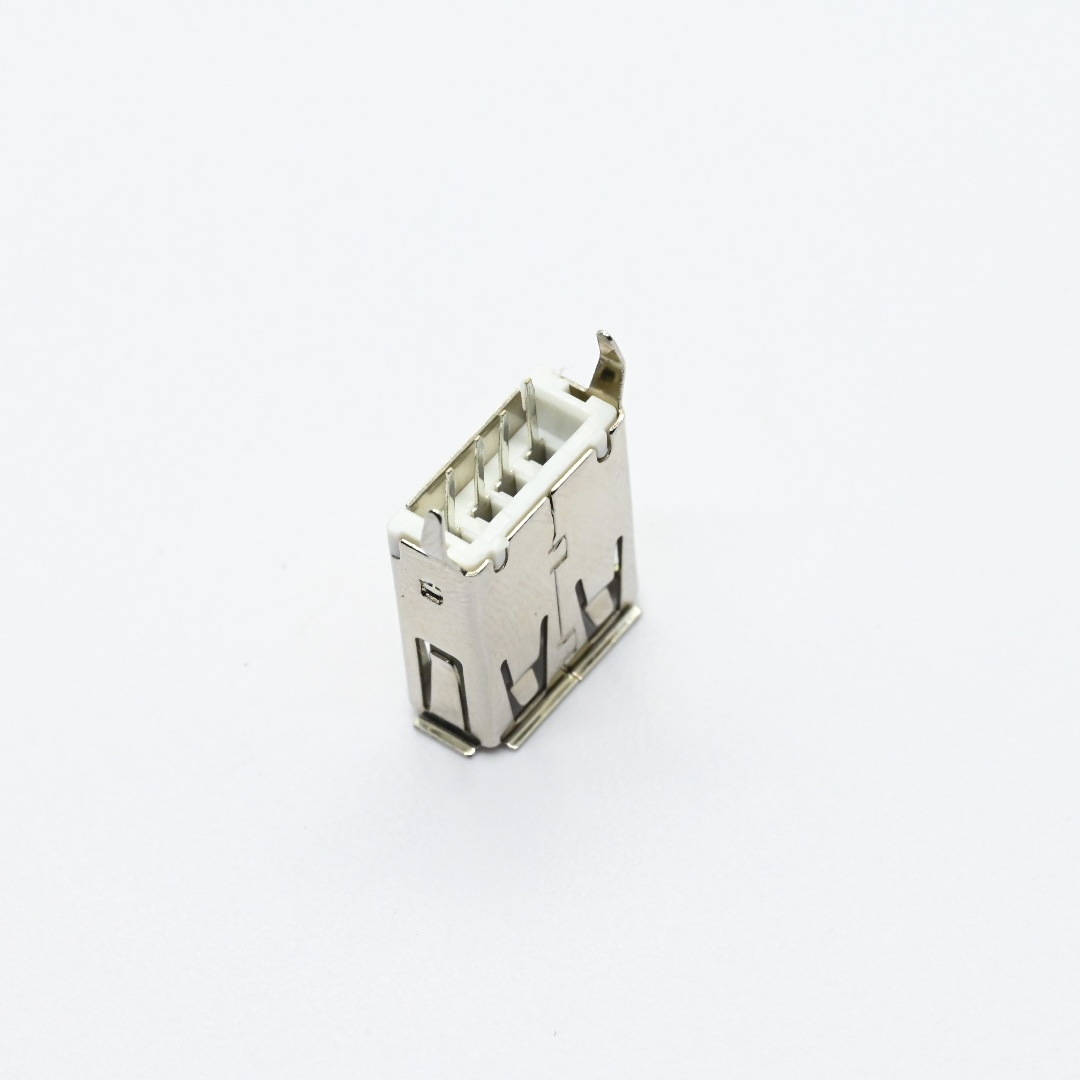

UAFS07B-BPBS0AD+USB A Type Receptacle Straight DIP L=15.lmm Crimping Bend Legs（3）
