Huizhou Antenk Electronics Co., Ltd. manufactures MFHES series 2.54 millimeter pitch machined socket connector to deliver stable board to board signal interconnection for high reliability PCB assembly, complying with drawing dimensional specifications to guarantee accurate through hole soldering and consistent mating performance with matched male pin headers. This straight solder tail receptacle adopts PPS insulator housing with UL94V 0 flame retardant grade, brass sleeve and six finger beryllium copper contact clip supporting diversified plating options including tin and multiple grades gold plating, electrically rated for maximum 3.0 Amp working current, maximum 10 milliohms contact resistance and 1000V RMS dielectric strength, typical insertion force 3 Newton and withdrawal force 1.5 Newton with minimum 500 mating cycles mechanical lifespan while meeting RoHS and HSF environmental standards. It provides single row and double row versions with 4.2 millimeter and 7.0 millimeter plastic height, contact quantities ranging from 1 to 80 positions and multiple packing selections to adapt automated mass production. This machined socket connector is widely deployed in liquid crystal display modules, digital cameras, communication hardware, industrial control panels, digital household appliances, computer peripherals, automotive electronic assemblies and precision measuring instruments. Operators should select appropriate row type body height contact count and plating finish for project requirements, implement official recommended PCB layout for through hole soldering, control soldering temperature to avoid PPS housing damage and store finished connectors inside dry sealed packages to prevent beryllium copper and brass component oxidation. Unlike competitors outsourcing stamping machining and plating services Antenk carries out complete in house production covering independent plastic and metal mold development, precision contact machining, PPS injection molding and multi grade electroplating plus comprehensive laboratory reliability validation. We hold ISO9001 ISO14001 IATF16949 and UL E472792 certifications complying with REACH rules, own over two hundred fifty plastic connector molds and one hundred eighty metal terminal molds, deliver custom solutions and round the clock engineering support, and over seventy percent socket connector products are exported globally with trustworthy ANTENK brand mass‑production performance.

1. Beryllium Copper Contact Clip maintains stable spring pressure to realize low contact resistance after repeated mating cycles.

2. PPS High Temp Insulator Body resists high soldering heat and delivers reliable flame retardant property for through hole assembly.

3. Six Finger Machined Socket ensures uniform contact pressure for steady electrical connection with corresponding mating pins.

Detailed Specifications:

1. Electrical Specifications

1.1 Maximum rated current: 3.0 Amp

1.2 Maximum contact resistance: 10 milliohms

1.3 Dielectric strength: 1000V RMS

2. Mechanical Specifications

2.1 Typical insertion force: 3 N

2.2 Typical withdrawal force: 1.5 N

2.3 Minimum mechanical life: 500 mating cycles

2.4 Mating pin diameter range: 0.7‑0.9 mm for Type1 and Type2

2.5 Terminal style: straight solder tail for through‑hole PCB mounting

3. Material & Plating

3.1 Insulator material: PPS, UL94V‑0 flame retardant

3.2 Sleeve material: Brass

3.3 Contact clip material: Beryllium copper, 6‑finger contact structure

3.4 Plating options: Tin 150", Tin 200", Gold flash, Gold 3u", Gold 10u", Gold 15u"

4. Dimensional & Configuration Parameters (Unit: mm)

4.1 Pitch: 2.54 mm

4.2 Available insulator heights: 4.2 mm, 7.0 mm

4.3 Single row contact count range: 1‑40 positions

4.4 Double row contact count range: 2‑80 positions

4.5 Types: Type1 Type2 Type3 Type4 and special custom version

4.6 PCB layout dimensions follow drawing requirements

5. Packing Selections

5.1 Available packing modes: Tray, Bag, Tube, Tape Reel

6. Compliance Standard

6.1 Compliance: RoHS and HSF compliant

7. Application Scenarios

7.1 Liquid crystal display modules, digital cameras

7.2 Communication hardware, industrial control panels

7.3 Digital household appliances, computer peripherals

7.4 Automotive electronic assemblies, precision measuring instruments

8. Operation & Storage Precautions

8.1 Select proper row type insulator height contact quantity and plating finish for practical project requirements

8.2 Use recommended PCB layout for through‑hole soldering process

8.3 Control soldering temperature to prevent thermal damage to PPS insulator

8.4 Do not exceed 3.0 Amp maximum current rating during operation

8.5 Store finished connectors in dry sealed packages to avoid oxidation of beryllium copper and brass components

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

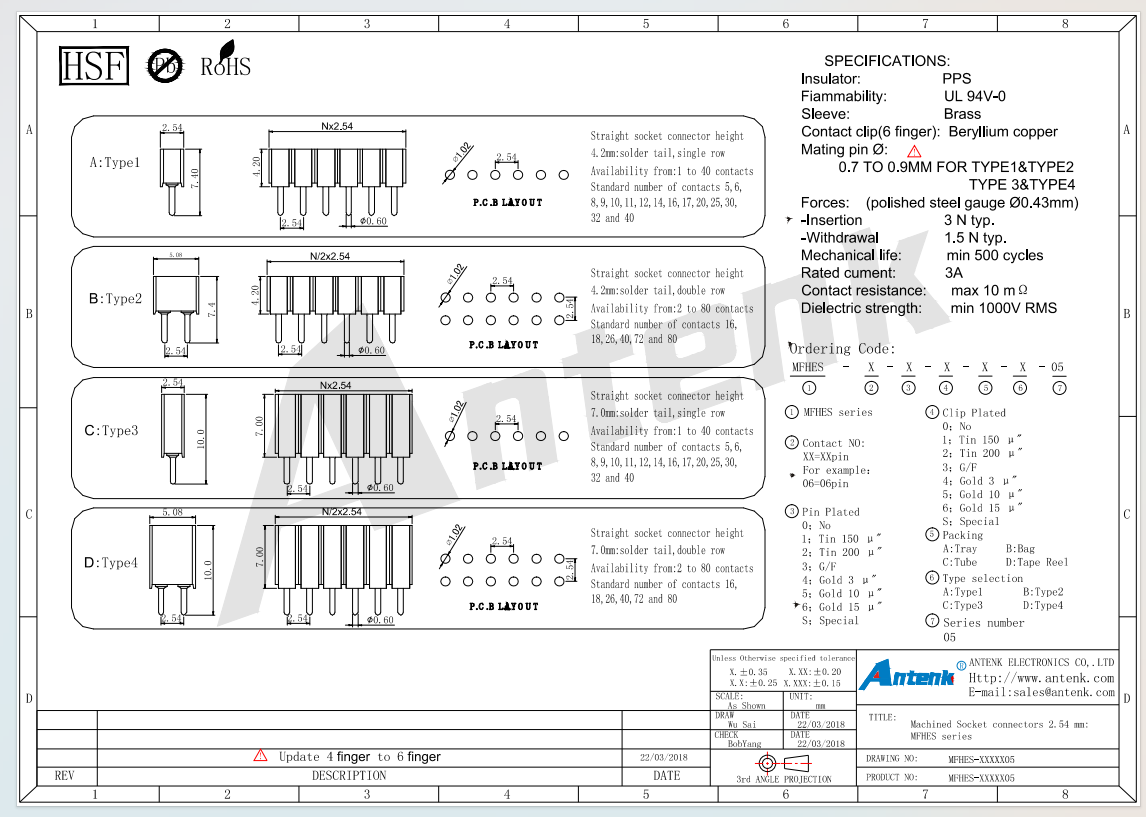

Product Drawing:

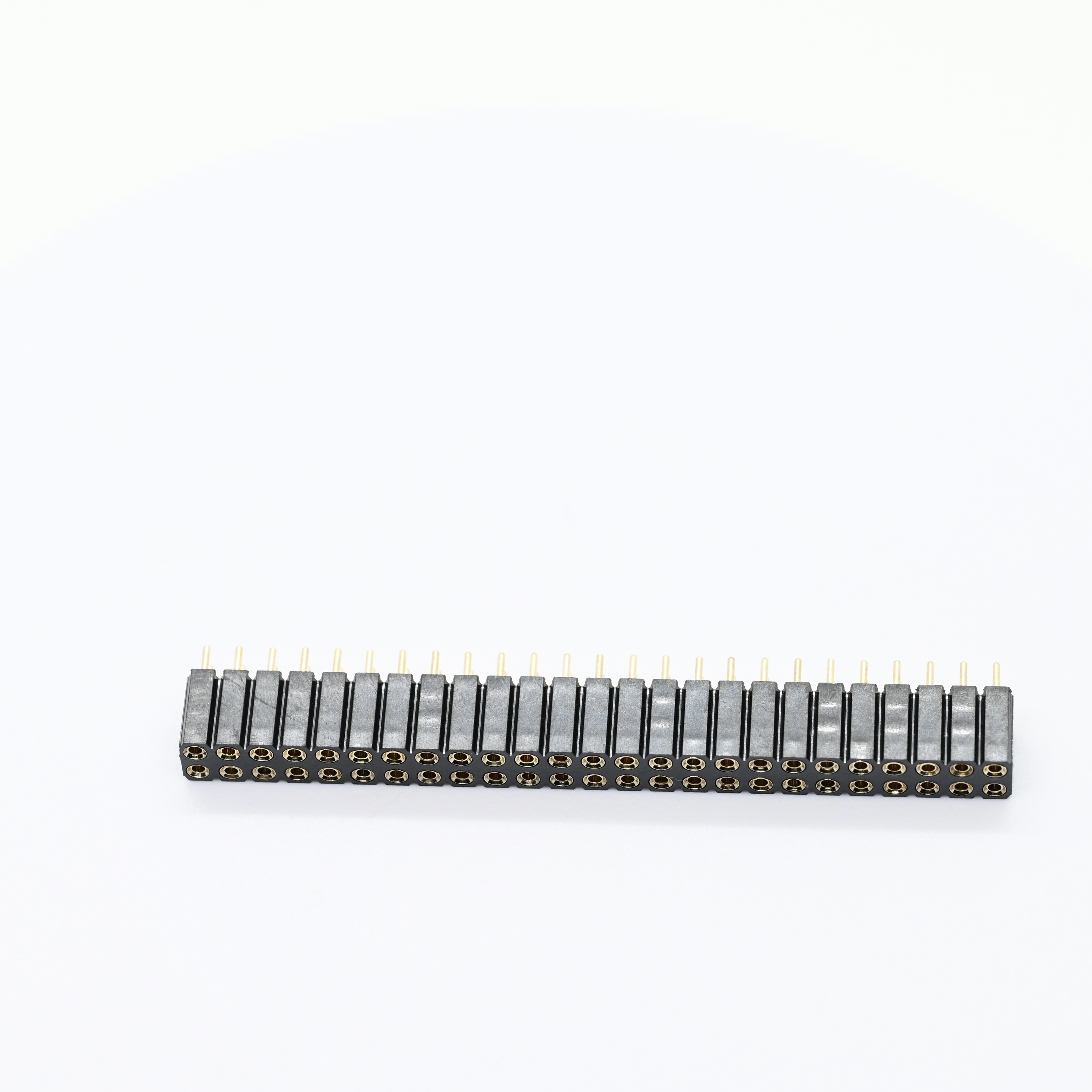

MFHES-50-3-3-C-D-05+Machined Socket connectors 2.54 mm MFHES series（4）

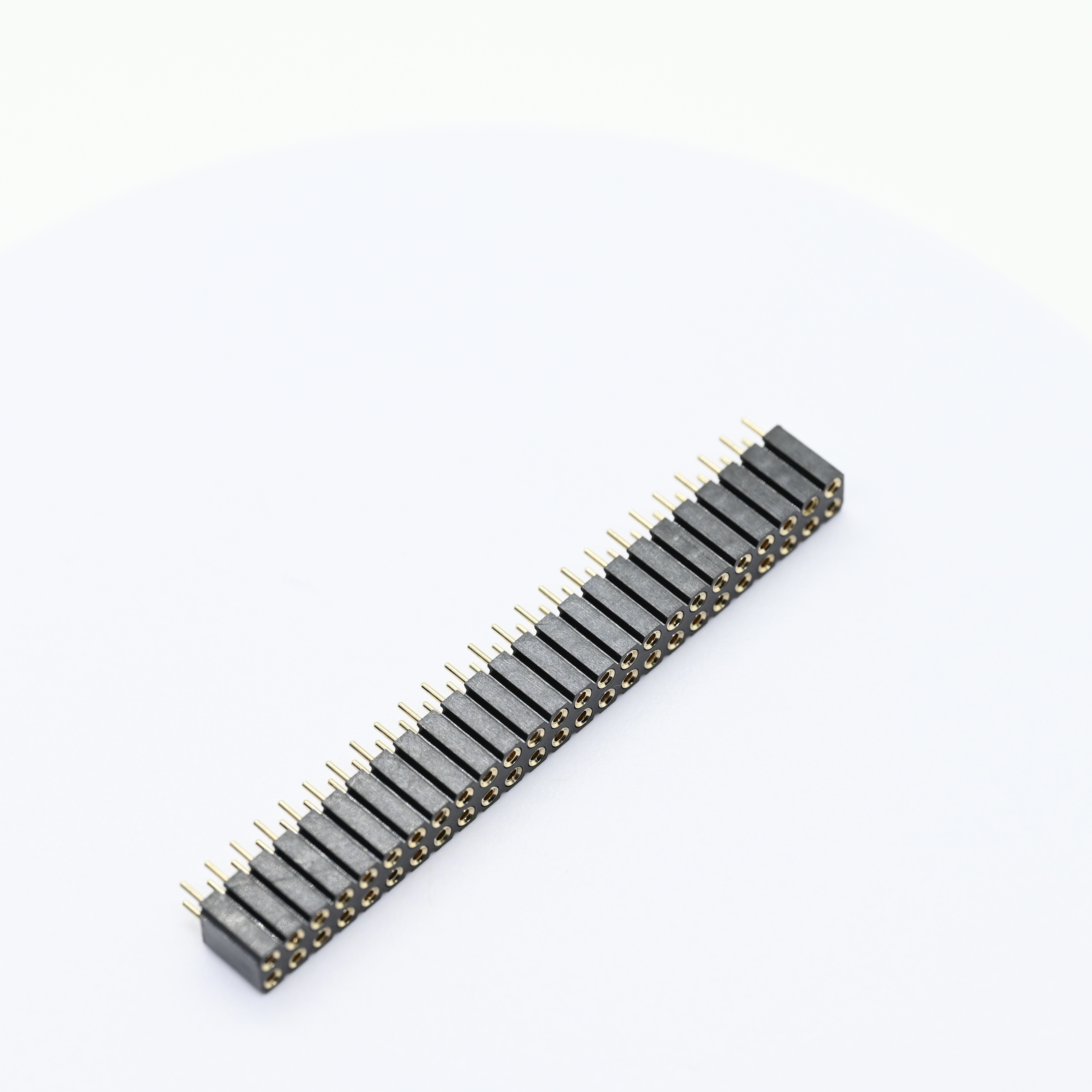

MFHES-50-3-3-C-D-05+Machined Socket connectors 2.54 mm MFHES series（3）

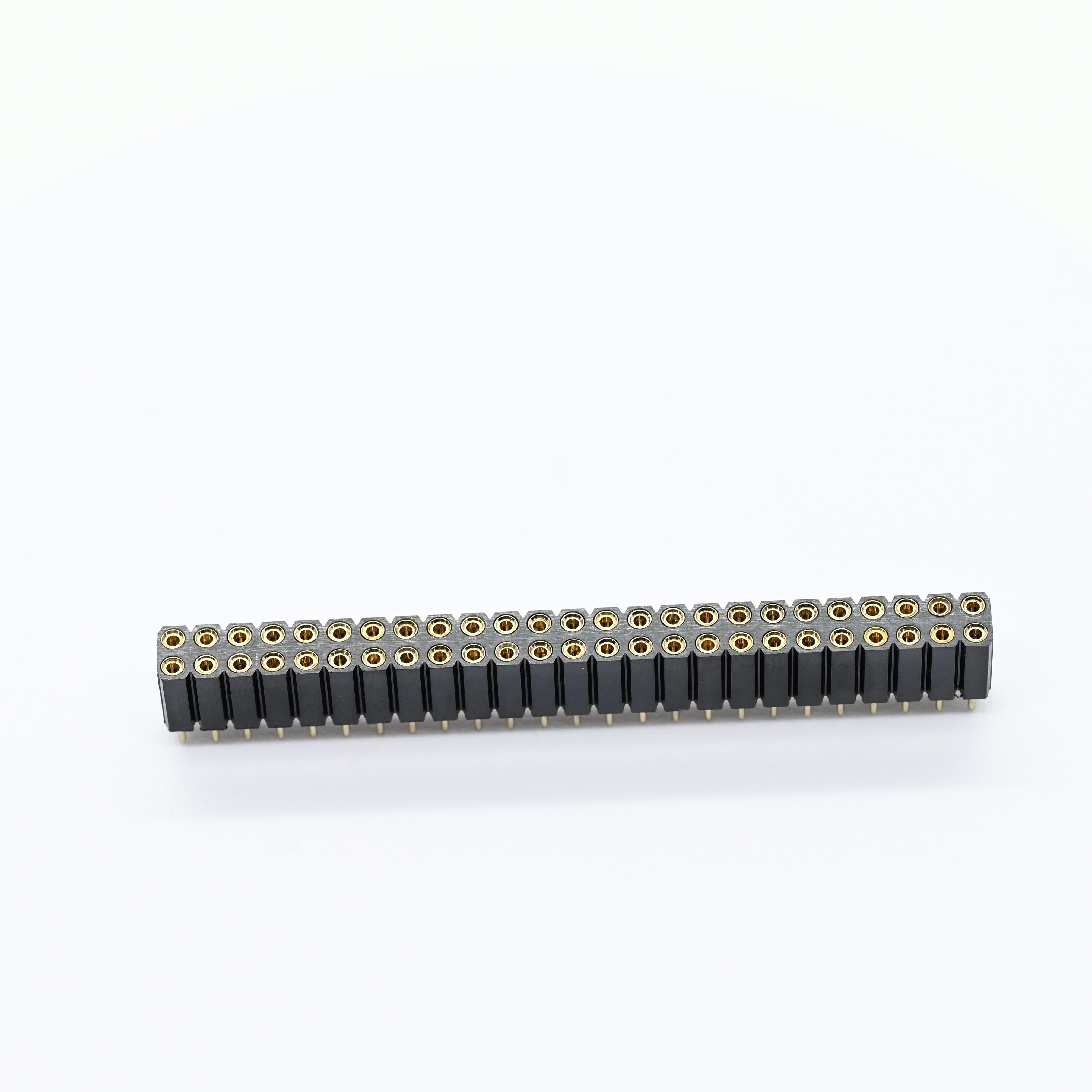

MFHES-50-3-3-C-D-05+Machined Socket connectors 2.54 mm MFHES series（5）

MFHES-50-3-3-C-D-05+Machined Socket connectors 2.54 mm MFHES series（6）

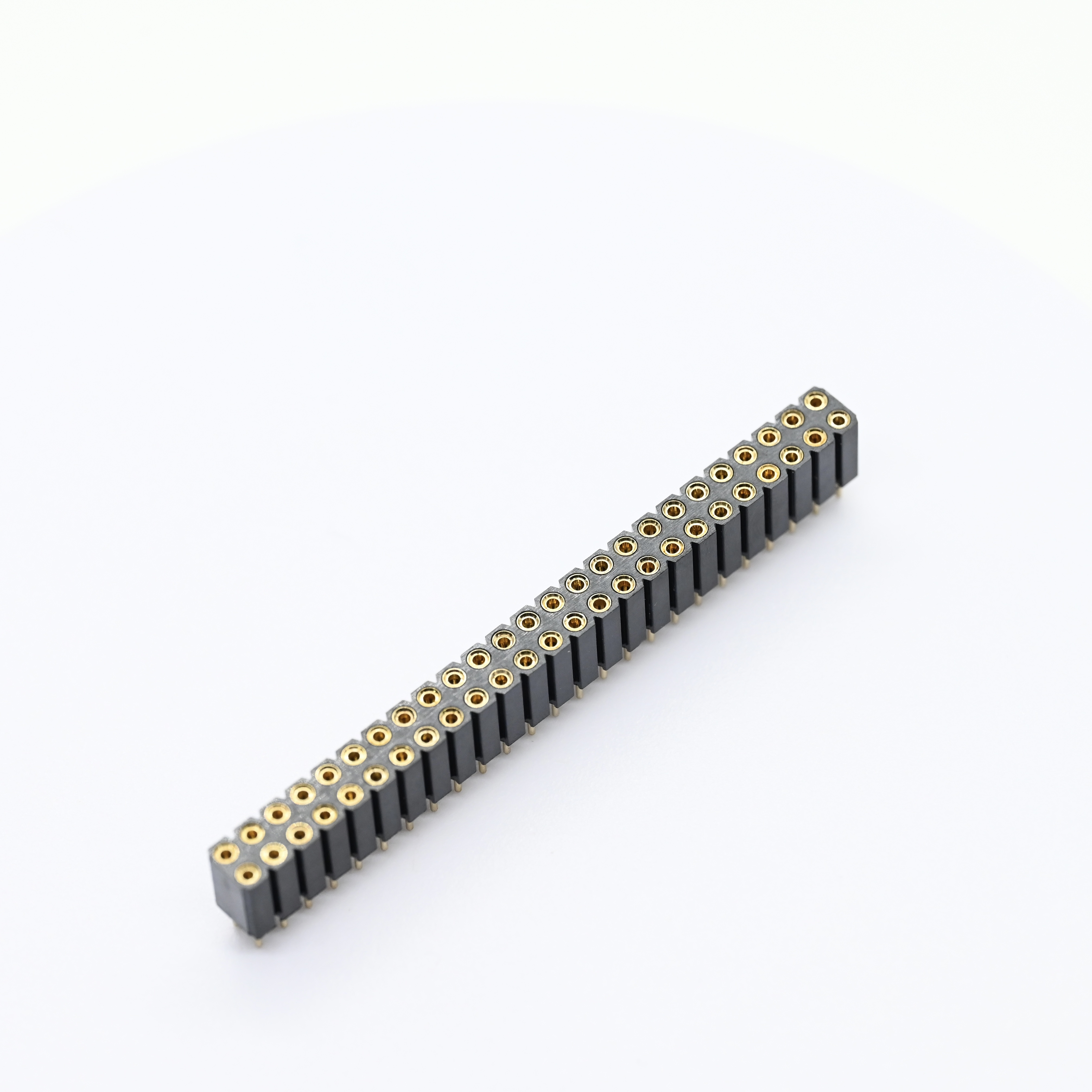

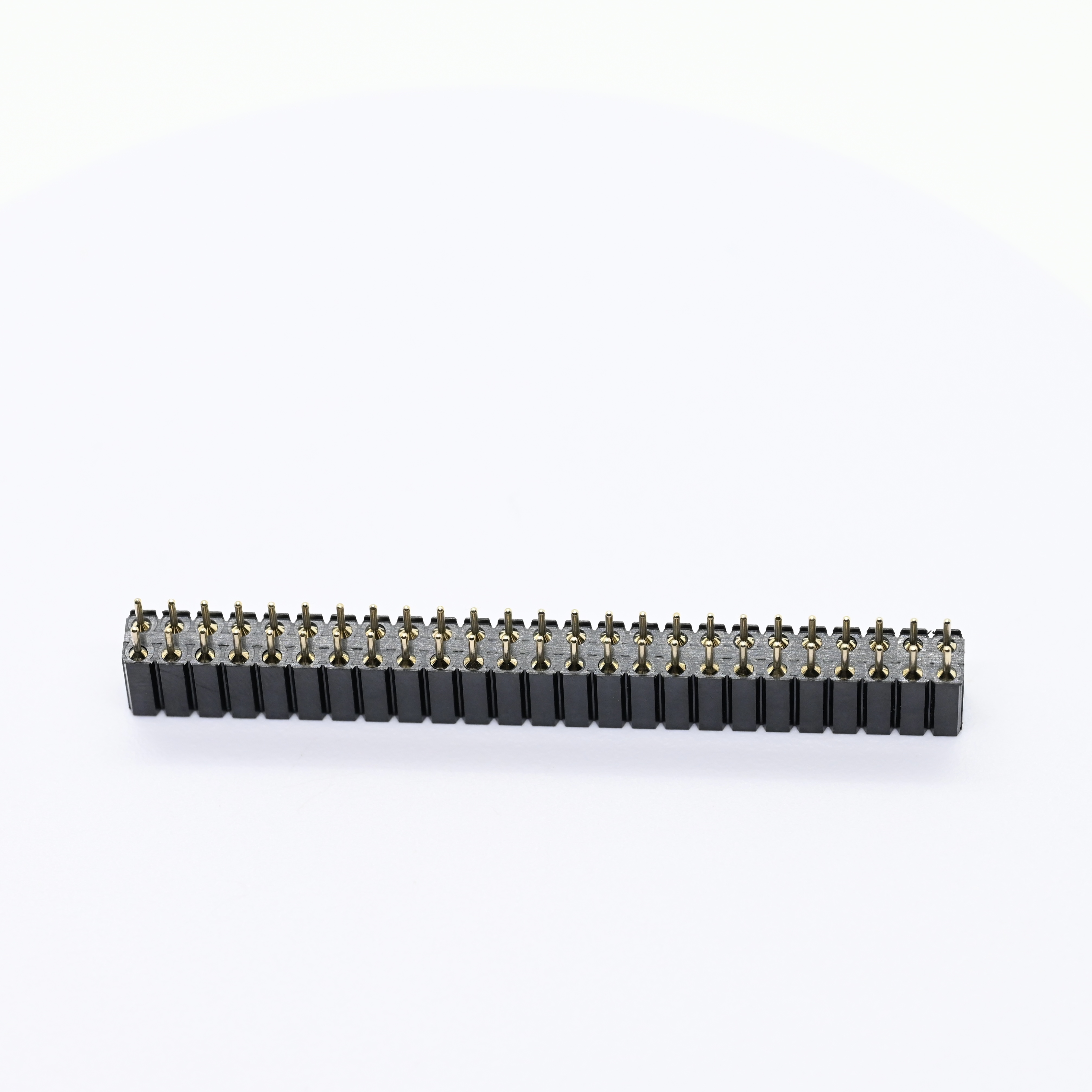

MFHES-50-3-3-C-D-05+Machined Socket connectors 2.54 mm MFHES series（1）

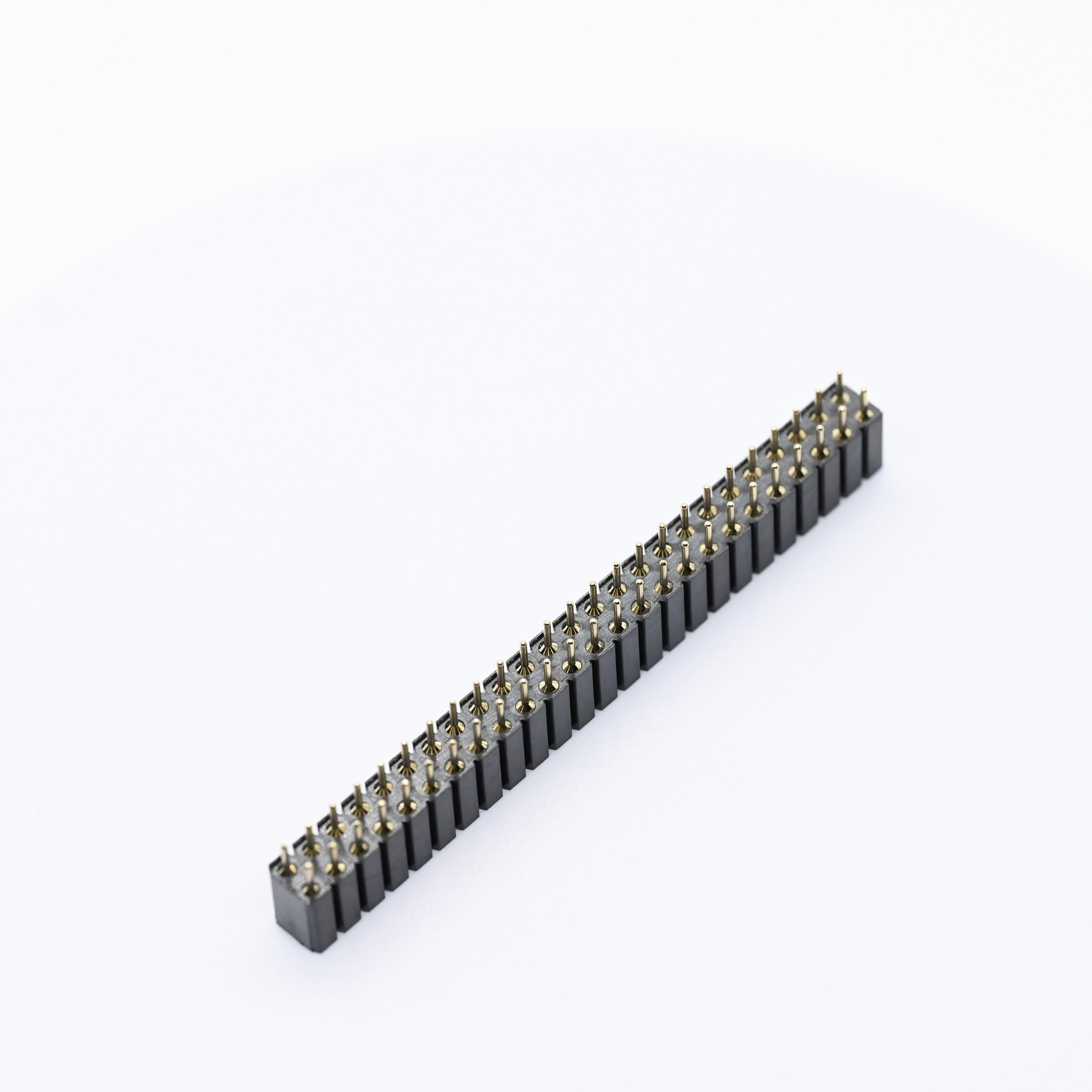

MFHES-50-3-3-C-D-05+Machined Socket connectors 2.54 mm MFHES series（2）
