Product Description:

Huizhou Antenk Electronics Co., Ltd. produces ECS series 3.96 millimeter solder type card edge slot connectors to realize stable power and signal interconnection between main backplane and daughter expansion boards. This card edge slot adopts 30 percent glass filled PBT insulator housing with UL94V 0 flame retardant grade, contacts are built by brass or phosphor bronze material and support rich plating alternatives including tin gold flash and multiple thickness gold plating for diverse operating environment demands. It delivers 5 amp rated current, maximum 20 milliohm contact resistance under 100mA direct current and minimum 5000 megaohm insulation resistance under 500V direct current with working temperature ranging from minus 55 degree Celsius to plus 105 degree Celsius. Users implement through hole solder mounting on printed circuit boards and select proper pin count contact plating and packaging solution based on daughter board specification, follow drawing tolerance requirement during PCB design and store goods under dry surroundings to prevent contact oxidation. Different from competitors who outsource core procedures Antenk completes full in house production including independent mold development terminal stamping plastic injection molding electroplating and comprehensive laboratory reliability testing. We obtain ISO9001 ISO14001 IATF16949 and UL certifications, provide tray bag tube tape and reel packaging options with continuous engineering support, over seventy percent of connector products are exported globally. Feel free to submit your project specifications for free sample evaluation and full datasheet resources.

1. Glass Filled Edge Connector uses glass reinforced PBT housing to deliver high mechanical strength and reliable flame retardant performance for industrial board connection.

2. Solder Mount Edge Slot adopts through hole solder installation method for firm fixing on printed circuit boards and stable signal transmission.

3. Brass Contact Edge Connector features high conductivity brass contacts to maintain stable electrical performance for long term plug in operation.

Detailed Specifications:

1. Mechanical Specifications

1.1 Product type: Solder type card edge slot connector

1.2 Measurement unit: millimeter

1.3 Key dimension: 3.96 millimeter pitch, customizable pin count, DIP length 4 millimeter. General drawing tolerances X.±0.35, X.X:±0.25, shtur:±0.15, X.XX:±0.20. Refer to official engineering drawing for full dimension tables and PCB footprint reference data.

1.4 Contact plating options: Gold flash, gold flash plus tin, 3u gold, 3u gold plus tin, 5u gold, 5u gold plus tin,10u gold,10u gold plus tin,15u gold,15u gold plus tin,30u gold,30u gold plus tin, pure tin

1.5 Available packaging form: Tray, bag, tube, tube with cap, tape and reel, tape and reel with cap

1.6 CTA: Contact our engineering team to obtain complete dimension drawings and PCB layout files for your hardware design validation.

2. Material Construction

2.1 Insulator housing: 30 percent glass filled PBT with UL94V 0 flame retardant grade

2.2 Contact terminal: Brass or phosphor bronze material with multiple plating selections

3. Electrical & Performance Parameters

3.1 Rated current: 5 Amp

3.2 Maximum contact resistance: 20 milliohms maximum under 100mA direct current

3.3 Minimum insulation resistance: 5000 megaohms minimum at 500V direct current

3.4 Operating temperature range: minus 55 degree Celsius to plus 105 degree Celsius

4. Usage Method

4.1 Assembly mode: Through hole solder mounting onto printed circuit boards

4.2 Operation tip: Select proper pin count, contact plating and packaging solution based on daughter board and project requirements

5. Application Scenarios

5.1 Industrial control backplane systems

5.2 Daughter board expansion modules

5.3 Instrument and meter equipment

5.4 Communication electronic devices

6. Operation & Storage Precautions

6.1 Comply strictly with official drawing tolerance standards for PCB layout design

6.2 Avoid excessive insertion force to prevent terminal deformation

6.3 Keep products stored in dry environment to avoid oxidation of plated contact surfaces

6.4 Confirm pin quantity, plating specification and dimension parameters before mechanical and circuit design

6.5 CTA: Submit your pin count, plating and packaging demands, we can provide free sample evaluation and professional technical consultation.

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

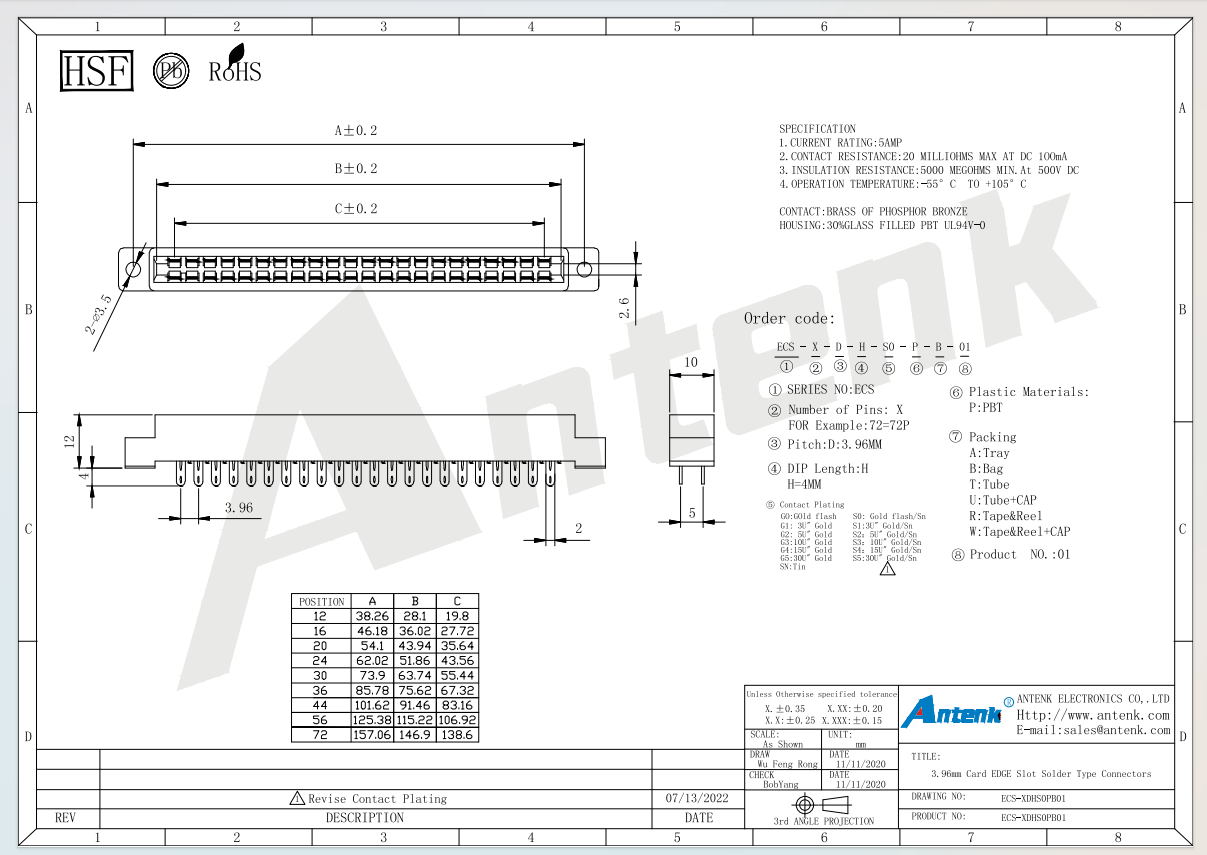

Product Drawing:

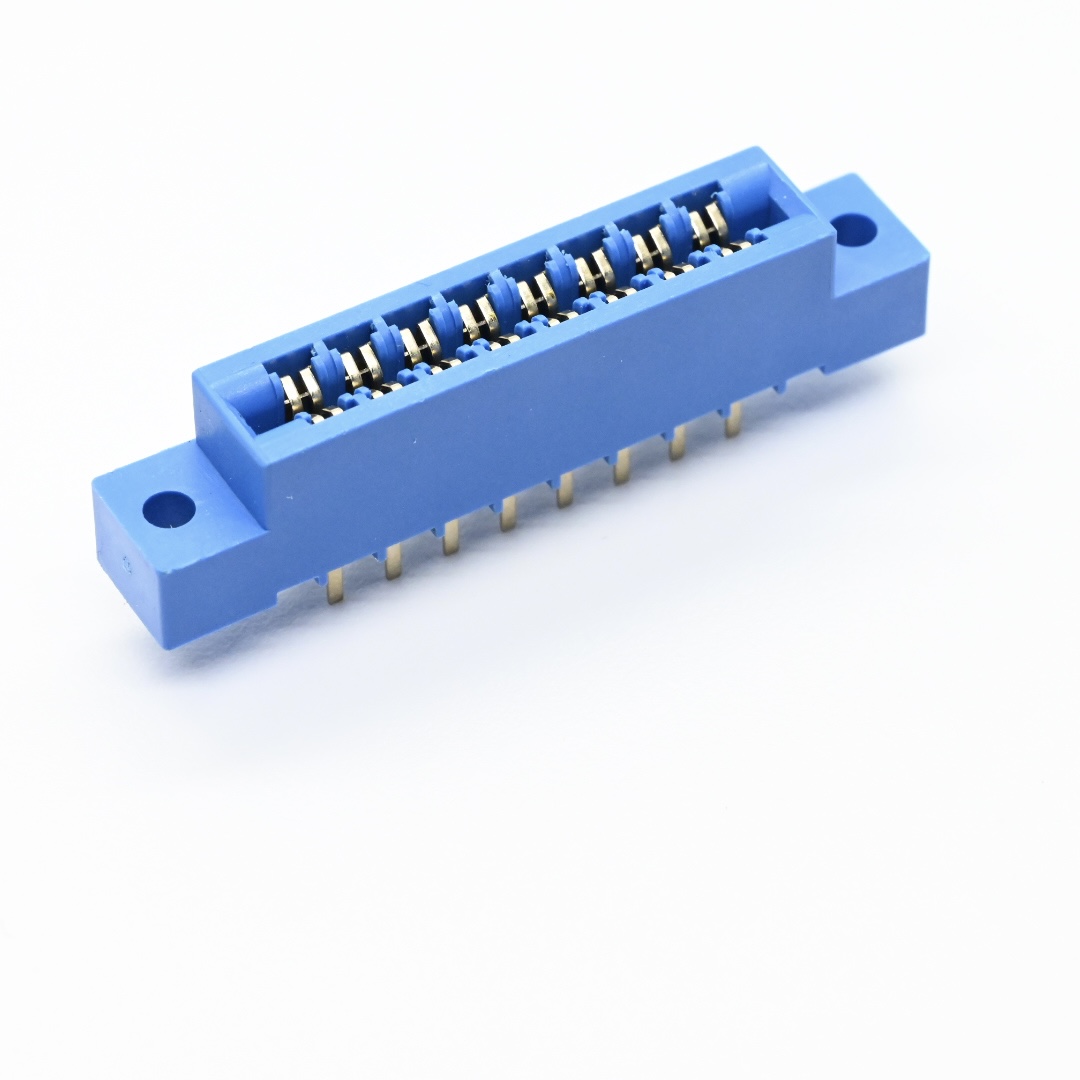

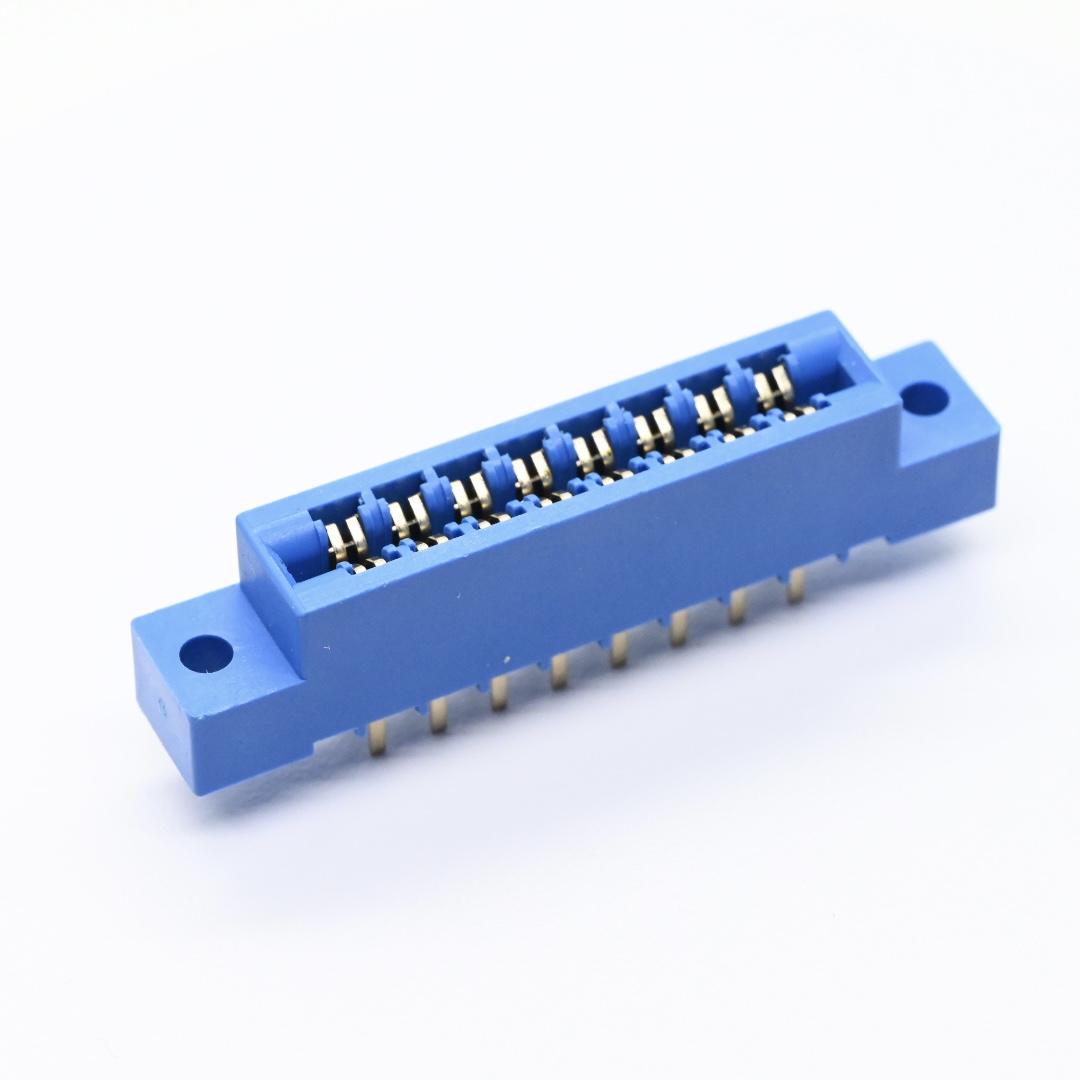

ECS-16PDHG0PB01+3.96mm Card EDGE Slot Solder Type Connectors（6）

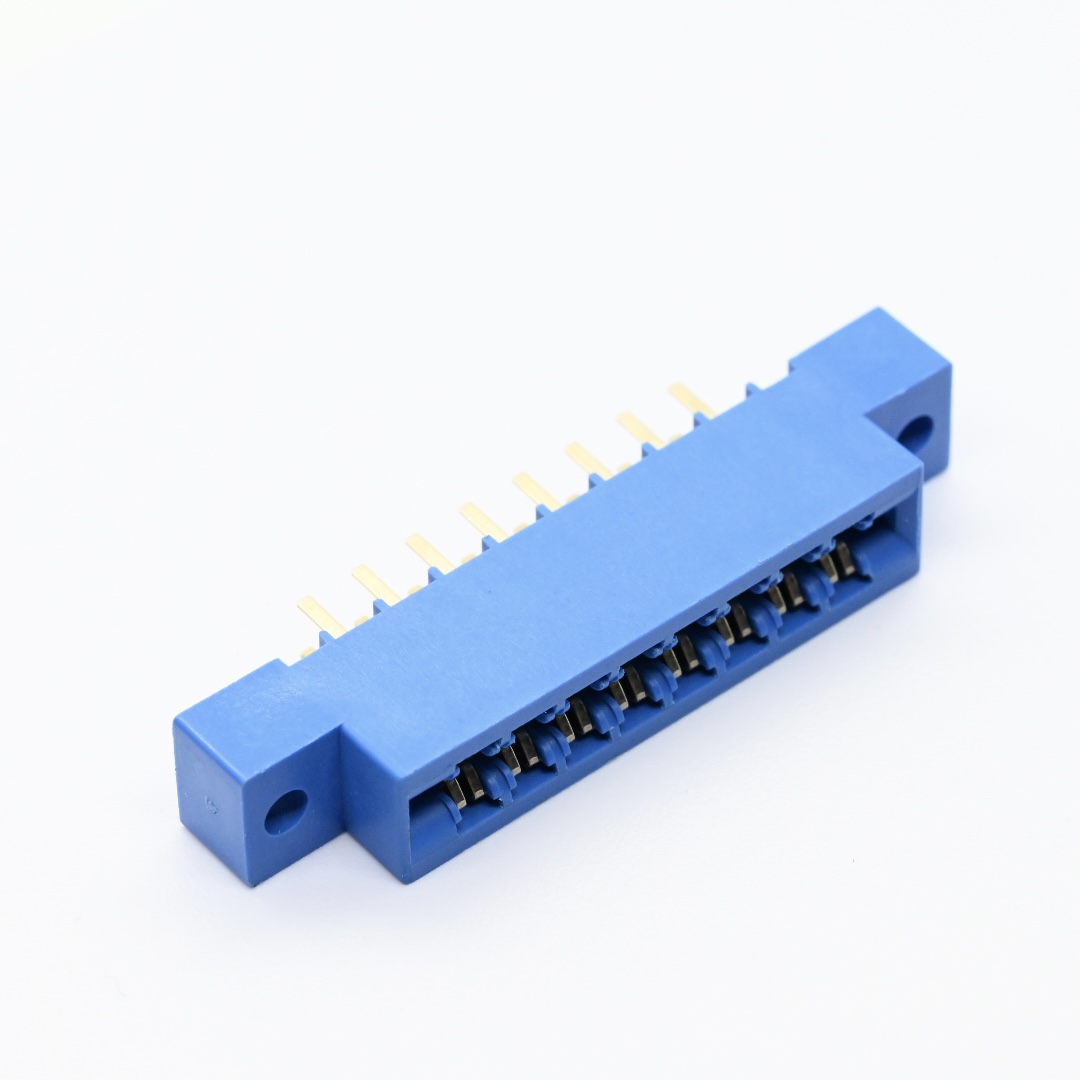

ECS-16PDHG0PB01+3.96mm Card EDGE Slot Solder Type Connectors（5）

ECS-16PDHG0PB01+3.96mm Card EDGE Slot Solder Type Connectors（4）

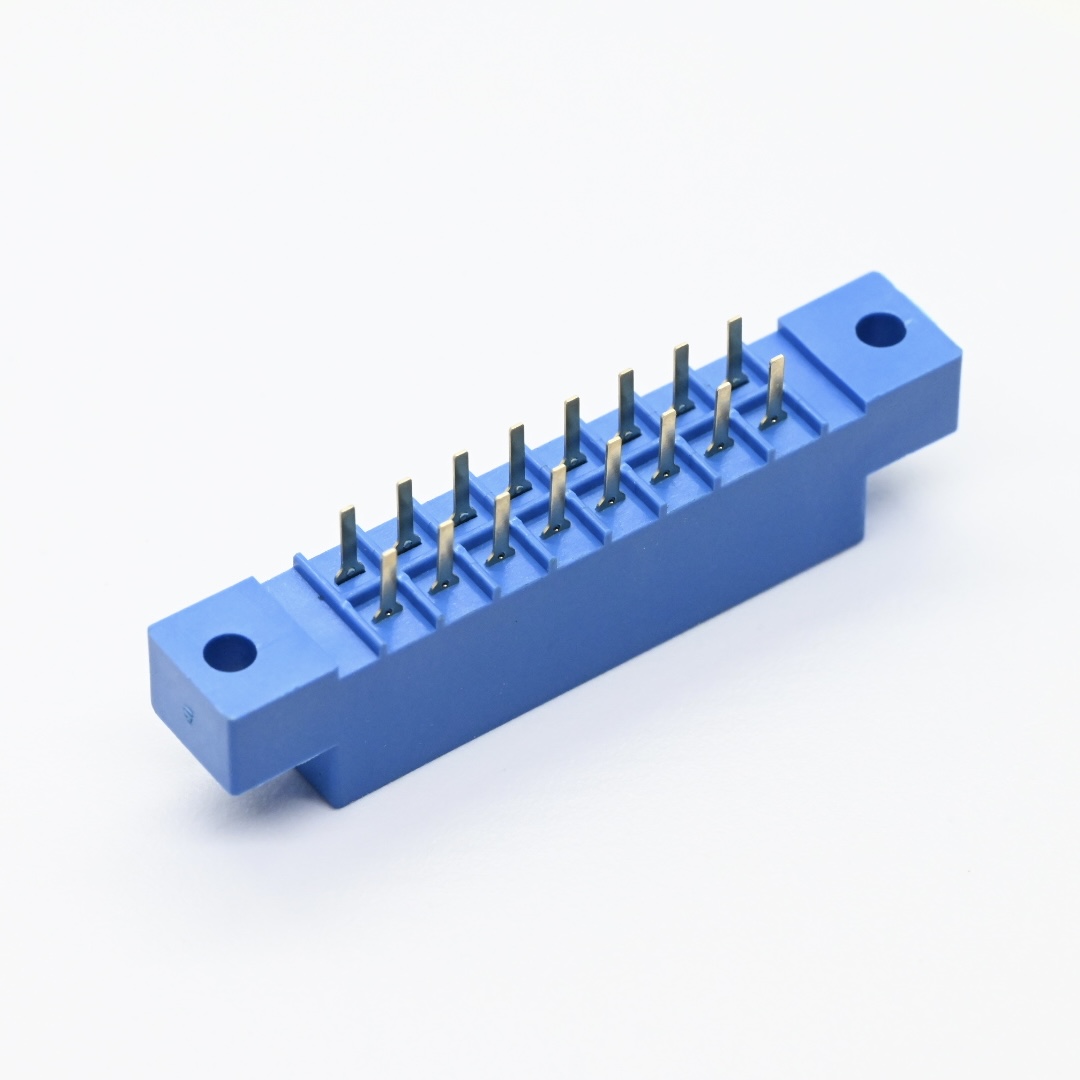

ECS-16PDHG0PB01+3.96mm Card EDGE Slot Solder Type Connectors（2）

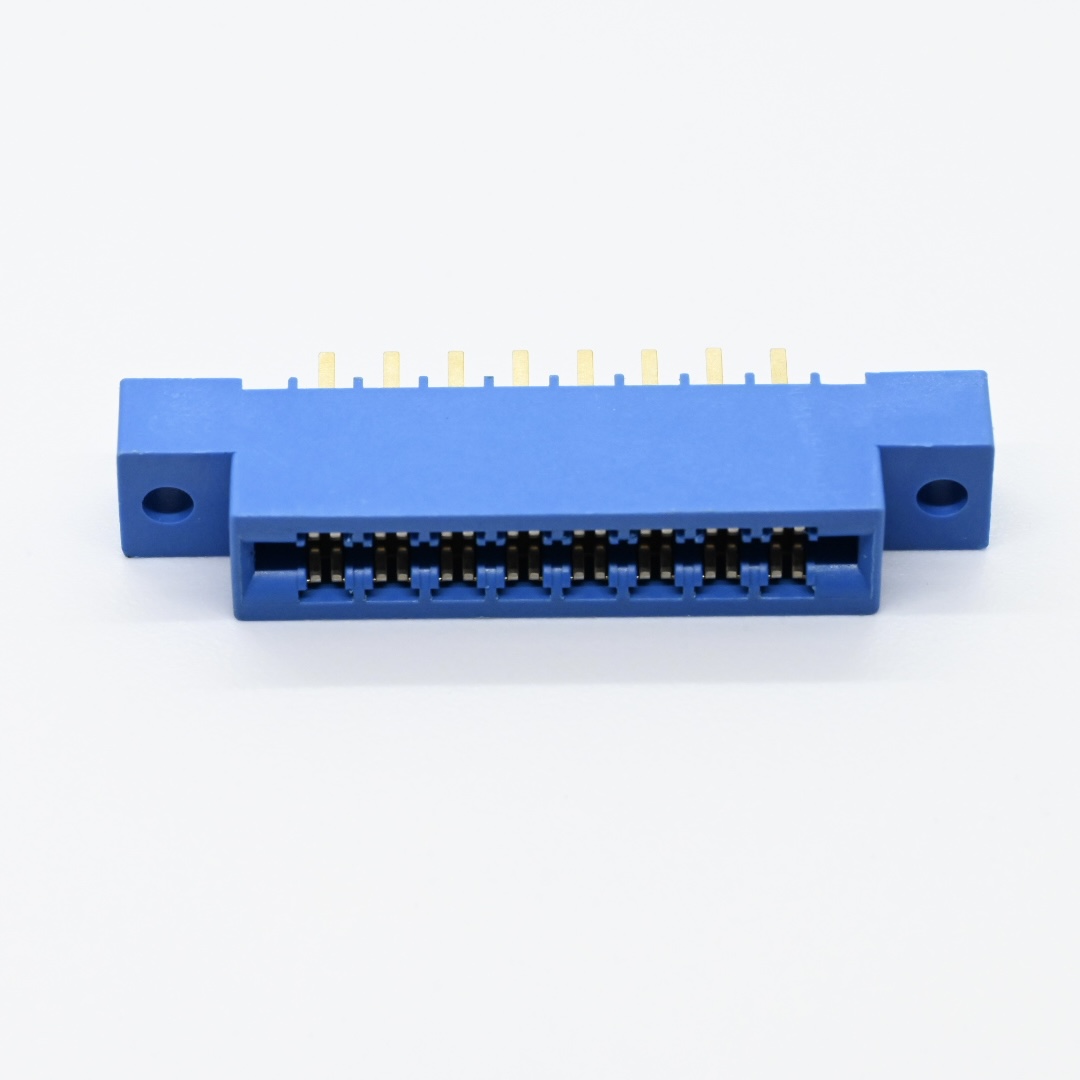

ECS-16PDHG0PB01+3.96mm Card EDGE Slot Solder Type Connectors（3）

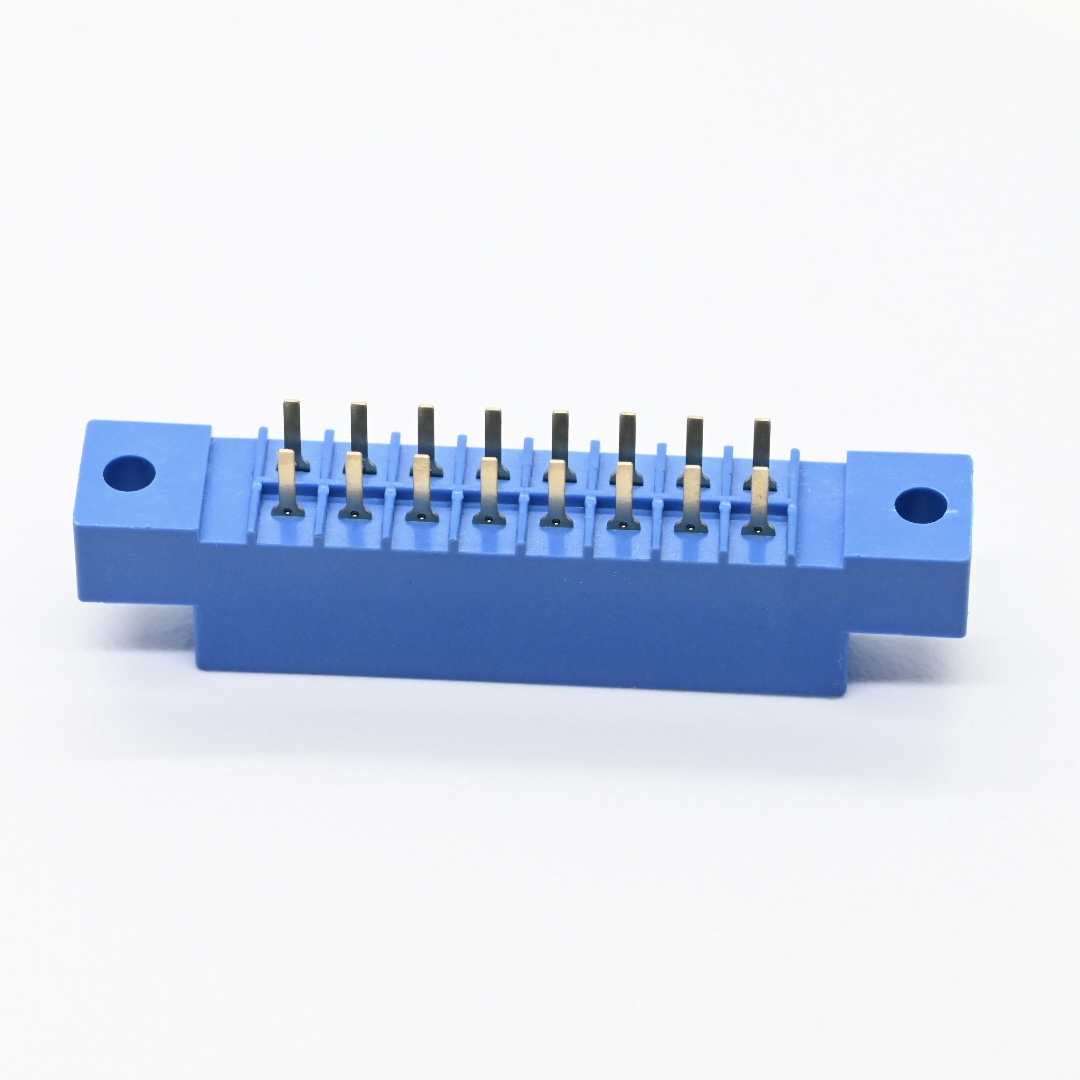

ECS-16PDHG0PB01+3.96mm Card EDGE Slot Solder Type Connectors（1）
