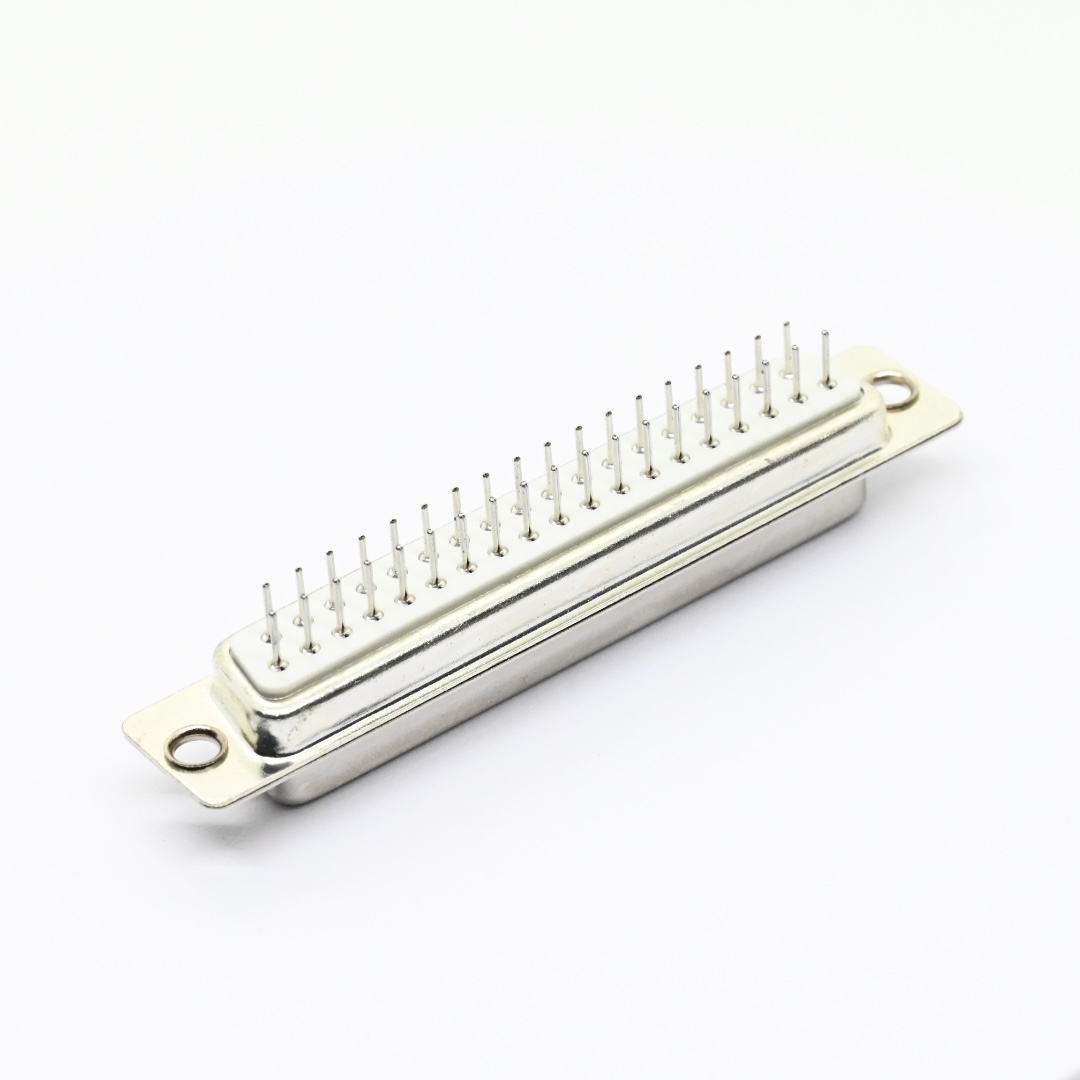

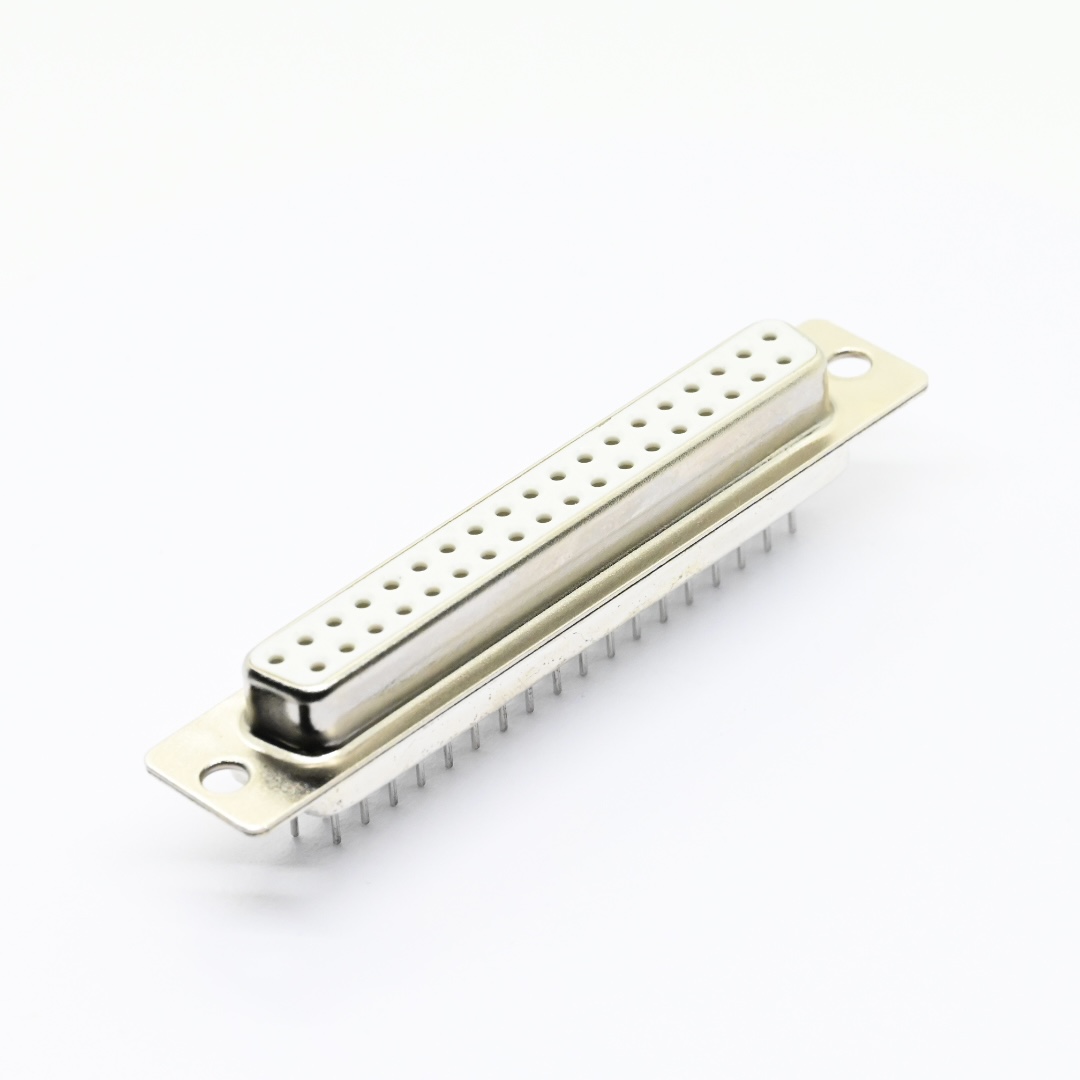

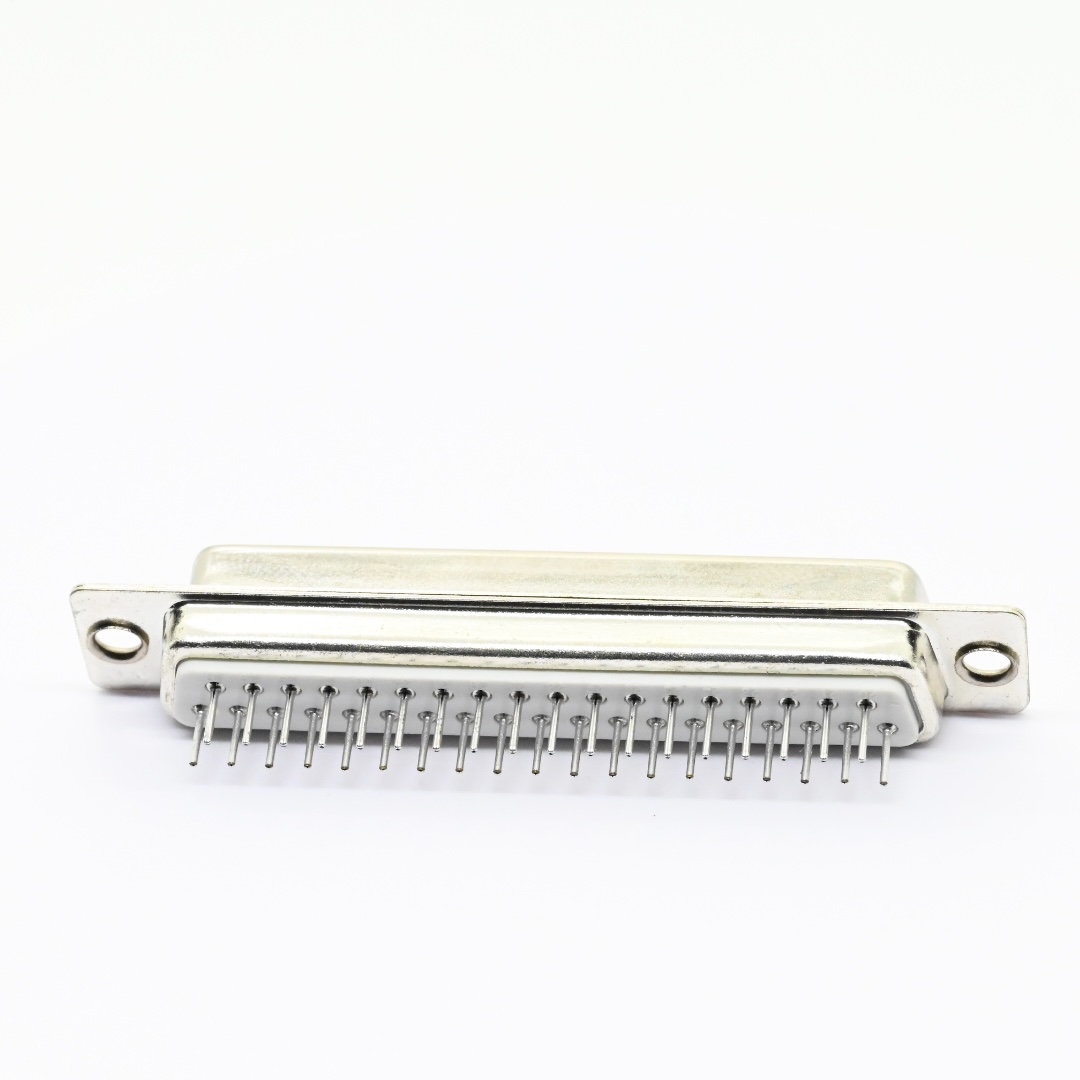

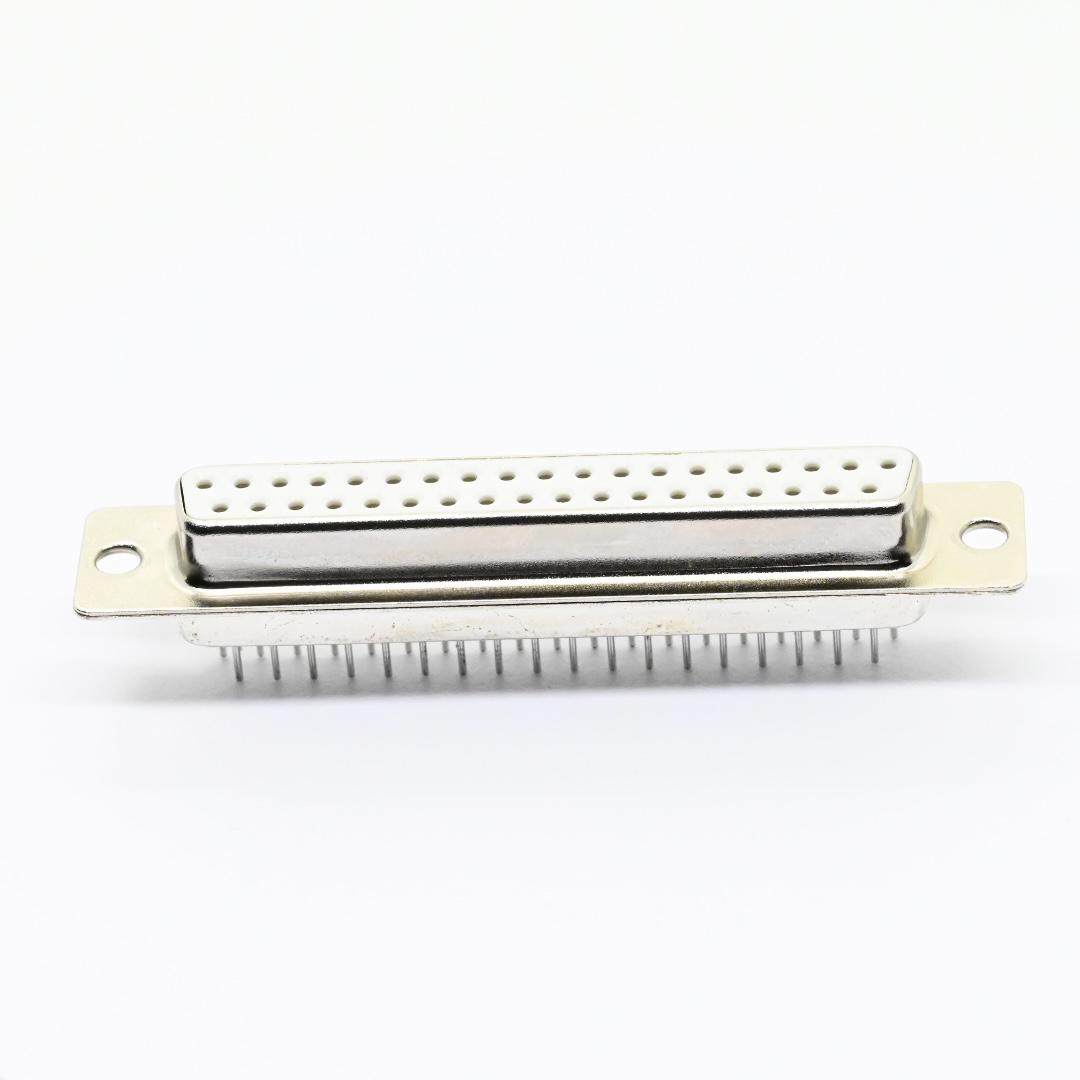

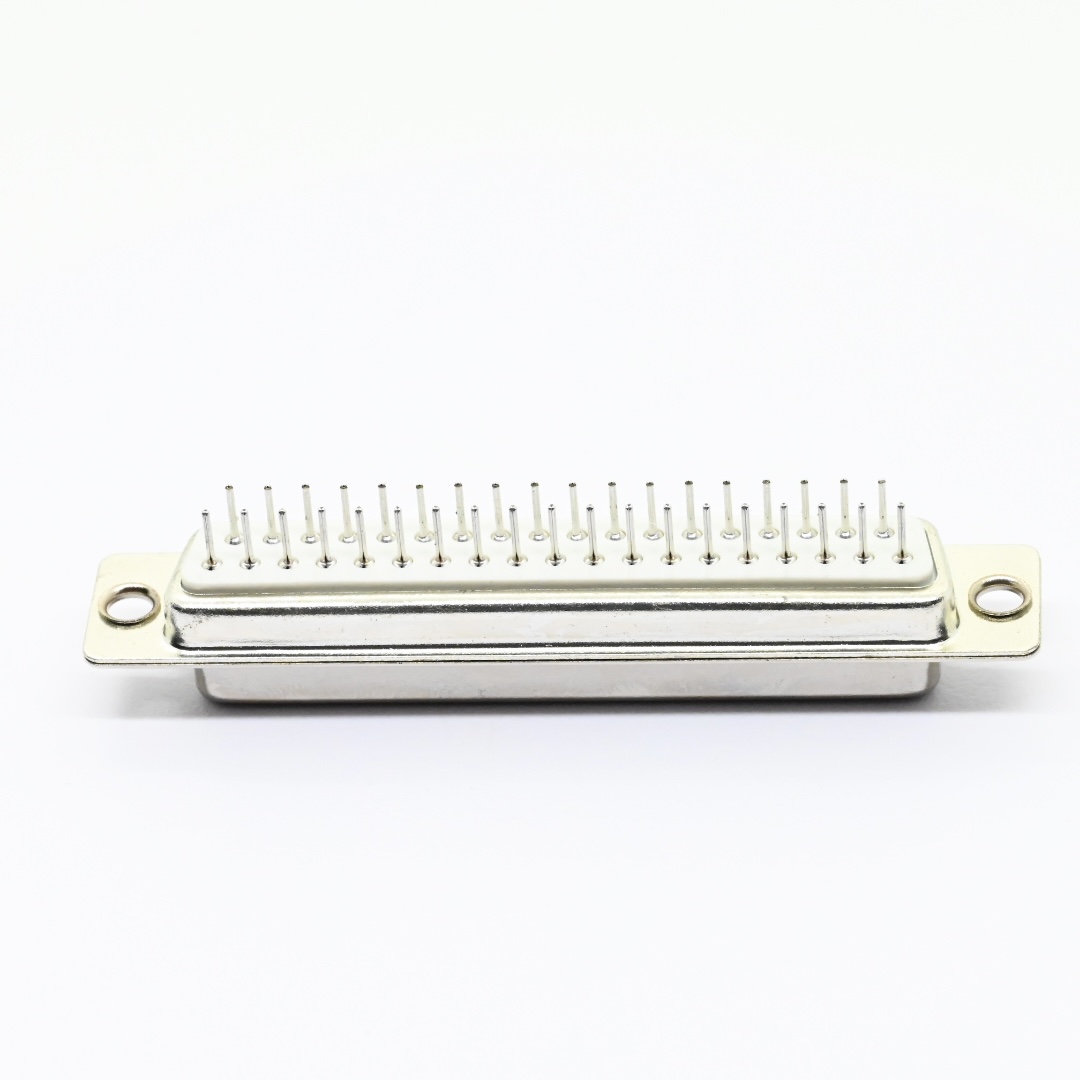

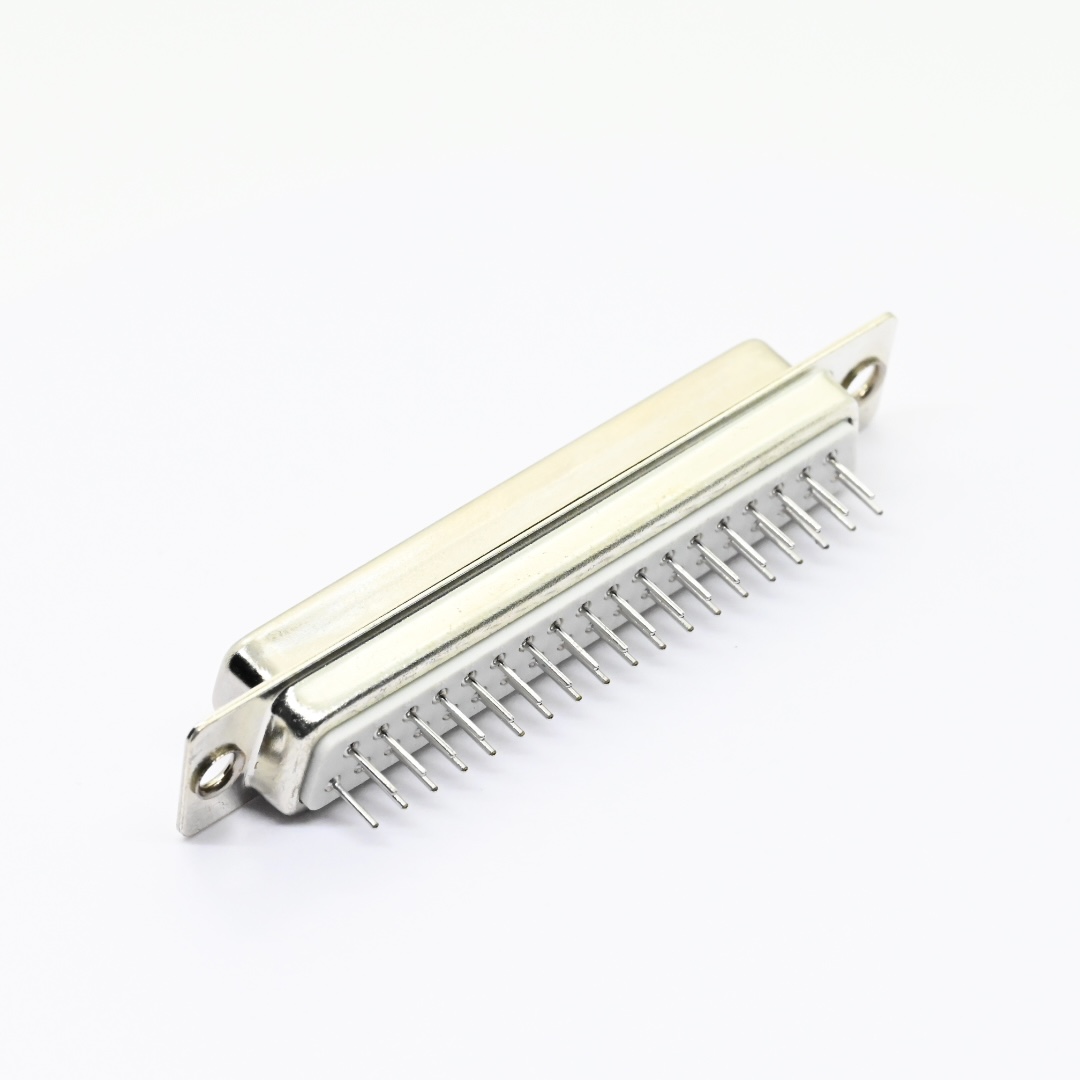

1.Product Description：
Huizhou Antenk Electronics Co Ltd manufactures straight dual row DIP D SUB female connector with stamped pins to deliver reliable serial signal and power transmission for printed circuit board assemblies. This through hole receptacle uses glass filled PBT thermoplastic housing rated UL94 V zero, brass or bronze contacts and zero point three five millimeter full nickel plated steel shell, it supports nine fifteen twenty five thirty seven pin counts with multiple housing colors mounting accessories and varied contact plating options for project customization, full dimension specifications can be checked from engineering drawing for PCB footprint reference, it supports five amp maximum rated current, five hundred volt AC withstanding voltage lasting one minute, insulation resistance above one thousand megaohm and contact resistance below twenty milliohm and works reliably from minus fifty five degree Celsius to one hundred five degree Celsius. Users finish through hole soldering following official PCB drawing and mate with matching D SUB male plug to establish stable circuit links for target electronic hardware. Operators must follow drawing dimensional tolerances for PCB layout avoid excessive insertion force to prevent stamped contact deformation and store goods under dry conditions to keep plated surfaces free of corrosion. Unlike competitors purchasing outsourced components Antenk completes full in house workflow covering plastic molding metal stamping assembly and comprehensive laboratory performance inspection. Our factory holds ISO9001 ISO14001 IATF16949 and UL certifications and more than seventy percent finished goods export globally. This connector fits industrial control systems serial communication hardware and precision measuring instruments. Please share your pin requirement plating choice mounting accessory and project specifications for free sample evaluation and complete technical document support.
Shielded D‑SUB Receptacle adopts full area nickel plated steel shell to reduce external signal interference during serial data transmission.
Through Hole D‑SUB Socket is designed for standard DIP soldering process to achieve firm mechanical fixation on printed circuit boards.
Multi Accessory D‑SUB Connector supports various rivet stand off and screw accessories to satisfy different hardware mounting demands.
2.Detailed Specifications of DP01‑FXXXXX Dual Row Straight DIP D‑SUB Female Connector Stamped Pin
1. Mechanical Specifications
1.1 Product type: Dual row straight DIP D SUB female connector with stamped pin design
1.2 Measurement unit: millimeter
1.3 Key dimension: Available pin counts include 9 pin,15 pin,25 pin,37 pin. Refer to engineering drawing for outline dimensions and dedicated PCB layout dimensions. Apply drawing standard dimensional tolerances for unspecified dimensions during printed circuit board design.
1.4 Assembly method: Complete through hole DIP soldering onto printed circuit board, mate with compatible D SUB male plug to finish signal and power interconnection.
1.5 Ordering feature: Multiple mounting options, assorted metal accessories, various housing color choices and diverse contact plating grades are available for selection.
1.6 CTA: Contact our engineering team to obtain complete dimension drawings and ordering specifications for your hardware design validation.
2. Material Construction
2.1 Housing: Glass filled PBT thermoplastic, UL94 V zero flame retardant grade
2.2 Contact: Brass or bronze
2.3 Shell: 0.35 millimeter thickness steel with full area nickel plating
3. Electrical & Environmental Performance Parameters
3.1 Current rating: Maximum 5 Amp
3.2 Dielectric withstanding voltage: 500V AC for one minute
3.3 Contact resistance: Maximum 20 milliohm
3.4 Insulation resistance: Minimum 1000 Megaohm
3.5 Operating temperature range: Minus 55 degree Celsius to plus 105 degree Celsius
3.6 Compliance: Meets RoHS and HSF environmental requirements
4. Usage Method
4.1 Assembly mode: Follow official PCB layout drawing to finish DIP through hole soldering on printed circuit board, connect with matched D SUB male plug for stable power and signal transmission.
4.2 Operation tip: Adopt PCB layout dimension data provided on engineering drawing for circuit board layout development.
5. Application Scenarios
5.1 Serial signal transmission for industrial control equipment
5.2 Data interface for communication hardware assemblies
5.3 Signal port for precision measuring instruments
5.4 Power and data connection for general electronic devices
6. Operation & Storage Precautions
6.1 Strictly follow drawing dimensional tolerances for PCB footprint design
6.2 Avoid excessive insertion or extraction force to prevent permanent deformation of stamped contacts
6.3 Prevent scratches dirt and mechanical impact on housing contacts and shell before assembly
6.4 Store products in dry environment to avoid corrosion of nickel and gold plated surfaces
6.5 Confirm pin count mounting style accessory type housing color and contact plating grade before placing purchase order
6.6 CTA: Submit your hardware requirement material plating options and project information, we provide free sample evaluation and professional technical consultation services.
3.FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

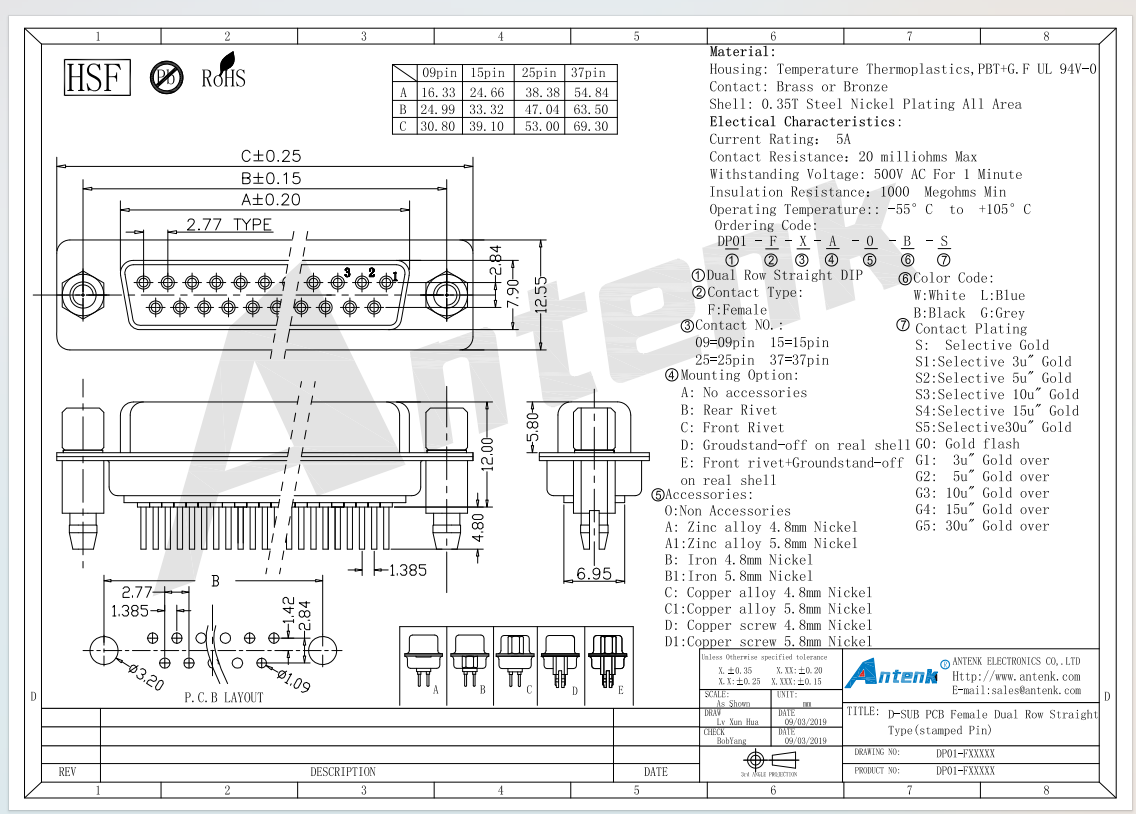

4.Product Drawing：
