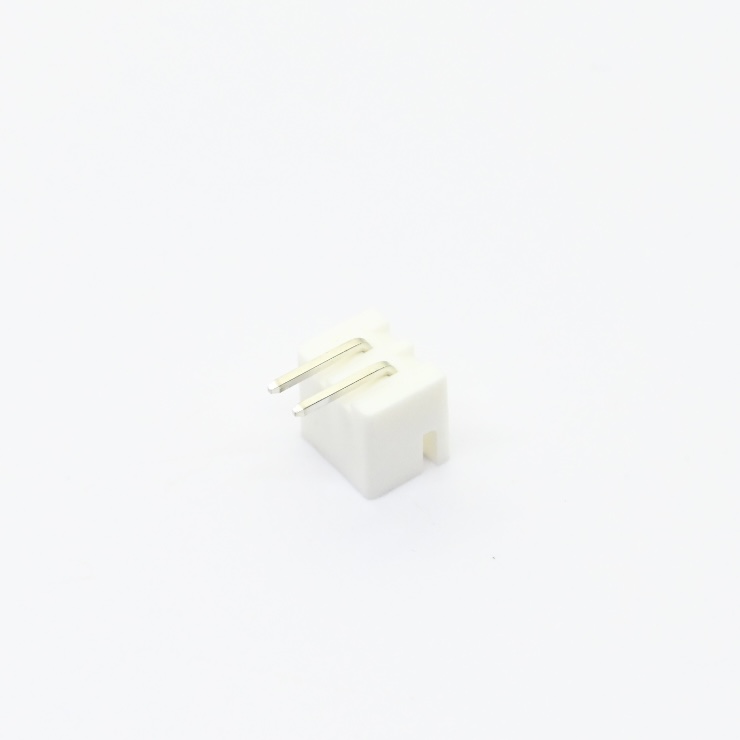

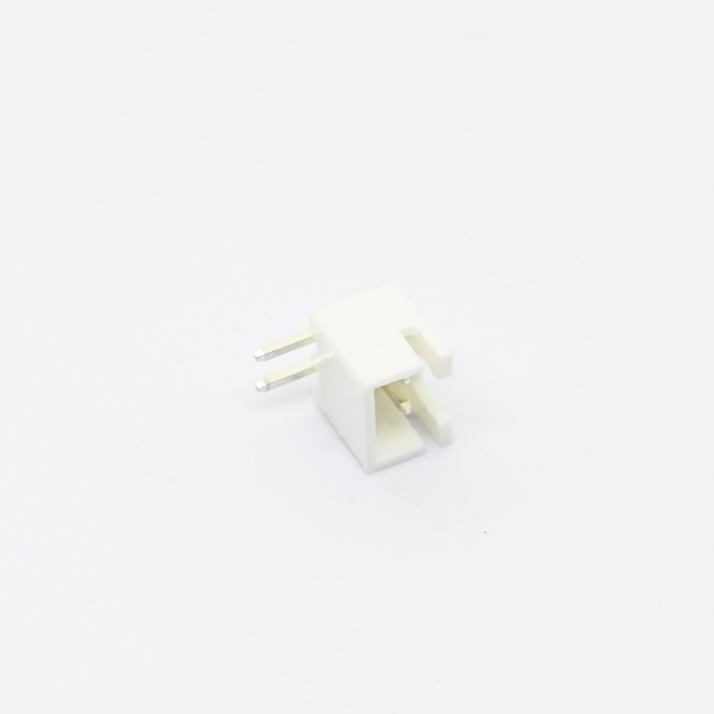

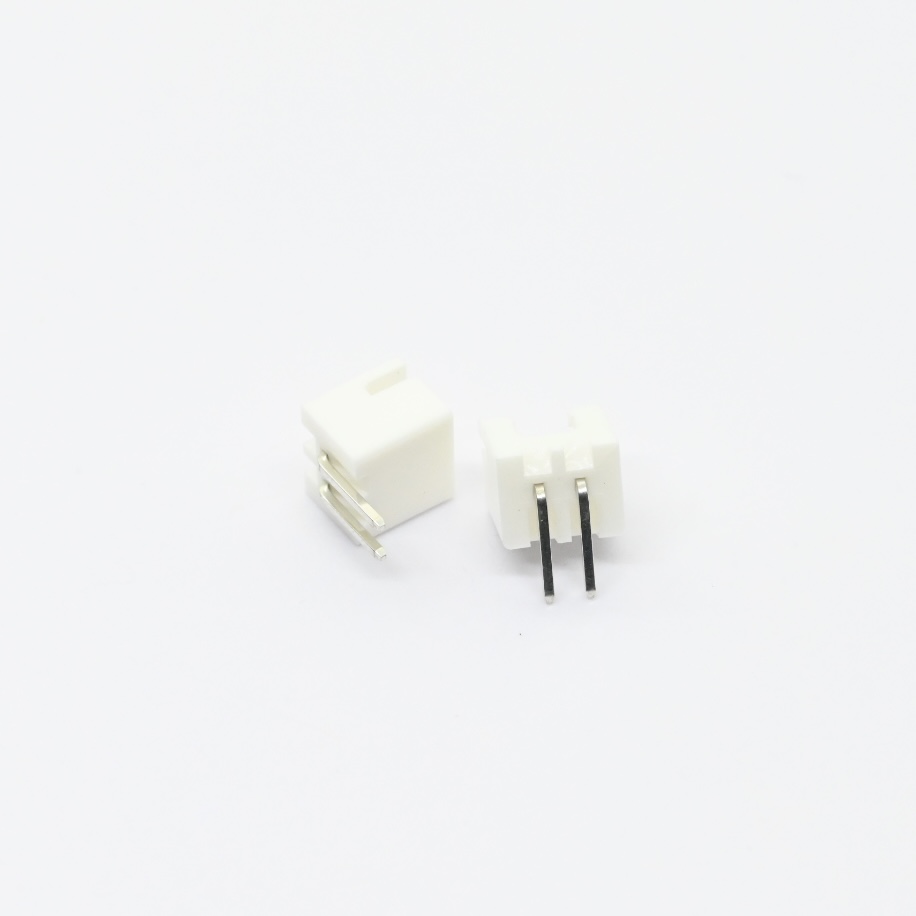

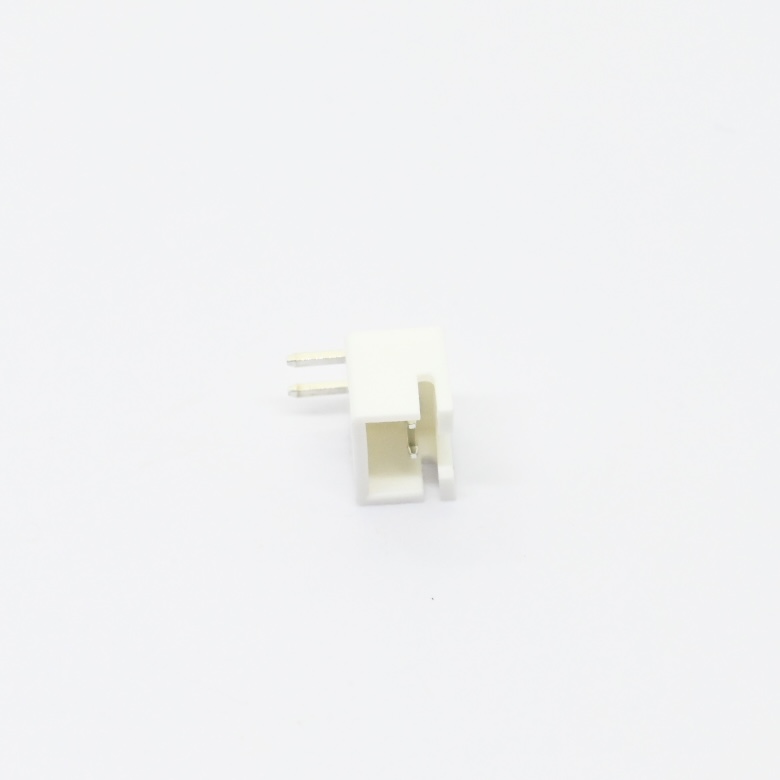

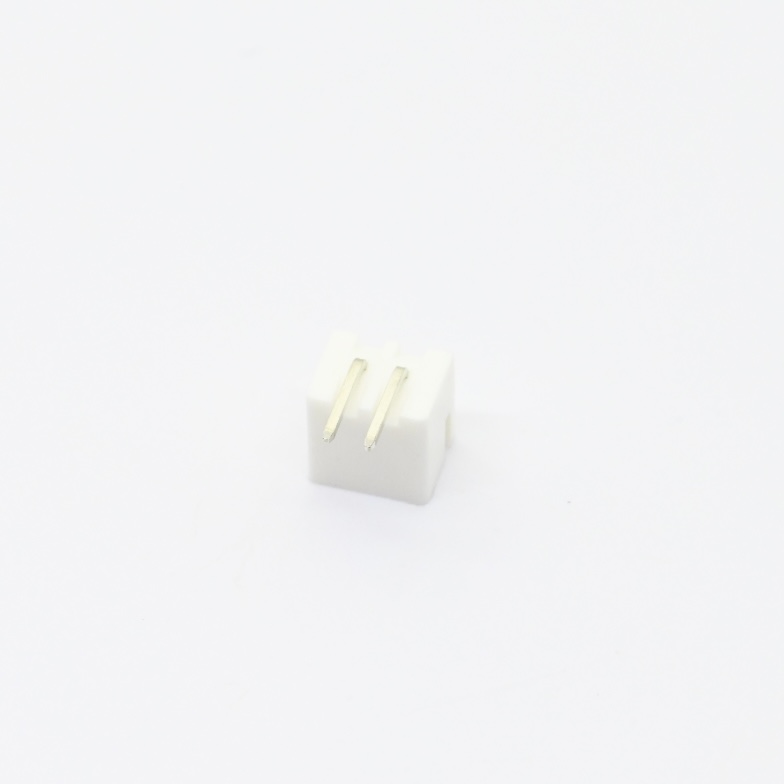

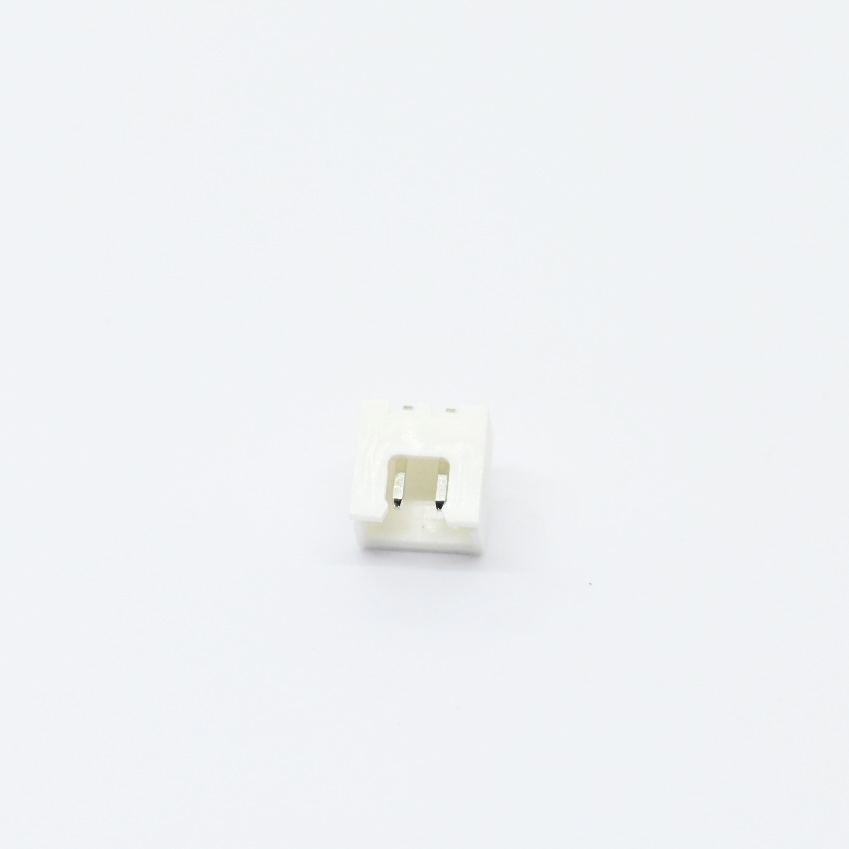

1.Product Description：
Huizhou Antenk Electronics Co Ltd manufactures two point five millimeter pitch ninety degree right angle wafer connector to achieve reliable wire to board power and signal interconnection for compact electronic equipment. This right angle wafer header adopts flame retardant Nylon 66 UL94 V zero insulator housing and brass terminals with tin over nickel plating, it supports multiple pin counts and two structural types, various housing color selections including white black red yellow and green, full dimension parameters can be acquired from engineering drawing for PCB footprint reference, it delivers three amp rated current, two hundred fifty volt maximum rated voltage, eight hundred volt AC dielectric withstanding voltage for one minute, insulation resistance no less than one thousand megaohm and operates steadily from minus forty degree Celsius to plus one hundred five degree Celsius. Users complete through hole soldering following official PCB drawing and mate with matching series housing to build dependable circuit links for target electronic hardware. Operators must comply with drawing dimensional tolerances for PCB layout avoid excessive mating force to prevent brass terminal deformation and keep products in dry storage space to stop plating layer oxidation. Different from competitors buying external components Antenk implements full in house workflow including plastic molding terminal stamping assembly and complete laboratory performance validation. Our factory holds ISO9001 ISO14001 IATF16949 and UL certifications and more than seventy percent finished goods export worldwide. This wafer connector fits household appliances motor control modules industrial equipment and office electronic devices. Please provide your pin count structural type housing color and project specifications for free sample evaluation and full technical document support.
Multi‑color Wafer Header offers various housing color options to match diverse electronic equipment appearance requirements.
Nylon 66 Wafer Plug delivers reliable flame retardant performance under regular electronic operating conditions.
Wire To Board builds stable power and signal transmission links between cables and printed circuit boards.
2.Detailed Specifications of AW2501VR‑xP 2.5 mm Pitch 90 Degree Wafer Connector
1. Mechanical Specifications
1.1 Product type: 2.5 millimeter pitch 90 degree right angle wafer connector
1.2 Measurement unit: millimeter
1.3 Key dimension: Pitch is 2.50 millimeter, terminal pin size 0.64 square millimeter. Two structural styles Type 1 and Type 2 are available. Multiple pin count options are supported. Insulator supports multi‑color selection including white black red yellow and green. Refer to engineering drawing for full outline dimension and dedicated PCB layout dimensions. Follow drawing specified dimensional tolerances for printed circuit board design. It mates with AH2501 series matching housing.
1.4 Assembly method: Perform through hole soldering onto printed circuit board, mate with AH2501 series housing to realize stable wire to board power and signal interconnection.
1.5 Ordering feature: Optional structure type and housing color to satisfy various wire to board project requirements.
1.6 CTA: Contact our engineering team to obtain complete dimension drawings and ordering specifications for your hardware design validation.
2. Material Construction
2.1 Contact Terminal: Brass with tin over nickel plating
2.2 Insulator Housing Material: Nylon 66, UL94 V zero flame retardant grade
3. Electrical & Environmental Performance Parameters
3.1 Rated current: 3 Amp AC DC
3.2 Rated voltage: 250 Volt AC DC
3.3 Dielectric withstanding voltage: 800 Volt AC per minute
3.4 Insulation resistance: Minimum 1000 Megaohm
3.5 Operating temperature range: Minus 40 degree Celsius to plus 105 degree Celsius
3.6 Compliance: Meets RoHS and HSF environmental requirements
4. Usage Method
4.1 Assembly mode: Complete through hole soldering following official PCB layout drawing, pair with AH2501 series matching housing to achieve reliable wire to board power and signal transmission.
4.2 Operation tip: Adopt PCB layout dimension data shown on engineering drawing for circuit board layout development.
5. Application Scenarios
5.1 Wire to board connection for household electrical appliances
5.2 Signal and power interface for motor control modules
5.3 Internal connection for general industrial control equipment
5.4 Circuit connection for office electronic devices
6. Operation & Storage Precautions
6.1 Strictly follow drawing dimensional tolerances for PCB footprint design
6.2 Avoid excessive mating force to prevent permanent deformation of brass plated terminals
6.3 Prevent scratches dirt and mechanical impact on insulator housing and terminals before assembly
6.4 Store products in dry environment to avoid oxidation of tin nickel plated terminal surfaces
6.5 Confirm pin count structural style and housing color before placing purchase order
6.6 CTA: Submit your hardware requirement pin count structure type housing color and project information, we provide free sample evaluation and professional technical consultation services.
3.FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

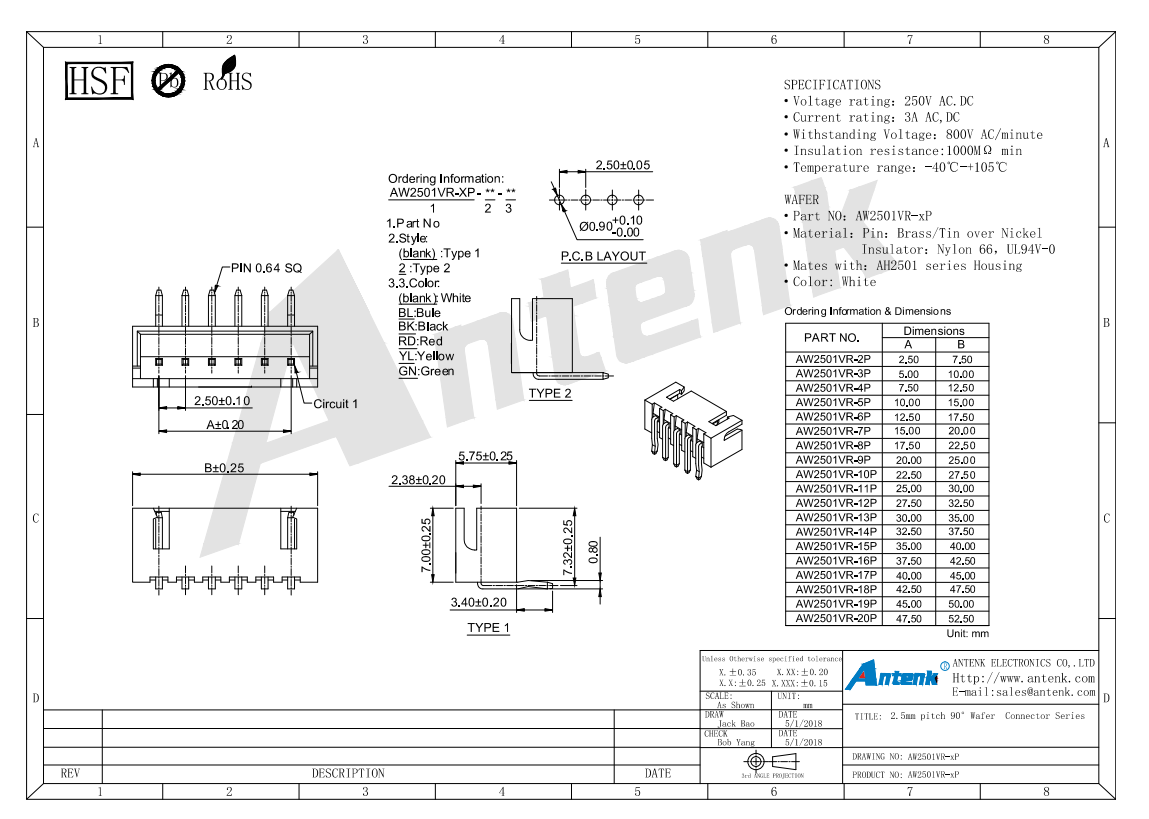

4.Product Drawing：
