2.54mm Dual Row Straight PBT Female Header

2.54mm Dual Row Straight PBT Female Header

3 week ago

1 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

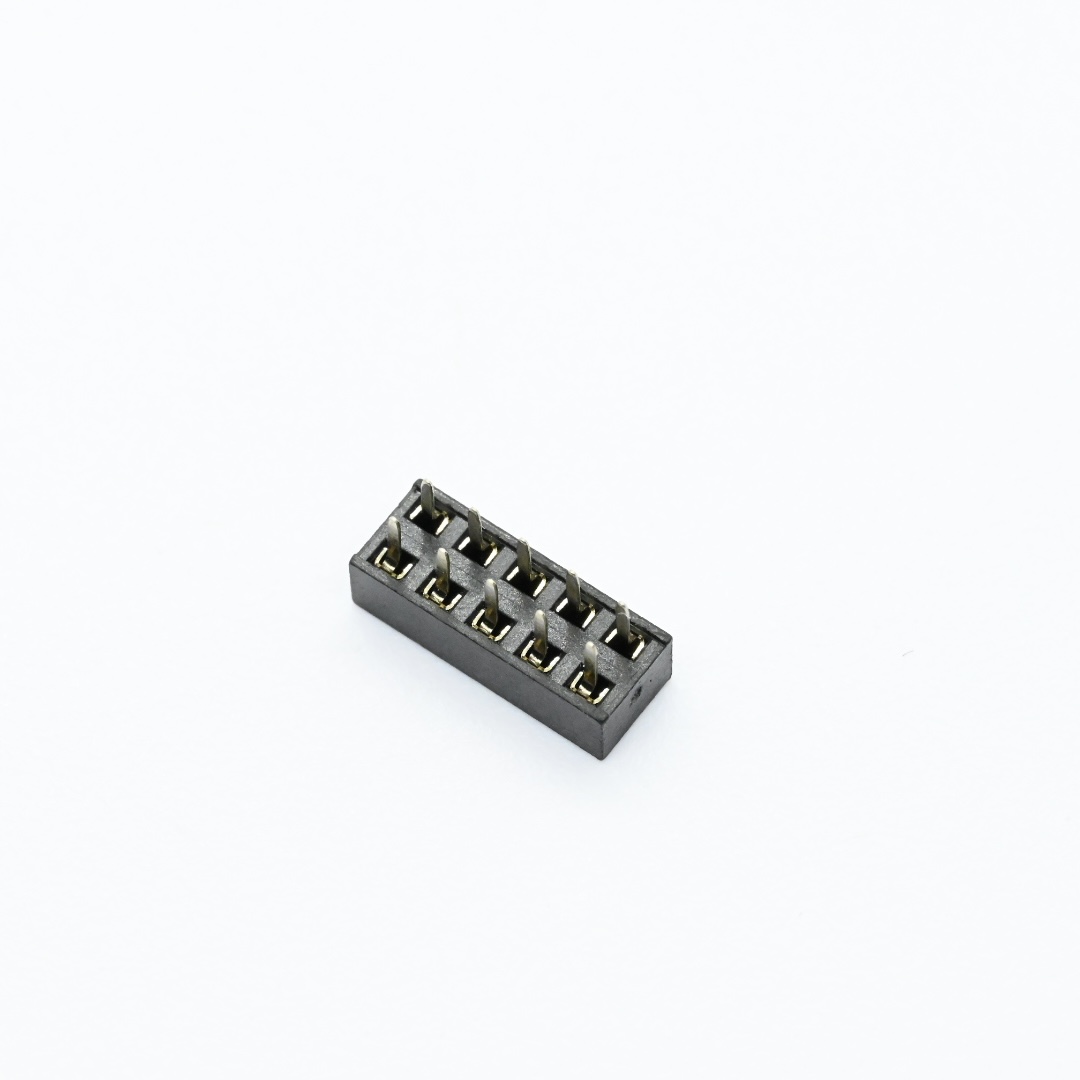

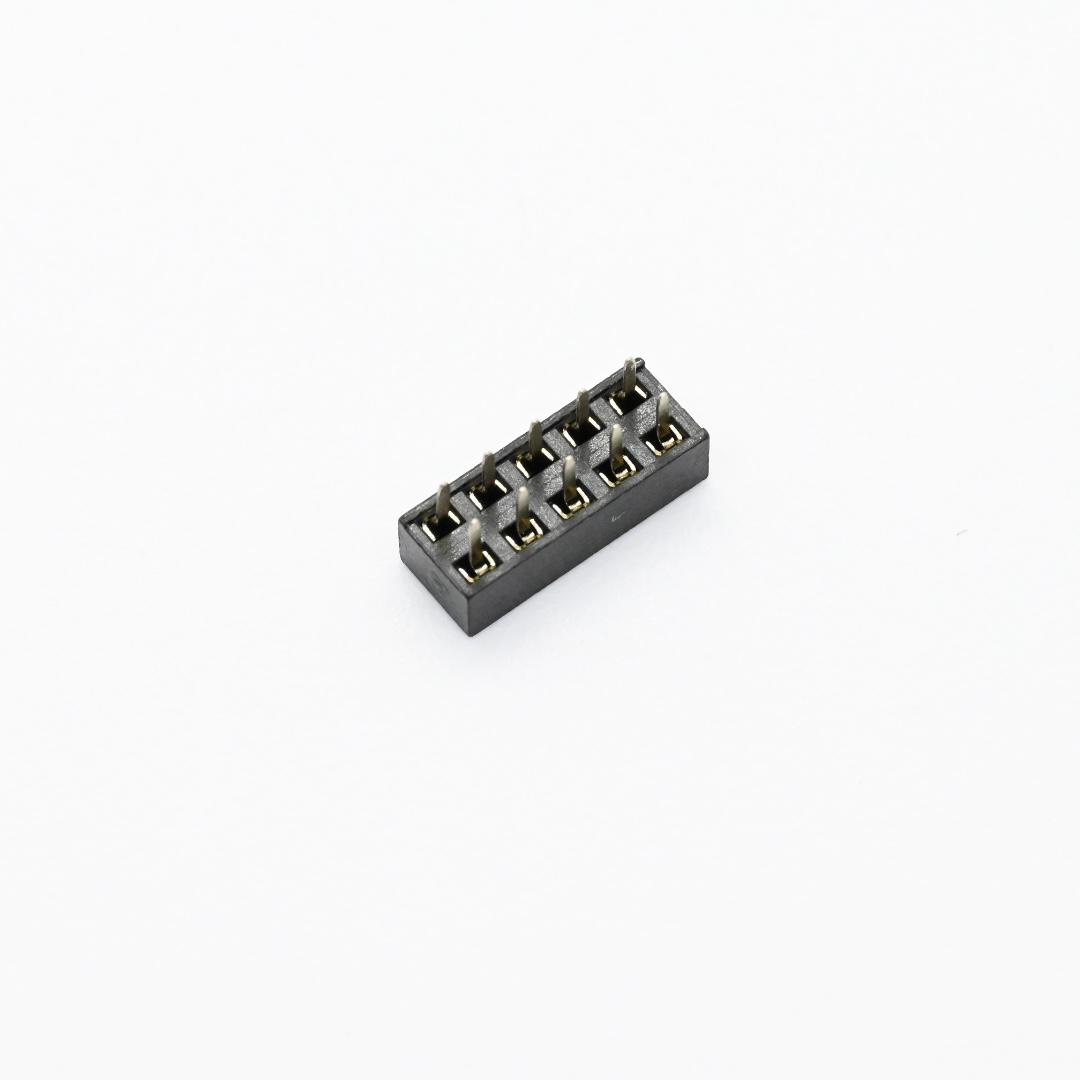

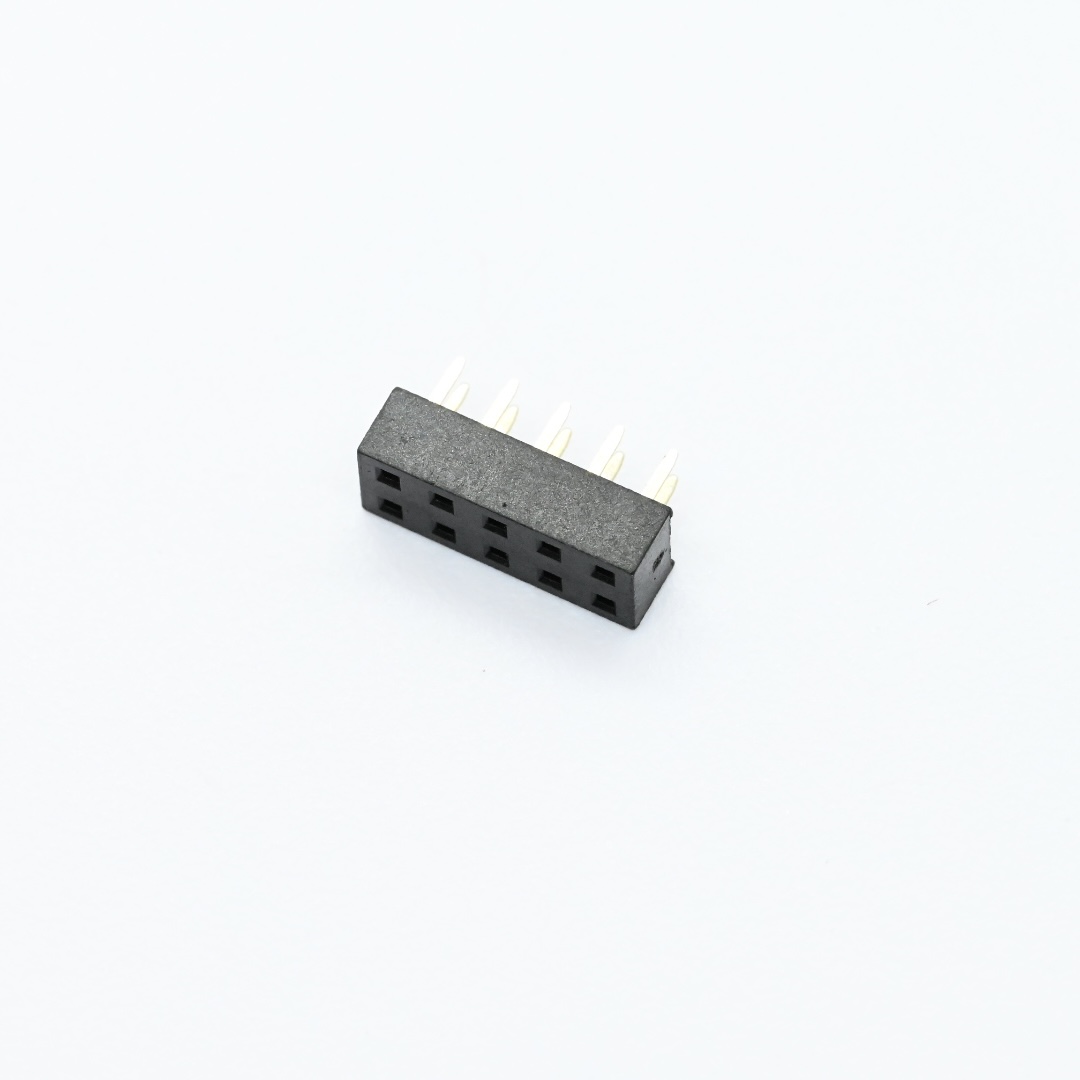

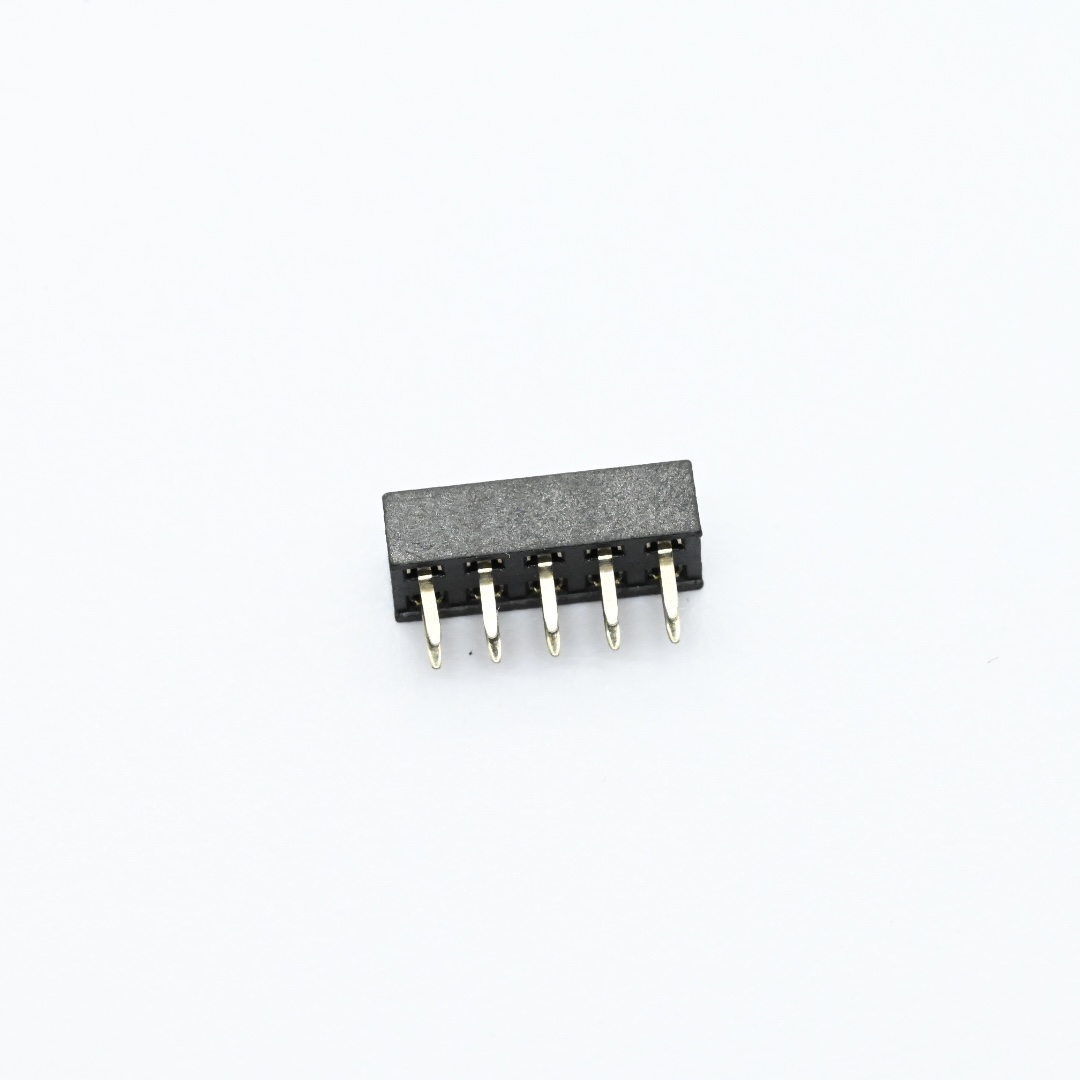

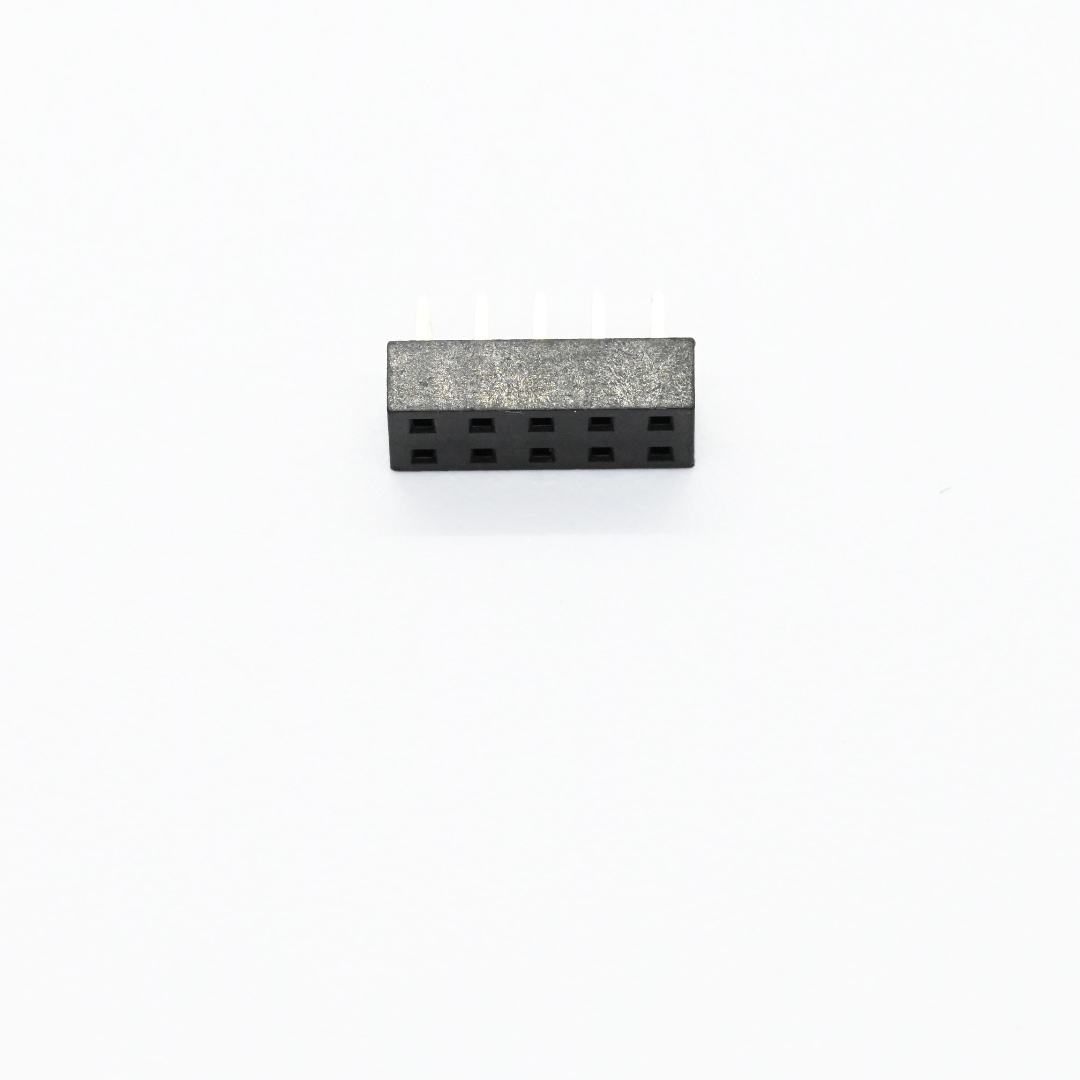

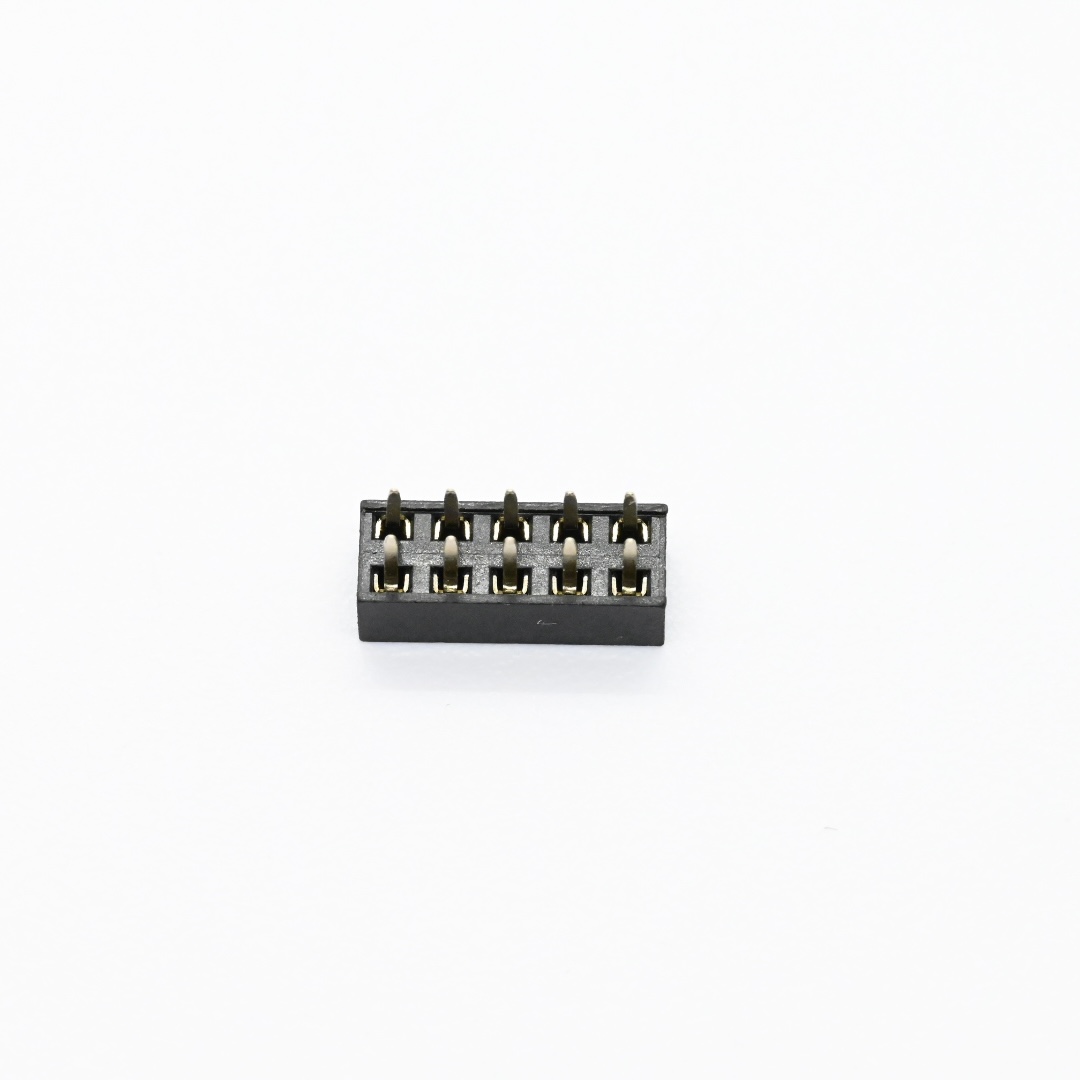

Huizhou Antenk Electronics Co., Ltd. manufactures FHES13 series 2.54mm pitch dual row straight female header to realize stable board to board electrical interconnection and reliable signal and power transmission on printed circuit boards for various electronic equipment. This female header adopts black UL94V0 grade PBT plastic as insulating base, matched with brass contact pins that support diversified surface treatment solutions including tin plating, gold flash and multiple gold plating thicknesses ranging from 3 micro inch to 30 micro inch gold to lower contact resistance and strengthen anti-oxidation performance under wide temperature operating environments from minus 65 degree Celsius to plus 125 degree Celsius. It features dual row straight vertical structure with fixed 2.54mm pin pitch, 5.08mm row spacing and 3.5mm plastic height, customizable pin count from 02 to 80 pins, and multiple packaging options of tray bag tape and reel to match manual assembly and high speed automated SMT production line requirements. This standard 2.54 pitch dual row straight female header is widely applied in digital cameras communication equipment industrial control sensors smart home appliances electronic toys computer peripherals and precision measuring instruments. Operators must follow standard PCB layout dimensions strictly during through hole soldering, avoid bending brass pins with excessive force to prevent pin fracture and store finished headers in dry dust-free warehouse space to avoid plating layer corrosion and plastic aging damage. Unlike competitors outsourcing plastic injection molding and terminal stamping Antenk completes full independent production workflow covering self-developed precision plastic and metal mold manufacturing brass raw material high speed stamping PBT injection molding multi-spec electroplating and complete laboratory electrical insulation current and temperature reliability testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications while fully complying with RoHS HSF and REACH international environmental protection standards. We own abundant self-developed precision stamping and plastic molds, provide customizable pin count plating and packaging schemes, deliver round the clock professional technical engineering support, and more than seventy percent of our pin header connectors are exported globally relying on our Guangdong Famous Trademark ANTENK and consistent stable batch production quality.

UL94V0 Black PBT Insulator Housing provides excellent flame retardant and heat resistant performance for long-term circuit connection applications.

Dual Row Straight Brass Contact Header delivers stable board-to-board electrical connection with standard 2.54mm pin pitch for general electronic assembly.

Multi Thickness Gold Plated Pin Terminal effectively reduces contact resistance and boosts anti-corrosion capability under high and low temperature working conditions.

1. Material & Plating Options

1.1 Insulator material: Black PBT UL94V0 flame retardant plastic

1.2 Contact pin raw material: Brass

1.3 Contact surface plating types

1.3.1 Tin plating (SN)

1.3.2 Gold flash (G0)

1.3.3 Optional gold thickness: 3μ",5μ",10μ",15μ",30μ" gold

2. Electrical & Environmental Performance Parameters

2.1 Rated current: 3.0 Amp

2.2 Contact resistance: Max 20 mΩ

2.3 Insulation resistance: Min 1000MΩ

2.4 Dielectric withstand voltage: AC500V

2.5 Operating temperature range: -65°C ~ +125°C

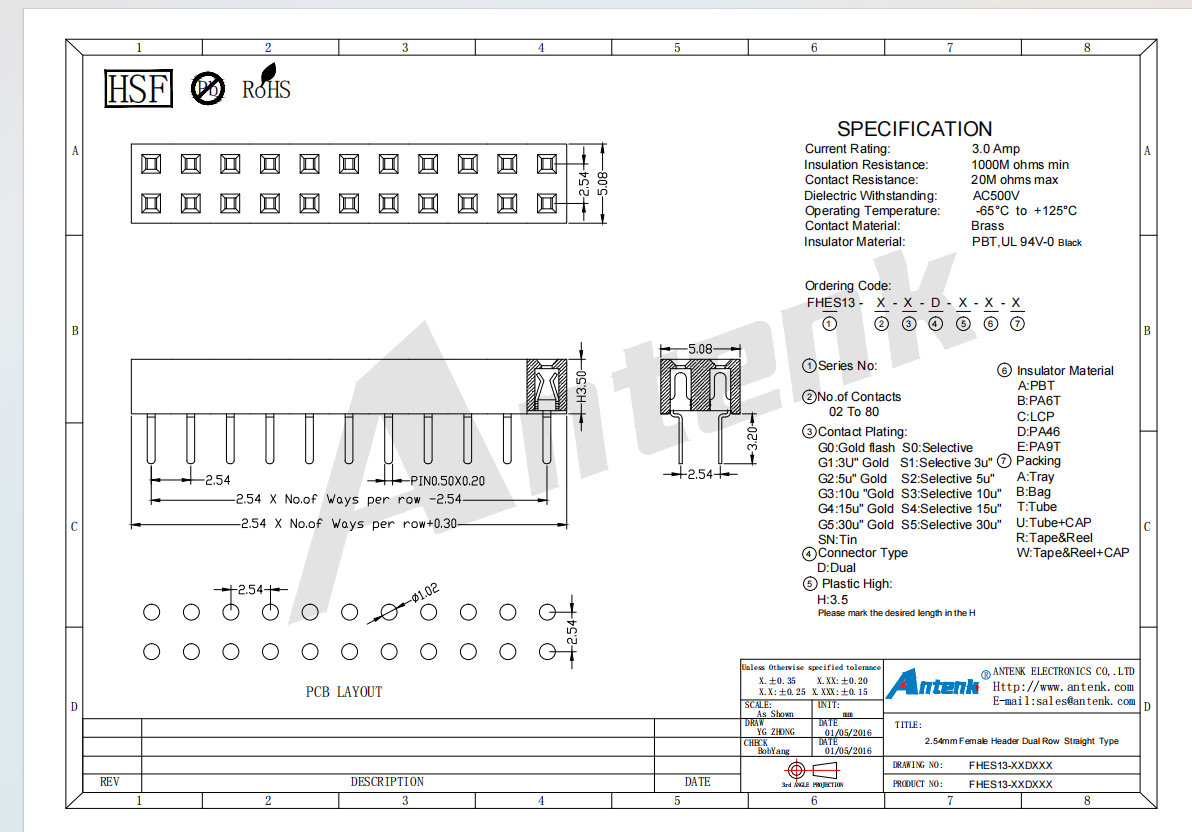

3. Structural & Dimensional Specifications (Unit: mm)

3.1 Pin pitch: 2.54mm

3.2 Row spacing (width): 5.08mm

3.3 Plastic body height: H=3.5

3.4 Single pin size: 0.50×0.20

3.5 Available contact quantity: 02 pins to 80 pins

3.6 Structure type: Dual Row straight through-hole design

3.7 Universal dimensional tolerance

3.7.1 X. : ±0.30

3.7.2 X.X : ±0.20

3.7.3 X.XX : ±0.15

4. Order Code Definition & Packaging Modes

4.1 Code rule: FHES13-Series - Pin Count - D(Dual row) - Plating - Height - Package

4.2 Available packaging: Tray, Bag, Tape & Reel, Tape & Reel with CAP

5. Environmental Compliance Standard

5.1 Comply with HSF and RoHS lead-free standards

6. Application Scenarios

6.1 Industrial control equipment

6.2 Communication devices

6.3 Digital cameras

6.4 Smart home appliances

6.5 Electronic toys

6.6 Precision measuring instruments

6.7 Computer peripheral equipment

7. Usage Precautions

7.1 Complete through-hole soldering strictly according to official PCB layout drawing

7.2 Avoid excessive bending force on brass pins to prevent permanent deformation or fracture

7.3 Store finished headers in dry dust-free warehouse to avoid oxidation of plating layers and plastic aging

7.4 Select matching pin count, plating and packaging specifications according to actual circuit design demands
