J1939 9Pin Truck Diagnostic Cable Harness

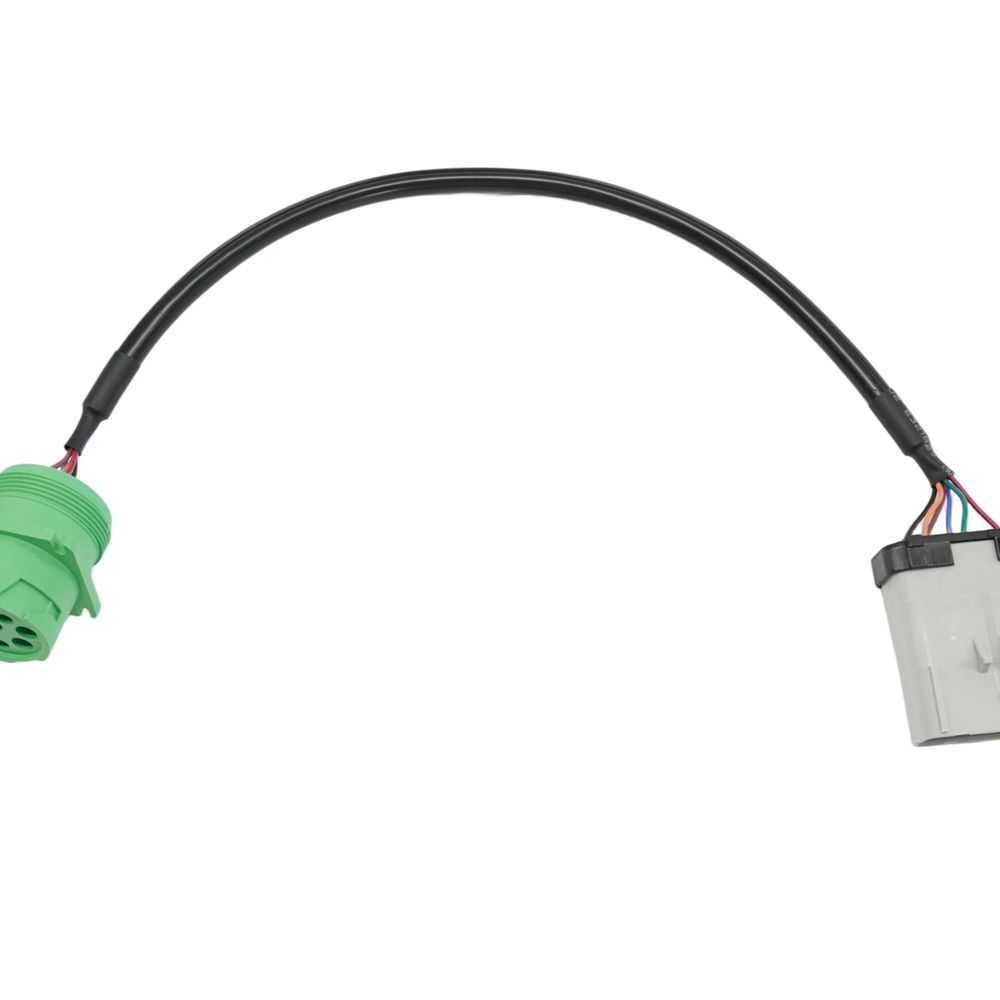

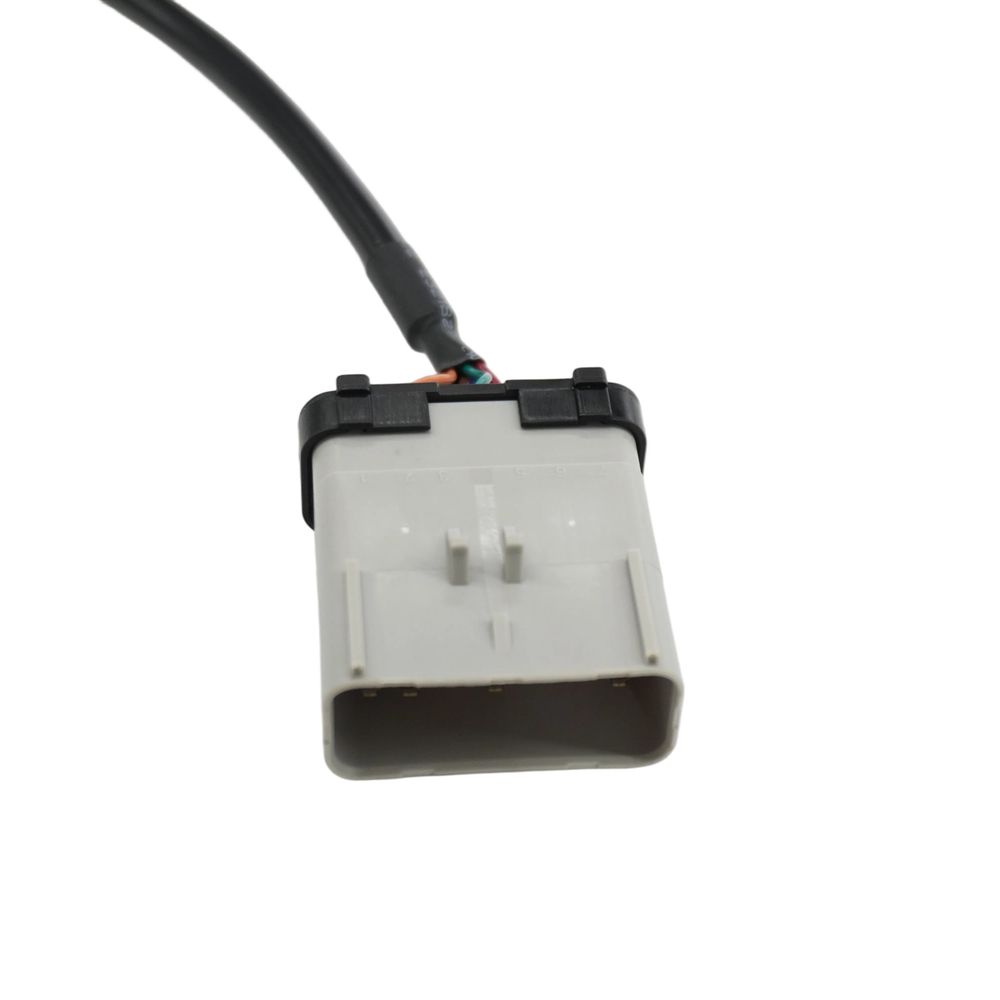

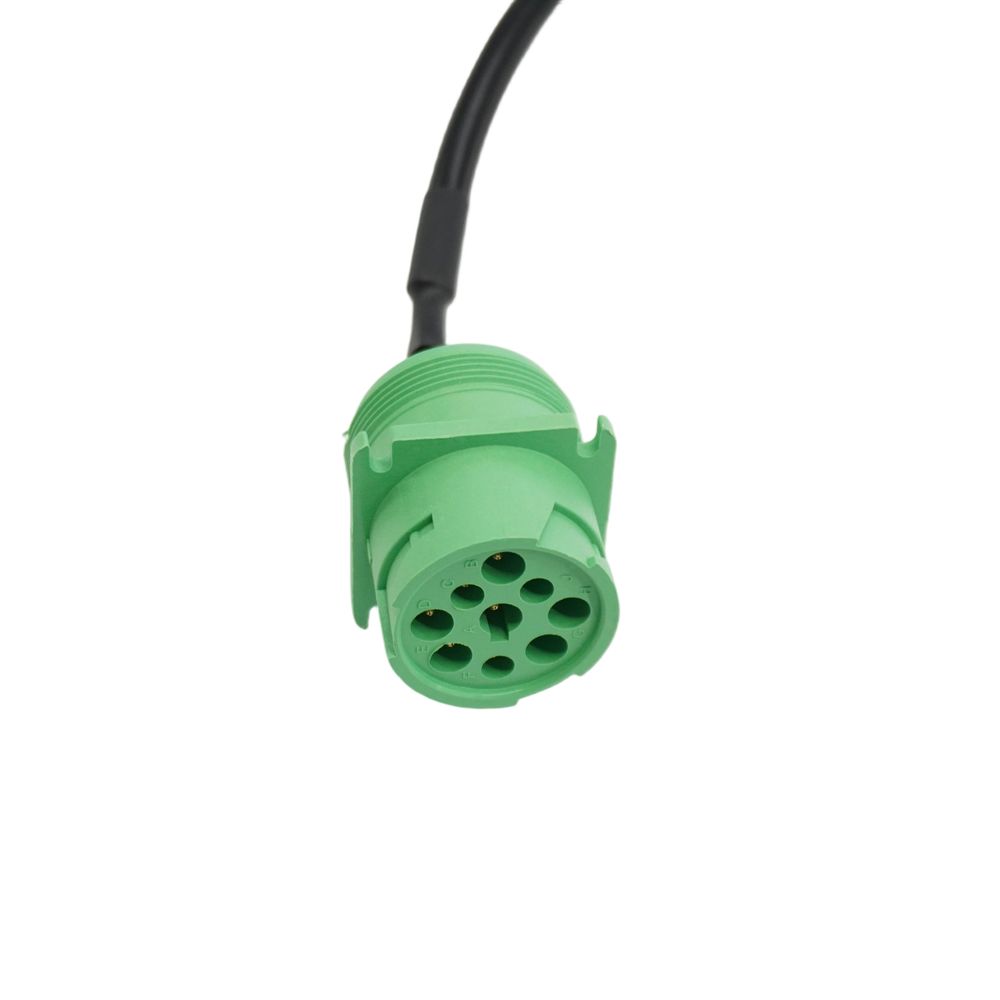

J1939 9Pin to FCI Connection for Truck Diagnostics

Working on a heavy-duty truck often means dealing with a dedicated diagnostic interface rather than a standard passenger-car connector. This J1939 9Pin Truck Diagnostic Cable Harness is made for heavy truck fault diagnosis, with a J1939 9-pin connection and an FCI adapter arrangement for compatible diagnostic equipment. Its 305±20mm length keeps the cable relatively compact, which can be useful around a diagnostic bench or inside a service vehicle.

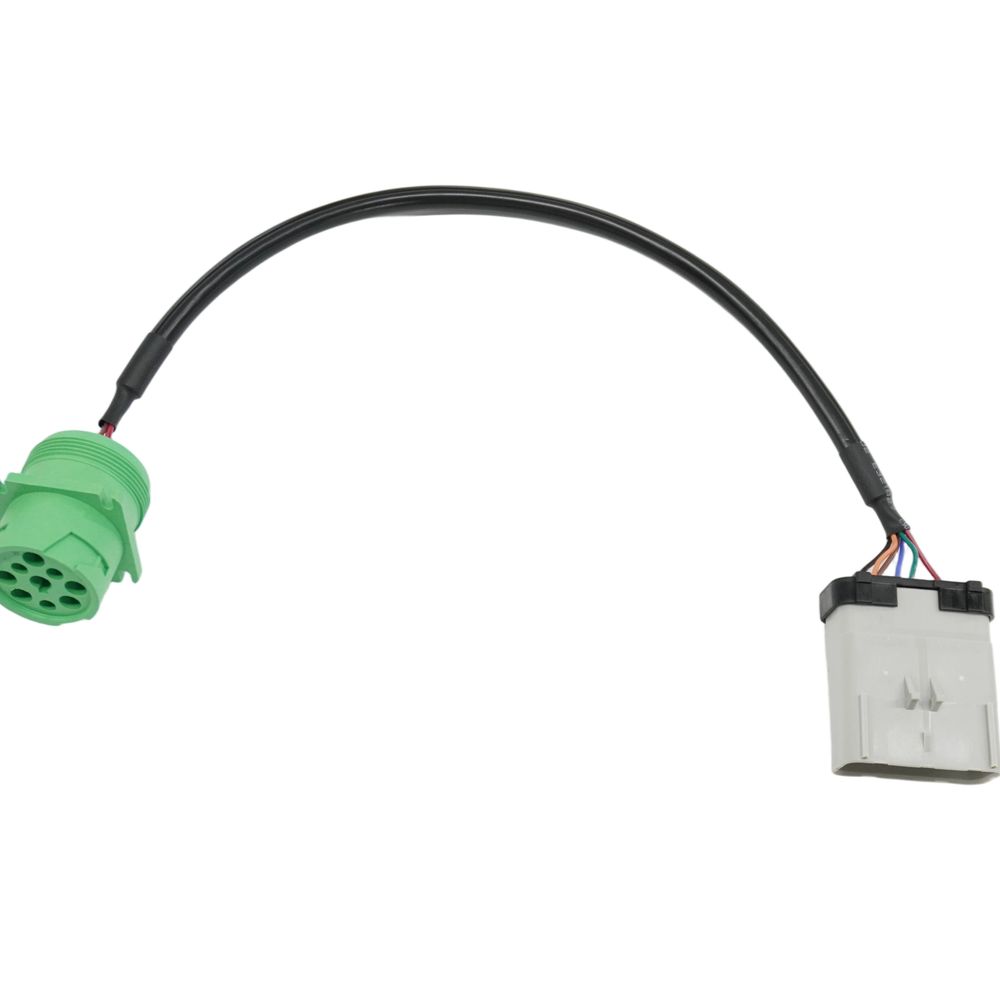

Automotive diagnostic adapter cable harness

The Automotive J1939 FCI Adapter Wiring Harness gives technicians and equipment makers a direct way to connect compatible truck-side wiring with an FCI-based diagnostic interface. If you are developing a diagnostic harness for commercial vehicles, checking the connector configuration and pin assignment first is important. That way, the cable can be matched to the actual diagnostic equipment instead of relying only on the connector shape.

Built for Heavy-Duty Vehicle Communication

The harness uses nickel-plated brass terminals and a PA66 automotive-grade connector housing. Its working temperature range is -25°C to +85°C, giving buyers a clear reference when considering the cable for truck service and testing environments. The minimum insulation resistance is ≥10MΩ, while the maximum conduction resistance is ≤2Ω.

Item	Specification
Type	Heavy Duty Truck Diagnostic Wiring Harness
Voltage	DC 300V
Pins Material	Nickel-Plated Brass Terminals
Plug Material	PA66 Automotive Grade Connector Housing
Working Temperature	-25℃ ~ +85℃
Length	305±20mm
Minimum Insulation Resistance	≥10MΩ
Maximum Conduction Resistance	≤2Ω
Application Fields	Heavy truck fault diagnosis, engine detection, commercial vehicle diagnostic communication
Specific Shipping Cost	Please Contact Us

The specified voltage is DC 300V, and the cable length is 305±20mm. These details make it easier for engineers to compare the J1939 9Pin to FCI diagnostic harness with their existing testing equipment and wiring requirements. For projects involving customized car wiring harness products, the connector layout, electrical requirements, and intended installation should be confirmed before production.

A Practical Adapter for Commercial Vehicle Testing

This cable is intended for heavy truck fault diagnosis, engine detection, and commercial vehicle diagnostic communication. It can be used in compatible diagnostic setups where the J1939 9-pin vehicle interface needs to connect with an FCI-based side. The Automotive diagnostic adapter cable harness is particularly relevant to diagnostic equipment suppliers, truck repair businesses, and developers working on commercial vehicle testing systems.

When a standard diagnostic lead does not match the equipment configuration, FBXSlink can review the required connector, wiring arrangement, and cable dimensions. Customers working on broader automotive wiring solutions can also discuss related cable assemblies based on their project requirements. Providing a wiring diagram, connector sample, or technical drawing gives the production team a better understanding of the required configuration.
