Efficient and Precise Swing-Type Fully Automatic Hot Stamping Machine for Greeting Cards //
Usage and characters
The Swing-Type Fully Automatic Hot Stamping Machine is designed to deliver high-speed, high-precision foil stamping on greeting cards, invitations, and other paper products with smaller stamping areas. Featuring a cam-controlled mechanism, this machine opens and closes with each rotation cycle, ensuring a smooth, uninterrupted stamping process that significantly boosts production speed. The suction nozzle automatically transfers paper from the stacking table to the workbench, eliminating the need for manual handling and minimizing paper misalignment. The swing-type structure then applies even, consistent pressure between the hot stamping plate and the workbench, resulting in flawless, sharp foil impressions. Ideal for small print runs and delicate designs, this machine offers the stability of electric control, outpacing pneumatic and hydraulic models in terms of reliability and ease of use. Perfect for small-area hot stamping needs, this machine is a cost-effective solution for businesses looking to add high-quality foil details to their paper products.
Technical data
|
Paper Full automatic hot stamping Machine //Structure
|
|
Feeding
|
Paper feeding robot
|
|
Working table
|
Automatic lift paper table
|
|
Press
|
Slant press
|
|
Temperature control
|
IR Heater, automatically controlling
|
|
Foil collecting
|
Automatically collecting
|
| |
- Stamping temperature Rnange:20∼300℃;
- stamping size : 150*200mm
- Table size:240*290mm
- Max stamping Speed:1500-2000pcs/h
- Outer dimension: 1200×780×1550mm;
- Net weight(kg) : 300;
- Motor wattage: 750W;
- Power supply: 1P220V;
- Heater wattage: 1200W IR.
|
|
Works supply
|
|
|
Package list
|
- Package size: 1350×830×1720MM;
- Gross weight: 450kg
- CBM: 3.329
|
|
H.S.Code
|
8443198000
|
|
Certificate
|
CE
|

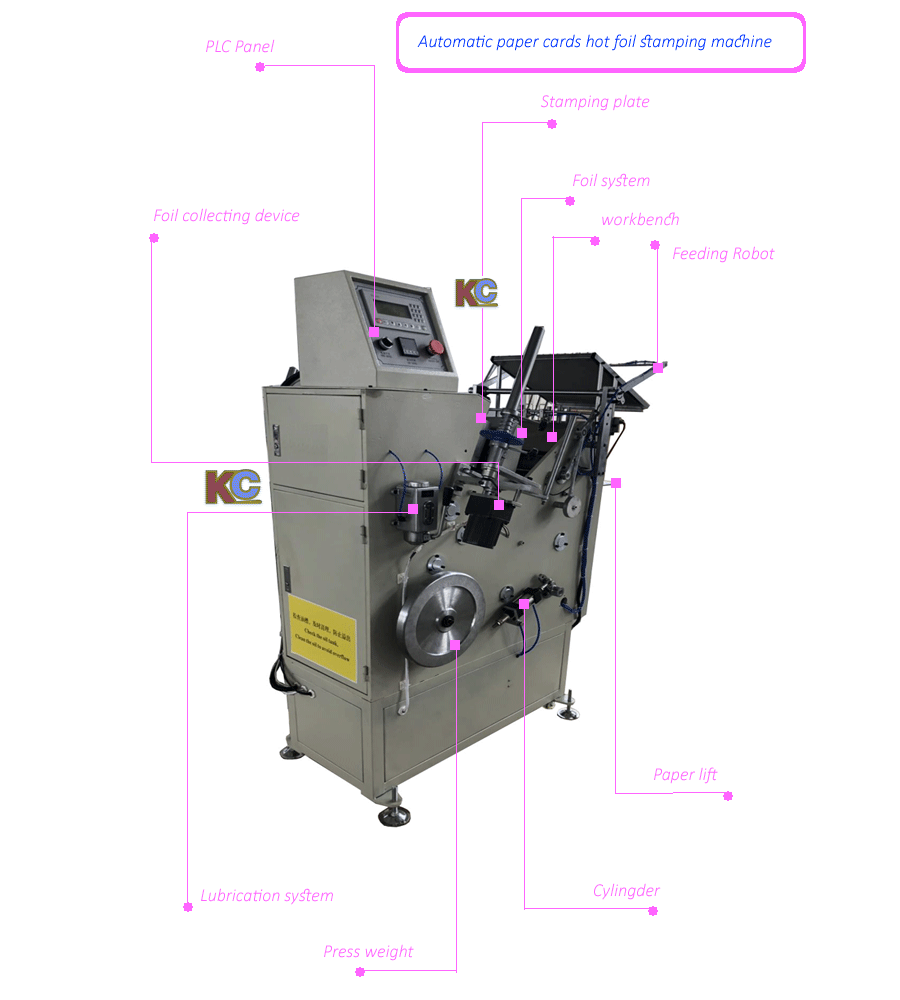

Structure -Avantage
- The Swing-Type Automatic Hot Stamping Machine boasts a crank pressure mechanism that applies strong, even pressure for precise foil stamping.
- The hot stamping head can rotate back and forth, as well as left and right, allowing for flexible and safe operation.
- The machine's automatic stacker feeding mechanism optimizes efficiency by reducing preparation time and increasing hot stamping speed.
- Adjustable settings for hot stamping pressure, temperature, and time give operators full control over the process, ensuring the best results for various applications.
- The automatic paper feeding, delivery, and adjustment systems ensure smooth production with minimal manual intervention.
- The hand wheel provides precise control over the opening degree of the hot stamping head and worktable, allowing for perfect alignment and uniform stamping.
- The automatic rule positioning ensures accurate foil placement, while the automatic bronzing program guarantees high-quality, consistent stamping results.
- Featuring precision linear rolling bearings, the machine operates with minimal friction, extending its lifespan and ensuring a smooth, durable operation.
- The IR heating method delivers high heating efficiency, maintaining consistent temperature for high-quality foil stamping.
- Additionally, the automatic downloading robot facilitates paper removal, making the entire process more automated and efficient.
Type of automatic hot stamping machine
The fully automatic hot stamping machine for Invitation cards is a hot foil stamping machine in which the entire hot stamping process from feeding, positioning, hot stamping to receiving is automatically completed by the machine. The oblique arm automatic hot stamping machine is a kind of fully automatic hot stamping machine, which has the advantages of high degree of automation, high production efficiency, and stable hot stamping quality. Equipped with advanced control systems and sensors, it can achieve precise positioning and hot stamping parameter control.
Fully automatic flat hot stamping machines generally have the following three transmission modes:
- Mechanical transmission type Flat automatic hot stamping machine: through mechanical transmission parts such as gears, chains, belts to transmit power, realize the movement and coordination of various hot stamping parts, suitable for high-speed and high-precision hot stamping operations.
- Hydraulic transmission type Flat automatic hot stamping machine: use the hydraulic system to transmit power, and realize various actions of the hot stamping machine through hydraulic cylinders, hydraulic pumps and other components. Hydraulic transmission has the advantages of smooth transmission, high pressure, stepless speed regulation, and easy overload protection.
- Pneumatic transmission type automatic flat hot stamping machine: using compressed air as the power source, through cylinders, pneumatic valves and other components to drive the relevant parts of the hot stamping machine. Pneumatic transmission has the advantages of quick action, sensitive response and low cost, but the pressure is relatively small. It is suitable for driving some small hot stamping machines or auxiliary actions that do not require high strength.
