Bottle cap Full automatic hot stamping machine //Usage and characters

Samples

Most containers require caps or lids to protect their contents and maintain product quality during storage and transportation, making bottle cap hot foil stamping an important packaging decoration process across many industries. Depending on the required decoration area, bottle cap hot stamping can generally be divided into top stamping and side stamping. For top stamping, the bottle cap is positioned with its top surface facing the heated stamping die, and the stamping head moves vertically to transfer the foil. Side stamping requires an additional rotary positioning mechanism to rotate the bottle cap while the stamping head moves horizontally, enabling accurate foil transfer around the curved side surface. The Smart High-Speed Bottle Cap Hot Foil Stamping Machine is designed to accommodate these different stamping requirements through precise positioning and coordinated motion control, providing stable and repeatable results for high-volume production. The Patented Automatic Bottle Cap Hot Foil Stamping Machine typically integrates an automatic track feeding system, pre-pressing or pre-treatment mechanism, precision positioning system, rotary worktable, hot foil stamping unit, and automatic unloading system. Its automated production sequence minimizes manual handling while maintaining accurate product positioning and consistent foil transfer. Because bottle caps are mass-produced components used across a wide range of consumer and industrial products, high production speed, reliable operation, and consistent stamping quality are essential. With its automated feeding, precision indexing, and efficient hot foil stamping process, this Best-Selling Automatic Bottle Cap Hot Foil Stamping Machine is suitable for plastic packaging, pharmaceutical packaging, cosmetics, stationery, wine and beverage packaging, household cleaning products, and other high-volume packaging applications.

Bottle cover automatic hot stamping machine

Details

bottle cap automatic hot stamping machine

Description

Suitable for top-side hot foil stamping on standard bottle caps, including a wide range of plastic caps and closures;
Compatible with bottle caps featuring smooth top surfaces, providing stable foil transfer and consistent stamping quality;
Also suitable for hot foil stamping on cosmetic caps with diameters below 40 mm;
Equipped with an automatic cap feeding and conveying system, the machine enables fully automatic top-side hot foil stamping for bottle caps;
Compact central structural design with side feeding, allowing bottle caps to be smoothly conveyed into the hot stamping station;
Stable horizontal stamping movement driven by a frequency-controlled motor provides uniform stamping pressure and consistent foil transfer quality;
PLC control system enables precise adjustment of key operating parameters through a user-friendly interface;
Single-machine setup and debugging functions simplify machine commissioning and allow all major operating functions to be tested and adjusted efficiently;
Since bottle caps have defined top and bottom orientations, the machine can automatically identify and orient the caps, reducing manual handling, labor requirements, and operator workload;
Suitable for side hot foil stamping on bottle caps with diameters of approximately 35 mm;
Suitable for hot foil stamping on plastic bottle caps and closures made from various plastic materials;
Applicable to side hot foil stamping on painted metal bottle cap surfaces and other compatible substrates;
Widely used for bottle cap decoration in the wine and beverage packaging, plastic container and packaging, cosmetics, and household products industries.

Technical parameters

Total consume Wattage: 260W;
Stamping temperature Rnange:20∼300℃;
Compress air Pressure﹕5-8Bbar;
Products Diameter:﹕(φ15~Φ35mm)×(20~60mm)
Max stamping Speed:2000-3000pcs/h
Outer dimension: 2300×2160×1200mm;
Net weight(kg) : 420;
Motor wattage: 1500W;
Power supply: 220V;
Heater wattage: 800W IR.
Works supply: 110V-220V Power supply;5-7Bar Compress air.

Catalogue

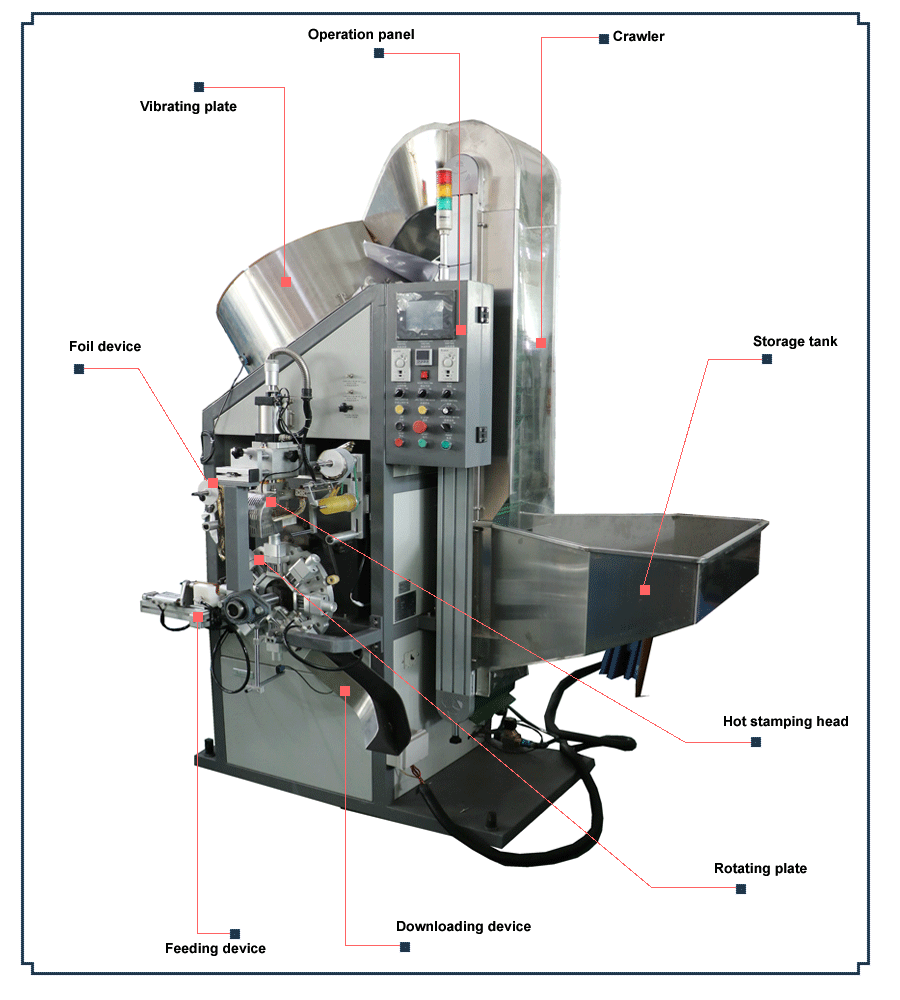

automatic bottle cap hot stamping machine

Full automatic hot stamping machine for bottle cap //Advantage

Vertical cylinder-driven pressure mechanism provides strong and stable stamping force for consistent foil transfer;
Multi-directional stamping head adjustment allows convenient front-to-back, left-to-right, and up-and-down positioning for quick and precise setup;
8-station rotary feeding mechanism significantly reduces loading and indexing time while improving overall stamping efficiency;
Adjustable stamping pressure, temperature, and dwell time accommodate different bottle cap materials and foil stamping requirements;
Automatic foil feeding and waste foil rewinding system with adjustable foil feed length for efficient and stable operation;
Adjustable stamping head height provides flexible adaptation to different bottle cap dimensions and stamping positions;
Hopper storage and automatic track feeding system ensure continuous and orderly bottle cap supply to the stamping station;
Automatic cap orientation detection system identifies the top and bottom of each cap and ensures correct positioning before hot foil stamping;
Fully automatic hot foil stamping process integrates feeding, positioning, stamping, and product handling for continuous production;
Advanced modular PLC control system combined with a touchscreen HMI provides intuitive parameter setting and centralized operation, while SMC pneumatic components ensure stable and reliable motion control;
Square-column machine frame design provides a rigid, robust, and durable structure for long-term industrial operation;
High-precision imported displacement sensor provides accurate position control to improve stamping consistency and overall foil transfer quality;
High-quality precision linear bearings provide smooth, lightweight, and reliable movement, reducing mechanical wear and extending machine service life;
Infrared heating system provides efficient and stable heat generation, ensuring consistent stamping temperature and reliable foil transfer quality;
Rotary worktable with automatic air-inflation positioning device is designed for precise side hot foil stamping of bottle caps, enabling stable positioning of cylindrical caps during the stamping process.
