Product details

Pneumatic hot stamping machine //Usage and characters

Samples

Technical data

Gilding - paper, leather, wood, plastic,
Baked - wood products, baked painting, gift box packaging;
Embossing - paper, leather, cloth.
Flat-object stamping machine with large-pressure, Suitable for stamping on invitation letter, card. Leather, wooden gift, Paper package, Plastics film, Electron products;
Manual. Automatic feed foil, automatic temperature controlling ensures stamping quality.
Because of large pressure, It is suitable for gilding and baking Impression on leather, paper, wooden materials.
Pneumatic drive, pressure large.

Paper Gilding, Leather Impression, Wood ware Baking
Paper Concave-convex embossing, Cloth hot stamping,
Plastics Bronzing
Mobile screen, Household appliances Panel , Thick paper card, PVC board Etc. large dimension Flat substrate stamping and Bronzing.
Woodiness objects baking-burns and Impress;
Leather bronzing and Molding;
Paper products concavo indentation.
Graduated disc of clock bronzing.

Pneumatic hot stamping Machine //Parameter

H-TC1520

Hot plate area:150× 200 mm
Working table area:320 ×400mm
Max printing pressure:2,000-3000 Kg
Up and down distance:45mm
Heat wattage:1200W
Foil in feed: Motor Drive
Temperature adjustment:0-300oC .

H-TC1927

Hot plate area:190 × 270 mm
Working table area:320 ×400mm
Max printing pressure:2,000-3000 Kg
Up and down distance:45mm
Heat wattage:1200W
Foil in feed: Motor Drive
Temperature adjustment:0-300oC

H-TC2129

Hot plate area:210×290 mm
Working table area:320 ×400mm
Max printing pressure:2,000-3000 Kg
Up and down distance:45mm
Heat wattage:1000W
Foil in feed: Motor Drive
Temperature adjustment:0-300oC .

H-TC3025

Hot plate area:300 × 250 mm
Working table area:320 ×400mm
Max printing pressure:2,000-3000 Kg
Up and down distance:45mm
Heat wattage:1000W
Foil in feed: Motor Drive
Temperature adjustment:0-300oC

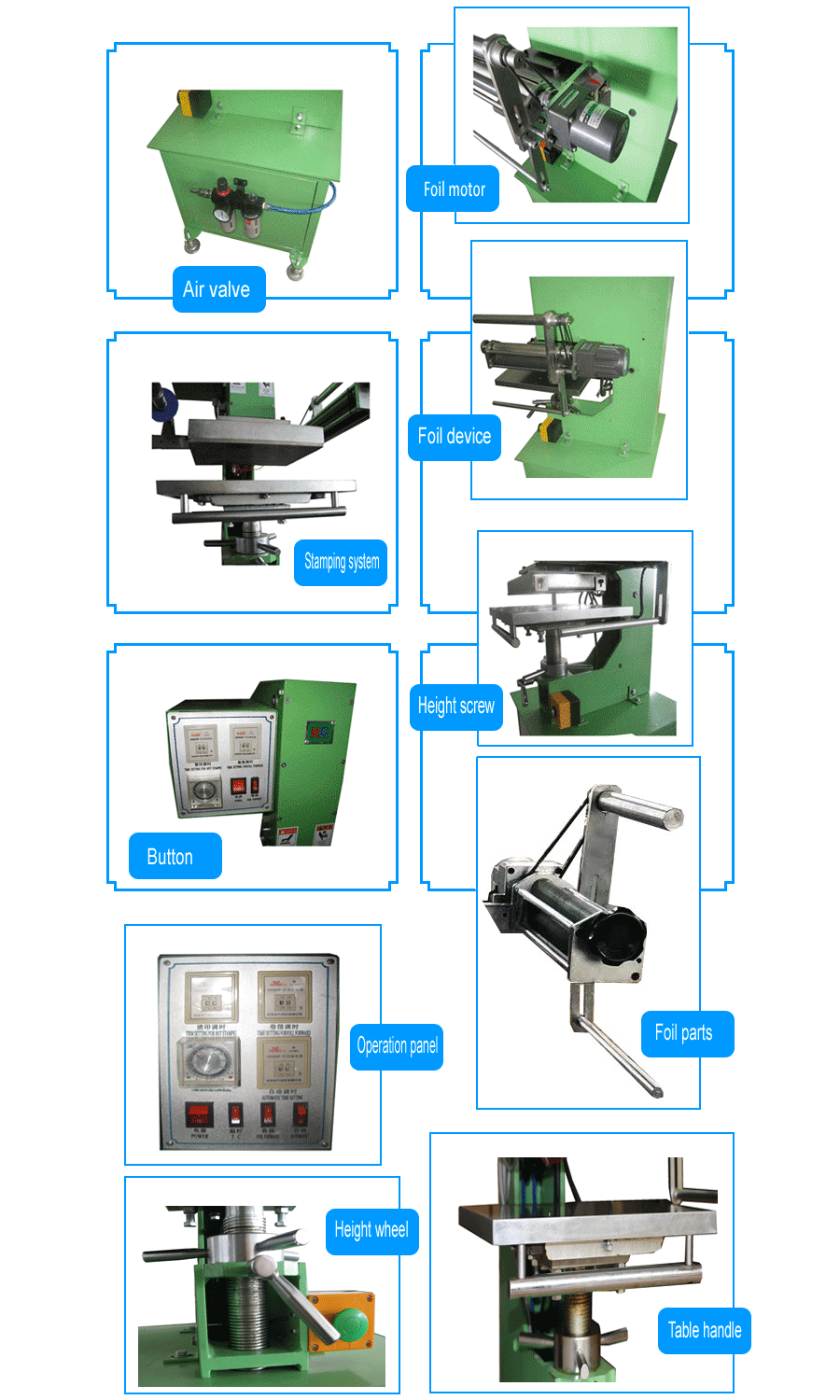

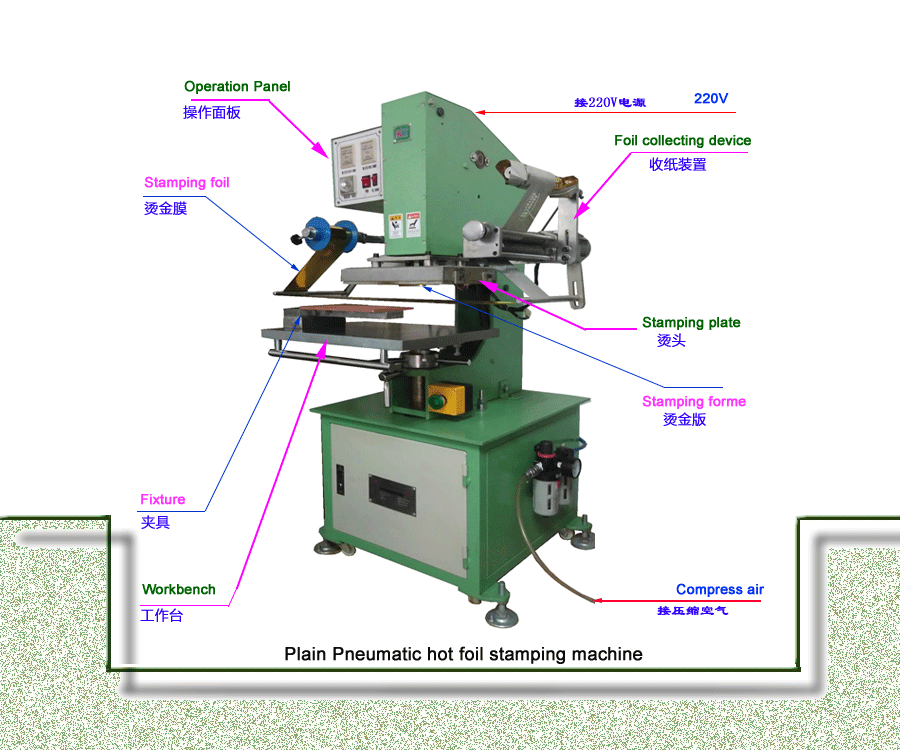

Structure

Details-Advantage

Table can be pulled into and pulled out the pick and place of convenience products;
Table can be up and down, around, before and after the precision adjustment, to facilitate the adjustment of the precise location of the gilt;
Table lifting screw adjustment, simple and convenient;
Relays for process control, stable operation, easy maintenance;
The use of advanced temperature control system, the temperature can be set freely, high precision temperature control, with automatic temperature control;
leveraged cylinder pressure, the pressure is uniform and strong;
The basic parameters of the hot stamping process; temperature, pressure, hot pressure, the rolls of time in accordance with the process requirements of the flexible adjustment;
Motor to control the delivery of the gold foil paper, resin length can be flexibly adjusted according to the size of the stamping area;
Using high strength steel, gilt plate and table, has a very high flatness;
Heating tube for heating, heat supply is stable, easy to replace

Catalogue

Flat hot stamping machines can be divided into the following types according to the different materials for hot stamping:

Paper flat hot stamping machine: semi-automatic flat paper hot stamping machine and fully automatic flat paper hot stamping machine. The size of the paper is relatively standard. If the workbench can hold the paper, it can be hot stamped; the workbench for paper with lower gram weight can use a vacuum suction device.

Plastic flat hot stamping machine: For plastic products with three-dimensional structure injected, you can choose a hot stamping machine with a T-slot workbench. The workbench can choose a fixed workbench or a sliding workbench.

Leather flat hot stamping machine: Both natural leather and artificial leather can be hot stamped. If hot stamping foil is not used, the leather can be embossed.

Fabric flat hot stamping machine: Fabrics such as cotton, linen, silk, and chemical fiber cannot be hot stamped directly. First, the hot stamping paste is screen-printed and then hot stamped. Since fabrics have low precision requirements, most users choose a simple hot stamping machine for hot stamping. You can also use a roller hot stamping machine for hot stamping.

Wood flat hot stamping machine: In wooden crafts, furniture decoration, wooden box packaging, etc., the flat hot stamping machine can give wood a different sense of refinement. If hot stamping foil is not used, wood can also be used to make pyrography artworks.

Glass flat hot stamping machine: Glass generally cannot be hot stamped directly. First, screen print glass varnish and then hot stamp. Because glass is brittle and cannot withstand too much pressure, silicone roller hot stamping machines are also commonly used.
