Samples
This four-color intelligent servo shuttle pad printing machine is designed for high-precision industrial printing applications, particularly suitable for automotive components, precision plastic parts, electronic housings, and other technical products requiring accurate multi-color graphics. Its heavy-duty high-strength cast-iron frame provides excellent rigidity, vibration resistance, and long-term dimensional stability, supporting reliable performance in continuous production environments. The servo-driven shuttle table provides precise positioning between printing stations and achieves multi-color registration accuracy of up to ±0.03 mm, helping ensure sharp and consistent graphic alignment. Each sealed ink cup is independently driven for accurate ink doctoring, while the closed ink system helps reduce ink evaporation and maintain a cleaner and more stable printing environment. The machine features an independently adjustable pad printing system, with separate controls for ink pickup, ink transfer, and printing movements. This configuration allows printing parameters to be optimized for different automotive parts, materials, and graphic requirements, ensuring consistent ink transfer, repeatable positioning, and stable print quality. An intuitive HMI control system enables digital adjustment of key operating parameters, providing precise and convenient machine setup. Based on a modular design, the automatic pad printing machine can be integrated with optional plasma surface treatment systems, laser marking units, and robotic loading and unloading systems to create a highly automated production line. With intelligent servo control, flexible programming, and precision printing capabilities, this high-precision pad printer for automotive components provides an efficient and reliable solution for demanding industrial pad printing applications.
Description
|
4 colors closed cup pad printer with shuttle//Parameter
|
|
Technical parameters
|
SP4-612CPSK
|
- Max. plate size: 150×300 mm;
- Max. worktable area: 200×125mm;
- Max. printing area:130×130mm;
- Max. printing speed: 550pcs/h;
- Printable colour :4;
- Shuttle stroke: 200mm;
- Max product dimension: 300×260mm
|
|
SP4-614CPSK
|
SP4-616CPSK
|
- Max. plate size: 150×350 mm;
- Max. worktable area: 200×125mm;
- Max. printing area:130×170mm;
- Max. printing speed: 550pcs/h;
- Printable colour :4;
- Shuttle stroke: 200mm;
- Max product dimension: 300×260mm.
|
- Max. plate size: 150×400 mm;
- Max. worktable area: 200×125mm;
- Max. printing area:130×220mm;
- Max. printing speed: 550pcs/h;
- Printable colour :4;
- Shuttle stroke: 200mm;
- Max product dimension: 330×260mm.
|
|
Works supply
|
- 110V-220VPower supply;
- 5-7Bar Compress air;
|

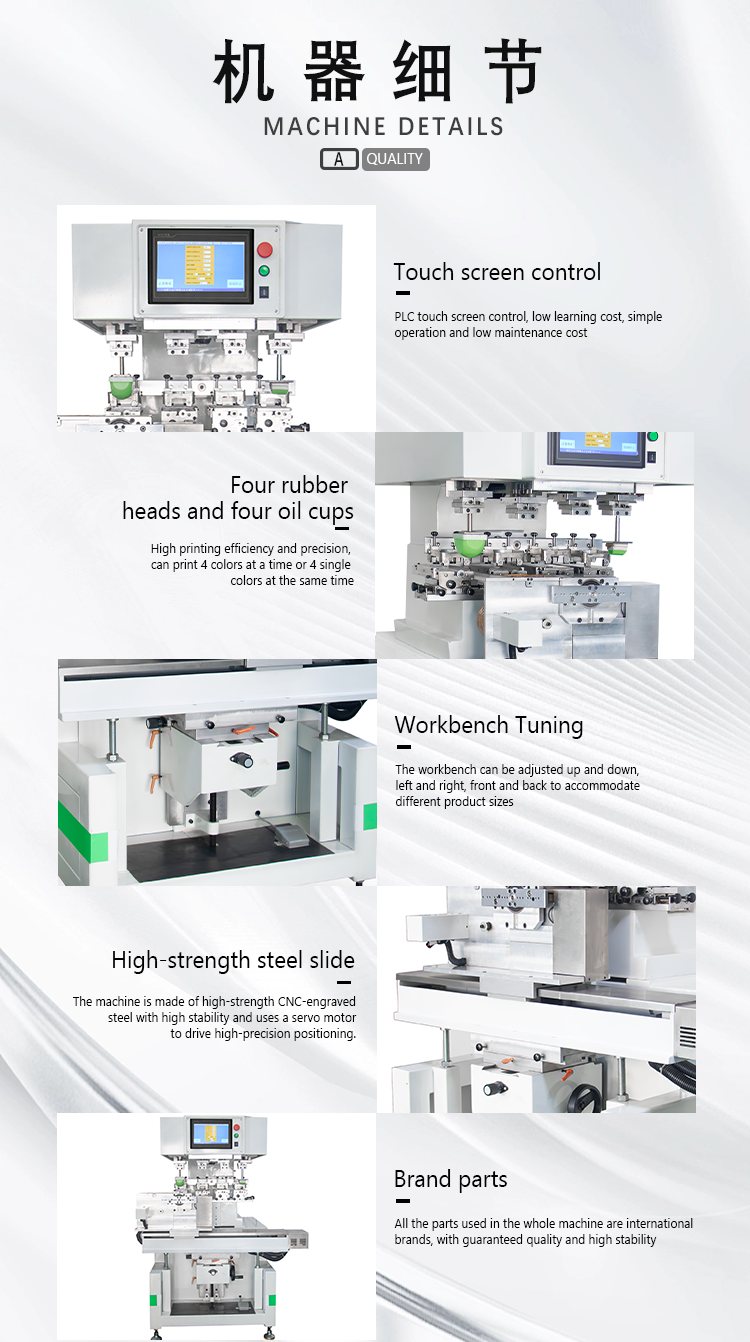

Details
-
Key Features
- Microcomputer-Controlled Operating System
- Streamlined Design with Modern Appearance
- Heavy-Duty Aluminum Alloy Frame Construction
- Servo Shuttle Table for Precise Color Registration
- Independent Pad Pressure and Ink Pickup Adjustment
- Test Mode and Production Mode Operation
- Open Ink Tray System for Easy Ink Adjustment
- Automatic Digital Production Counter
- Four-Color Printing with Hot Air Intermediate Drying
- Ten-Level Adjustable Printing Speed
- Automatic, Semi-Automatic, and Test Operation Modes
- Self-Balancing Doctor Blade System for Clean Ink Transfer
- Enlarged Ink Tray for Large Image Printing
- Stable Multi-Color Overprinting Performance
- User-Friendly Setup and Operation
- Ideal for Large-Format Multi-Color Printing Applications
What configurations do high-end four-color shuttle pad printers generally have?
There are many types of pad printers on the market, and the prices vary greatly. So what characteristics do high-end four-color shuttle pad printers generally have?
- Control system--The operation panel will be controlled by a microcomputer or a more advanced PLC equipped with a human-machine interface.
- Power system--The shuttle of the workbench, the lifting and lowering of the pad printing rubber head, the rotation of the rubber head cleaning device, and the sliding of the oil cup, if these actions are controlled by servo motors, the power of the pad printer will be more stable and accurate.
- Brand components:--Pneumatic components and electronic components use domestic or international diameter brands such as AIRTAC, FESTO or Japan SMC, etc., and the life of the pad printer will be longer.
- Printing system--The movement of the rubber head of the four-color shuttle pad printer is becoming more and more complicated. For example, the downward printing stroke is larger, which is suitable for printing concave products. In addition to the downward movement, the rubber head can also rotate at any angle, which is suitable for any complex products.
- Drying system--Equipped with hot air device or UV curing device, it can achieve rapid drying of ink, and can also be combined with laser marking machine for etching pad printing.
- High-precision workbench--The workbench adopts a high-precision base, X, Y, and R can be adjusted independently, and is equipped with precision cross guides.
