Pneumatic single color T-slot table tempo machine

Highly automated and intelligent

• Fully automated operation: It can realize the full process automation from ink addition, plate cleaning, rubber head replacement to printing parameter adjustment, reduce manual intervention, and improve production efficiency and product quality consistency.

• Intelligent parameter adjustment: It has intelligent learning function, which can automatically adjust printing parameters such as printing speed, pressure, temperature, etc. according to different printing materials, patterns and process requirements to ensure the best printing effect.

Good compatibility and flexibility

Multiple printing modes: It supports multiple printing modes, such as monochrome printing and multiple overprinting.

Wide substrate adaptability: It can print on substrates of various shapes, materials and sizes, including flat surfaces, curved surfaces, concave and convex surfaces, etc.

Environmental protection and energy saving

Energy-saving design: It adopts energy-saving motors, heating systems and control systems, and the equipment consumes less energy during operation, which can save more than 30% energy compared with traditional pad printing machines.

Open inkwell ink system, ink adjustment more convenient, more suitable for striking observation;
Temporary shutdown can prevent the ink to dry within the inkwell with INK function;
World famous pneumatic components to ensure the long service life of machine;
Rubber sliding shaft with hardened guide shaft grinding of high hardness, good abrasion resistance;
Auto balanced doctor blade ensures that ink can be scraped cleanly and completely.
Using the dimensional modulating table, can be up and down, front, left, and rotation of the adjustment, which will help precise printing;
T-slot structure, easy installation of fixtures and products;
Hand pick and place workpiece, operating more handy;
Microcomputer program control, the movement is more accurate and reliable;
Test machine can be a single action adjustment, adjustment is completed, you can use the automatic mode of operation;
Equipped with four counters, can effectively measure the number of products;
Structure using die-casting aluminum, lightweight and solid.
Independent Rubber pad up and down stroke and speed adjustment function;

Pneumatic single color T-slot table tempo machine //Structure

Working table: Standard working table with 3-size adjustment
Ink supply system: Open inkwell-type system
Plate type: 10mm Thick steel plate.
Pad dropping control: Simple-cylinder , simultaneously pressing

034

Pneumatic single color T-slot table tempo machiner//Usage and characters

With Open inkwell to store ink, ink adjustment more convenient, more suitable for striking observation.
With coin aluminum structure ensure more stabilization and long life.
Can print almost small size objects . So sold very nice in the world.
Widely used in the industry field of cosmetics case, electron parts, Toys, plastics production, Housewares, gifts, decorations.
Completely printing solution including ink and thinner , fixtures, steel plates, rubber pads provided when you send us samples;
Pneumatic components million times life verification, circuit boards and integrated circuits using the scale of Taiwan's famous full factory inspection;
Self-balanced scraping ink technology, squeegee clean, easy to replace

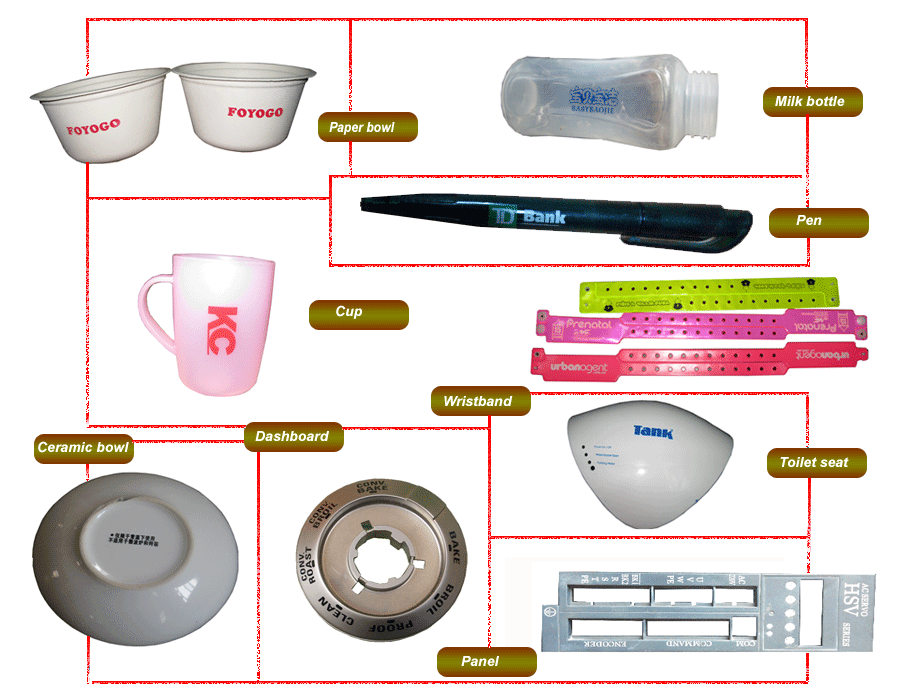

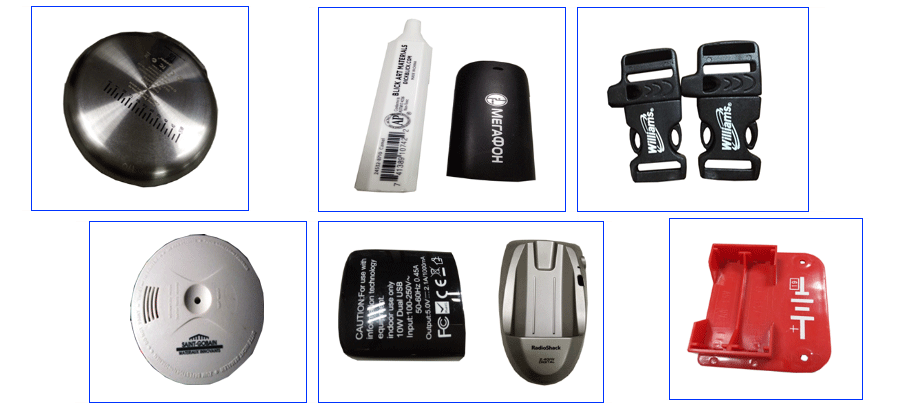

Application fields

Electrons, hardware, autos, toys, gifts, Plastics, household appliances, artwork, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, etc., industrial field.

Pneumatic single color T-slot table tempo machine //Parameter

P1-408CPK

Plate area:100×200mm;
Table area:200×125mm;
Max printing speed:1500pcs/h;
Colour number:1;
Max Printing area: 85×90mm.

P1-410CPK

Max. plate size: 100×250mm;
Max. worktable area: 200×125mm;
Max. printing area:85×130;
Max. printing speed: 1300pcs/h;
Printable color quantity:1.

P1-412CPK

Max. plate size: 100×300mm;
Max. worktable area: 200×125mm;
Max. printing area: 85×170mm;
Max. printing speed: 1200pcs/h;
Printable color quantity:1

Works supply:

110V-220VPower supply;
5-7Bar Compress air;

Package list:

Outer dimension:0.74×0.36×1.38M
Gross weight:108KG
Package domension:0.870×0.590×1.480M
Gross weight:138KG
CBM: 0.759684
H.S.Code: 8443198000
Certicate: CE

Pneumatic single color T-slot table tempo machine //Advantage

Open inkwell ink system, ink adjustment more convenient, more suitable for striking observation;
Temporary shutdown can prevent the ink to dry within the inkwell with INK function;
World famous pneumatic components to ensure the long service life of machine;
Rubber sliding shaft with hardened guide shaft grinding of high hardness, good abrasion resistance;
Auto balanced doctor blade ensures that ink can be scraped cleanly and completely.
Using the dimensional modulating table, can be up and down, front, left, and rotation of the adjustment, which will help precise printing;
T-slot structure, easy installation of fixtures and products;
Hand pick and place workpiece, operating more handy;
Microcomputer program control, the movement is more accurate and reliable;
Test machine can be a single action adjustment, adjustment is completed, you can use the automatic mode of operation;
Equipped with four counters, can effectively measure the number of products;
Structure using die-casting aluminum, lightweight and solid.
Independent Rubber pad up and down stroke and speed adjustment function;

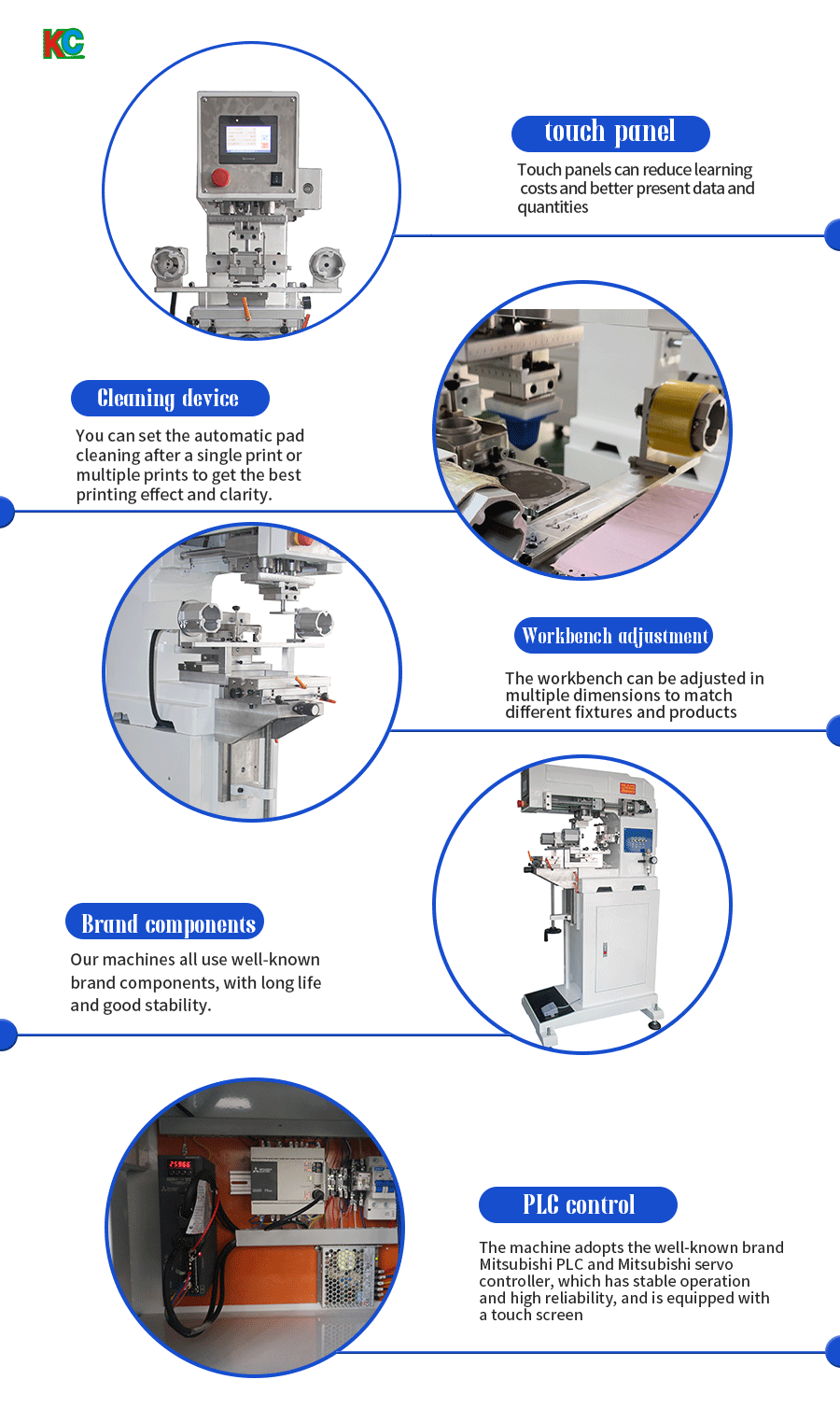

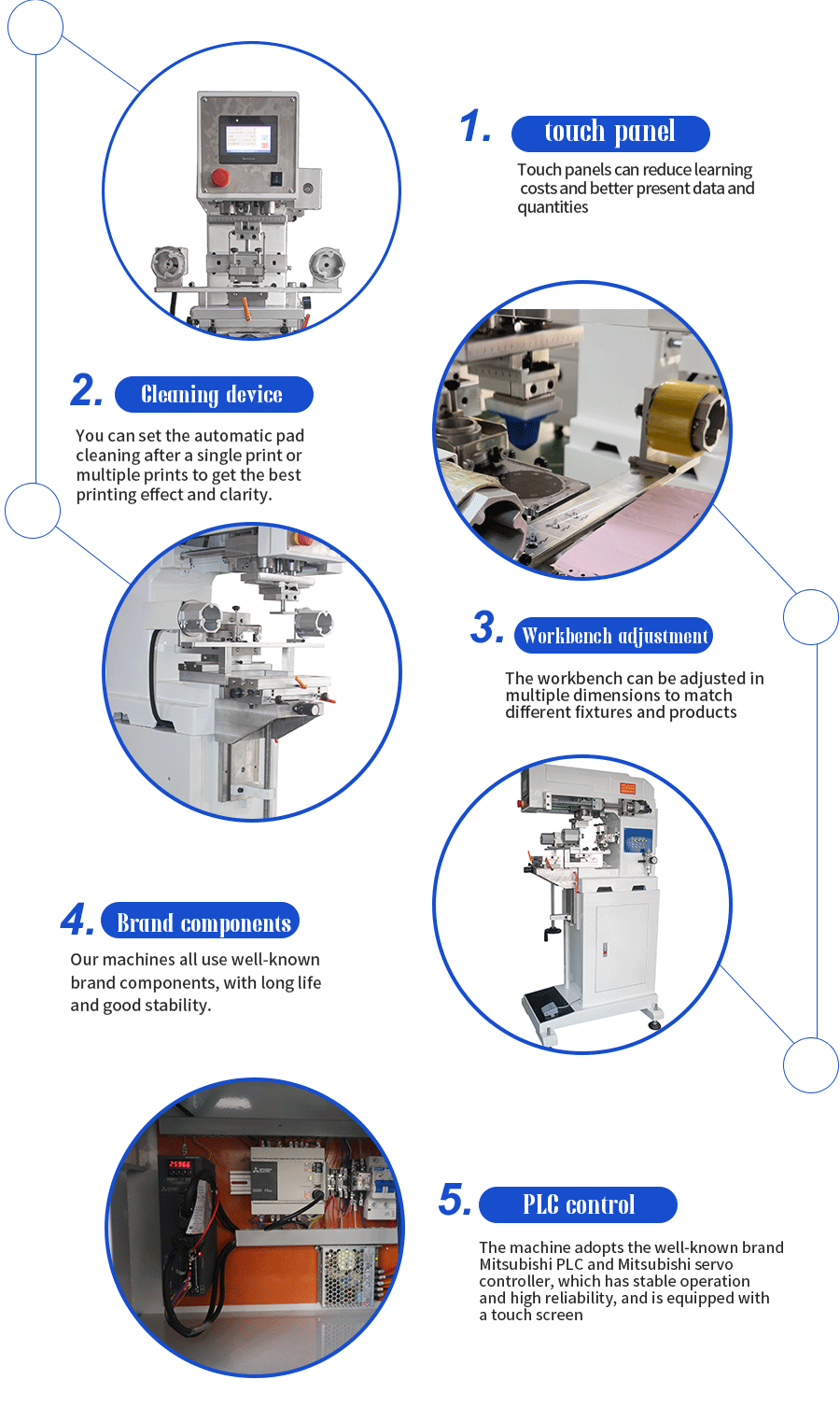

Product Details

Simple and reliable operation: Generally adopt advanced and reasonable linear reciprocating motion and vertical pad printing structure, stable performance, easy operation, printed text and patterns are not easy to deform, and scrapers and mold steel plates are easy to adjust.

The Jianyi brand monochrome ink cup pad printer usually has the following structure:

Workbench part

It is used to place the workpiece to be printed. It may be a flat surface or with a fixture to adapt to substrates of different shapes and sizes. The workbench can be manually adjusted up and down, left and right, front and back to achieve accurate positioning of the printing position.

Oil cup and scraper device

• Oil cup assembly: including the oil cup body and the scraper ring. The oil cup body is used to store ink. The scraper ring is installed on the oil cup body and buckled on the pad printing steel plate.

• Oil cup drive cylinder: controls the oil cup to make linear reciprocating motion on the surface of the printing plate, so that the ink fills the concave pattern on the surface of the printing plate during the movement.

Printing plate device

• Printing plate clamp: used to fix the printing plate to ensure that the printing plate is accurately and stably positioned during the printing process, and facilitate the ink coating and scraping operations of the oil cup and scraper.

• Printing plate: usually a thick steel gravure plate with a thickness of about 10mm, or a thin steel gravure plate with a thickness of 0.25-0.5mm, or a nylon gravure plate of the same thickness can be used instead.

Printing device

Pad head and its fixing device: The pad head is the core component of pad printing, which is used to pick up ink from the printing plate and transfer it to the surface of the substrate. The pad head fixing device is used to install and fix the pad head to ensure the stability of the pad head during the printing process.

Pad head driving cylinder: It includes a horizontal cylinder and a vertical cylinder. The horizontal cylinder controls the movement of the pad head above the printing plate and the substrate, and the vertical cylinder controls the up and down movement of the pad head.
