Samples of pad printer

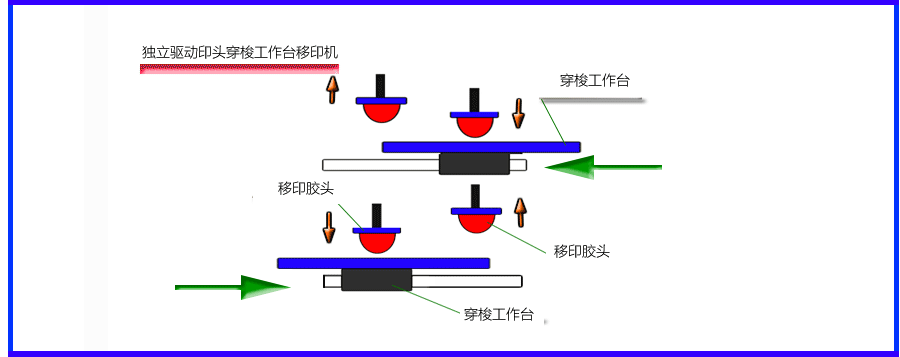

The servo shuttle workbench open ink tray pad printer uses a servo motor to accurately control the shuttle motion of the workbench to achieve rapid switching between two different color printing stations. During pad printing, through the precise mechanical structure and control system, the print head dips the ink on the steel plate in turn and quickly transfers it to the substrate; then the workbench quickly shuttles to another color station under the control of the servo motor, repeats the above process, and completes two-color printing.

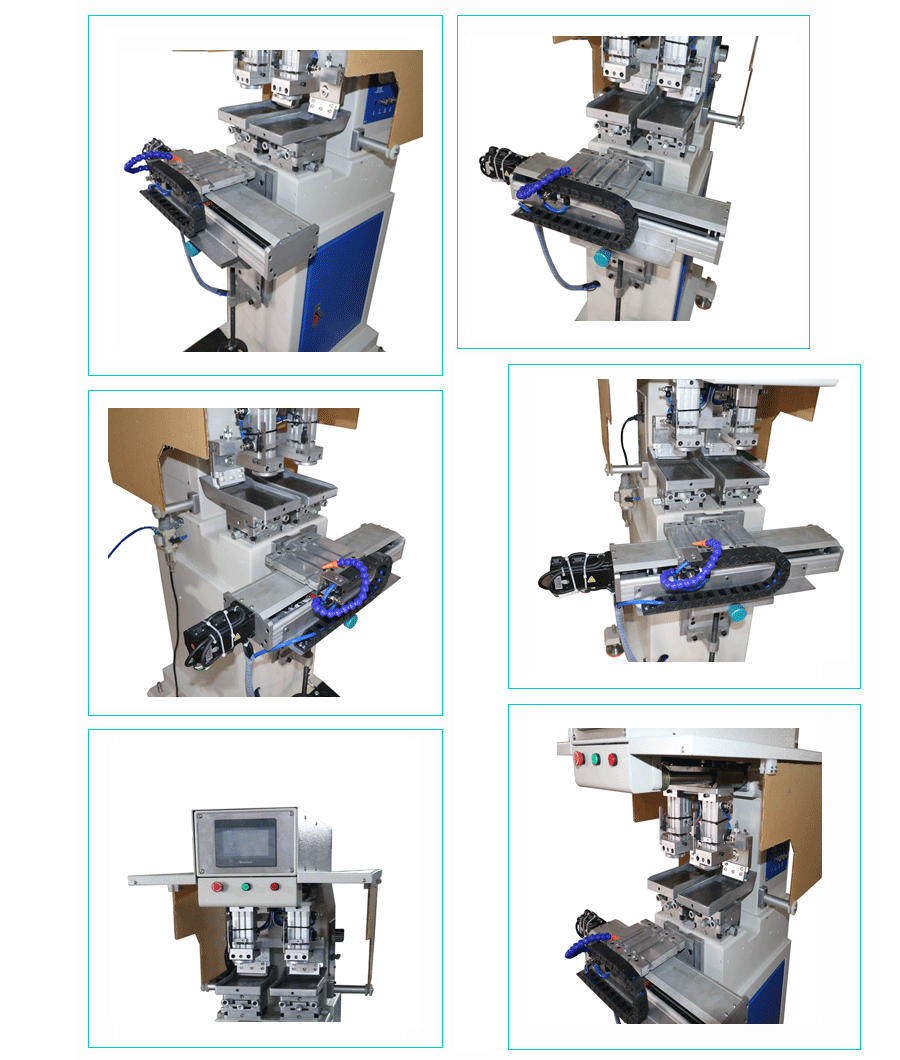

Structural features
Servo shuttle workbench: driven by a servo motor, with high positioning accuracy, can achieve fast and smooth shuttle motion, ensuring the accuracy of two-color overprinting.
Two-color printing system: equipped with two independent ink supply systems and print head devices, each print head can independently adjust parameters such as pressure and stroke to meet different colors and different printing requirements.
Open structure: It is convenient for operators to observe and intervene in the printing process, convenient for clamping substrates, changing inks, cleaning print heads and steel plates, and more convenient for maintenance and maintenance.
Control system: usually adopts advanced PLC or industrial computer control system, which can accurately control the movement of servo motor, the action of print head and the coordinated work of various components, and can also realize digital setting and adjustment of parameters such as printing speed, pressure and number of times.
|
Two colors independent-press pad printing machines with shuttle//Parameter |
||
|
Technical parameters |
P2-406D |
P2-608D |
|
|
|
|
Works supply |
|
|
|
Package list |
|
|
|
H.S.Code |
8443198000 |
|
|
Certicate |
CE |
|
If you are interested in the product, contact 2bvideo.com for more information for more information
