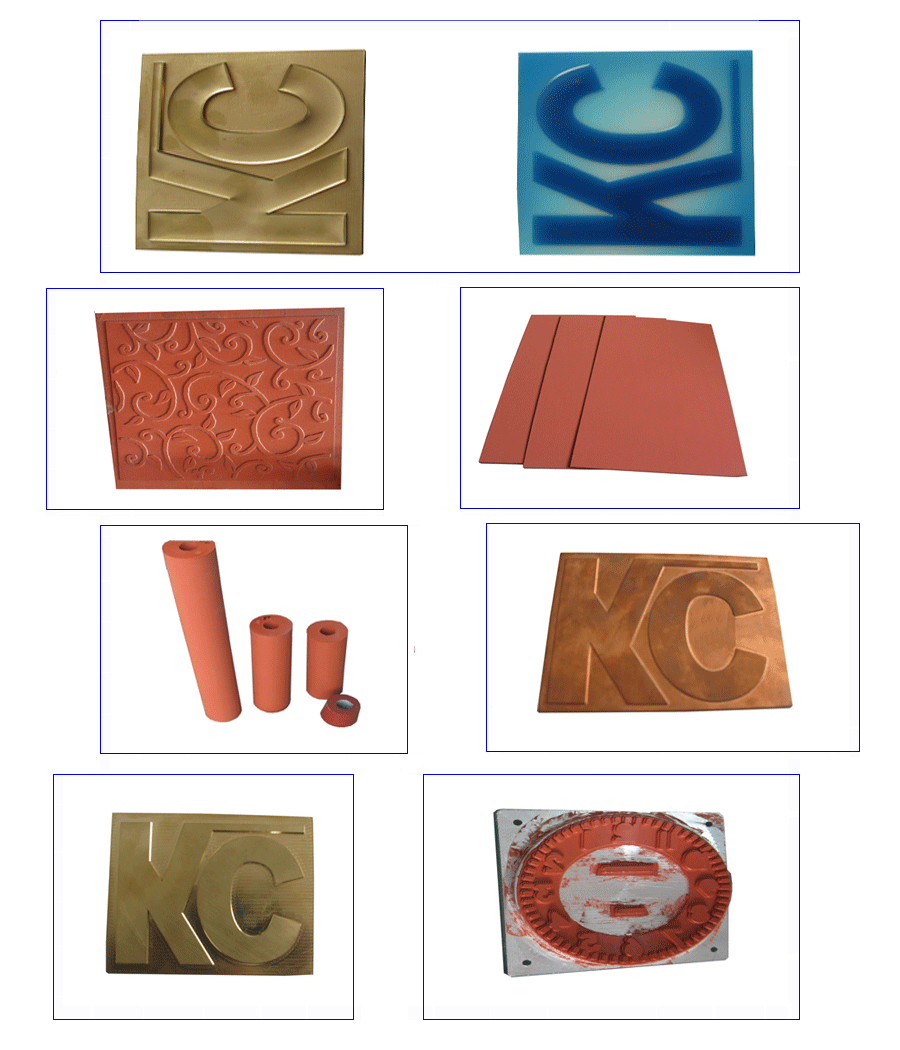

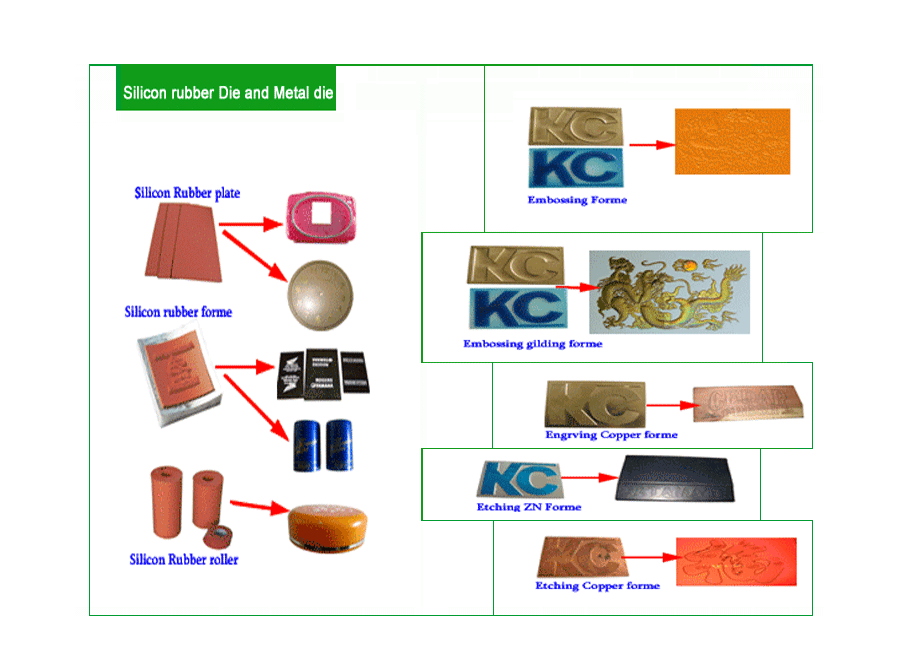

Silicon rubber dies :
| Made By high-temperature vulcanizing silicon rubber; Suitable for foil stamping Rigid objects such as: cosmetic case, Plastics caps, Plastics panel. |
Use Method︰
Used by flat hot foil stamping machine ( Include manual hot stamping machine, Pneumatic hot foil stamping machine, Hydraulic hot stamping machine and full automatic hot stamping machine ) or cylinder Gilding machine ( Oil-pressure cylinder hot stamping machine, Pneumatic curved hot stamping machine, automatic vertical tutntable hot stamping machine ) To finish logo and words Bronzing
Polymer dies :
|
Made By high-temperature vulcanizing Polymer Resin ; Suitable for stamping Rigid objects such as: cosmetic case, Plastics caps, Plastics panel. |
Bronzing effects will rapidly improve the paper decoration; |
Etched ZN dies
|
Usage︰ Gilding Logo and Drawing onto Products. suitable for Rigid objects such as: Wooden, Plastics and some paper and film. Suitable for : Innvitation letter, Smoking package , Wine package, Food Package, Gift and health protection, greeting card, Metal plate inlcuding Copper plate, zincograph plate, magnesium plate. ZN plate suitable for Complex surface. |
Etched copperplate
| Bronzing effects will rapidly improve the paper decoration; Widely used in the field of Paper package, Gift making. Suitable for : Innvitation letter, Smoking package , Wine package, Food Package, Gift and health protection, greeting card, Metal plate inlcuding Copper plate, zincograph plate, magnesium plate. Only Copper plate can be engraved with engraving machine. Engraved copperplate price expensive, Etched copper more cheaper , suitable for stamping middle-quality products. Some acid concerns in the process of etching. |
Engraved copperplate
| Bronzing effects will rapidly improve the paper decoration; Widely used in the field of Paper package, Gift making. Suitable for : Invitation letter, Smoking package , Wine package, Food Package, Gift and health protection, greeting card, Metal plate inlcuding Copper plate, zincograph plate, magnesium plate. Only Copper plate can be engraved with engraving machine. Minimal sculpture can be carved 7 copperplate font, Chinese 2MM about 1mm letters about the fine line 0.1mm, and the line between the thin 0.1mm. |
Engraved embossment forme
|
Embossment effects will rapidly improve the paper decoration; Use Method︰ 1. Adhere Resin plate onto working table of stamping machine; Printing Plate type︰ There are two relatived plate: one is copper plate, engraved with electron engraved machine; the other is resin plate. |
Engraved embossment-bronzing plate Golden effects and embossment effects will rapidly improve the paper decoration; 1. Adhere Resin plate onto working table of stamping machine; Printing Plate type︰ There are two relatived plate: one is copper plate, engraved with electron engraved machine; the other is resin plate. |
How to Choose hot stamping template for Flat and curved hot foil stamping machine?
When choosing a hot stamping template for your hot foil stamping machine, the most important considerations are matching the hot stamping material, pattern accuracy, and machine type:
1. Choose based on the properties of the substrate
The surface characteristics of different substrates vary significantly, directly determining the compatibility of the template:
Copper dies: The most versatile, with a moderate hardness (HRC 35-40), are suitable for most common materials such as paper, leather, plastic, and fabric. They are suitable for fine lines and have a long service life. They are suitable for flat products, standard cylindrical surfaces, rough surfaces, plush fabrics, and textured fabrics.
Zinc dies: The hardness is lower (HRC 20-25), and the price is 30%-50% lower than copper plates. They are suitable for soft materials such as paper and thin plastics. However, they have poor wear resistance and can easily deform fine patterns. Therefore, they are only recommended for small batches and simple designs. Silicone plate: A flexible material, typically cast onto an aluminum plate to improve deformation resistance. Suitable for curved and irregular surfaces (such as cups and cylindrical bottles), or fragile flat surfaces like glass, ceramics, and plastic sheets. However, it cannot produce fine lines and has a short lifespan. Repeated compression can cause the rubber to age and deform.
Steel dies: Extremely hard (HRC55 and above) and heat-resistant, it is commonly used for heat transfer on wood products and embossing thick blankets. However, it is expensive and has a long processing cycle, making it suitable only for specialized industrial applications.
Magnesium plate: Lightweight, fast thermal conductivity, high surface hardness, and easy demolding. It is particularly suitable for applications requiring high precision, fine lines, and complex graphics.
2. Select by "Design Precision"
Silicone hot stamping dies are made by casting, while metal plates can be made by etching or engraving. Silicone plates are suitable for products with higher surface hardness and are suitable for plastic products with curved, cambered, or sloped surfaces. Metal hot stamping plates made by engraving offer high precision and a long lifespan. They are suitable for 3D reliefs, complex patterns, ultra-fine designs, gradient effects, high-end packaging, brand logos, and etching processes. They are also suitable for conventional lines and text patterns.
3. Select by "Hot foil Stamping Machine Type"
Hand hot stamping machines use smaller, thinner hot stamping plates and can be installed with adhesive. air pressure driven hot stmaping machine and hydraulic driven hot stamping machines use larger, thicker hot stamping plates and can be fixed with screws.
