Automatic 3 colors bottle caps screen printing machine

2 year ago

68 0

KC Printing Machine (Group) Limited

 10 year year

Product details

Introduction

This two-head automatic screen printing system is optimized for high-quality printing on cylindrical and circular parts, particularly bottle caps. It features a chain-driven indexing system that maintains stable positioning, effectively preventing misalignment issues typically caused by the lack of circumferential reference points.

In operation, the product is firmly held in place on the chain fixture while the printing action is performed. The cap itself does not rotate; instead, controlled movement is applied during printing to ensure accurate color placement. This approach significantly improves registration accuracy in two-color printing applications.

Additionally, the machine is designed with flexibility in mind. The second printing station can be converted into a varnish coating unit, allowing users to apply a protective layer over printed graphics. This modular configuration enables both printing and finishing processes within a single production line.

Automatic screen printing machine//Usage and characters

Automatic screen printer for bottle caps overprint;
Designed specifically for the printing of hollow plastic bottle design independent feeder, efficient printing, and other containers can be converted mold printing, simple operation, save a lot of manpower to provide complete solutions for the plant productivity is low.
Market fully automatic screen printing machine in bottles all the connection type screen printing system, bottle finished the first color, into the second printing unit to the second color screen printing. Tolerance in the length direction, the type of screen printing machine can do a 5-color to six colors.

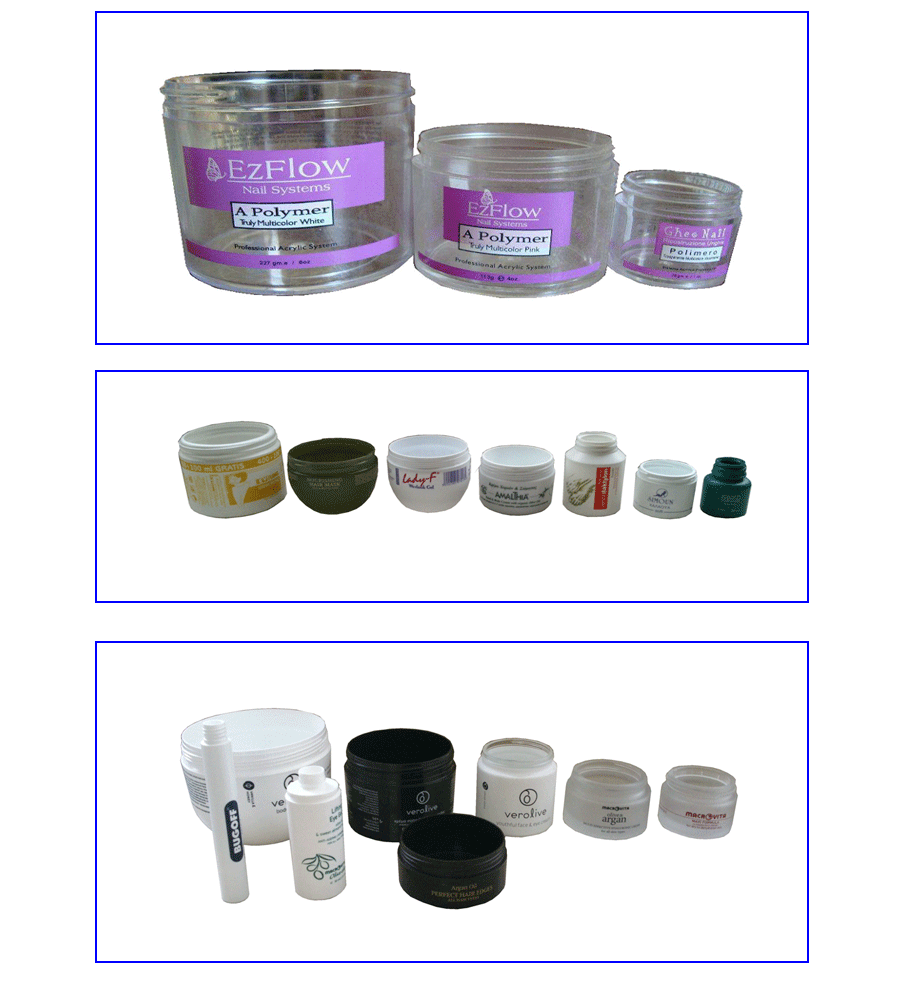

Cosmetics, pharmaceuticals and food industry within the round, flat, square container on the surface of the printing of various patterns, such as cosmetic bottles, detergent bottles, beverage bottles, milk bottles, space cups, filters, jars and other high-speed screen printing
Plastic packaging, oil industry, cosmetics industry, commodity manufacturing industries;
Automotive filters, cylindrical products with positioning points;
Various hollow containers, some hoses, some open type containers;
Some have smooth sides of the cap.

SZD-107 Full automatic screen printing Machine//Parameter

Round-object Max printing stroke: 300mm;
Oval-object Max Printing stroke: 120mm;
Round-object Max Printing speed: 4000pc/h;
Oval-object Max Printing speed: 4500pc/h;
Work piece size(Round): Diameter:25-100mm;Length:60-300mm;
Work piece size( Oval): Width:25-260mm, Length:60-300mm;
Power supply: AC380V,3Phase ,45A/(1-3Colour),100A/(4-5Colour);
UV Lamp wattage: 4KW/pc;
UV Exhaust fan wattage: 0.2KW;
Exhaust rate: 11.6 m3/min;
Motor Wattage: 0.75KW;
Reduction gearbox : 1:7.5;
Feeding motor wattage : 0.75KW;
Fixture motor wattage : 0.5KW;
Vacuum Pressure : 500 mm/Ag;
Flame gas: Liquefied Petroleum gas( LPG);
Air : 6 Bar;
Air rate of flow : 1500Lit/M.
Works supply: Power: 3 phase 380V,45A/(1-3C),100A/(4-5C); 5-7Bar Compress air ;
Liquefied petroleum Gas, Natural gas
Package Dimension: 2085×1270×1820mm;
Gross weight: 900Kg
CBM: 4.81927
H.S.Code: 8443198000
Certificate: CE

SZD-107 full automatic screen printing machine//Advantage

Designed for circular and elliptical to describe the device's screen printing and design, simple structure, convenient debugging, stable and dependable.
The Feeding conveyor belt synchronous motor drive, speed, stepless adjustment, the width of the feed can be easily adjusted;
By the double-suction nozzle, bottles can be automatically transferred to the screen printing conveyor system; the design of the automatic bottle identification system, according to a unified direction in bottles to the transmission system;
By flame treatment plant to improve ink adhesion of PP PE materials; flame pressure can be flexibly adjusted;
Automatically pre-bit system, multi-color overprint crucial in bottles word, overprint precision up to 0.08mm;
Replace the flat bottle fixture, the machine can be easily printed oval bottle to achieve the function of a machine;
The location of the screen and scraper can be achieved three-dimensional precision and angle adjustment, to ensure that the printing position to meet the user requirements;
Mechanical transmission with pneumatic combination of Japanese inverter for process control, running smoothly;
Touch screen operations, easily communicate with the machine to make operation even easier;
Online UV curing systems, import UV device, excellent curing speed and quality, greatly improve the efficiency of printing; printing speed 3600pcs/h.
Electronic sensors to achieve "no printing", the pressure is too low, automatic monitoring of the alarm and other functions.
Machine electrical components and control systems using components of Germany and Japan to ensure stable printing quality.
