Puwei's Silicon Carbide (SiC) Ceramic Robotic Arm represents the pinnacle of precision automation technology for advanced semiconductor manufacturing. Engineered from high-purity silicon carbide ceramic, these robotic arms deliver unmatched performance in the most demanding semiconductor fabrication environments, ensuring contamination-free operation and exceptional reliability for next-generation chip production.

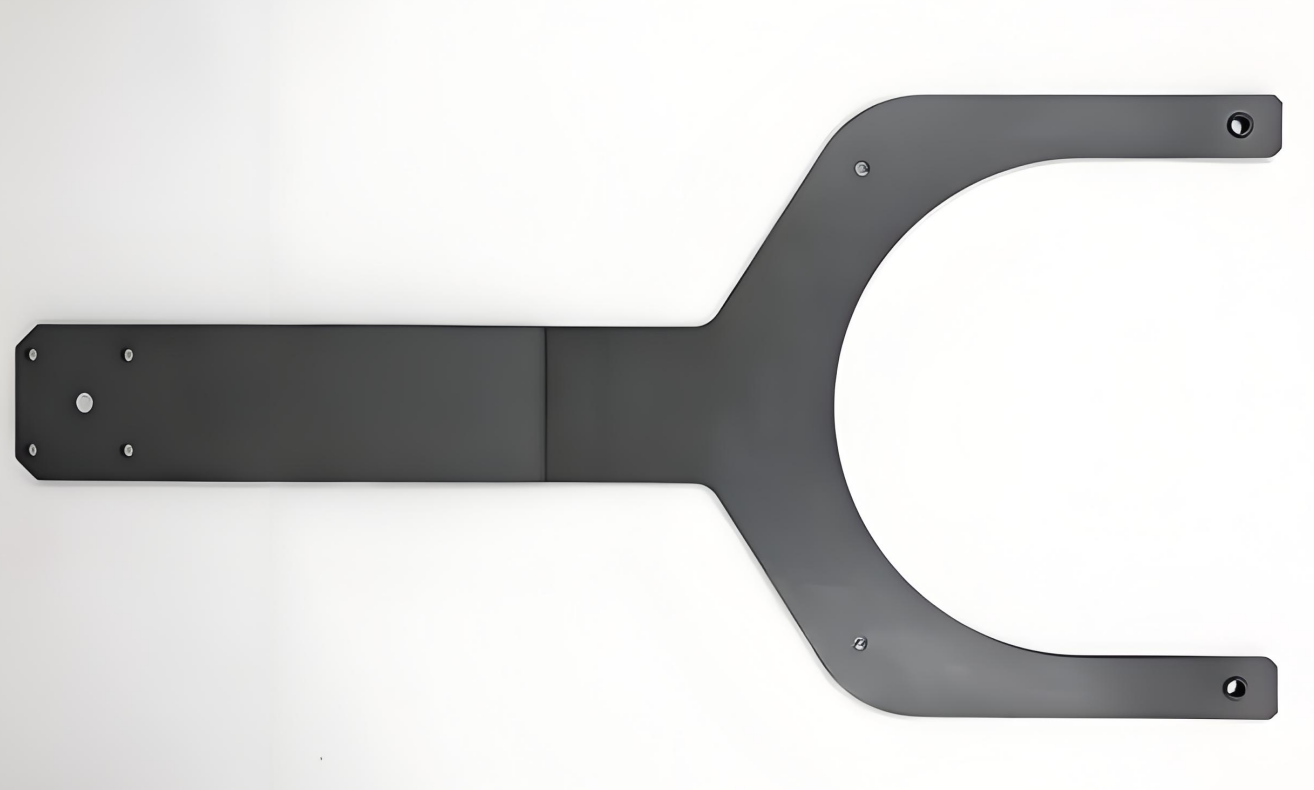

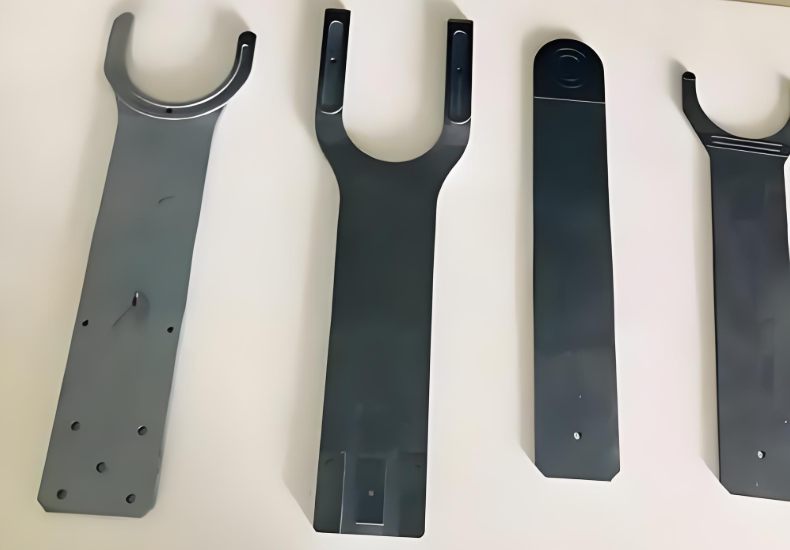

Advanced SiC Ceramic Robotic Arm - Engineered for Semiconductor Precision
SiC ceramic robotic arms generate virtually zero particles and exhibit minimal outgassing, maintaining Class 1 cleanroom standards and preventing wafer contamination during critical semiconductor processes including microelectronics packaging and sensor packaging applications.
With outstanding thermal shock resistance and minimal thermal expansion, our SiC arms maintain precision positioning accuracy through extreme temperature cycles encountered in epitaxial growth and thermal processing for high-power microelectronic components.
Resistant to corrosive process chemicals including HF, HCl, H₂SO₄, and aggressive process gases, ensuring long-term reliability in harsh semiconductor manufacturing environments where chemical stability is critical for integrated circuit production.
The high elastic modulus and exceptional hardness of SiC provide superior stiffness-to-weight ratio, enabling precise, vibration-free motion control essential for nanoscale semiconductor processing and high-frequency module manufacturing.
Precision Wafer Handling Arm - Optimized for 300mm and 450mm Wafer Processing
Critical for automated wafer transport between process equipment including CVD, PVD, etch, and implantation systems. Our SiC arms ensure damage-free handling of 300mm and emerging 450mm wafers with sub-micron positioning accuracy essential for advanced electronic packaging processes.
Essential for lithography, etching, and deposition processes requiring nanoscale precision. The exceptional dimensional stability of SiC ensures consistent performance in multi-axis positioning systems for microelectronics and microwave components manufacturing.
Ideal for epitaxial growth, diffusion, and annealing processes where conventional materials would degrade. SiC maintains mechanical integrity and precision at temperatures exceeding 1000°C, supporting advanced power devices production.
Specifically engineered for high-vacuum and extreme cleanroom applications where particle generation and outgassing must be minimized to prevent yield loss in advanced node semiconductor manufacturing for microwave applications and optoelectronics applications.
Comprehensive assessment of your semiconductor manufacturing requirements, including process specifications, cleanroom classification, and integration with existing automation systems.
Detailed engineering design phase including finite element analysis, thermal modeling, and performance simulation to optimize the robotic arm for your specific application requirements.
Advanced manufacturing processes including high-purity material synthesis, precision forming, and controlled atmosphere sintering to achieve optimal mechanical and thermal properties.
Rigorous testing including dimensional verification, mechanical property testing, surface analysis, and cleanroom performance validation to ensure compliance with semiconductor industry standards.
Professional installation with precise calibration and integration support to ensure optimal performance in your semiconductor manufacturing environment.
High-purity SiC powder synthesis with controlled particle size distribution and minimal impurity content for optimal mechanical and thermal properties.
Advanced forming techniques including injection molding, pressing, or casting to create complex robotic arm geometries with tight dimensional control.
Controlled atmosphere sintering at temperatures exceeding 2000°C to achieve full density and optimal microstructure for maximum strength and reliability.
Diamond grinding and polishing to achieve micron-level tolerances, critical surfaces, and the exceptional surface finish required for cleanroom applications.
Comprehensive testing including dimensional verification, mechanical property testing, surface analysis, and cleanroom performance validation.
