Aluminum Packing Automatic Production Line

MAIN FEATURE

1. The aluminum film bagging production line is designed and developed based on market demand, primarily to meet the multi-specification requirements for aluminum profiles. It features a simple structure, safe and stable operation, easy handling, minimal factory footprint, reduced labor requirements, and energy-efficient performance.

2. Film application results: Film lies parallel to the profile without tilting or bubbling. Film cut-off point does not exceed 5mm. Automatic alarm triggers for film breakage. Easy film loading and alignment.

3. Suitable for bagging multi-specification aluminum profiles. Ensures no loosening, bag rupture, or air bubbles.

MAIN STRUCTURAL COMPONENTS

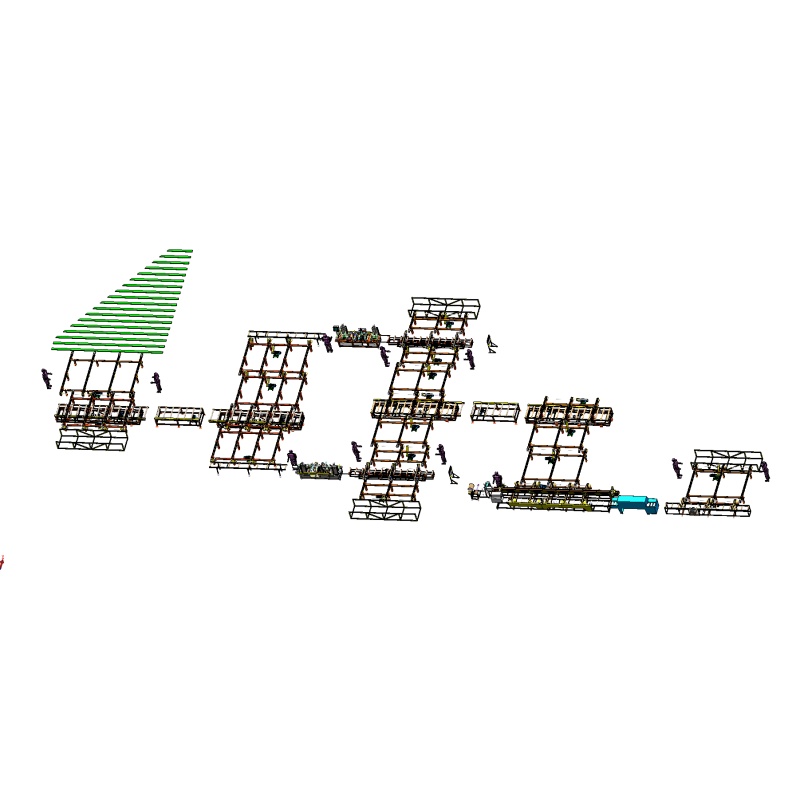

1.The equipment consists of a conveyor belt, lifting conveyor frame, automatic film taping machine, single aluminum bagging machine, aluminum shrink pack machine, and discharge lifting/translation device.

Electrical Control System---Utilizes PLC control.

2. The electrical control system employs an independent control system, utilizing a PLC + touchscreen configuration to manage the entire system. The conveyor motor reducer is controlled by a variable frequency drive, with control signals issued by the PLC. Users can input user parameters and modify system parameters via the touchscreen.

MAIN TECHNICAL PARAMETERS AND REQUIREMENTS

Aluminum Profile Bottom-Conveyor Automatic Film-Coating Single-Bundle Bagging Machine Production Line

Equipment Layout Dimensions：Length 52000mm × Width 20000mm × Height 1650mm
Profile Film Application Length：4000mm–7000mm
Maximum Profile Film Specifications：Width 200mm, Height 150mm
Minimum Profile Width：≥20mm
Minimum Profile Heigh：≥20mm
Maximum Profile Weight：15KG/piece
Thinnest Point of Single-Point Profile：≥1.0mm
Total Equipment Power：3KW
Film Application Speed：14-17 pieces per minute
Bagged Profile Length：4000mm-6500mm
Maximum Profile Specifications：Width 80-250mm, Height 40-160mm
Maximum Profile Weight：30KG/bundle
Bagging Speed：2-3 bundles per minute

APPLICATION SCENARIOS

This equipment employs an integrated “automatic film laminating + single bundle bagging” process that not only addresses the protective needs of aluminum profiles against scratches and oxidation but also enables standardized storage through bundle bagging. It adapts to the entire lifecycle of aluminum profiles—from production line to warehousing, transportation, further processing, and final delivery—and is particularly suited for scenarios involving mass production, long-length profiles, and high-protection requirements.

I. Aluminum Profile Production Workshop: Off-line “Protection + Packaging” Saves Labor and Boosts Efficiency

II. Aluminum Profile Storage: Bundled and Bagged for Easy Management, Moisture and Dust Protection Reduces Losses

III. Long-Distance Transportation and Logistics Distribution: Sealed Protection Against Jostling Minimizes Cargo Damage Disputes

IV. Pre-Processing Stage for Aluminum Profile Deep Processing: Pre-Treatment Protection Reduces Processing Waste

V. End-Customer Delivery: Standardized packaging elevates perceived quality and enhances brand reputation.

COMPETITIVE ADVANTAGES

The combination of “protection + efficiency + management” is particularly suited for the following scenarios:

1. Manufacturers requiring batch processing of 4-7 meter long, ≥20mm wide/high profiles;

2. Small-to-medium profile factories focused on reducing labor costs and minimizing storage/transportation losses;

3. Enterprises with export requirements needing to meet environmental and sealing protection standards;

4. Home furnishing/industrial profile users involved in deep processing requiring guaranteed surface cleanliness.
