Product details

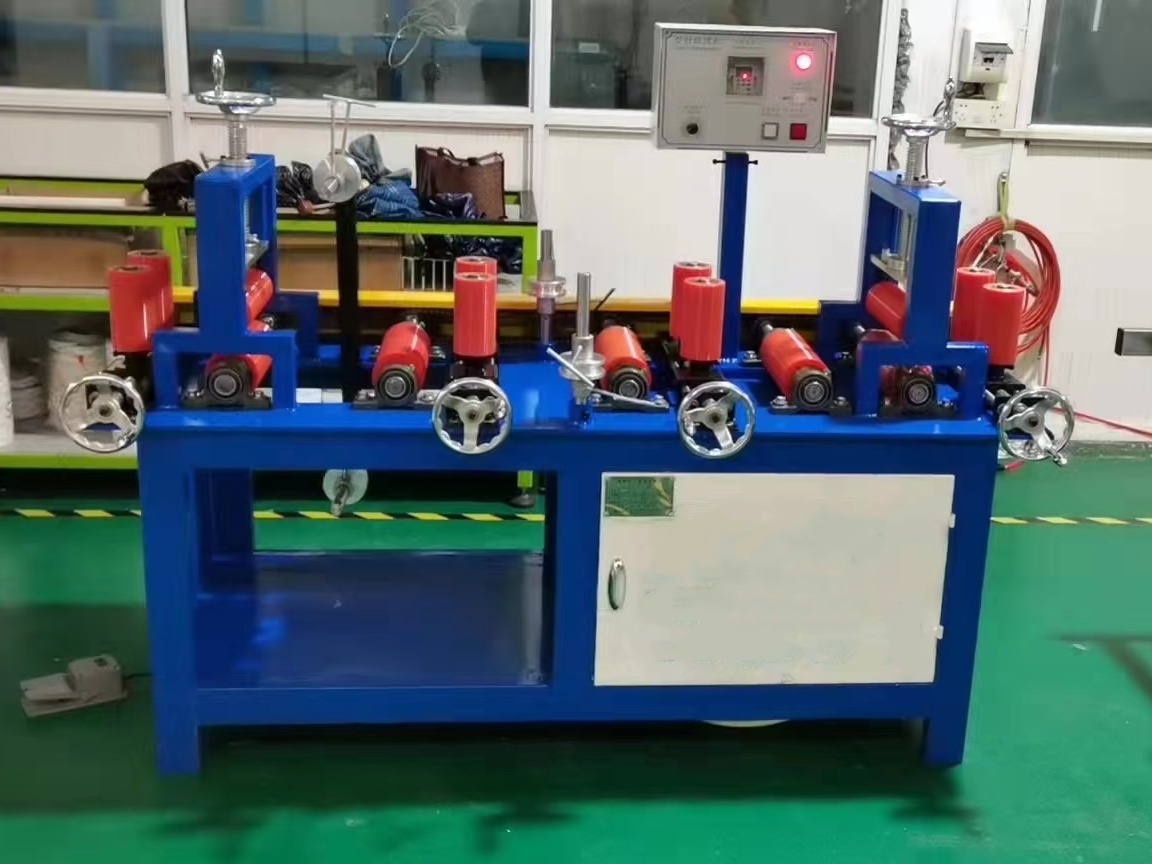

Protective Film Laminating Packing Machine for aluminum profile

MAIN FEATURE

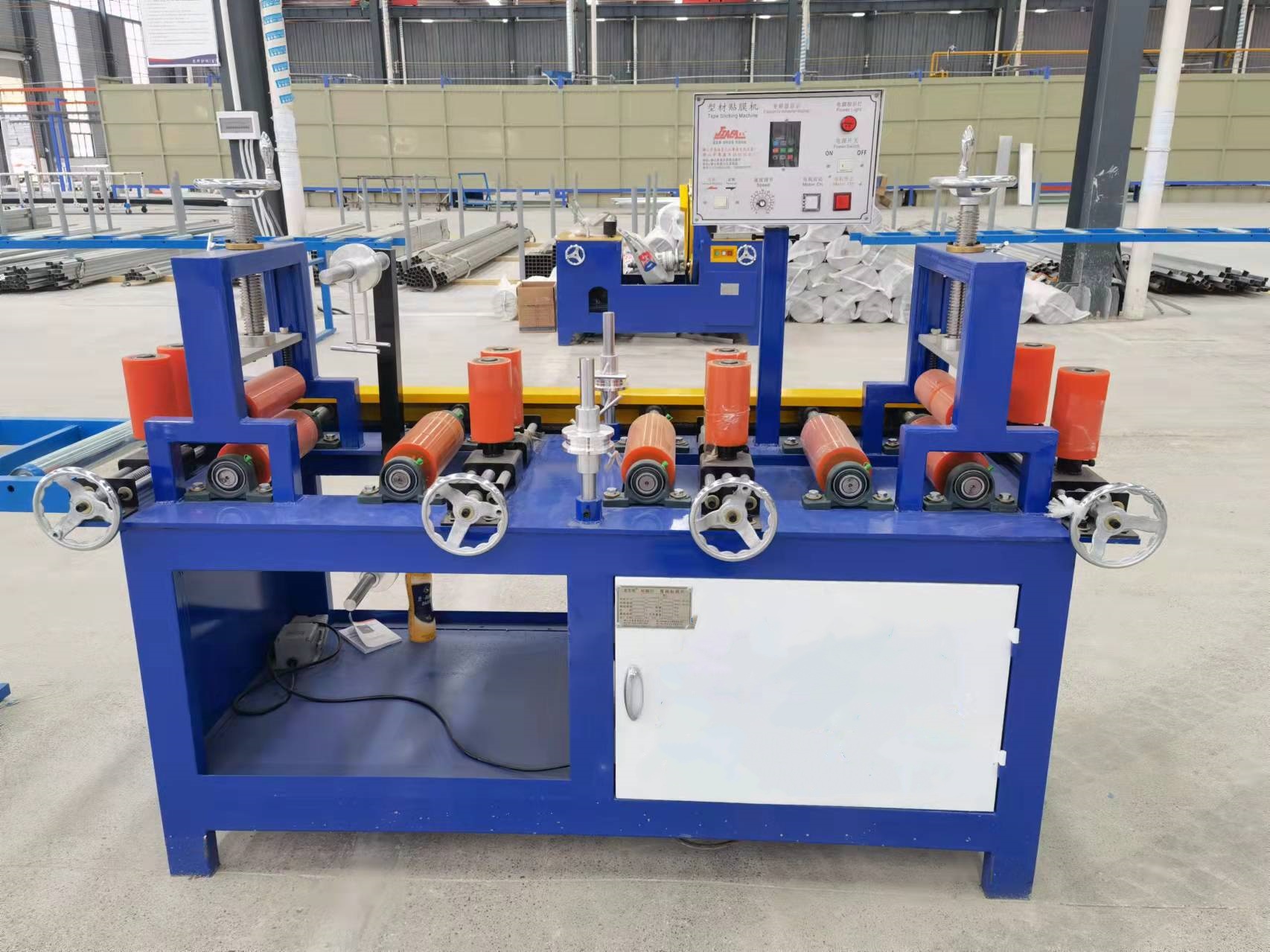

It's a protective film sticking machine for aluminum. The film is affixed to the surface of the profile to protect the finished aluminum from damage in the process of handling, inventory, transportation, processing, installation, etc. ,the installation team tears it off, leaving the surface as clean as new.

USE RANGE

Aluminum Film Taping Machine is designed for applying protective film packaging to the surfaces of stainless steel profiles, plastic profiles, aluminum alloy profiles, and similar materials. It features high speed, smooth film application, and easy operation.

Profiles packaged with this machine receive enhanced surface protection, making them more competitive in the market.

FILM LAMINATION PROCESS

The roll protective film is installed on the aluminum film sticking machine, the product is put on the attaching platform, and the laminating machine is started to stick the protective film on the surface of the product accurately and automatically.

MAIN TECHNICAL PARAMETERS AND REQUIREMENTS

1. Machine Dimensions: 1850×860×1420(L×W×H mm)

2. Roller dimensions: ￠100 × 250 mm.

3. Power supply: 380V AC 50Hz; Motor power: 1.5KW .

4. Film feeding speed: 0–280 m/min.

5. Film application range: Four-sided application (top, bottom, left, right); Maximum profile dimensions: 200mm (W) × 140mm (H).

6. Feed direction: Right-in, left-out (customizable per client requirements).

7. Each entrance and exit is equipped with a 4-meter-long galvanized roller conveyor frame covered with felt.

8. All five rubber wheels on the lower row of the machine rotate.
