Product details

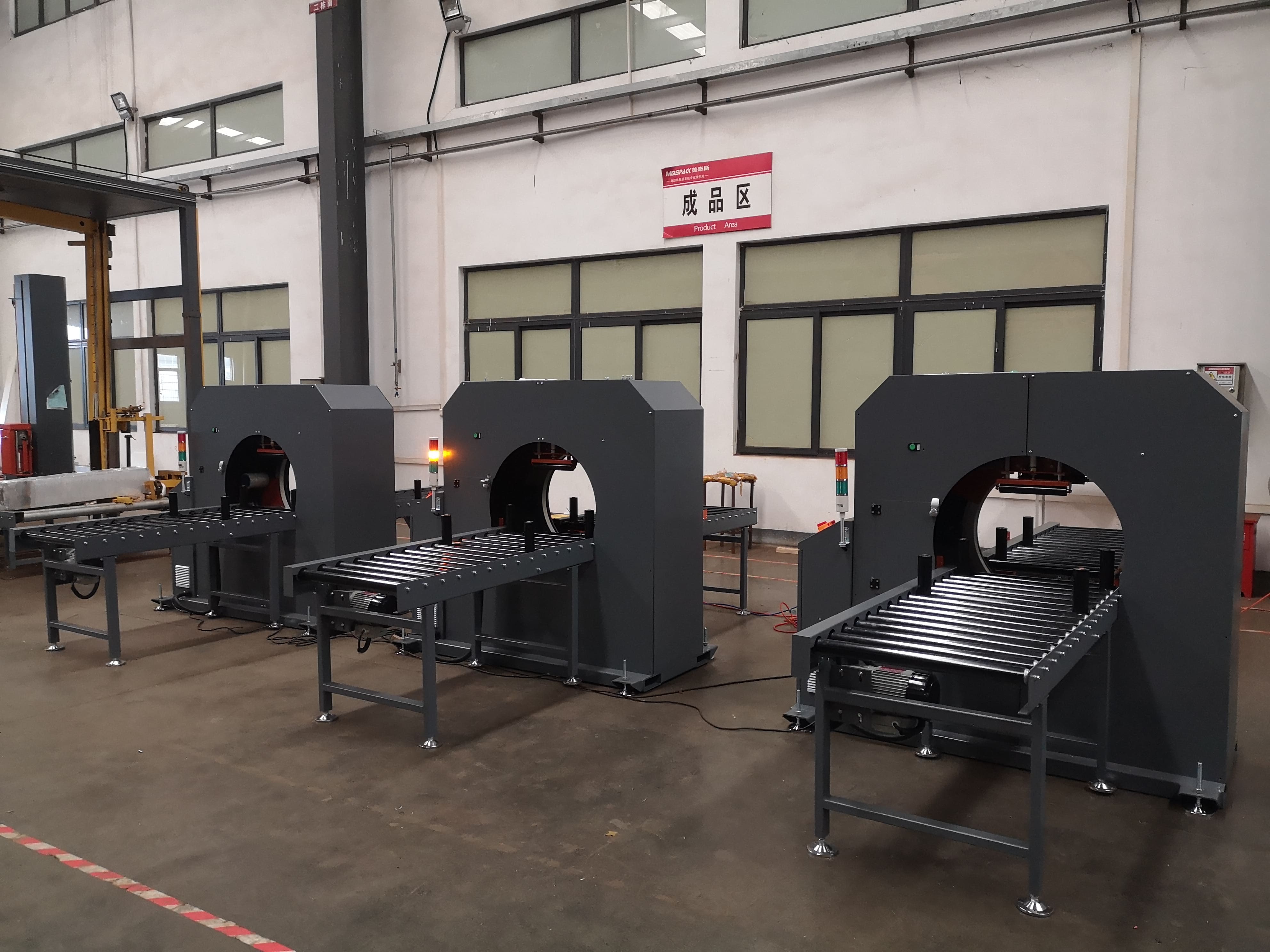

Automatic Wrap Around Packing Machine

Automatic wrap around machine for aluminum are industrial equipment that mechanically automate the process of stretch wrapping goods. Their core function involves using packaging materials such as stretch film or PE film to tightly encase individual items or palletized loads (including palletized goods, long workpieces, rolls, etc.). This achieves moisture protection, dustproofing, scratch prevention, and secure fixation, significantly replacing manual labor while enhancing packaging efficiency and consistency. Widely adopted across logistics, chemical, construction materials, food, and home appliance industries, it serves as a critical supporting equipment for aluminum packing production line and warehousing operations.

MAIN PERFORMANCE

Packaging options include kraft paper, stretch wrap, and mesh bags.
Flexible adjustment of packaging density.
The paper delivery device is designed and flexible to fasten the wrapping paper to the aluminum wrapping machine quickly.
Easy to operate and understand.

USE RANGE

Aluminum profiles, aluminum tube packaging ，cylindrical cargo, rectangular cargo，aluminum bars, aluminum alloy profiles, plastic and steel packaging

PROFILE WRAPPING PROCESS

The driving motor drives the large rotary table and the packing belt to make circular motion, and the feeding motor (cycloidal needle stepless speed regulation) drives the material through the turbine reducer to the rubber pressing wheel, and the profile material is transported through the circular center of the rotary table to make linear motion, thus, the winding packaging is realized.

MAIN TECHNICAL PARAMETERS AND REQUIREMENTS

Turntable inner diameter: 600mm
Machine dimensions: L1480mm × W1250mm × H(560mm + conveyor height)
Conveyor Specifications: Built-in front/rear conveyor sections L600*W500*H650mm
Machine Load Capacity: <100kg
Stretch Frame Type: Single tension-resistant frame, stretch ratio 150%, stretch film outer diameter 250mm, core ID 76mm, width 150mm
Packaged Goods: Cylindrical-like goods: Diameter 250-430mm; Rectangular-like goods: W105-320mm × H105-320mm
Goods Length: L500mm (minimum)
Turntable Speed: Normal Speed: 0-40rpm adjustable; High Speed: 0-160rpm adjustable
