Product details

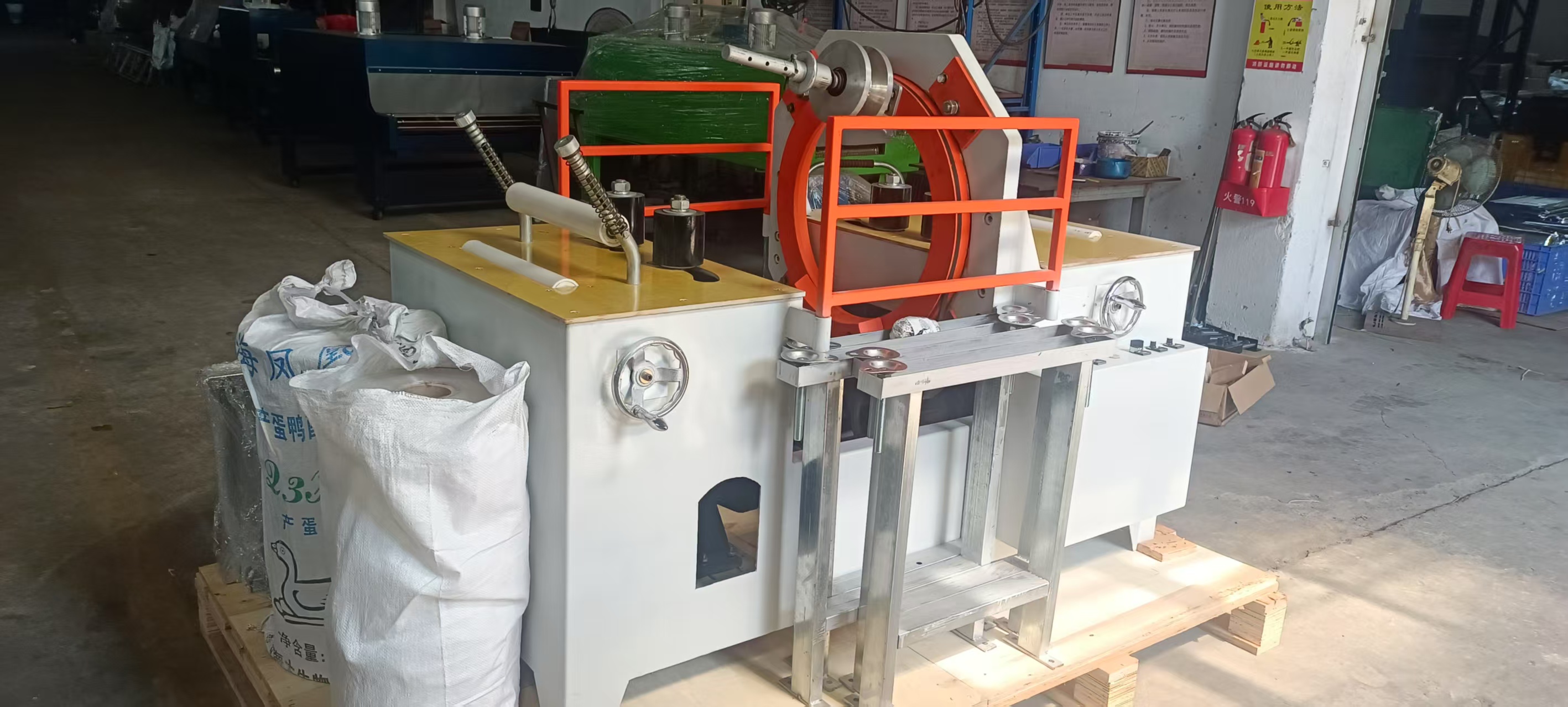

Aluminum Profile Wrapping Packing Machine

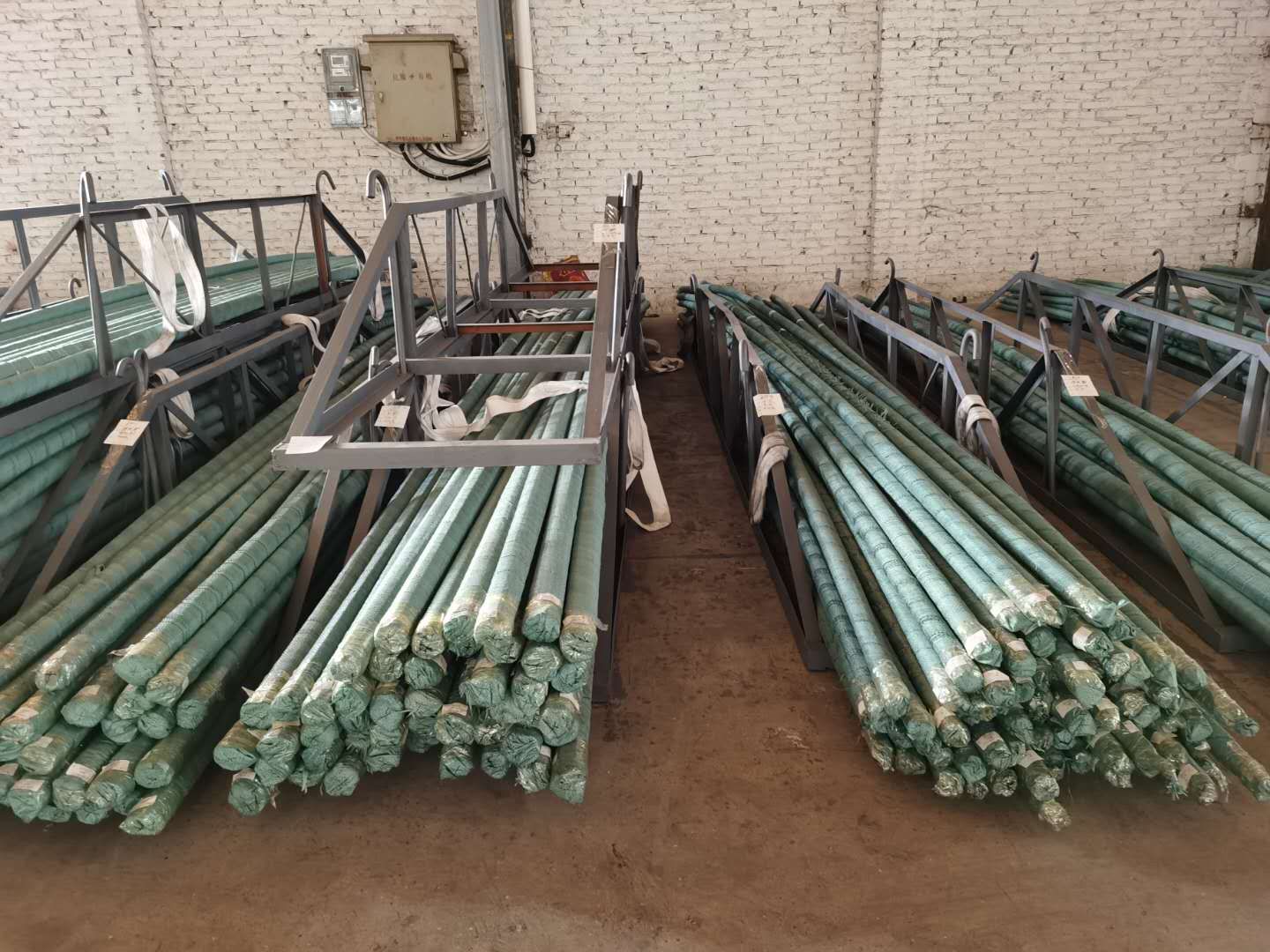

Through the form of machine packaging to aluminum profiles wrapped with protective film, so that its moisture-proof dust, both beautiful and generous.It's a kind of aluminum rear packaging machinery.

MAIN PERFORMANCE

aluminum wraparound packing machine can package stretch film and stretch wrapping paper.
It allows for wide-range adjustment of wrapping speed and pitch, enabling convenient selection of wrapping density and tightness while effectively reducing paper breakage.
Features slow start-up and stop.
with cushioning and flexible characteristics for enhanced ease of operation.

USE RANGE

Aluminum profiles, aluminum tube packaging Stainless steel profiles, aluminum bars, aluminum alloy profiles, plastic and steel packaging

PROFILE WRAPPING PROCESS

The driving motor drives the large rotary table and the packing belt to make circular motion, and the feeding motor (cycloidal needle stepless speed regulation) drives the material through the turbine reducer to the rubber pressing wheel, and the profile material is transported through the circular center of the rotary table to make linear motion, thus, the wrapping packaging is realized.

MAIN TECHNICAL PARAMETERS AND REQUIREMENTS

Machine Dimensions: 1650×1050×1270(L×W×H mm)
Each entrance/exit is equipped with a 4-meter galvanized roller conveyor frame.
Packaging machine specifications
Paper roll motor: 1.5KW (with gearbox);
Aluminum profile feed motor: 0.75KW (with gearbox);
Independent stepless speed control via high-performance inverters (≥1.5KW and ≥4.7KW) for paper roll and feed motors.
Profile conveying speed: 0-20450 mm/min
Machine weight: ≥500 kg.
Applicable power supply: Three-phase 380V AC 50Hz (customizable for special power requirements);
Packaging turntable rotation speed: 0-149 rpm;
Packaging paper spacing: 0-250 mm;
Packaging paper width: Generally less than 250 mm;
Packaging paper outer diameter: Generally less than Φ300 mm;
