flow packing machine for aluminum

3 month ago
10 0
Product details

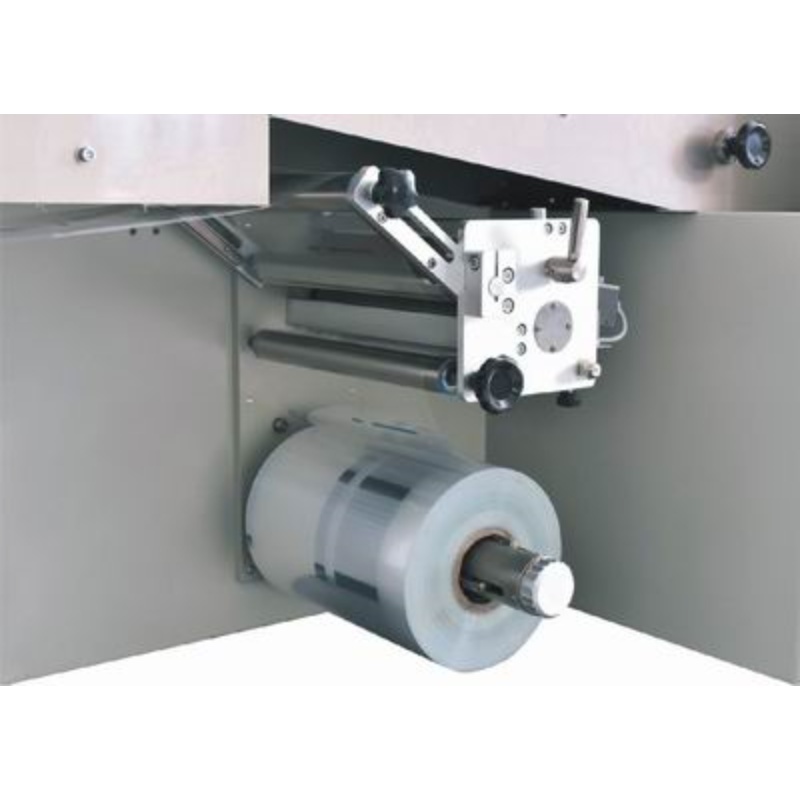

Flow Packing Machine For Aluminum
The pillow type packing machine for aluminum is an automated packaging device specifically designed for long, strip-shaped aluminum profiles. It achieves efficient, standardized packaging through continuous film forming, heat sealing, and cutting processes.

MAIN PERFORMANCE
  • 1. Automatically calculates material level, enabling one-touch startup after system initialization for true zero waste, while allowing on-the-fly adjustment of cutting points and feed positions during operation.



  • 2. Bag length can be freely set from several centimeters to several meters. The cam function within the PLC automatically calculates settings, eliminating any mechanical adjustments.



  • 3. Features anti-cutting protection for misaligned materials and empty hopper detection.



  • 4. Utilizes an electronic cam internally. The electronic cam offers high flexibility, so the specific speed of horizontal shrink pack machine for aluminum is determined by the number of cutting blades, cutting length, servo motor rated speed, and mechanical reduction ratio.

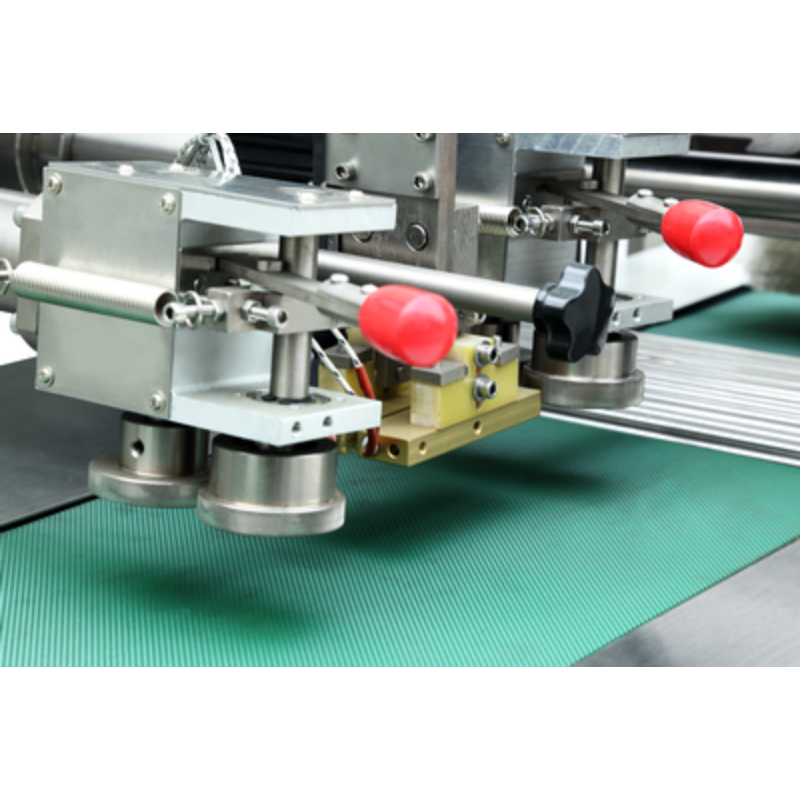

  • pillow packing machineflow packing machine

USE RANGE
  • Architectural and Decorative Aluminum Materials
Single or multi-piece packaging for door and window profiles, curtain wall frames, baseboards, etc., protecting against scratches and oxidation during transportation.
  • Industrial and Mechanical Components
Suitable for rust-proof packaging of aluminum tubes, rods, and industrial extrusions. Can integrate online inspection functions (e.g., visual recognition of tape positioning) to ensure packaging integrity.

aluminum packing machine


MAIN TECHNICAL PARAMETERS AND REQUIREMENTS
  • Packaging film width: 340mm
  • Bag length: Automatic sensing
  • Bag width: 50-160mm
  • Product height: 45-65mm
  • Film roll diameter: 320mm
  • Packaging speed: 10-25m/min
  • Power Specifications: 220V, 50/60Hz, 2.8KW
  • Machine Dimensions: L3527 x W765 x H1375mm
  • Machine Weight: 550 kg

COMMON FAULTS AND SOLUTIONS
1. Poor Sealing or Burning
  • Cause: Improper temperature setting (PE film recommended 120-180°C), insufficient pressure, or too short sealing time.
  • Solution: Gradually adjust temperature (5-10°C increments), inspect heating elements for wear, increase spring pressure.
2.Film wrinkling or misalignment
  • Cause: Uneven tension, misaligned guide rollers, or improper roll installation.
  • Solution: Recalibrate tension control system, adjust guide roller angles, ensure roll center aligns with machine axis.
3.Blade fails to cut or cuts unevenly
  • Cause: Blade wear, motor failure, or loose drive chain.
  • Solution: Replace blades with imported materials ,check motor belt tension, clean accumulated dust from chain.
