Product details

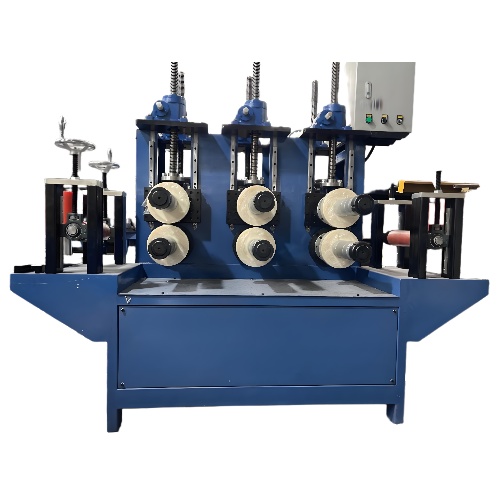

Aluminum Correction Machine for extrusion profiles

It is mainly used for profile surface flatness shaping and material angle correction，applicable to aluminum profiles, industrial materials, aluminum alloy, aluminum doors and windows and other industries.It's a kind of aluminum surface processing machinery.

MAIN PERFORMANCE

Easy to understand the operation, save human time.
Good plastic surgery effect, high efficiency.
Support custom, apply to a variety of plastic wheel size specifications, according to customer production needs, to provide production programs.

USE RANGE

The aluminum straightening machine is primarily used for straightening and reshaping aluminum profiles, PVC profiles, and stainless steel profiles to correct bending deformation, ensure surface flatness, and maintain cross-sectional angles. Featuring simple operation and excellent reshaping capabilities, it serves as an auxiliary product in the profile industry.

PROFILE SHAPING PROCESS

The vertical frame is provided with a plurality of driving rollers and driven rollers, and the wall thickness is thin for different pairs of shape sections, the profile with ARC section is corrected and shaped

by adjusting the position, quantity and spacing of main and auxiliary shaping wheels.

MAIN TECHNICAL PARAMETERS AND REQUIREMENTS

1. Overall Dimensions: Length × Width × Height 2100 × 1300 × 1700 mm
2. Cycloidal Motor: 2.2 kW-1:17 (Variable Frequency Speed Control) 0-60 m/min
3. Shaft: Φ90 × 1300 (Three Sets) Quenched and Tempered
4. Effective Shaft Length: 600 mm. Maximum Aluminum Section Width for Straightening: 500mm
5. Drive Gears: 1-inch double-row Chain Drive
6. Elevation Lead Screw: Φ50×M8 Screw-driven vertical movement
7. Drive Shaft Bearings: Self-aligning Bearings
8. Side Guide Rollers: Φ80×L600 Φ80×L300 (Nylon)
9. Conveyor Frame Rollers: Felt-covered rollers, Outer diameter Φ60mm
10. Distance between upper and lower shafts: 0-400mm
11. Complete set of spacer sleeves
12. Matching 6-meter galvanized roller conveyor frames with felt covers at machine inlet/outlet.

KEY FEATURES

Eliminates bending and wave-like deformation in aluminum profiles caused by transportation, cutting, or processing.
Corrects unevenness resulting from internal stress.
Enhances machining precision and finished product quality of aluminum profiles.
Suitable for correcting aluminum profiles of varying lengths and cross-sections.
