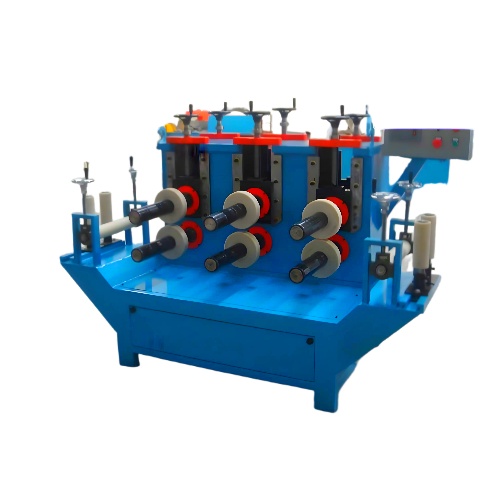

Truing Machine For Aluminum Aluminum Profile Trimming Machine

Aluminum correction machine is mainly used for profile surface flatness shaping and material angle correction，applicable to aluminum profiles, industrial materials, aluminum alloy, aluminum doors and windows and other industries.

MAIN PERFORMANCE

Easy to understand the operation, save human time.
Good plastic surgery effect, high efficiency.
Support custom, apply to a variety of plastic wheel size specifications, according to customer production needs, to provide production programs.

USE RANGE

The truing machine is primarily used for straightening and reshaping aluminum profiles, PVC profiles, and stainless steel profiles to correct bending deformation, ensure surface flatness, and maintain cross-sectional angles. Featuring simple operation and excellent reshaping capabilities, it serves as an auxiliary product in the profile industry.It is a kind of aluminum profile surface treatment machine

PROFILE SHAPING PROCESS

The vertical frame is provided with a plurality of driving rollers and driven rollers, and the wall thickness is thin for different pairs of shape sections, the profile with ARC section is corrected and shaped

by adjusting the position, quantity and spacing of main and auxiliary shaping wheels.

MAIN TECHNICAL PARAMETERS AND REQUIREMENTS

1. Overall Dimensions: Length × Width × Height 3500 × 1500 × 1900 mm
2. Cycloidal Motor: 3 kW (Variable Frequency Speed Control)
3. Shaft: 95 × 1300 (three sets)
4. Drive Gears: 1-inch double row
5. Elevation Lead Screw: Φ40×M6
6. Upper Drive Shaft Bearings: Self-aligning 1313 (10 pcs)
7. Lower Drive Shaft Bearings: 6213 (10 pcs)
8. Side Guide Wheels: Φ80×L500, Φ80×L300 (Nylon)
9. Shaping rollers: Φ200×40 (one set)
10. Conveyor frame: Length 6000×Internal width 600×Height 800, height adjustable.
11. Conveyor frame rollers: Φ60×600 Felt rollers
12. Maximum dimensions: Width 600×Height 400

KEY FEATURES

Eliminates bending and wave-like deformation in aluminum profiles caused by transportation, cutting, or processing.
Corrects unevenness resulting from internal stress.
Enhances machining precision and finished product quality of aluminum profiles.
Suitable for correcting aluminum profiles of varying lengths and cross-sections.
