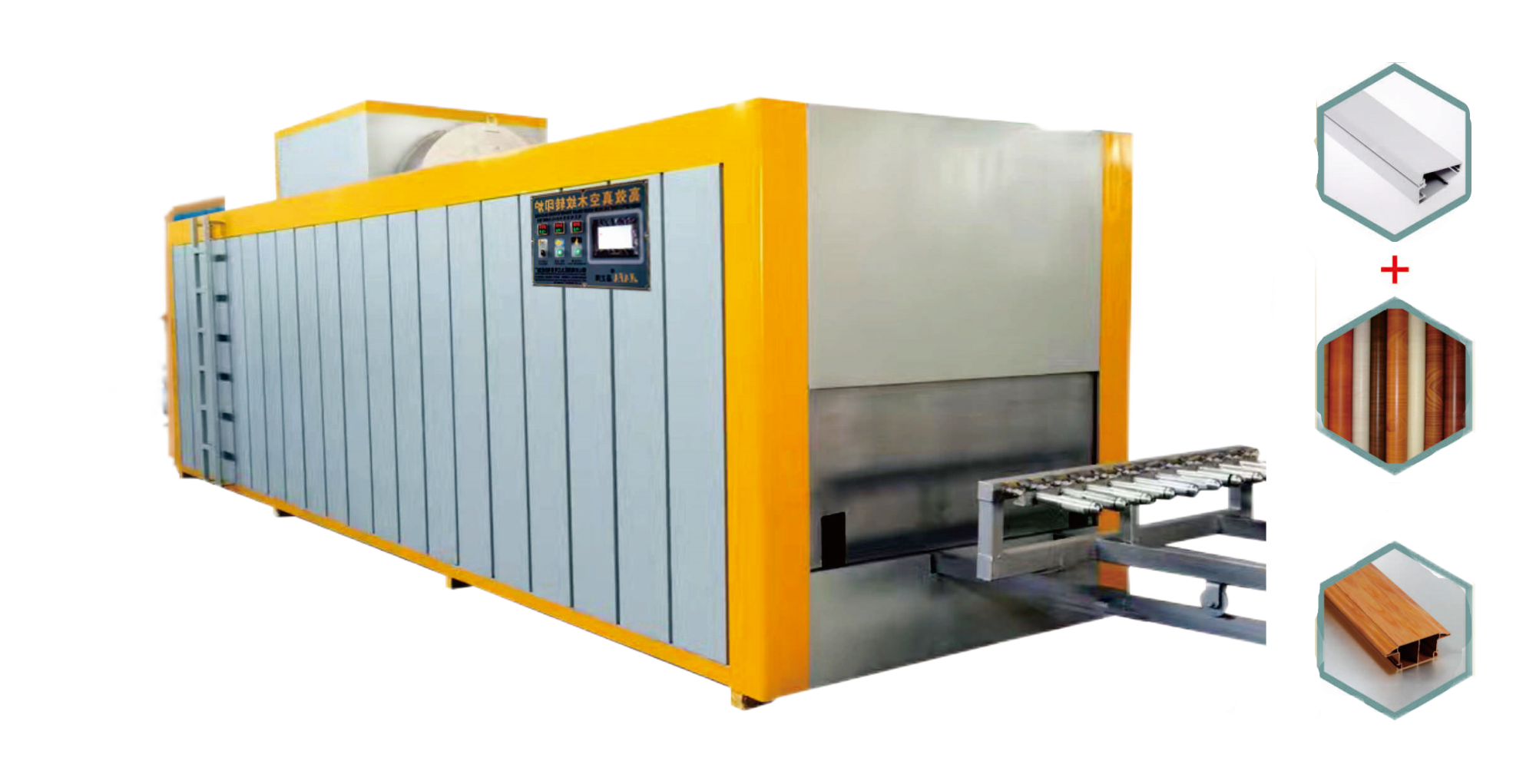

Wood Effect Production Line For Aluminum Profiles

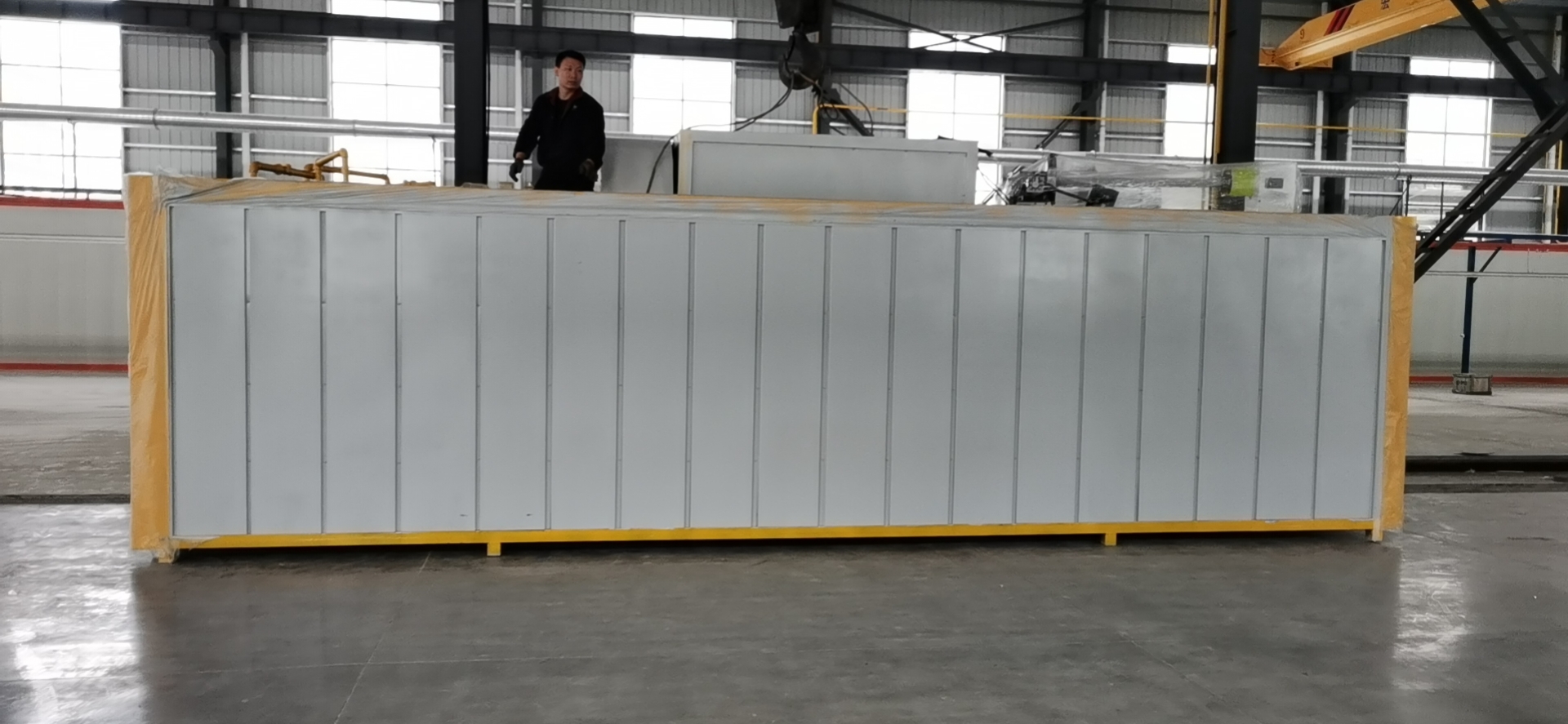

Aluminum Wood Grain Transfer Furnace

MAIN PERFORMANCE

A. Customizable single/double station design, flexible selection of models, greatly improve the cost-effectiveness;
B. Special high-temperature vacuum film design ensures the transfer effect;
C. Multi-protection device: vacuum over-voltage protection, vacuum constant voltage control;
D. With a mature touch-screen human-machine interface, parameters are more convenient and intuitive

USE RANGE

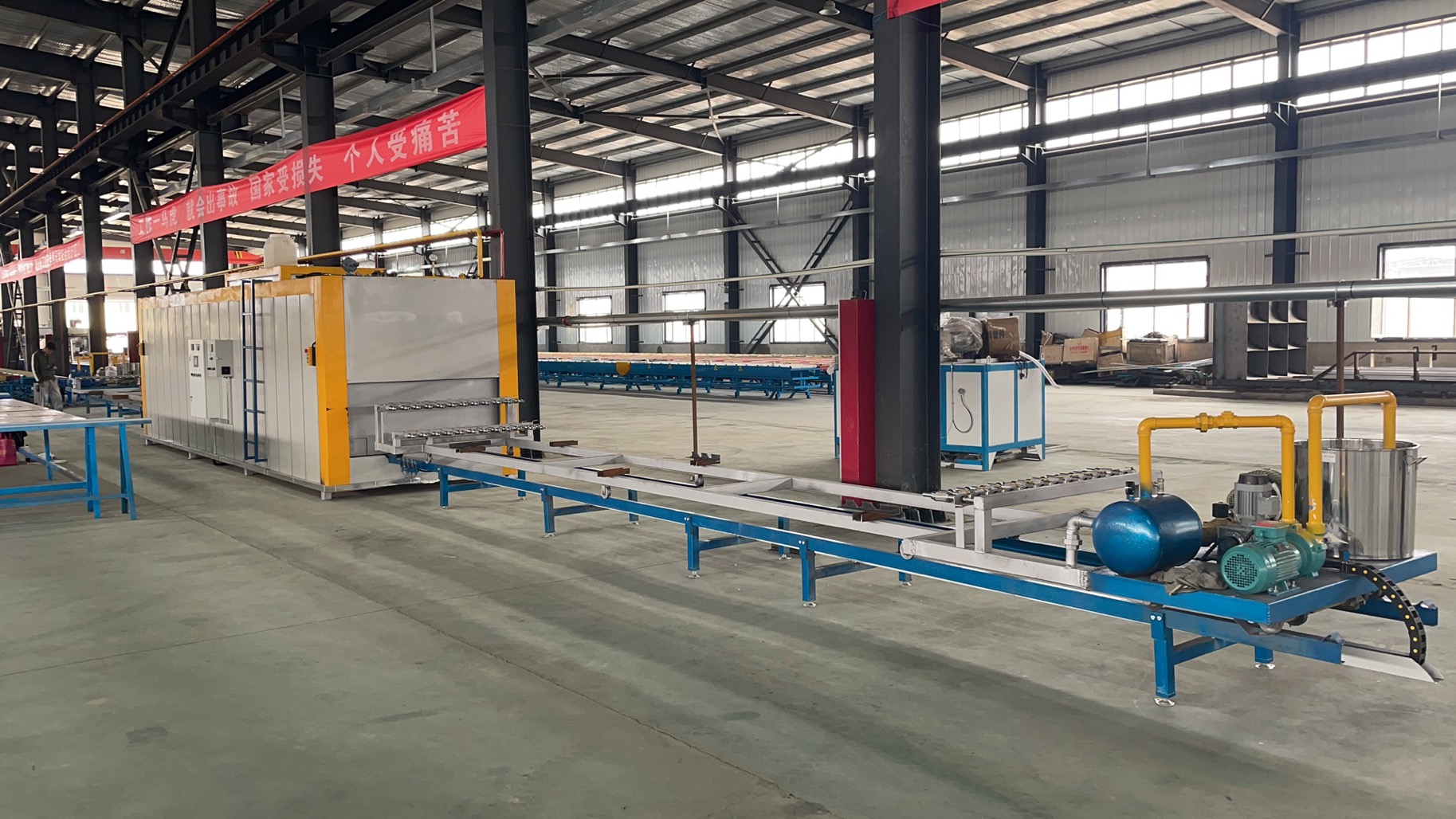

Woodgrain Imitation Production Line for aluminum, aluminum sheet, seamless welding of door and window surfaces,Sutable for aluminum factory, all aluminum furniture factory, seamless welding factory doors and windows, aluminum veneer factory. It 's a kind of aluminum surface processing machinery.

WORKING PRINCIPLE OF WOOD GRAIN TRANSFER PRINTING MACHINE

The aluminum wood grain transfer furnace is driven by a cycloidal pinwheel reducer to move the roller, which in turn drives the vacuum auxiliary frame to achieve feeding.
Through the electrical, temperature control system, operating system, and mechanical parts, the profile enters the furnace for heating via the vacuum auxiliary frame, achieving thermal penetration curing.
After curing is completed, it automatically exits the furnace, and after exiting, a reverse blowing film is performed to facilitate quick film removal and improve production efficiency.
In and out of the furnace and temperature control mode: fully automatic. Automatic feeding into the furnace, automatic exiting from the furnace, automatic vacuum shutdown, automatic power shutdown. Four temperature measurement points, four zone temperature control. The temperature difference in six zones is controlled within 5°C to ensure no color difference in the product.

MAIN COMPOSITION

1. Thermosetting transfer furnace (including burner and heat circulation system) 1 set

2. Vacuum and drive device 2 sets

3. Single transfer cart 2 sets

4. Fully automatic electric control system 1 set

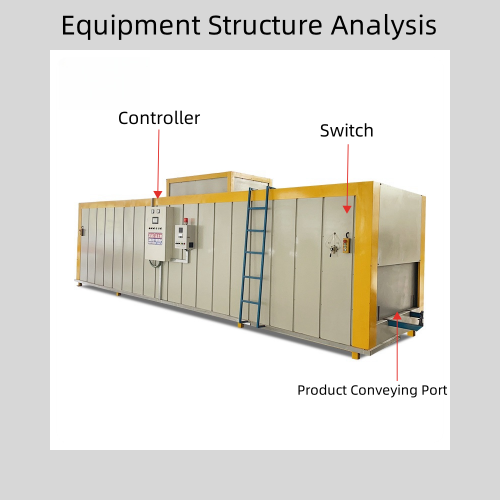

Woodgrain Imitation Production Line for aluminum

MAIN TECHNICAL PARAMETERS AND REQUIREMENTS

Transfer Printing Aluminum Profile Length ： Vacuum nozzle: First layer from bottom up: 6300mm aluminum, second layer: 6800mm aluminum, third layer: 7300mm aluminum
Maximum Profile Cross-Section Dimensions：Width 100mm × Height 160mm
Production Capacity ：Approx. 4-8 batches/hour, 3-5 tons/batch
Transfer Paper Types：Plastic-based and pure paper wood grain pattern paper
Feed rack dimensions ：(L×W×H mm): 5000×460×750 (with felt lining)
Processing Temperature ：150°C-185°C (using four-zone temperature detection)
Curing Time ：7-15 minutes (depending on material size and paper type)
Heating Method ：Liquefied petroleum gas, natural gas, or electric heating
Comprehensive Energy Consumption ：6.5m³--9.0 m³/ t (Gas consumption per ton of aluminum transferred, based on aluminum size)
Conveying Method ：Automatic/Manual
Site Area Requirements (Reference Furnace Dimensions) ：Length 29100mm × Width 2360mm × Reference Height 3400mm
Reference Furnace Dimensions ：Length 8480mm × Width 2160mm × Height 2800mm (Note: Export version height is 2500mm)
Number of Profiles per Transfer ：(Per Cart) 36 pieces + 36 pieces (three layers)
Operating Power Consumption ：12KW (96KW when using high-efficiency electric heating tubes as heat source)
Total Motor Power ：16.5KW
Outer Shell Structure：Fully painted; exterior color customizable per user requirements
Outer Shell Material：2.0mm A3 steel plate
Inner Shell Material：1.5mm A3 galvanized steel plat
Insulation Structure & Materials：Aluminosilicate glass fiber wool + high-quality rock wool with density 100Kg/m³, insulation layer thickness approx. 230mm, delivering superior energy-saving insulation performance.
Airflow Method：Bottom-supply, top-return circulation system with adjustable air outlets.
Air Duct Material ：Formed from 1.5mm galvanized steel plate via hydraulic bending.
Furnace Chamber Inlet Reference Dimensions：Width: 1690–2170 mm, Height: ≥720 mm.
