Cutting and demoulding machine

4 month ago

6 0

FOSHAN ALUPACKPRO MACHINERY CO.,LTD.

 6 month year

Product details

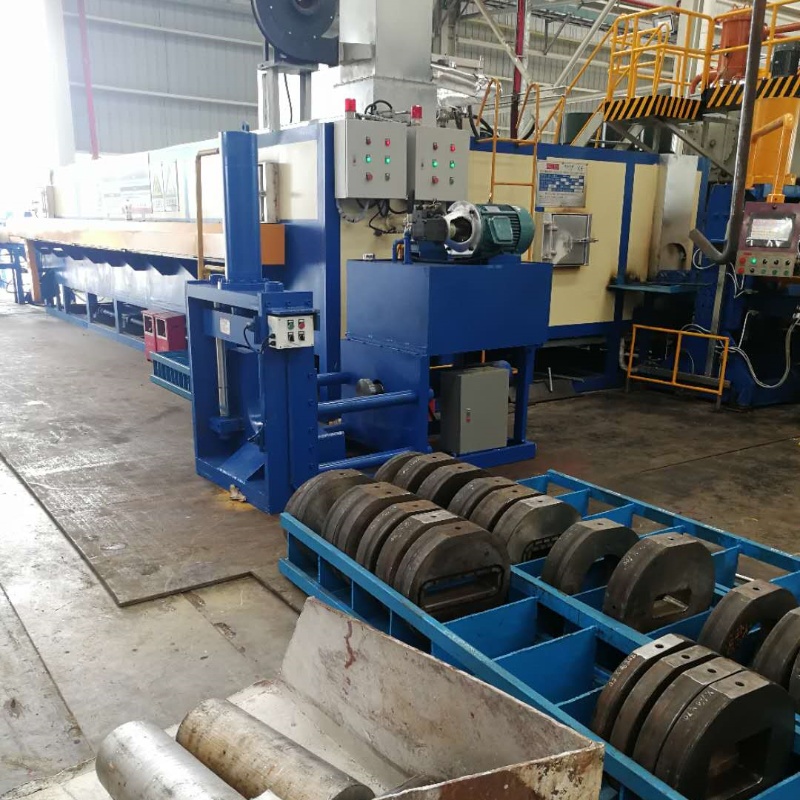

Cutting And Demolding Machine

MAIN PERFORMANCE

This molding equipment employs a vertical hydraulic cylinder to shear off the molded material head protruding from the extruder outlet (hot shearing). A horizontal hydraulic cylinder ejects the mold from the mold sleeve, enhancing scrap aluminum recovery and facilitating mold return to the furnace for heat retention.

MAIN COMPISITION

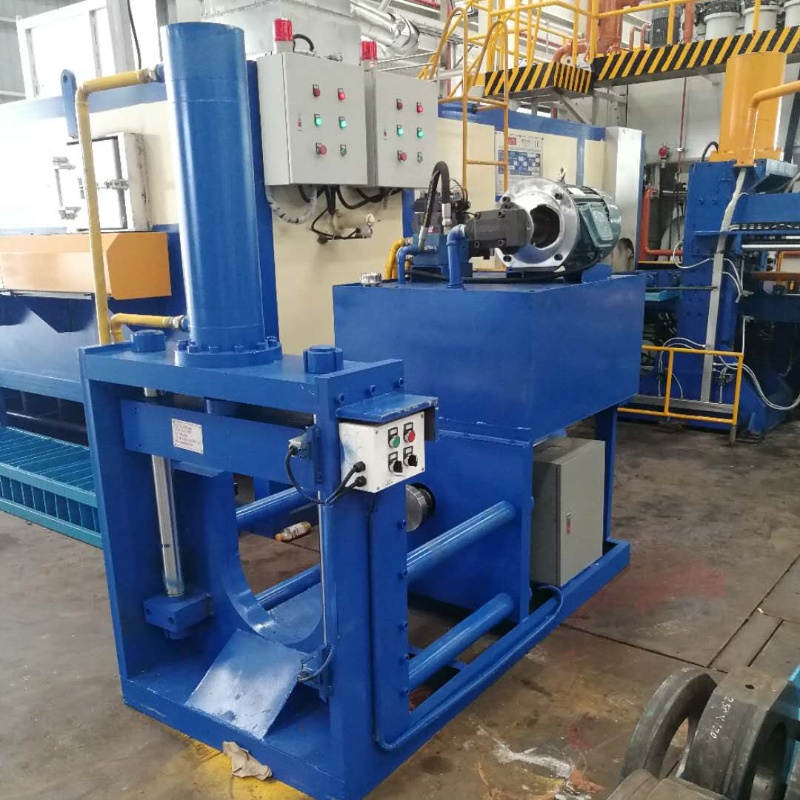

The entire mold machinery consists of a fixed mold mounting base, scissor frame, hydraulic cylinders, hydraulic power unit, and control cabinet.

USE RANGE

Cutting and demoulding machine is used in the extrusion workshop of a hydraulic equipment, can be convenient for large die cutting head and return die sets. It is a kind of aluminum mold processing machine.

MAIN TECHNICAL PARAMETERS AND REQUIREMENTS

Overall Dimensions：Length 2500 × Width 1000 × Height 2300
Demolding Cylinder： Φ180 × 800 stroke Piston rod size Φ100
Shearing Cylinder：Φ200 × 600 stroke Piston rod size Φ120
Motor：4-B35-15KW
Oil Pump: PV2R2-47-FA
U-shaped Front Plate Thickness: 120mm
Rear Plate Thickness: 80mm
Shear Base Thickness: 160mm
Shear Cylinder Plate Thickness: 80mm
Shear Specifications: Length 400 × Width 130 × Thickness 60
Pull Rod Size: Φ100
Shear Guide Rod Size: Φ90
Electrical Control: Chint
Color: Blue
