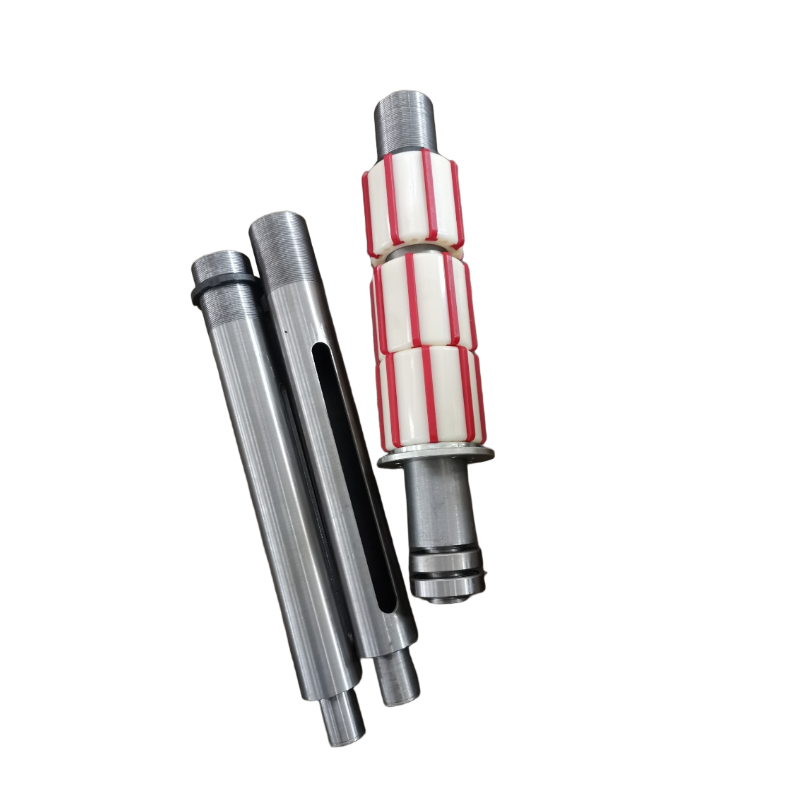

Protective Film Sticking Machine Film Roll Change Device

MAIN PERFORMANCE

The film roll change device for the aluminum film laminating machine expansion shaft serves as a core auxiliary component in aluminum packing machinery production lines. Specifically designed for rapid replacement of protective film rolls, it employs pneumatic drive to achieve swift clamping and release of the roll. Combined with precise guiding structures, it significantly reduces downtime during roll changes, enhances continuous production efficiency, and ensures concentricity and stability during roll installation. This device is essential for achieving automated and high-efficiency aluminum profile laminating operations.

TECHNICAL ADVANTAGES

Ultra-Fast Film Change System
Adaptive Clamping Technology
High-Precision Positioning Structure
Anti-Loosening Safety Design
Core Highlights

KEY HIGHLIGHTS

- All-Metal Durable Construction:

Main body made of quenched and tempered 45# steel with chrome-plated rustproof surface; expansion bladder uses oil-resistant nitrile rubber with excellent aging resistance

- Smart Compatibility:

Seamlessly integrates with fully automatic and semi-automatic aluminum film sticking machine; shaft length customizable (500-2000mm) based on applicator model

- Low-maintenance design:

Features lubrication-free bearings and a sealed pneumatic system; routine maintenance requires only monthly surface dust cleaning.

- Energy-saving and consumption-reducing features:

Operating pressure requires only 0.6-0.8MPa, with single-expansion air consumption ≤0.3L, reducing energy consumption by 60% compared to hydraulic expansion shafts. Tight film roll clamping maintains unwinding tension fluctuations within ≤±5%, reducing material waste to below 1%.
