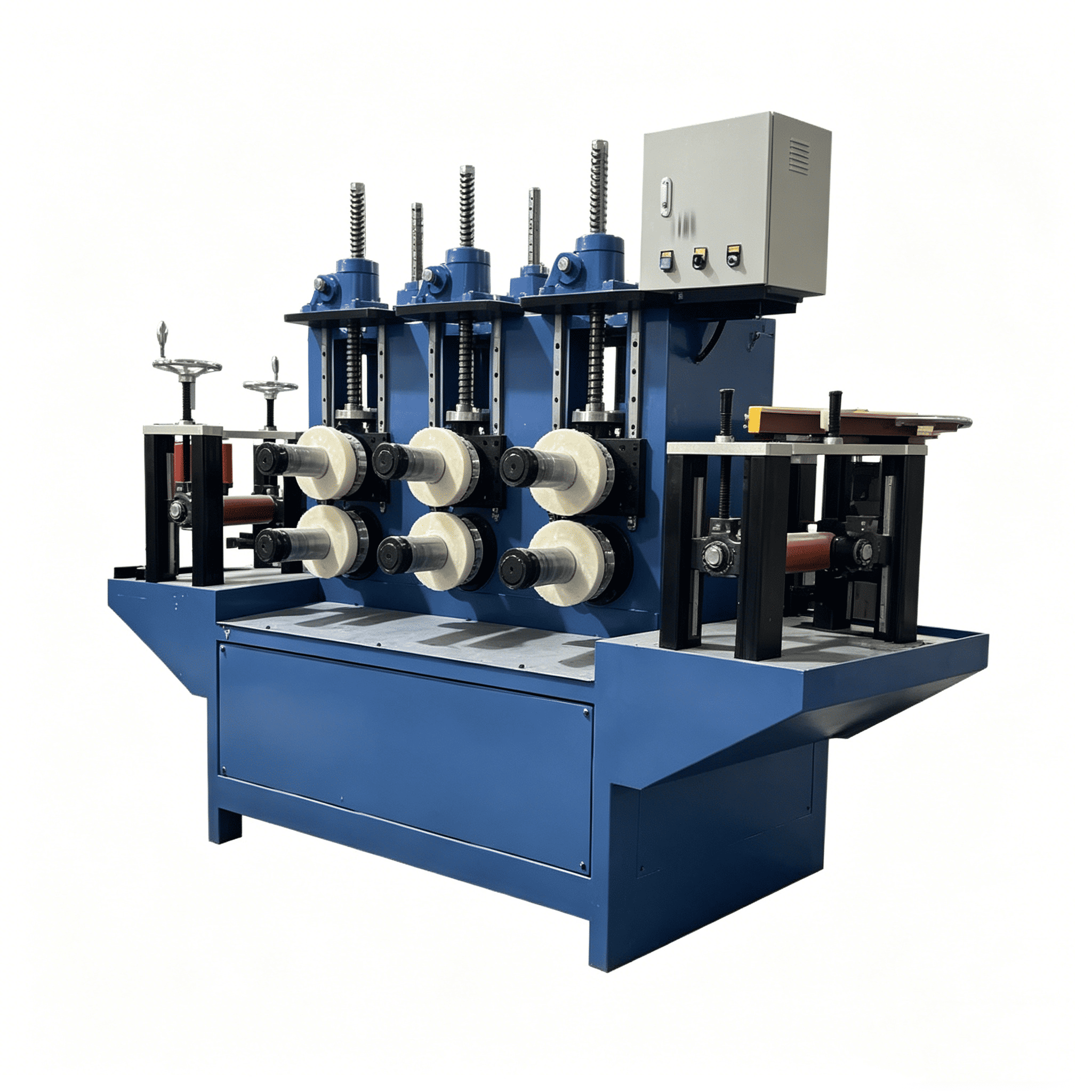

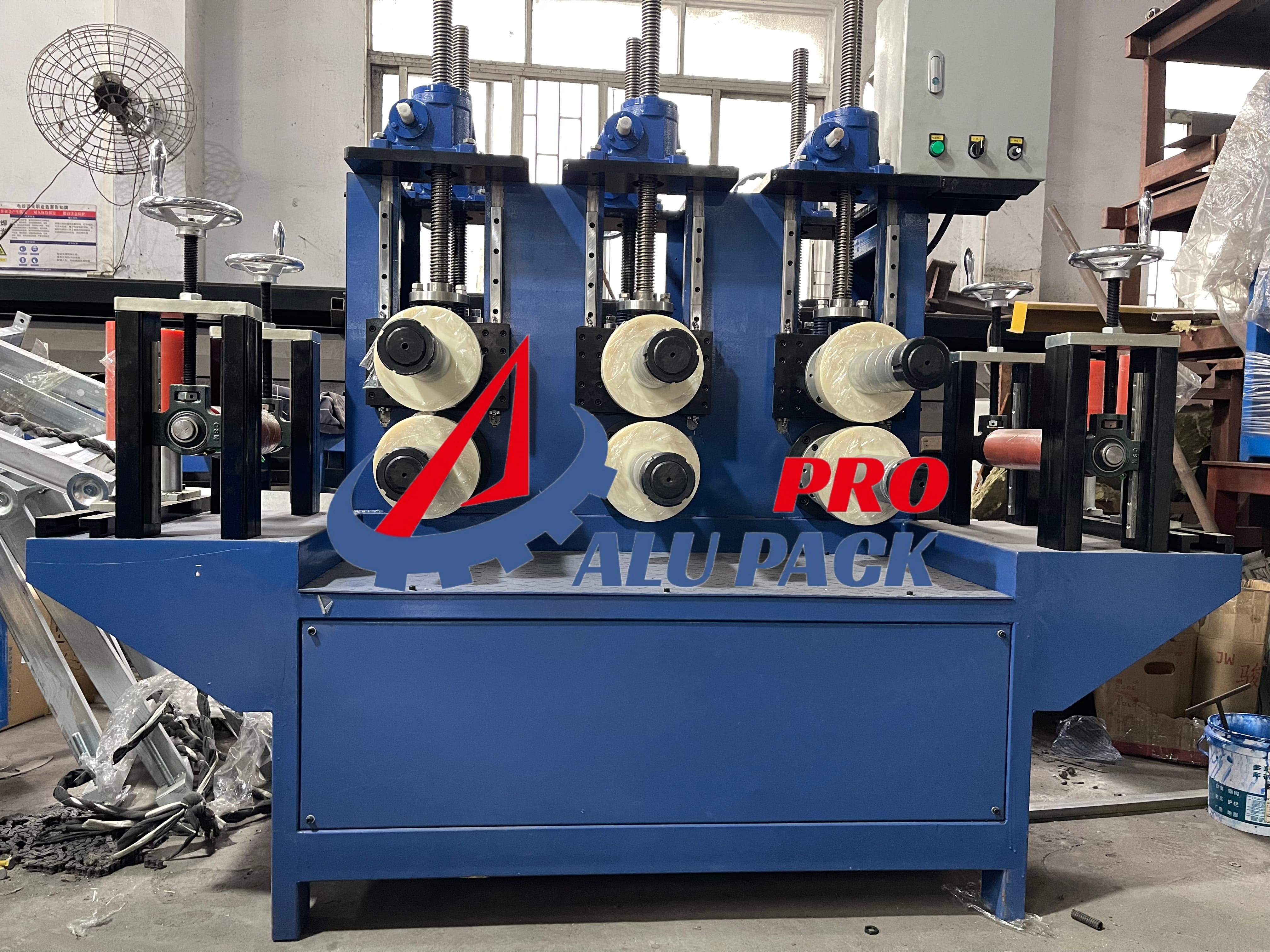

PRODUCT INTRODUCTION
The aluminum correction machine belongs to professional surface treatment machines for aluminum profiles, together with aluminum straightening machine and aluminum surface shaping machine, they form a complete set of aluminum profile finishing equipment. It is specially designed for profile surface flatness shaping and material angle correction, while the aluminum straightening machine focuses on linear correction, and the aluminum surface shaping machine optimizes surface smoothness. All three devices are widely applicable to aluminum profiles, industrial alloy materials, aluminum alloy profiles, aluminum doors and windows, and related metal processing industries.
MAIN PEFORMANCE
This integrated solution of aluminum correction machine, aluminum straightening machine and aluminum surface shaping machine features simple and user-friendly operation, effectively reducing manual dependence and saving labor costs for factories.Both the aluminum correction machine and aluminum surface shaping machine deliver outstanding shaping and correction effects, paired with the high straightening precision of the aluminum straightening machine, the whole set achieves high working efficiency, perfectly matching mass production demands.Customized design is fully supported for all three devices. They adapt to various shaping wheel sizes and specifications, and we can provide personalized production solutions according to customers’ actual production requirements, whether it’s angle correction, linear straightening or surface shaping.
APPLICATION RANGE
As essential aluminum profile surface treatment machinery, the aluminum correction machine, aluminum straightening machine and aluminum surface shaping machine are mainly used for straightening and reshaping aluminum profiles, PVC profiles, and stainless steel profiles.The aluminum correction machine accurately corrects bending and torsional deformation, the aluminum straightening machine ensures linear straightness, and the aluminum surface shaping machine guarantees overall surface flatness, together stabilizing cross-section angular tolerance.With simple operation and reliable performance, these three devices have become indispensable auxiliary equipment in the global profile manufacturing industry, covering all links of profile surface finishing and correction.
PROFILE SHAPING WORKING PROCESS
The equipment vertical frame (shared by aluminum correction machine and aluminum surface shaping machine) is equipped with multiple driving rollers and driven rollers.For thin-wall profiles, special-shaped sections and arc-shaped profiles, precise correction and shaping can be realized by flexibly adjusting the position, quantity and spacing of main and auxiliary shaping wheels—cooperating with the aluminum straightening machine to complete linear correction first, then using the aluminum correction machine for angle adjustment, and finally the aluminum surface shaping machine for fine-tuning surface flatness, adapting to diverse profile specifications.
KEY FEATURES
- The aluminum correction machine, aluminum straightening machine and aluminum surface shaping machine work together to effectively eliminate bending, twisting and wave deformation of aluminum profiles generated during extrusion, cutting, transportation and processing.
- The aluminum correction machine fixes angle deviations, the aluminum straightening machine corrects linear deformation, and the aluminum surface shaping machine solves unevenness caused by internal material residual stress.
- The three devices work in synergy to greatly improve overall machining precision and finished product appearance quality of aluminum profiles.
- All three are of flexible compatibility, suitable for correcting and shaping aluminum profiles in different lengths and various cross-section types.
MAIN TECHNICAL PARAMETERS
- Overall Dimensions (L × W × H): 3500 × 1500 × 1900 mm
- Cycloidal Motor: 3 kW, variable frequency speed control (applicable to aluminum correction machine and aluminum straightening machine)
- Main Shaft Specification: 95 × 1300 mm (3 sets)
- Drive Gear: 1-inch double row gear
- Elevation Lead Screw: Φ40×M6
- Upper Drive Shaft Bearing: Self-aligning bearing 1313 (10 pieces)
- Lower Drive Shaft Bearing: 6213 (10 pieces)
- Side Guide Wheel: Φ80×L500, Φ80×L300 (nylon material, for aluminum correction machine and surface shaping machine)
- Shaping Roller: Φ200×40 (1 set, for aluminum surface shaping machine)
- Conveyor Frame: Length 6000 × Internal Width 600 × Height 800 mm, height adjustable (compatible with all three devices)
- Conveyor Frame Roller: Φ60×600 felt roller
- Maximum Processing Profile Size: Width 600 × Height 400 mm (suitable for aluminum correction machine, aluminum straightening machine and aluminum surface shaping machine)
