1、Product Description
Manufactured by Huizhou Antenk Electronics Co., Ltd, the AW2008R series 2.00mm pitch 90-degree dual row right angle wafer connector is a through-hole wire-to-board connector designed to build reliable power and signal transmission links between wiring harnesses and printed circuit boards in right angle layout. In strict compliance with official engineering drawing specifications, this dual row wafer supports pin counts ranging from 4 pins up to 44 pins with fixed 2.0mm pitch, and it perfectly mates with the matched AH2008 dual row housing series to finish complete wire harness assembly. The insulating housing is injection molded with UL94V-0 flame retardant Nylon 66 material with stable mechanical performance and high heat resistance. Square brass pins adopt tin over nickel electroplating treatment to lower contact resistance and greatly enhance oxidation resistance and soldering stability during long-term operation. Its core electrical specifications include 3A rated current under AC and DC 250V voltage, maximum 20 milliohm contact resistance and minimum 1000 megaohm insulation resistance. The connector can withstand 800V AC high voltage for one minute and work steadily within the temperature range from minus 25 degrees Celsius to plus 85 degrees Celsius. Two optional through-hole pin lengths are reserved to adapt to PCBs of different thicknesses, while all PCB layout dimensions are controlled within precise tolerance ranges to match standard wave soldering procedures. Our standardized production process covers independent precision mold development, high-speed brass terminal stamping, flame retardant nylon injection molding, anti-corrosion electroplating and automatic pin assembly. Imported Taiwan high-speed punching equipment and Japanese precision injection molding machines guarantee unified dimensional consistency during mass production.
This right angle dual row wafer connector is installed by inserting its right angle through-hole pins into preset holes on PCB boards following the official PCB layout drawing and finishing wave soldering fixation. After wires are crimped onto matching terminals and locked into the AH2008 plastic housing, users insert the housing onto this wafer plug to complete wire-to-board circuit connection. It is widely applied in liquid crystal display modules, digital camera internal wiring, industrial control signal boards, smart household appliances, portable storage equipment, automotive electronic accessories and precision testing instruments. During soldering and daily use, operators must control soldering temperature reasonably to prevent thermal deformation of the nylon insulator, avoid violent forced plugging to prevent pin bending and terminal damage, and store unused connectors in dry sealed packages to avoid oxidation and discoloration of brass pins. All products comply with EU RoHS and REACH environmental protection directives, most product models obtain UL certification numbered E472792, and our factory has passed ISO9001, ISO14001 and IATF16949 automotive industry quality management system certifications to guarantee standardized quality management.
Compared with other connector manufacturers in the industry, Antenk independently develops and owns more than 250 sets of plastic injection molds and 180 sets of precision brass stamping molds, supporting personalized customization of pin quantity, pin tail length, insulator color and contact plating type for this right angle dual row wafer connector series. Our 10000-square-meter production base with 250 professional employees is equipped with over 180 automatic assembly machines and 20 sets of professional testing instruments, ensuring stable batch product quality and on-time delivery for large bulk export orders. As a brand qualified with Guangdong Famous Trademark certification, more than 70 percent of our wire-to-board connectors are exported to global overseas markets. We implement multi-stage incoming material inspection, in-process production supervision and finished product full inspection mechanism, greatly improving vibration resistance and long-term connection reliability, effectively eliminating intermittent circuit disconnection faults caused by poor contact, and establishing long-term trustworthy cooperative partnerships with customers across Europe, America, Southeast Asia and other international regions worldwide.
2、FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

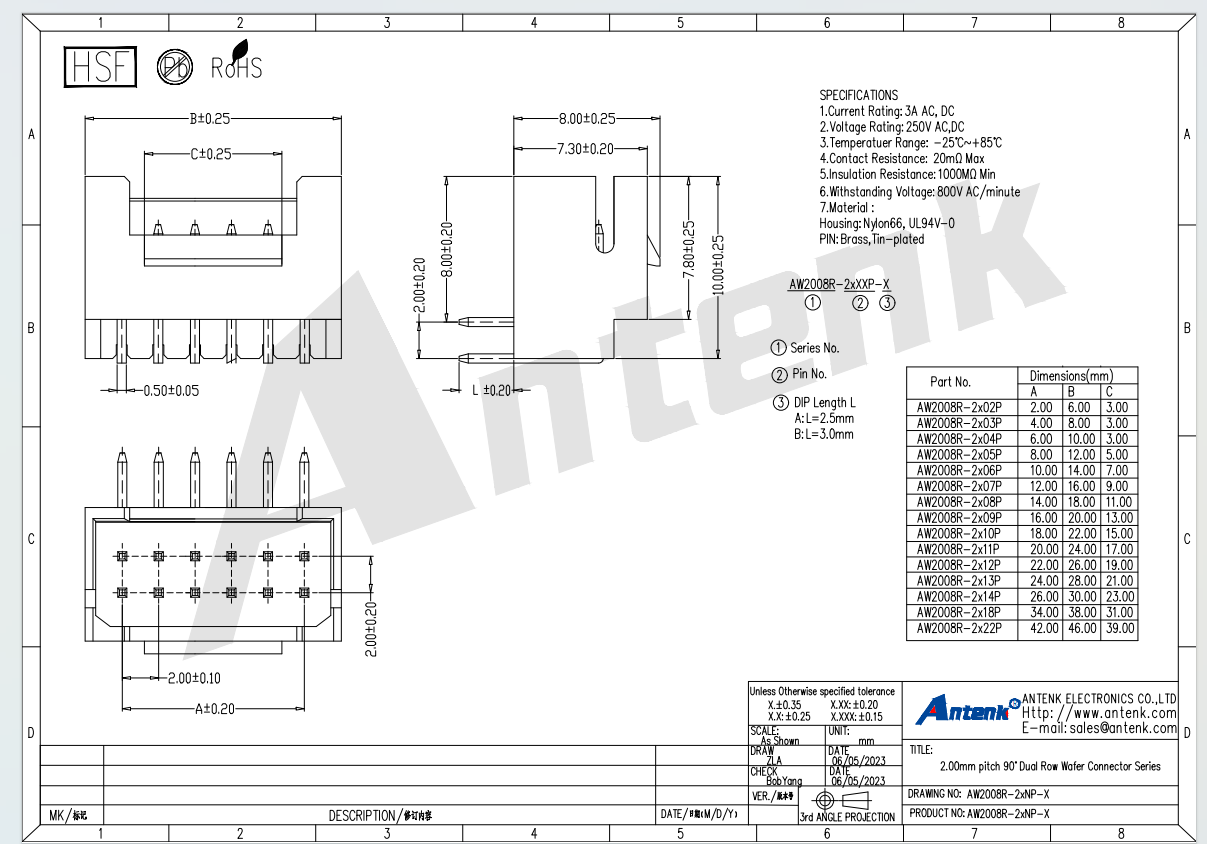

3、Product Drawing
