5.08 Right Angle Plug-in Terminal Block

5.08 Right Angle Plug-in Terminal Block

2 month ago

8 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Huizhou Antenk Electronics Co., Ltd. manufactures AT2500HR series right angle plug-in terminal blocks with dual standard pitches 5.0mm and 5.08mm for reliable wire-to-board power connection, supporting pole counts ranging from 4P to 48P and offering green black orange housing color options to match diverse equipment layout designs with unified precise dimensional tolerances for accurate through-hole PCB soldering. This plug-in terminal block insulator adopts flame retardant PA66-23%GF material certified UL94V0 for high heat insulation performance, internal conductive terminals are made of tin-plated brass to maintain stable low-resistance transmission, electrically rated for 300V nominal voltage and maximum 12A working current, fully compliant with HSF lead-free and RoHS environmental standards to meet global green electronic requirements. This compact right-angle pluggable terminal block is widely installed in liquid crystal display modules, digital cameras, communication control equipment, industrial panels, portable storage devices, digital home appliances, electronic toys, computer peripherals, automotive electronic assemblies and precision measuring instruments that need quick detachable wire connection space. Operators should select matching pole number pitch and housing color based on circuit design, finish standard plug-in assembly and PCB soldering following official layout drawings, avoid excessive twisting force to prevent PA66 housing cracking and brass terminal deformation, and store finished terminal blocks in dry sealed packages to slow tin plating oxidation. Unlike competitors outsourcing mold manufacturing and metal stamping Antenk operates a full independent production workflow covering self-designed precision plastic and metal mold fabrication, high-speed brass terminal stamping, PA66 injection molding, tin electroplating and complete electrical safety laboratory reliability testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications while conforming to REACH international environmental regulations. We own more than two hundred fifty proprietary plastic connector molds and one hundred eighty metal terminal molds, provide customizable pole counts housing colors and structural sizes, deliver round-the-clock professional engineering technical support, and over seventy percent of our terminal block products are exported worldwide supported by our Guangdong Famous Trademark ANTENK and consistent stable mass production quality.

UL94V0 PA66 Terminal Housing provides excellent flame retardant and high temperature resistant performance for industrial circuit connection scenes.

Tin-Plated Brass Conductive Terminal ensures stable conductive transmission and good anti oxidation property for long term plug in use.

4P-48P Right Angle Wire Connector covers complete pole specifications to satisfy diversified wire to board wiring layout demands.

1. Electrical Parameters

1.1 Rated Voltage: 300V

1.2 Rated Current: 12A

2. Material Configuration

2.1 Insulator Housing: PA66-23%GF, UL94V-0 flame retardant

2.2 Conductive Terminal: Brass with tin plating

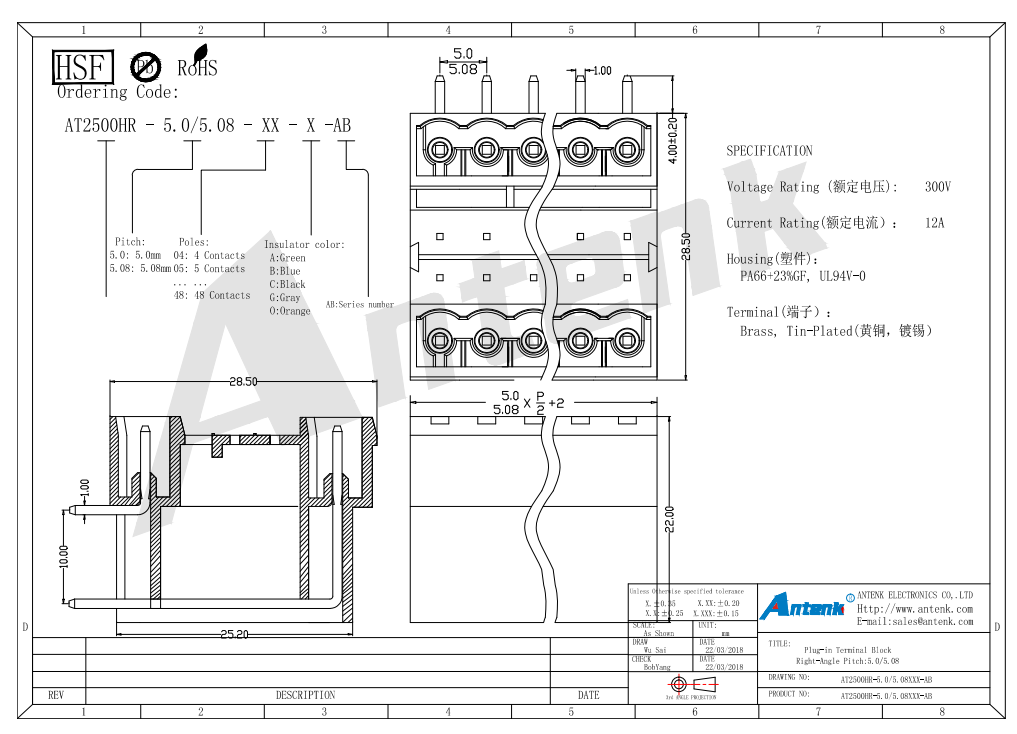

3. Dimension & Structural Specifications (Unit: mm)

3.2 Standard Pitch Options: 5.0, 5.08

3.3 Contact Pole Range: 4P to 48P

3.4 Dimensional Tolerance: X.X ±0.20

4. Housing Color Options

4.1 A: Green

4.2 B: Black

4.3 C: Orange

5. Compliance Certifications

5.1 Environmental Standards: HSF, RoHS lead-free

6. Application Scenarios

6.1 Liquid crystal display modules, digital cameras

6.2 Communication equipment, industrial control panels

6.3 Portable storage devices, digital household appliances

6.4 Electronic toys, computer peripheral equipment

6.5 Automotive electronics, precision measuring instruments

7. Operation & Storage Precautions

7.1 Select appropriate pitch, pole number and housing color according to PCB circuit design

7.2 Complete PCB soldering and wire plug-in operation following official engineering drawing

7.3 Avoid excessive twisting or squeezing force to prevent PA66 housing crack and brass terminal deformation

7.4 Store finished terminal blocks in dry sealed packaging to avoid oxidation of tin-plated terminals

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you

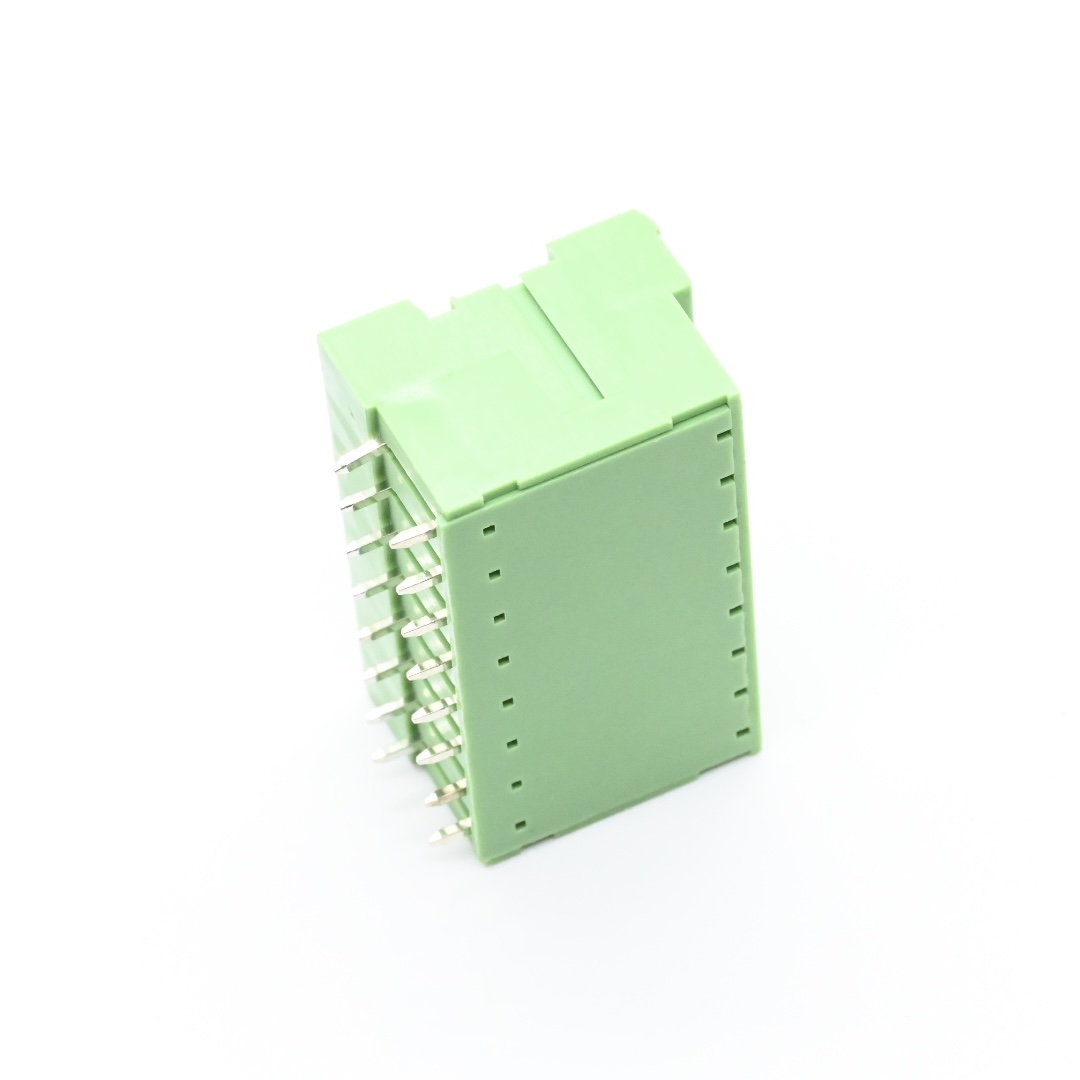

AT2500HR-5.08-16-A-AB+Plug-in Terminal BlockRight-Angle Pitc5.08（6）

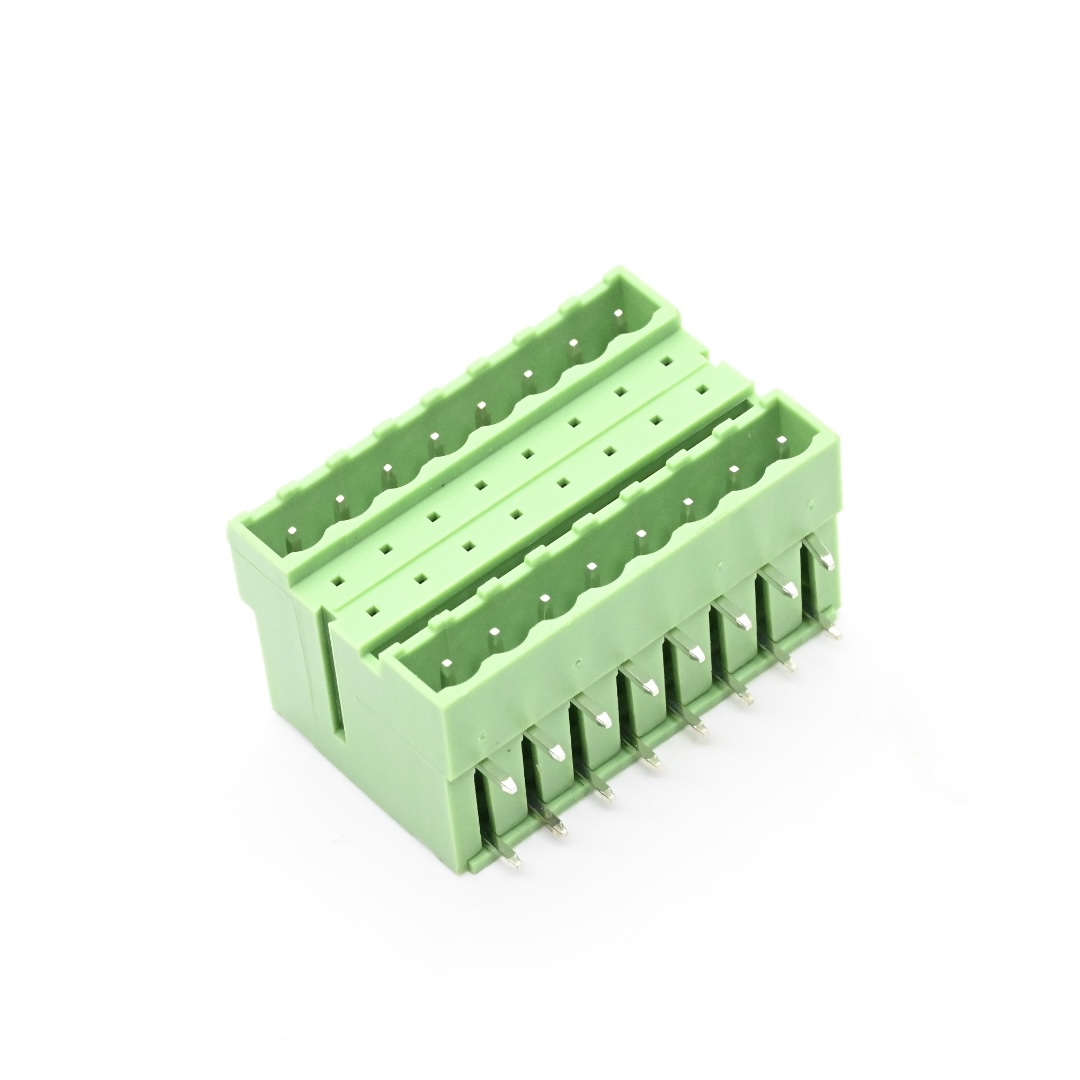

AT2500HR-5.08-16-A-AB+Plug-in Terminal BlockRight-Angle Pitc5.08（2）

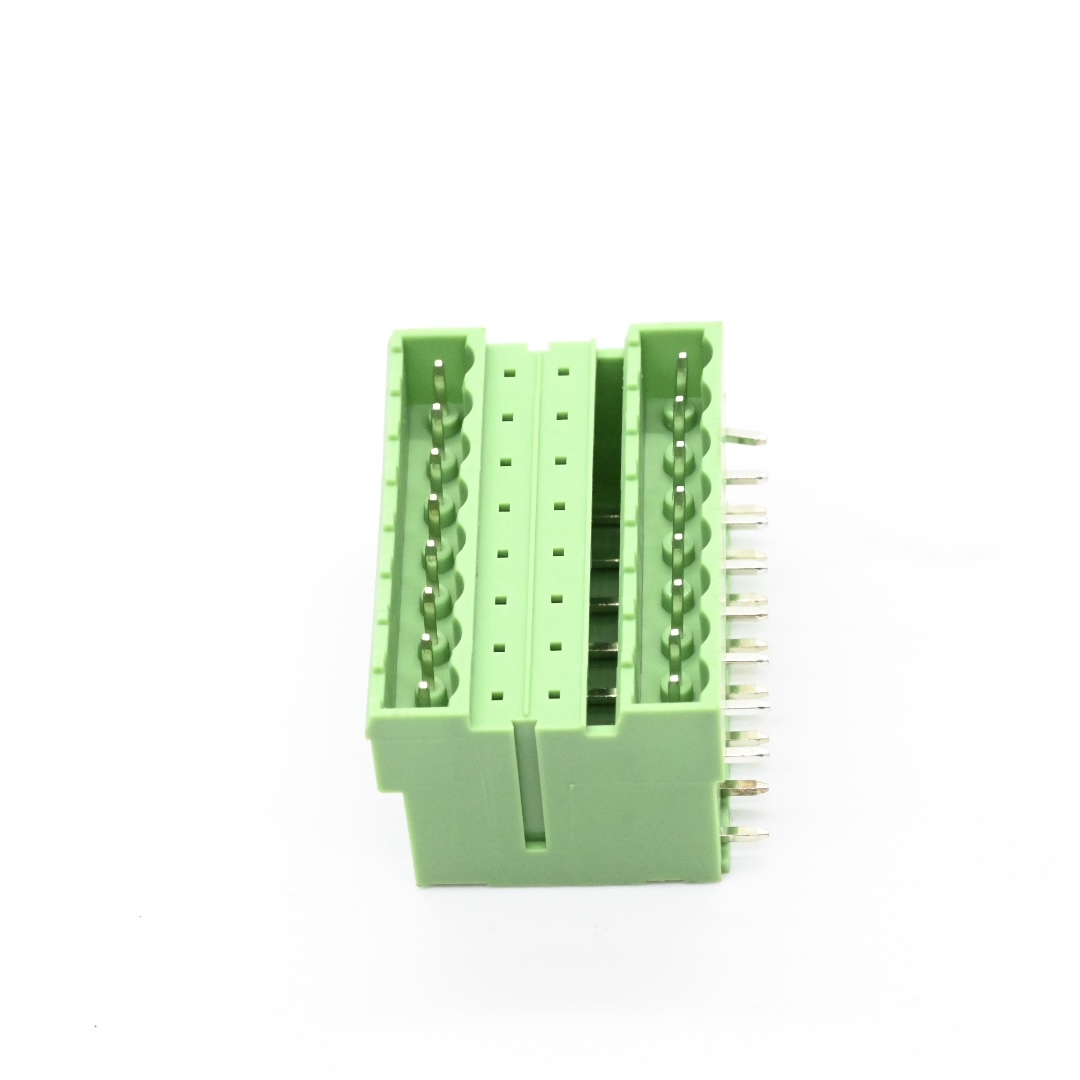

AT2500HR-5.08-16-A-AB+Plug-in Terminal BlockRight-Angle Pitc5.08（3）

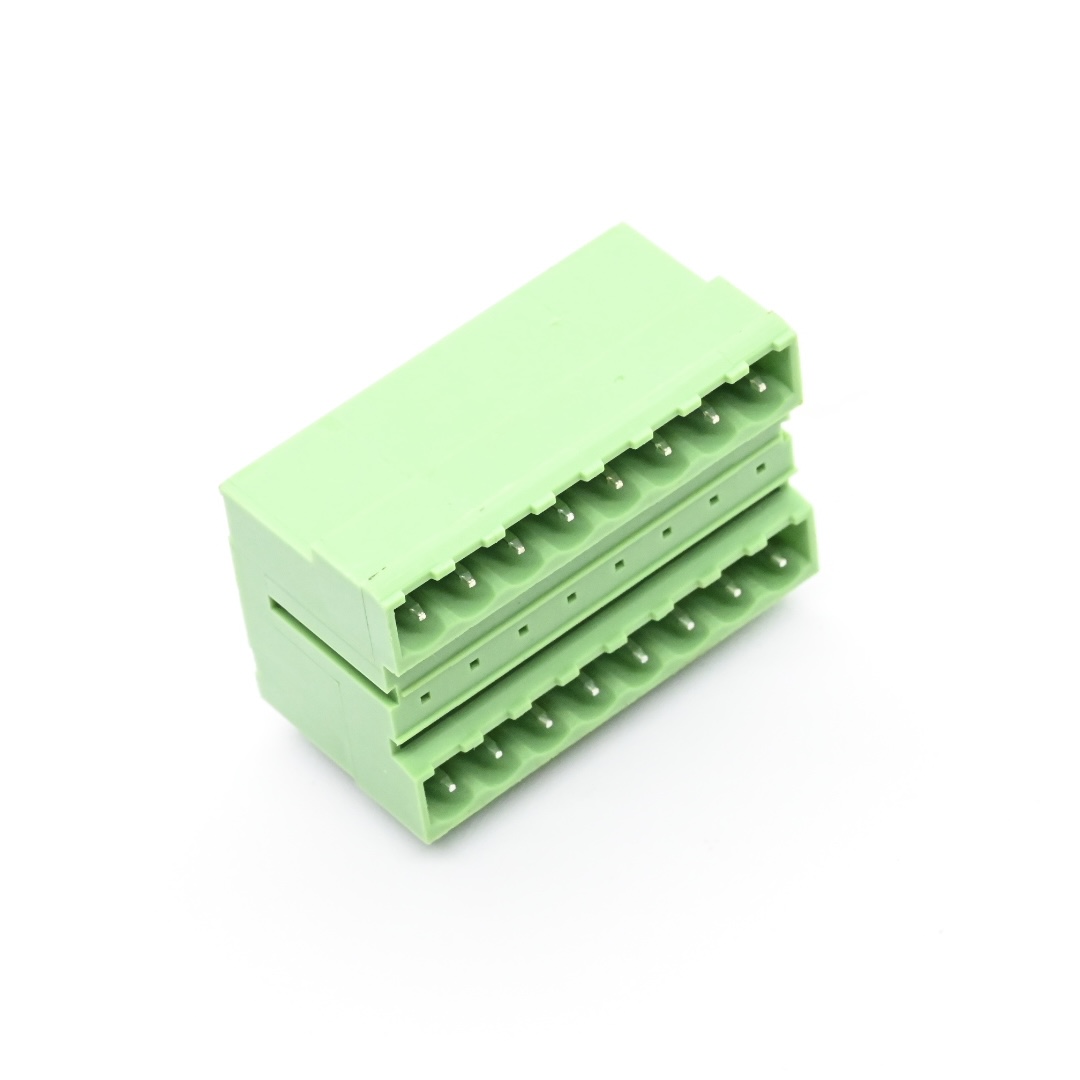

AT2500HR-5.08-16-A-AB+Plug-in Terminal BlockRight-Angle Pitc5.08（4）

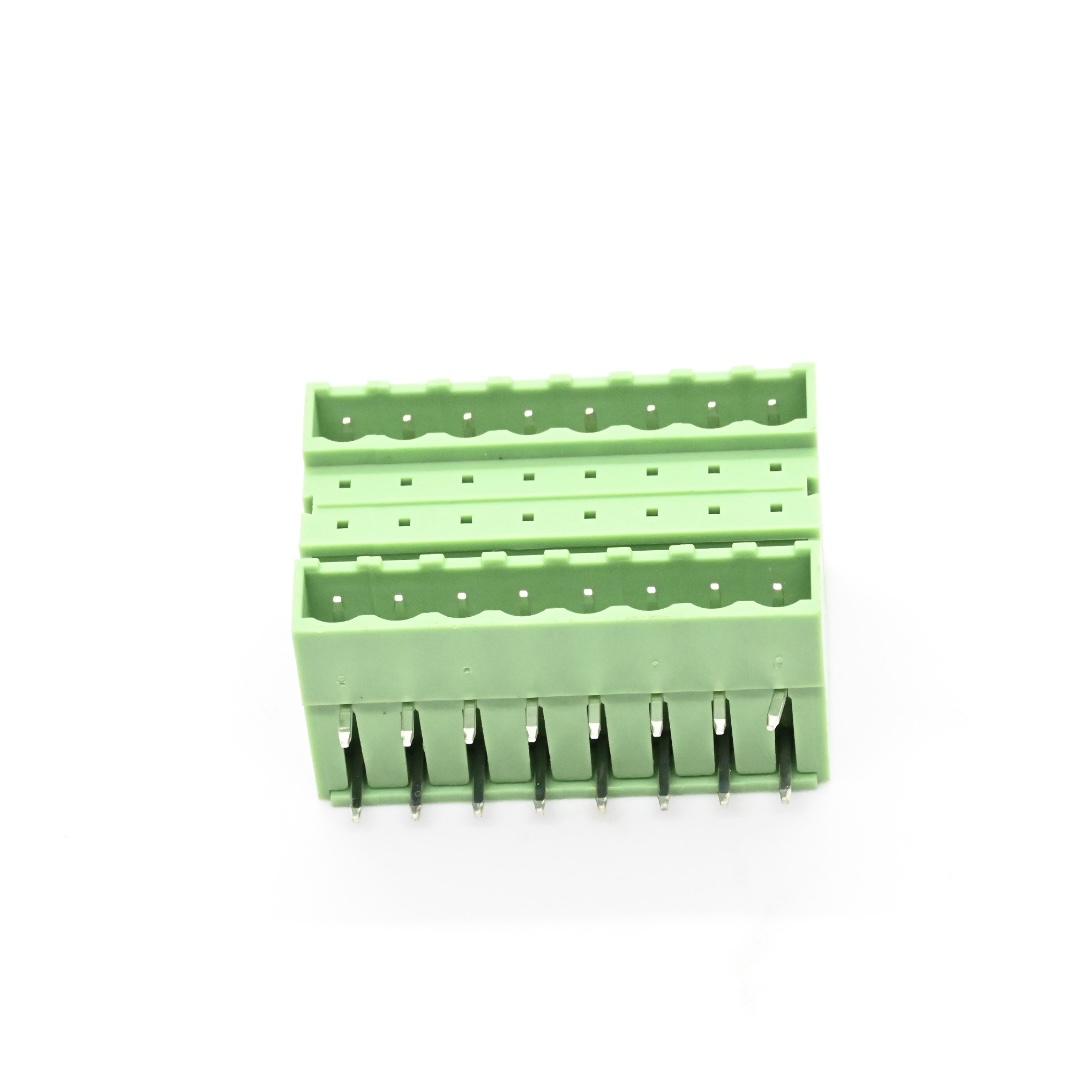

AT2500HR-5.08-16-A-AB+Plug-in Terminal BlockRight-Angle Pitc5.08（1）

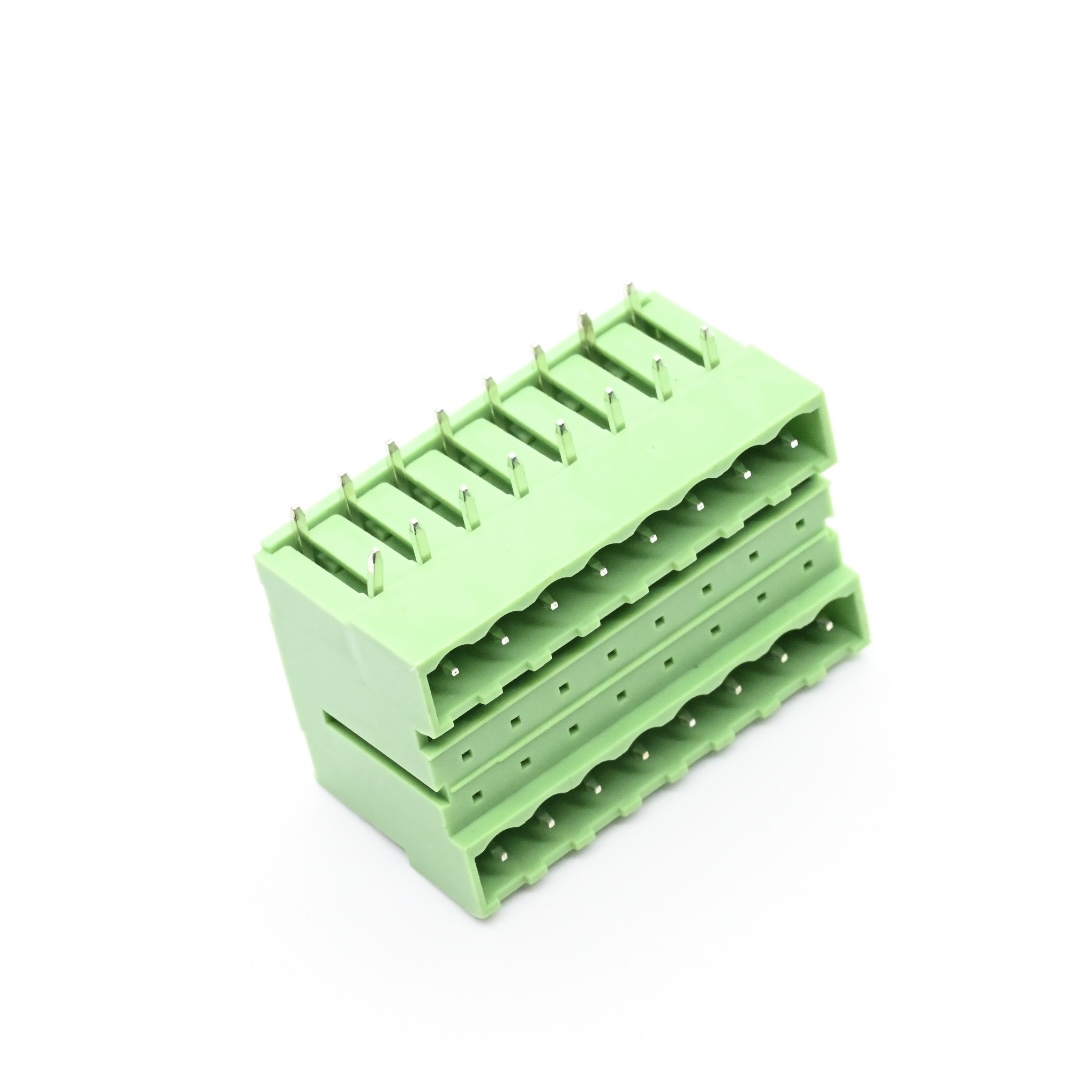

AT2500HR-5.08-16-A-AB+Plug-in Terminal BlockRight-Angle Pitc5.08（5）
