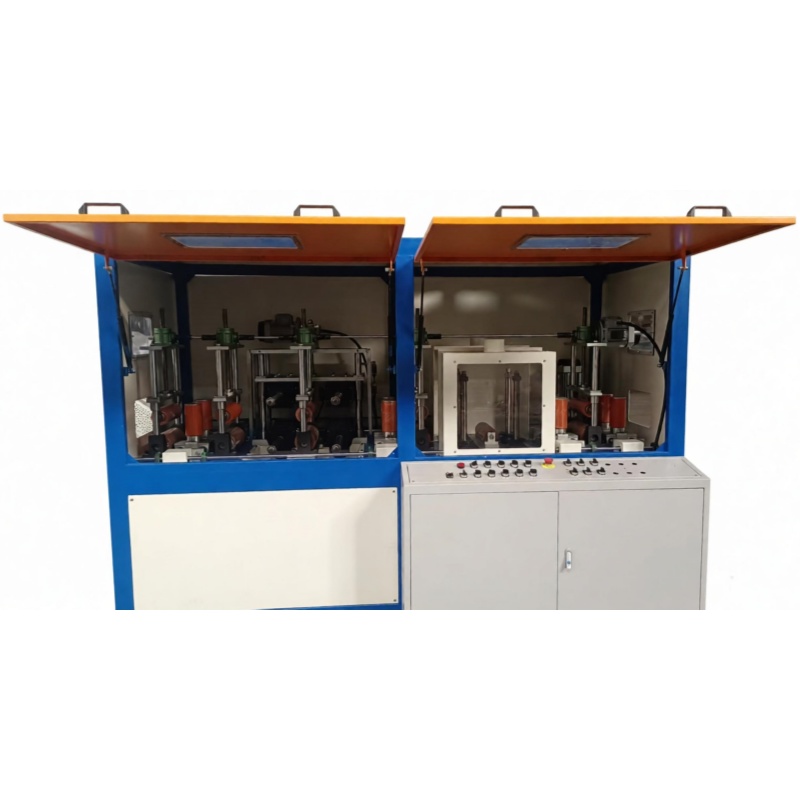

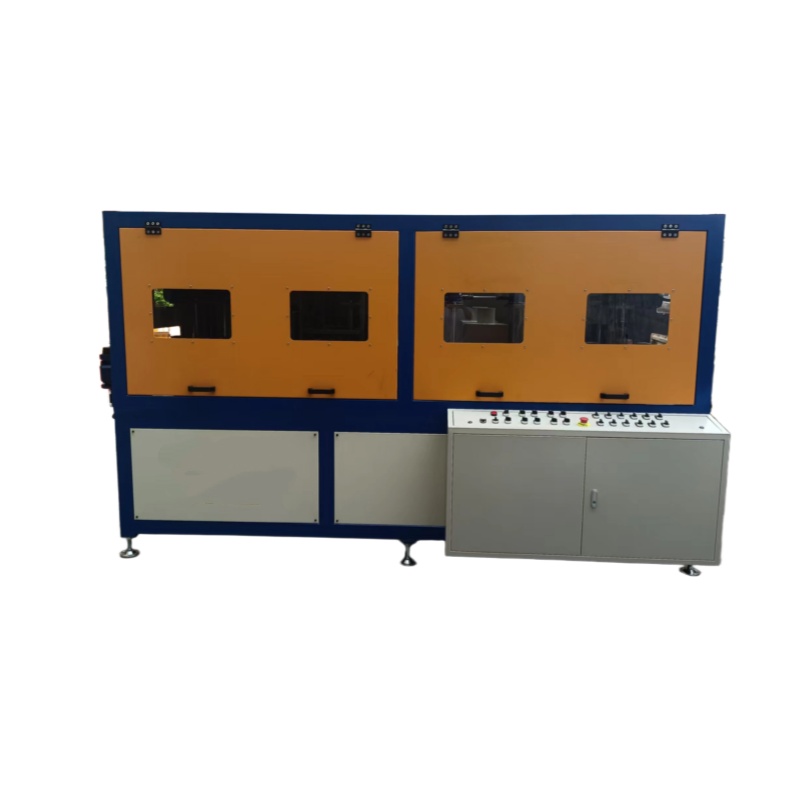

The Aluminum Profile Surface Grinding & Polishing Machine is designed to remove surface burrs, particles, and other minor imperfections from extruded aluminum profiles before spraying, coating, or other surface treatment processes.Compared with traditional manual grinding, this aluminum surface grinding machine provides a more efficient and consistent solution for aluminum profile surface preparation. It integrates an infeed conveyor, outfeed conveyor, automatic profile positioning system, multiple polishing wheels, and a dust extraction system into one machine.The machine is equipped with eight sets of four-way polishing wheels, allowing multiple surfaces of the aluminum profile to be processed during continuous feeding.Operators can simply set the material height and width through the control system, inspect and adjust the polishing discs according to the profile requirements, and then start production.For different surface finishing requirements, the machine uses an imported speed control unit to enable adjustable polishing speed and improve grinding consistency.This Polishing Machine For Aluminum is suitable for aluminum extrusion factories and surface treatment lines requiring efficient and repeatable profile grinding.
EQUIPMENT DEMONSTRATION
CORE ADVANTAGES
Eight Sets of Four-Way Polishing Wheels
The machine is equipped with eight sets of four-way polishing wheels to process the aluminum profile from multiple directions, helping achieve more uniform surface treatment.
Adjustable Grinding Speed
An imported speed control unit allows operators to adjust the polishing speed according to different profile materials and surface finishing requirements.
Integrated Dust Extraction System
Grinding generates aluminum particles and dust. The integrated dust extraction system helps collect dust generated during the grinding process and provides a cleaner working environment.
Easy Operation
Operators can adjust the material height and width through the control system before production, reducing manual adjustment time and simplifying machine operation.
High-Efficiency Alternative to Manual Grinding
Compared with traditional manual grinding with an angle grinder, the machine is designed for continuous processing and more consistent surface treatment, making it suitable for higher-volume aluminum profile production.
Viewing Window for Convenient Inspection
The high-strength acrylic viewing window allows operators to observe the grinding process while keeping the processing area enclosed.
TECHNICAL PARAMETERS
Machine Dimensions (L×W×H): 2760 × 1450 × 1856 mm
Machine Weight: 1900 kg
Maximum Profile Pressing Width:250 mm
Maximum Profile Pressing Height:200 mm
Maximum Discharge Speed: 1.5 m/s
Feed Rack Dimensions: 5000 × 460 × 750 mm
Discharge Rack Dimensions: 6000 × 460 × 750 mm
Feed & Discharge Rack Surface:Felt Lining
Number of Polishing Wheel Sets:8 sets, four-way
Maximum Power:24 kW
Dust Extraction SystemEquipped
Speed Control: Imported speed control unit
WORKING PROCESS
Step 1 — Profile Feeding
The aluminum profile is placed onto the feeding rack and transferred into the grinding area through the infeed conveyor.
Step 2 — Surface Grinding
The profile passes through the eight sets of four-way polishing wheels, which grind surface particles, burrs, and other minor surface imperfections.
Step 3 — Dust Extraction
During grinding, the dust extraction system collects the generated particles and dust to help maintain a cleaner working environment.
Step 4 — Surface Inspection
The operator can inspect the grinding result through the viewing window and adjust the polishing speed or grinding discs when necessary.
Step 5— Profile Discharge
After grinding, the finished aluminum profile is transferred to the outfeed rack for the next production process, such as spraying or coating.
APPLICATION SCENARIOS
This aluminum grinder is mainly used for aluminum profile surface preparation before spraying and other finishing processes.
Aluminum Extrusion Factories
Used to remove surface particles and burrs from extruded aluminum profiles before further surface treatment.
Powder Coating & Spraying Lines
Provides surface preparation before powder coating or spraying, helping improve the consistency of the profile surface.
Aluminum Door & Window Manufacturing
Suitable for aluminum profiles used in doors and windows where surface appearance is an important quality requirement.
Industrial Aluminum Profiles
Can be used for surface preparation of industrial aluminum profiles before subsequent coating or finishing processes.
Aluminum Profile Surface Treatment Lines
As one of the Surface Treatment Machines For Aluminum Profiles, the machine can be integrated into aluminum profile processing and finishing workflows.
WHY CHOOSE US
Aluminum Profile Processing Experience
Alupackpro Machinery focuses on equipment for aluminum profile processing, finishing, and packaging, providing machinery solutions for aluminum extrusion and downstream processing companies.
Designed for Continuous Production
The machine combines feeding, multi-directional grinding, dust extraction, and discharge into one production process, reducing unnecessary manual operations.
Customizable According to Profile Requirements
Different aluminum profiles have different widths, heights, shapes, and surface conditions. The grinding configuration and polishing discs can be selected according to the customer's actual production requirements.
Complete Equipment Support
In addition to aluminum surface grinding equipment, we provide various aluminum profile processing and packaging machines to support different stages of the production process.
Pre-Delivery Testing
Each machine can be tested and adjusted before shipment according to the agreed technical requirements to help ensure smooth installation and operation at the customer's factory.
FAQ
Q1: What is an aluminum surface grinding machine used for?
It is mainly used to remove surface particles, burrs, and minor imperfections from extruded aluminum profiles before spraying, coating, or other surface treatment processes.
Q2: Can this machine replace manual aluminum profile grinding?
The machine is designed as a more efficient alternative to low-efficiency manual grinding, particularly for continuous and higher-volume production. The actual result depends on the profile and required surface finish.
Q3: What aluminum profiles can be processed?
The machine can process aluminum profiles within the specified maximum pressing width of 250 mm and maximum pressing height of 200 mm. The actual suitability should be confirmed according to the profile cross-section.
Q4: How many polishing wheels does the machine have?
The standard configuration includes eight sets of four-way polishing wheels for multi-directional surface grinding.
Q5: Can the polishing speed be adjusted?
Yes. The machine uses an imported speed control unit, allowing the polishing speed to be adjusted according to different processing requirements.
Q6: Does the machine have a dust collection system?
Yes. The machine is equipped with a dust extraction system to collect dust and particles generated during the grinding process.
Q7: Can the machine be customized?
The grinding configuration can be discussed according to the customer's aluminum profile dimensions, surface condition, required finish, and production capacity.
