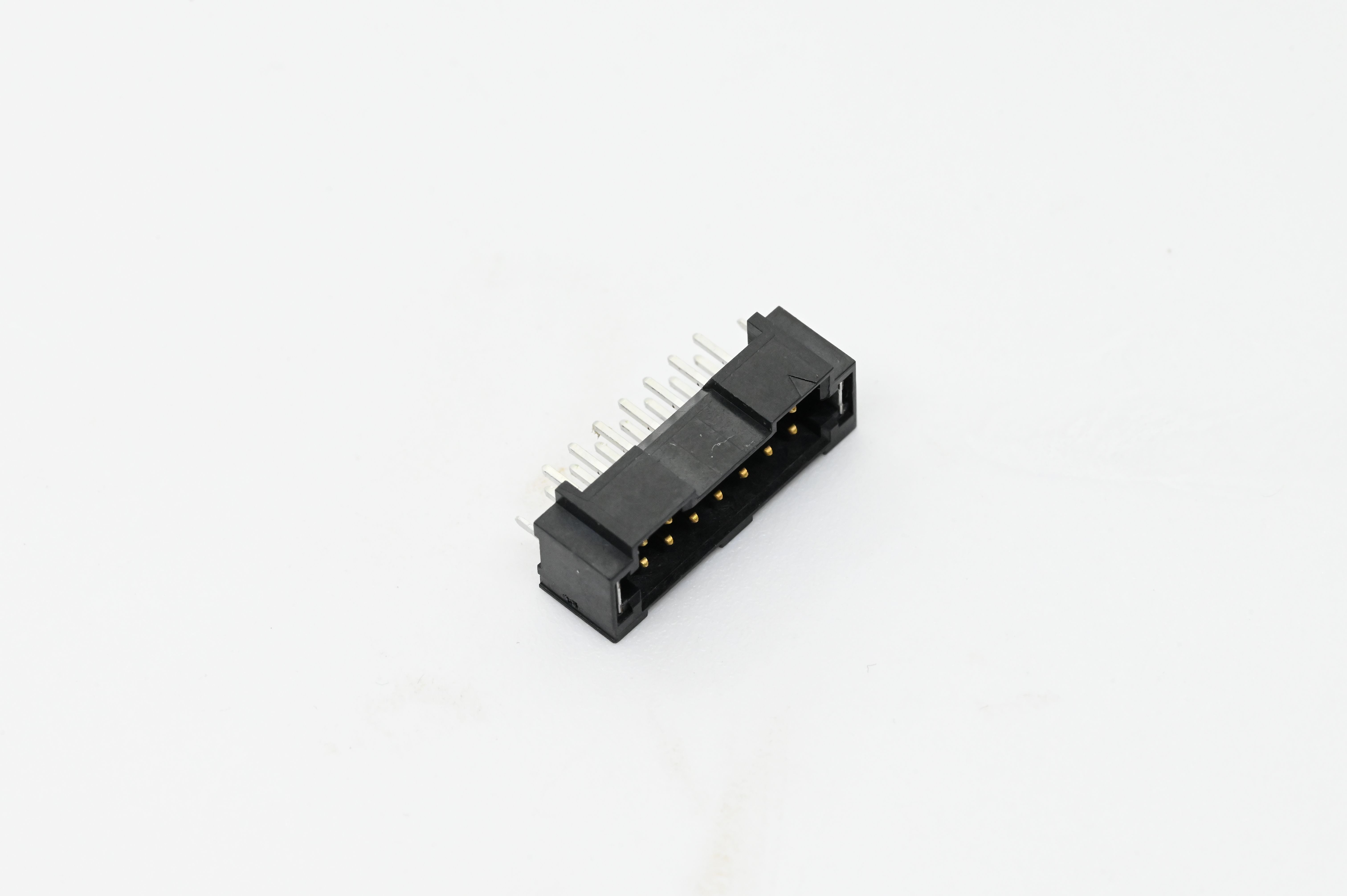

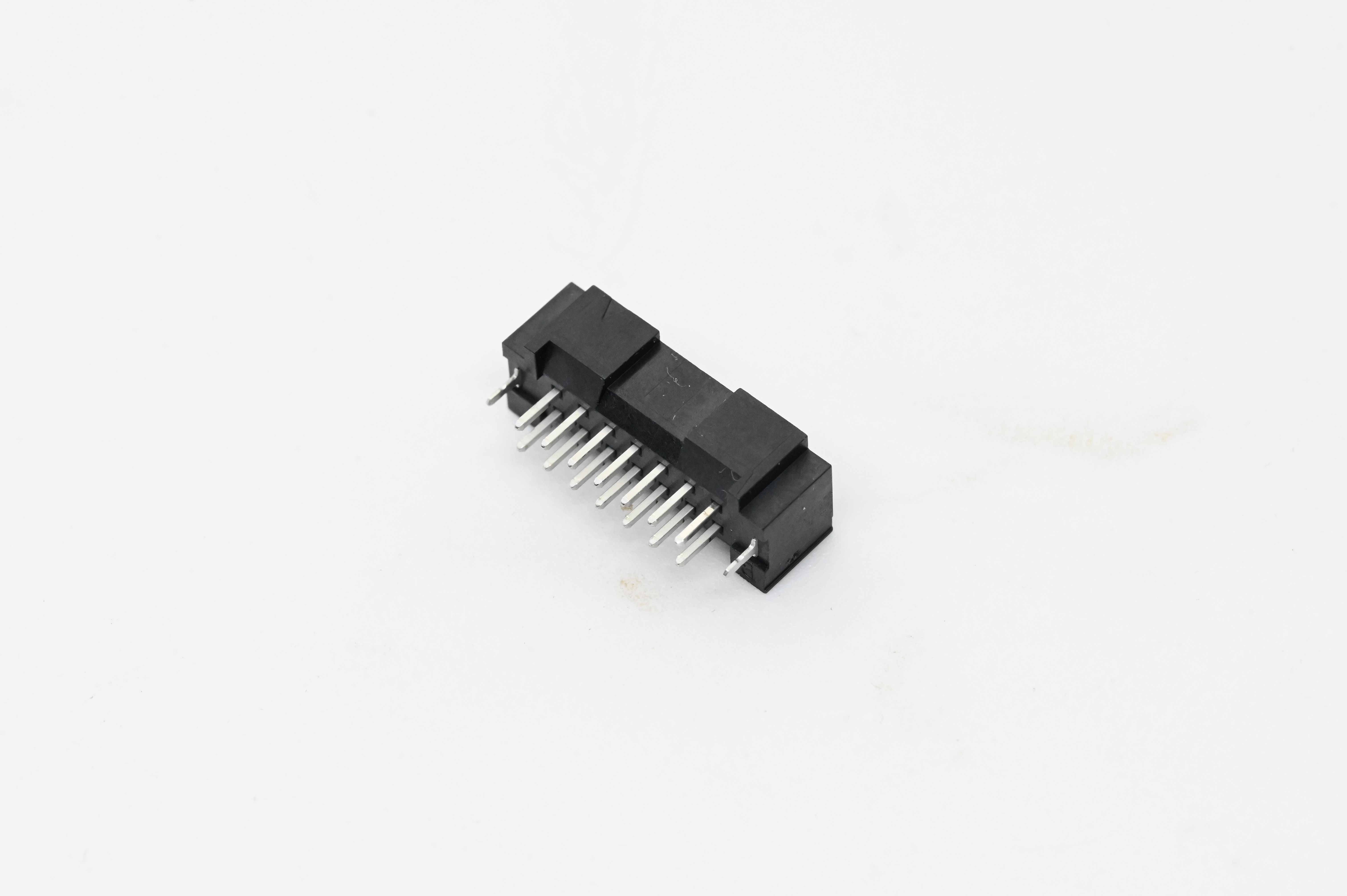

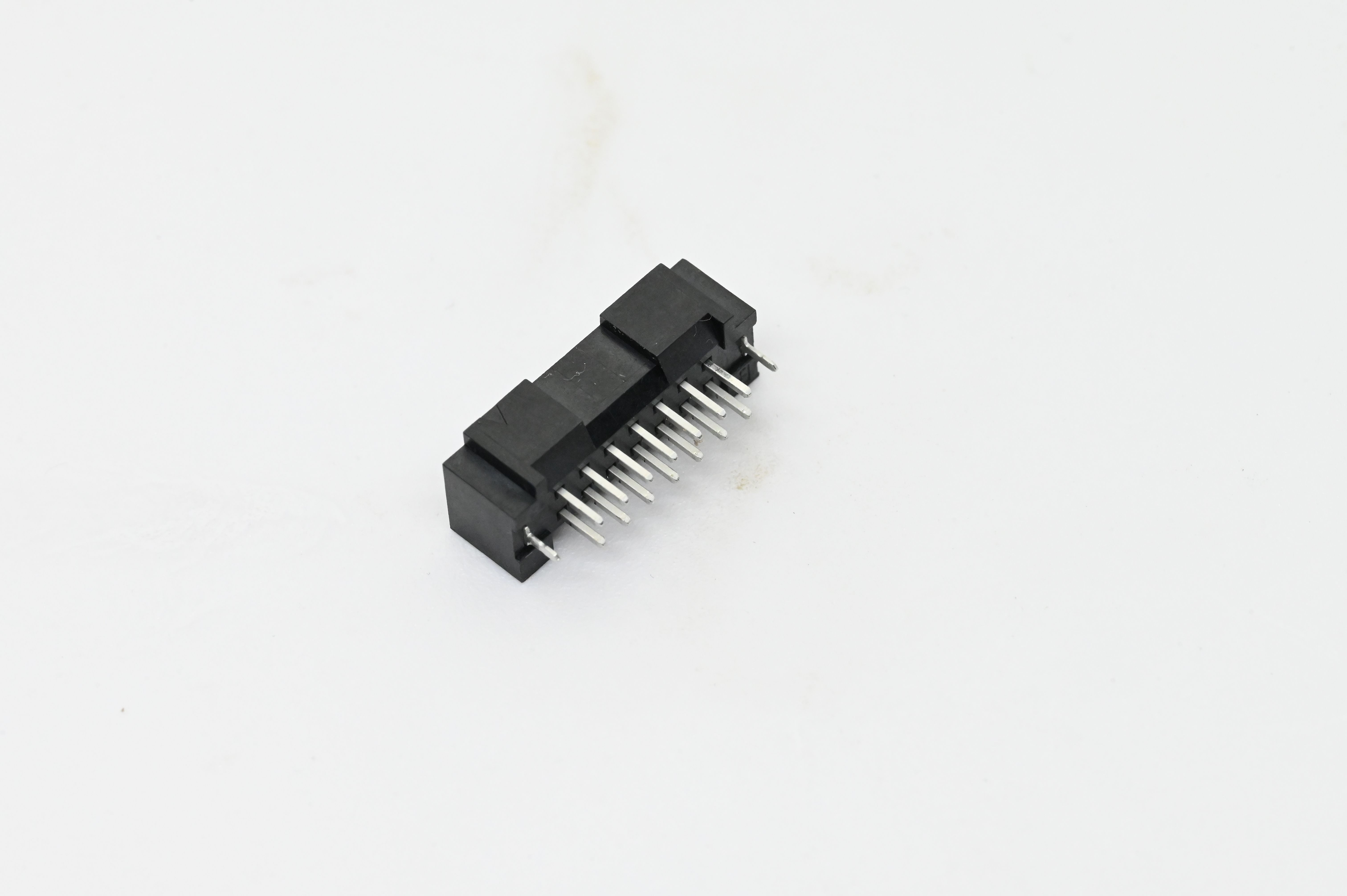

Huizhou Antenk Electronics Co Ltd manufactures 2 millimeter pitch shrouded terminal strip for reliable power and signal interconnection on printed circuit boards. This terminal strip adopts brass contact pins with multiple plating choices including full gold selective gold and tin over nickel, insulator housing supports LCP plus thirty percent glass fiber PA6T or PA9T material with UL94 V zero flame retardant rating, insulator color options cover black blue and white, available contact positions range from five to thirty positions, diverse packing selections contain tray bag tube tube with cap and tape and reel with cap, full dimension specifications can be obtained from engineering drawing for PCB footprint design reference. It delivers two ampere rated current, twenty milliohm maximum contact resistance, one thousand megaohm minimum insulation resistance and five hundred volt AC DC withstand voltage, operating temperature spans minus forty degree Celsius to one hundred and five degree Celsius. Users complete through hole soldering onto PCB and mate with matching female connectors to establish stable circuit links for electronic hardware. Operators must observe drawing dimensional tolerances for board layout avoid excessive insertion force to prevent pin damage and store products in dry clean environment to stop plating layer oxidation. Different from competitors purchasing outsourced components Antenk carries out full in house workflow including plastic molding terminal stamping assembly and comprehensive laboratory performance verification. Our factory holds ISO9001 ISO14001 IATF16949 and UL certifications and more than seventy percent finished goods export worldwide. This terminal strip fits industrial control instruments digital household appliances display modules and consumer electronic projects. Please provide your pin count insulator material plating grade color packing style and project specifications for free sample evaluation and complete technical drawing support.
2.Detailed Specifications of BHCS07‑XXXXX 2mm Shrouded Terminal Strip
1. Mechanical Specifications
1.1 Product type: 2 millimeter pitch shrouded terminal strip
1.2 Measurement unit: millimeter
1.3 Key dimension: Follow engineering drawing for complete outline and PCB layout dimensions. Available contact positions include 05, 07, 10, 15, 20, 25, 30 positions. General dimensional tolerances: X.XX ±0.20 mm, shtur ±0.10 mm. Insulator color supports black blue and white. Multiple packing options include tray bag tube tube plus cap tape and reel tape and reel plus cap. Adhere to drawing tolerance requirements for printed circuit board design.
1.4 Assembly method: Complete through hole soldering on printed circuit board and mate with matching female connectors to achieve stable power and signal transmission.
1.5 Ordering feature: Selectable contact quantity insulator material insulator color contact plating grade and packaging options to satisfy varied electronic project demands.
1.6 CTA: Contact our engineering team to obtain complete dimension drawings and ordering specifications for your hardware design validation.
2. Material Construction
2.1 Contact Terminal: Brass, available plating options include gold flash selective gold of different thickness and tin over nickel
2.2 Insulator Housing Material: Optional PA6T LCP plus thirty percent glass fiber PA9T, flame retardant grade UL94V‑0
3. Electrical & Environmental Performance Parameters
3.1 Rated current: 2.0 Amp
3.2 Contact resistance: Maximum 20 milliohm
3.3 Insulation resistance: Minimum 1000 Megaohm
3.4 Withstand voltage: 500 Volt AC DC
3.5 Operating temperature range: ‑40℃ to +105℃
4. Usage Method
4.1 Assembly mode: Perform through hole soldering to PCB according to official PCB layout drawing, pair with compatible female connectors for reliable power and signal connection.
4.2 Operation tip: Adopt dimension data shown on engineering drawing for circuit board layout development.
5. Application Scenarios
5.1 Signal and power connection for industrial control equipment
5.2 Internal board connection for digital household appliances
5.3 Interconnection component for display related modules
5.4 Circuit connection for consumer electronic and precision instrument products
6. Operation & Storage Precautions
6.1 Strictly follow drawing dimensional tolerances for PCB footprint design
6.2 Avoid excessive insertion force to prevent permanent deformation of brass contact pins
6.3 Prevent scratches dirt and mechanical impact on insulator housing and contacts before assembly
6.4 Store products in dry environment to avoid oxidation of gold or tin plated surfaces
6.5 Confirm contact quantity insulator material insulator color contact plating grade and packing type before placing purchase order
6.6 CTA: Submit your hardware requirement contact quantity insulator material insulator color plating option packing selection and project information, we provide free sample evaluation and professional technical consultation services.
3.FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

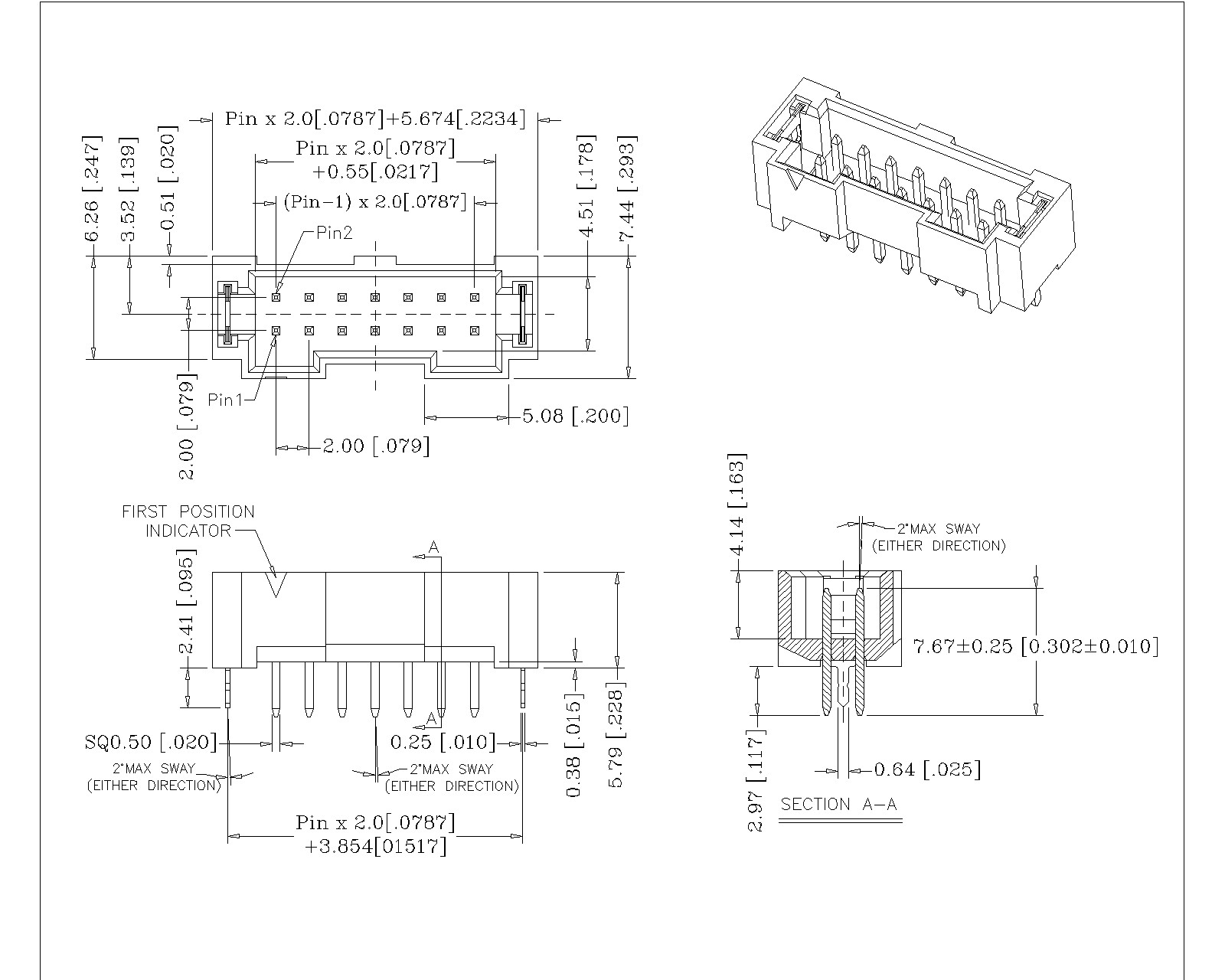

4.Product Drawing：
