CNC Full Automatic screen printing machine for jars bottles

This flat rotary CNC screen printer is designed for high-speed, automated printing on flat or slightly curved surfaces. It integrates automated loading via conveyor and robotic manipulator, CCD vision alignment, and specialized fixtures for precise positioning of various workpieces.

The machine’s servo-driven screen printing and rotary table system ensures accurate ink deposition, while optional flame or plasma surface treatment enhances ink adhesion. A UVLED curing unit dries the printed products quickly and safely.

With fully automated unloading manipulators and conveyor, and an intuitive CNC interface for adjusting printing parameters, this system is perfect for cosmetics, electronics, plastic products, and promotional items, delivering high efficiency, stable operation, and precise printing results.

Bottles turntable automatic screen printer//Technical Parameters

Round-object Max printing stroke: 300 mm;
Oval-object Max Printing stroke: 120 mm;
Round-object Max Printing speed: 4000 pc/h;
Oval-object Max Printing speed: 4500 pc/h;
Work piece size(Round): Diameter:25-100 mm;Length:60-300 mm;
Work piece size( Oval): Width:25-260 mm, Length:60-300 mm;
Power supply: AC380V,3Phase ,45A/(1-3Colour),100A/(4-5Colour);
UV Lamp wattage: 4KW/pc;
UV Exhaust fan wattage: 0.2KW;
Exhaust rate: 11.6 m3/min;
Motor Wattage: 0.75KW;
Reduction gearbox : 1:7.5;
Feeding motor wattage : 0.75KW;
Fixture motor wattage : 0.5KW;
Vacuum Pressure : 500 mm/Ag;
Flame gas: Liquefied Petroleum gas( LPG);
Air : 6 Bar;
Power: 3 phase 380V,45A/(1-3C),100A/(4-5C);

5-7Bar Compress air ;
Liquefied petroleum Gas, Natural gas

Package Dimension: 2085×1270×1820mm;(5pcs)
Gross weight: 900Kg
CBM: 4.81927

Fully automatic screen printing machine for Glass bottles //Main configuration

Mainly Motor:SITI (Italy)
Feeding Motor :Panasonic(Japan)
PLC: Omron(Japan)
Rotary Encoder: Omron(Japan)
Sensor: Optec(Japan)
Touch Screen: Proface( Japan)
Switch: Schneider( France)
Contactor: Schneider (France)
Relay: Idec (Japan)
Inverter: Omron(Japan)
UV Curing System: Primarc ( England)
Pneumatic part: Festo (Germany

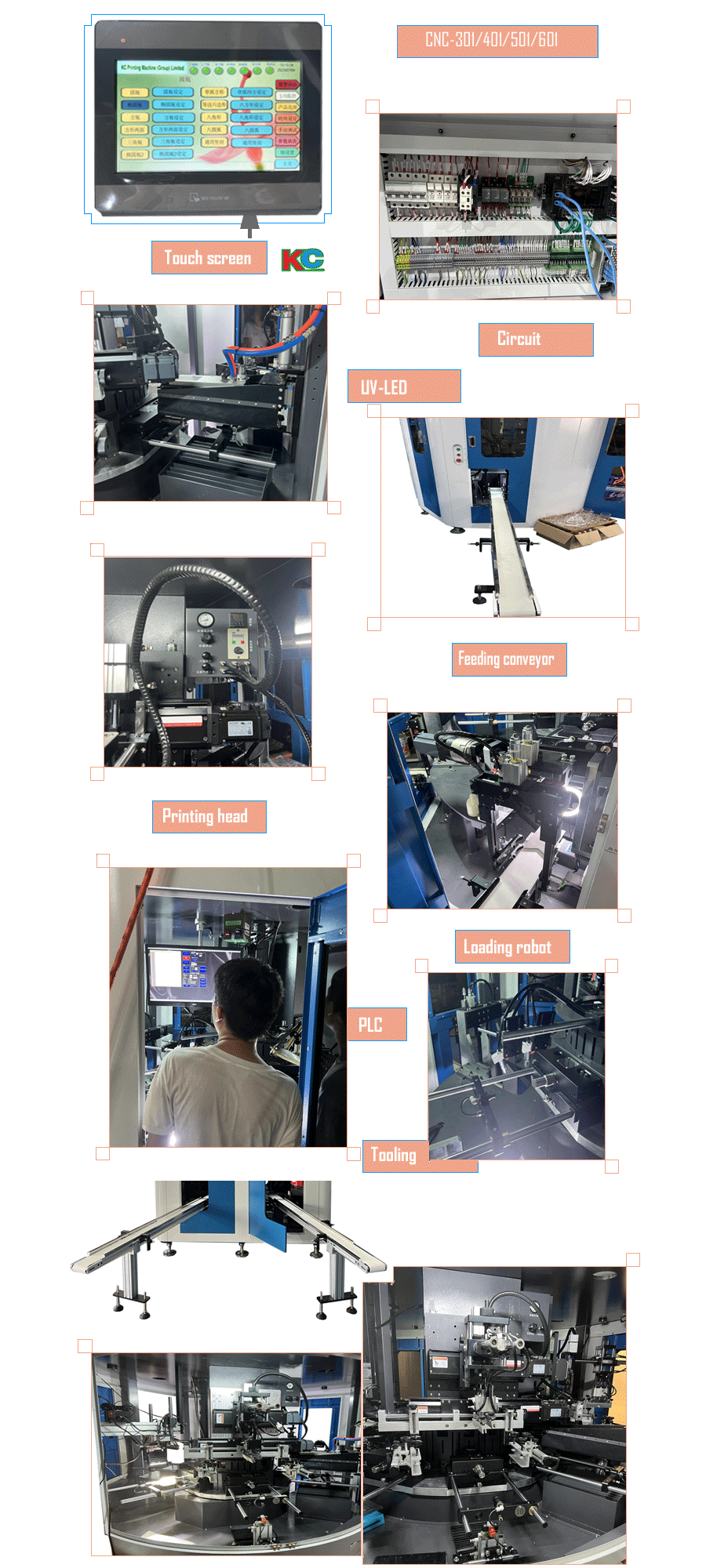

Details-advantage

- - The intelligent multi-functional rotary screen printer offers a fully automated solution for precise and efficient printing. Designed for flat and lightly curved surfaces, it combines cutting-edge automation and intelligent control systems.
  - Key components include:
  - Automated Feeding and Manipulator System for accurate loading.
  - CCD Vision Positioning for precise workpiece detection.
  - Servo-Driven Screen Printing and Rotary Table for consistent high-accuracy printing.
  - Plasma or Flame Surface Treatment to improve ink adhesion.
  - UVLED Curing Unit for fast, safe ink curing.
  - Automated Unloading Conveyor for smooth, efficient product handling.
  - This machine is perfect for cosmetics, plastics, electronics, gifts, and industrial panels, delivering high efficiency, stable operation, and professional printing results.
