Product details

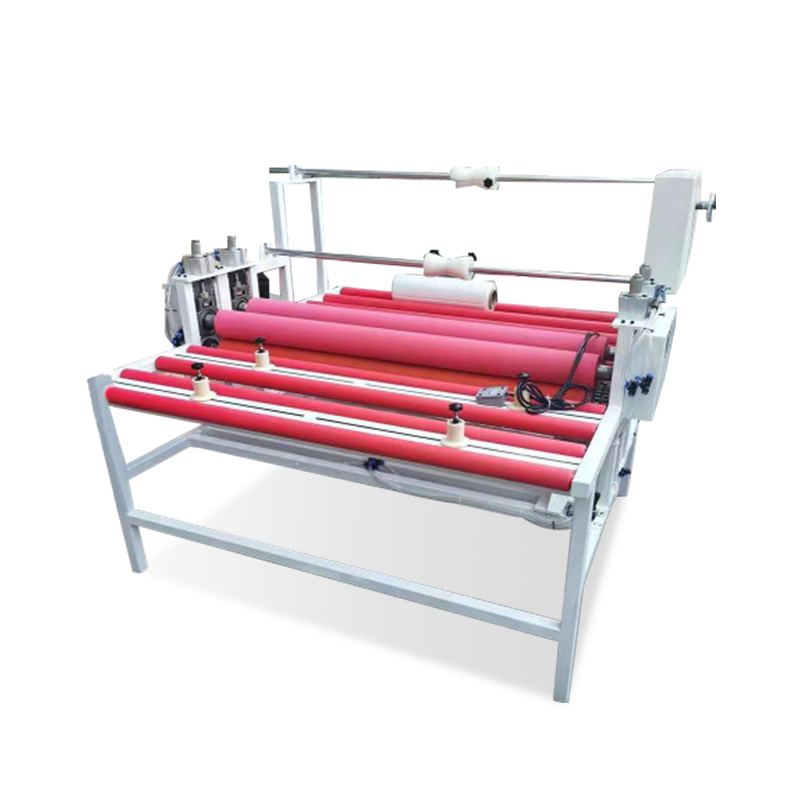

Lamination Machine For Aluminum Board

MAIN FEATURES

Double-sided film-covering, film-covering effect uniform dust-free, no bubbles.
Dust-free room laminator, to meet the requirements of clean environment, ensure that the film flat without bubbles.
The aluminum sheet laminating machine is durable and easy to operate, efficient and energy-saving.

USE RANGE

Protective film packaging for surfaces such as aluminum plate, acrylic plate, honeycomb plate, windows and doors glass, plate, and other surface-coated packaging. It's a

kind of aluminum backend packing machinery.

FILM LAMINATION PROCESS

By installing the flat protective film to the aluminum film lamination machine, placing the product on the attaching platform, starting the laminatiing machine for aluminum panel, the protective film is accurately and automatically pasted on the product surface, and the pressure of the laminating film is adjusted by means of pneumatic lifting cots, so that the film of aluminum sheet laminating machine is more balanced, after pasting the product, the material is discharged along with the conveying rack.

MAIN TECHNICAL PARAMETERS AND REQUIREMENTS

1. Machine Dimensions: 1430×2150×1150(L×W×H mm)

2. Applicable Power Supply: 220V，50Hz; Power: 0.37KW;

3. Maximum laminating width: 1600mm

4. Upper and lower main adhesive roller diameter: 100mm

5. Cylinders: 2 PCS

6. Number of main adhesive rollers: 2 (Upper: 1 rubber roller φ100×1650. Lower: 1 rubber roller φ100×1650)

7. Laminating speed: Automatic/manual. Utilizes a domestic 0.37KW AC motor (with aluminum gearbox) paired with a renowned brand frequency converter for speed regulation, ensuring stable laminating speed and enhanced laminating quality.

8. Laminating speed range: Approximately 0-20 meters per minute.

9. Approximately 9 rubber-coated rollers (Ф60) installed at both entry and exit ends.
