Product details

PS-3040PTR4 Flat screen printing machine with conveyor //

Usage and characters

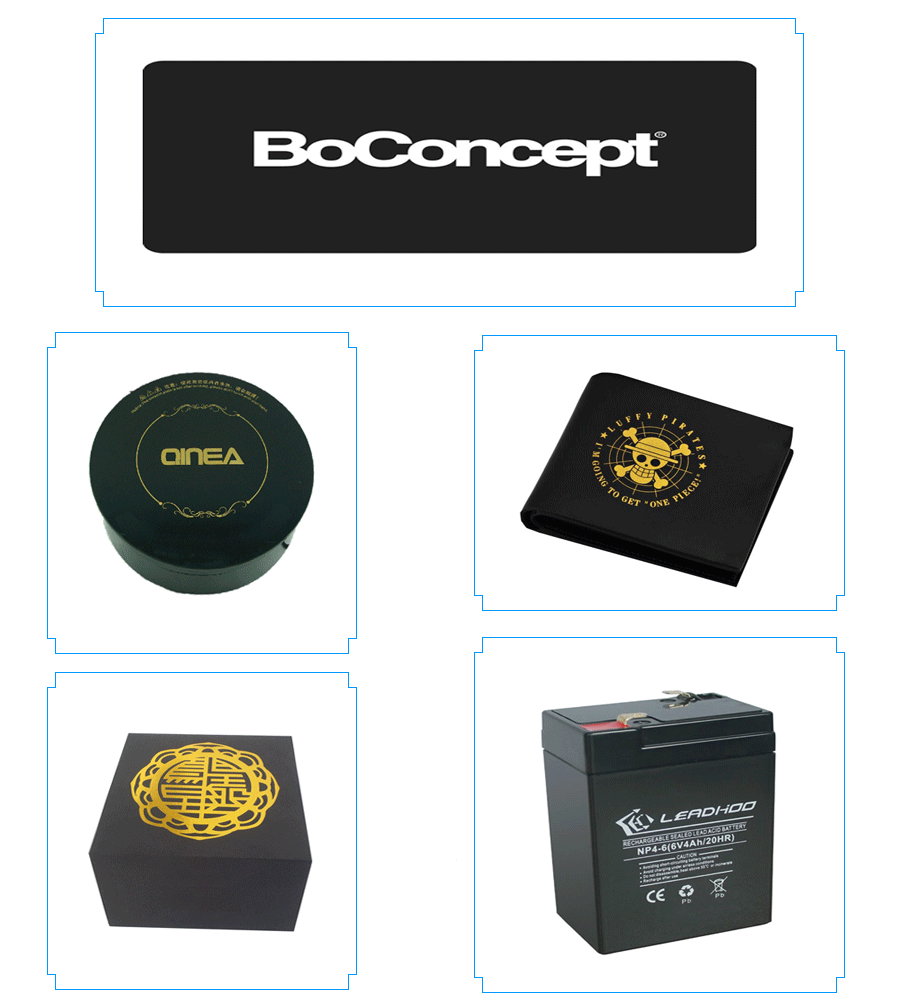

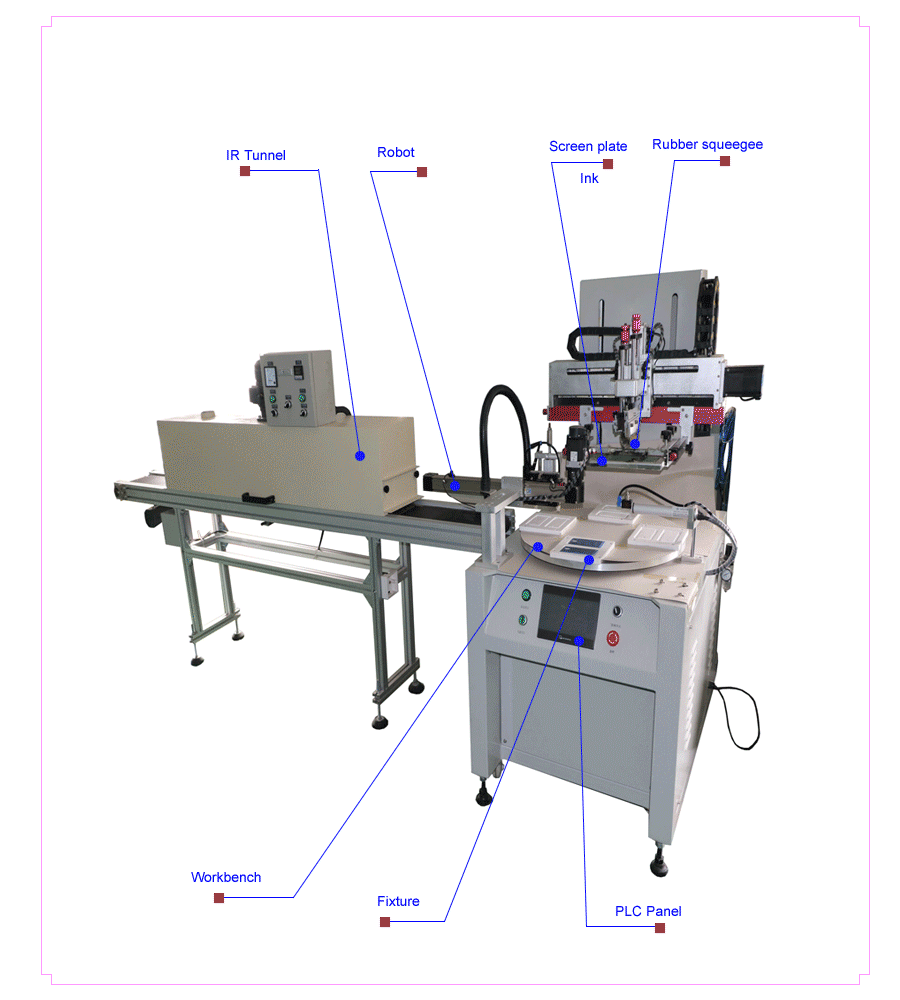

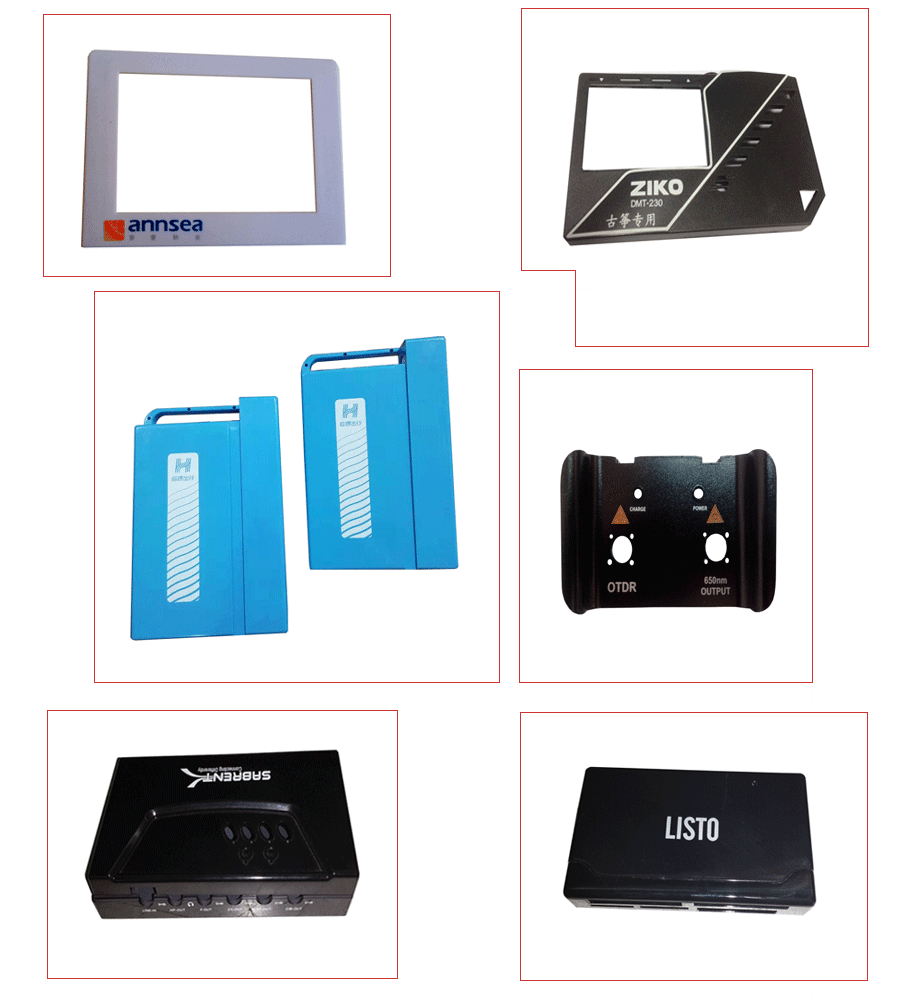

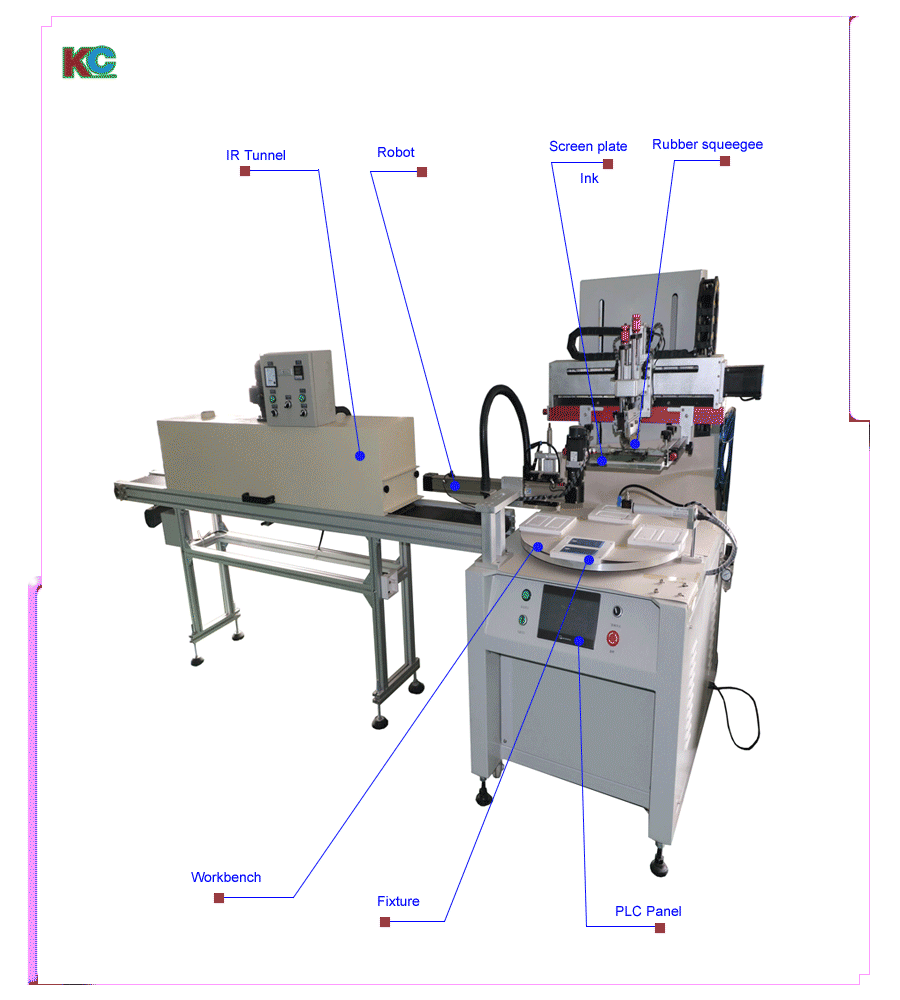

A rotary screen printing machine is equipped with a rotating worktable. The worktable typically holds four products. While one product is being printed, the next product is in a pre-printing state. Finished products can be removed by a robotic arm. The processes of product preparation, pre-printing treatment, screen printing, curing, and removal are independent and do not interfere with each other. While the machine's speed itself is not increased, the time interval between screen printing two products is significantly reduced, objectively improving production efficiency. It is currently one of the most cost-effective flatbed screen printing machines and is widely favored by the market.s. The elements of the rotary screen printing machine include:
Screen printing ink, the type of ink is selected according to the material of the product, and the color is selected according to the color required by the design. Whether it is an ink of a famous foreign brand or a domestic brand, as long as it meets the customer's requirements after testing, it can be delivered.
Screen printing jigs: Turntable screen printing machines usually need to make the same number of jigs as the number of workstations, and the uniformity and interchangeability of the jigs are better.
Screen printing screen: The screen printing screen should be made according to the printing pattern provided by the user. You can hand it over to a third party or make it yourself.
Screen printing squeegee: Screen printing squeegee is usually a rubber tool made of polyurethane material with a rectangular or triangular or even more complex cross-sectional shape. It is in close contact with the screen and squeezes the ink onto the product surface through angle and pressure.

Technical parameter:

Installed in the flat screen printing machine on the basis of a 10-station conveyors, one can fixture 10 products for printing,;
Saving makeready times, improved work efficiency, suitable for flat small monochrome printing area less than 80mm × 110mmscreen printing;
The structural design using the up and down movement of the screen plate type, conducive removed and placed;
Horizontal cylinder design a stable, uniform squeegee pressure back to Mexico and flat, good print quality;
Semi-automatic operation, the operator interface can be used;

PS-3040PTR4 Flat screen printing Machine with Rotating table //Parameters

The max printing thickness: 200 MM;
Air consumption: 75 Lit/Min;
Outline size: 1080×850×1280MM;
The max printing area : 80×110MM;
Dimension of working table: 80mm×115mm;
Max printing speed: 1800Pc/H;
Max frame dimension: 550×250mm;
Stroke of Squeegee: 250mm;
Stroke of Table cylinder: 200mm;
Number of working table: 10

Machine details-Advantage

Microcomputer monolithic program control operations, brand-name electrical and electronic components fitted.
Screen lift, precision and smooth running.
Automatically the line scraping oil back to the for mimeographed head movements function.
Printing stroke and speed can be flexibly adjusted.
Automatically balance the scraper technology.
Before and after the screen frame and turn the trim function.
Cast aluminum alloy beams, pneumatic lifting mode.
Foot printing function;
Scraper can set as stopping front or Back;
10 Products installed to improve production printing speed.

What are the requirements for fixture production for a turntable flat screen printer?

The fixture is a special component used in pad printers, screen printers, and hot stamping machines to fix products and make them meet printing requirements. It is fixed on the workbench. For turntable pad printers, turntable screen printers, and turntable hot stamping machines, as many sets of fixtures as there are workstations are required. The fixtures must maintain good tolerances and be easy to pick up and put away.

Requirements

According to the material, shape, and size of the workpiece, determine the clamping method of the fixture, adsorption, mechanical clamping, snap-on, etc., which must match the turntable indexing accuracy to ensure that the workpiece and the screen printing screen are accurately aligned after each rotation (the error is usually required to be ≤0.1mm). If combined with automatic loading and unloading, the fixture must reserve space for picking and placing to avoid interference with the robot arm/conveyor belt.

When changing products, the fixture can be quickly disassembled;

The product cannot have any shaking or deviation on the fixture during the entire printing process.

Structure

Choose materials with good rigidity. The pad printing fixture and the screen printing fixture are under very little pressure. In addition to metals such as aluminum alloy, non-metallic materials such as bakelite, nylon, and plexiglass can also be used. If the product has an irregular appearance, it can be cast with unsaturated polyester resin. The fixture is installed and fixed to the turntable by positioning pins + bolts to ensure that the fixture is concentric with the turntable. Set 2-3 positioning blocks (such as cylindrical pins and diamond pins) to cooperate with the holes/edges of the workpiece to limit the freedom of movement and rotation of the X and Y axes. Some products can be positioned by the fixture itself, and some products may require additional actions to position:

These additional actions may include:

Vacuum adsorption: Suitable for flat, thin workpieces (such as plastic sheets, paper), and process suction holes (diameter 0.5-2mm) on the carrier plate.

Mechanical clamping: For heavy or special-shaped workpieces, use spring clamps, cylinder pressure plates, buckles, etc., and the clamping force must be adjustable.

Magnetic fixation: For ferromagnetic workpieces, embed strong magnets in the carrier plate and cooperate with positioning blocks to achieve rapid positioning.

The fixture must not affect the lifting of the screen frame of the screen printer and the grasping action of the robot.
