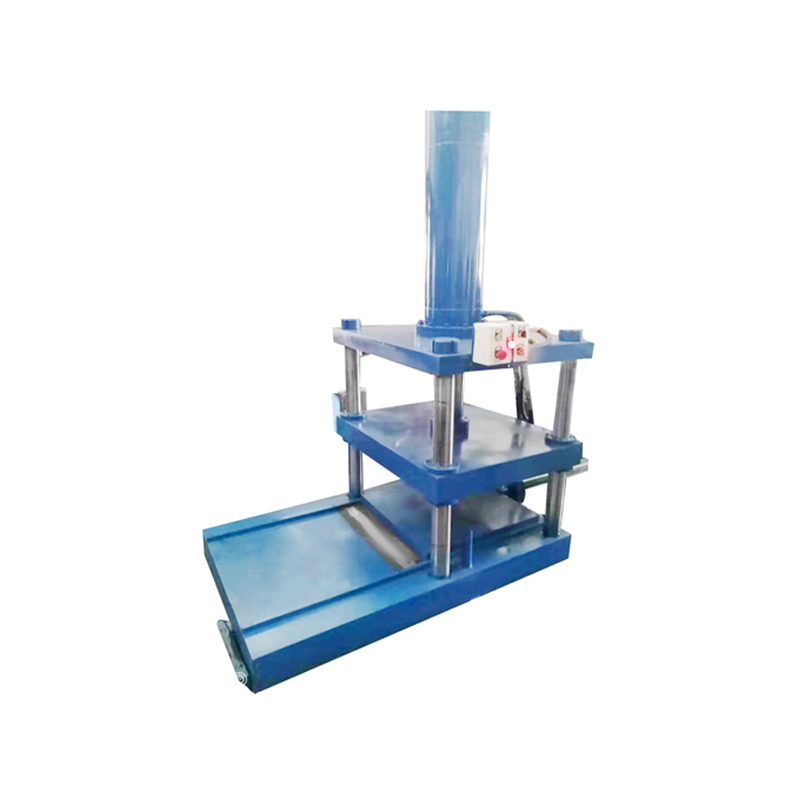

Die Closing Machine

MAIN PERFORMANCE

This molding equipment employs vertical hydraulic cylinders to drive the central movable plate, ensuring the mold assembly is clamped securely into position. This eliminates the need for manual hammering during assembly, significantly reducing labor intensity and minimizing damage caused by hammering to the mold.

MAIN COMPISITION

The entire mold processing machinery consists of a clamping unit, hydraulic cylinders, a hydraulic power unit, and a control cabinet.

USE RANGE

It is mainly used for the upper and lower molds in the later stage of mould making, pressing and closing the molds with the required pressure.It is a kind of mold processing equipment.

MAIN TECHNICAL PARAMETERS AND REQUIREMENTS

Overall Dimensions：Length 2500 × Width 1600 × Height 2600
Molding Cylinder：Φ200 × 600 stroke, Piston Rod Size Φ120
Material Retraction Cylinder：Φ63 × 850 stroke
Motor：4-B35-15KW
Oil Pump: PV2R2-47-FA
Upper Plate: Thickness: 80mm
Lower Plate: Thickness: 100mm
Pressing Mold Plate: Thickness: 100mm
Scissor Cylinder Plate: Thickness: 80mm
Pulling Mold Plate: Thickness: 80mm
Column Guide Rod: Φ100
Maximum Mold Opening: Φ600
Electrical Control: Chint
Color: Blue
