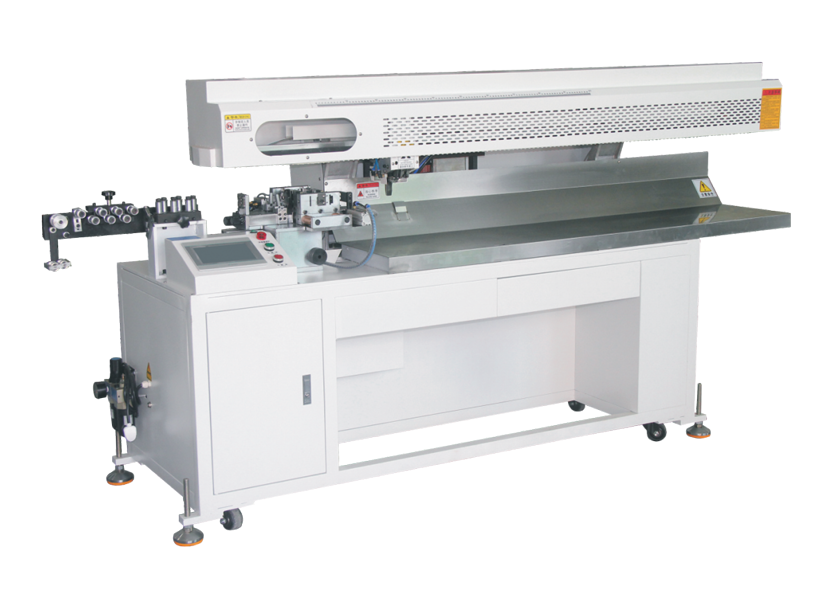

The TYDC-950, TYDC-1500, and TYDC-2000 are high-speed cable cutting stripping machine. These machines are improved for precision length control, standard stripping size and meaningful high speed product for modern manufacturing lines. This machine uses an imported servo motor to control the cutting and peeling action, making the cut length more accurate. It is equipped with a testing device with various detection standards, including wires that are too tight, low air pressure, cylinder jamming, motor malfunction, and consistent counting display.
| Model | TYDC-950 High-Speed Automatic Cable Cutting & Stripping Machine | TYDC-1500 High-Speed Automatic Cable Cutting & Stripping Machine | TYDC-2000 High-Speed Automatic Cable Cutting & Stripping Machine |
| Dimensions | W1700 × D750 × H1500 mm | W2300 × D780 × H1650 mm | W3100 × D780 × H1650 mm |
| Weight | 400 kg | 480 kg | 600 kg |
| Power Supply | AC 220V | AC 220V | AC 220V |
| Power | 1.0 kW | 1.5 kW | 2.2 kW |
| Stripping Length | 3–30 mm (customizable above 30 mm) | 3–30 mm (customizable above 30 mm) | 3–30 mm (customizable above 30 mm) |
| Cutting Length | 42–99999 mm (customizable) | 42–99999 mm (customizable) | 42–99999 mm (customizable) |
| Operation Mode | Single-run / continuous; flat cable splitting | Single-run / continuous; DC, PVC wires | Single-run / continuous |
| Cutting Capacity | AWG#10–AWG#28; flat cable | USB, AC, RGB, 1394, DC wires | Similar high-speed capacity for various wires |
If you are interested in the product, contact 2bvideo.com for more information for more information
