High Performance CNC Turret Lathe Systems - Full-Cooling & Efficient Chip Control Machining Solution
High Performance CNC Turret Lathe Systems are engineered for heavy-duty, high-precision, and high-efficiency industrial turning operations, serving core manufacturing fields including automotive parts, hydraulic components, aerospace fittings, and general precision machinery. Adopting a rigid integrated bed structure and high-precision servo turret positioning technology, this series of CNC turret lathes delivers fast tool switching, stable heavy cutting performance, and excellent dimensional consistency. Equipped with a complete set of advanced cooling and chip management modules, it thoroughly solves common machining pain points such as tool overheating, poor chip discharge, workpiece thermal deformation, and low surface finish, realizing long-term stable automated batch production.
Superior Tool Cooling capability serves as a key guarantee for the long-lasting high-performance operation of the CNC turret lathe systems. In high-load continuous turning, intermittent heavy cutting and finish machining processes, tools generate massive instantaneous cutting heat, which easily causes tool wear, tipping and thermal displacement errors. The professional cooling configuration of the lathe system provides continuous, targeted heat dissipation for tool cutting edges, rapidly absorbing and taking away cutting heat. It effectively suppresses tool thermal fatigue and abrasion, maintains stable machining accuracy during long-hour uninterrupted operation, greatly extends tool service life, and reduces production costs caused by frequent tool replacement and equipment shutdown.

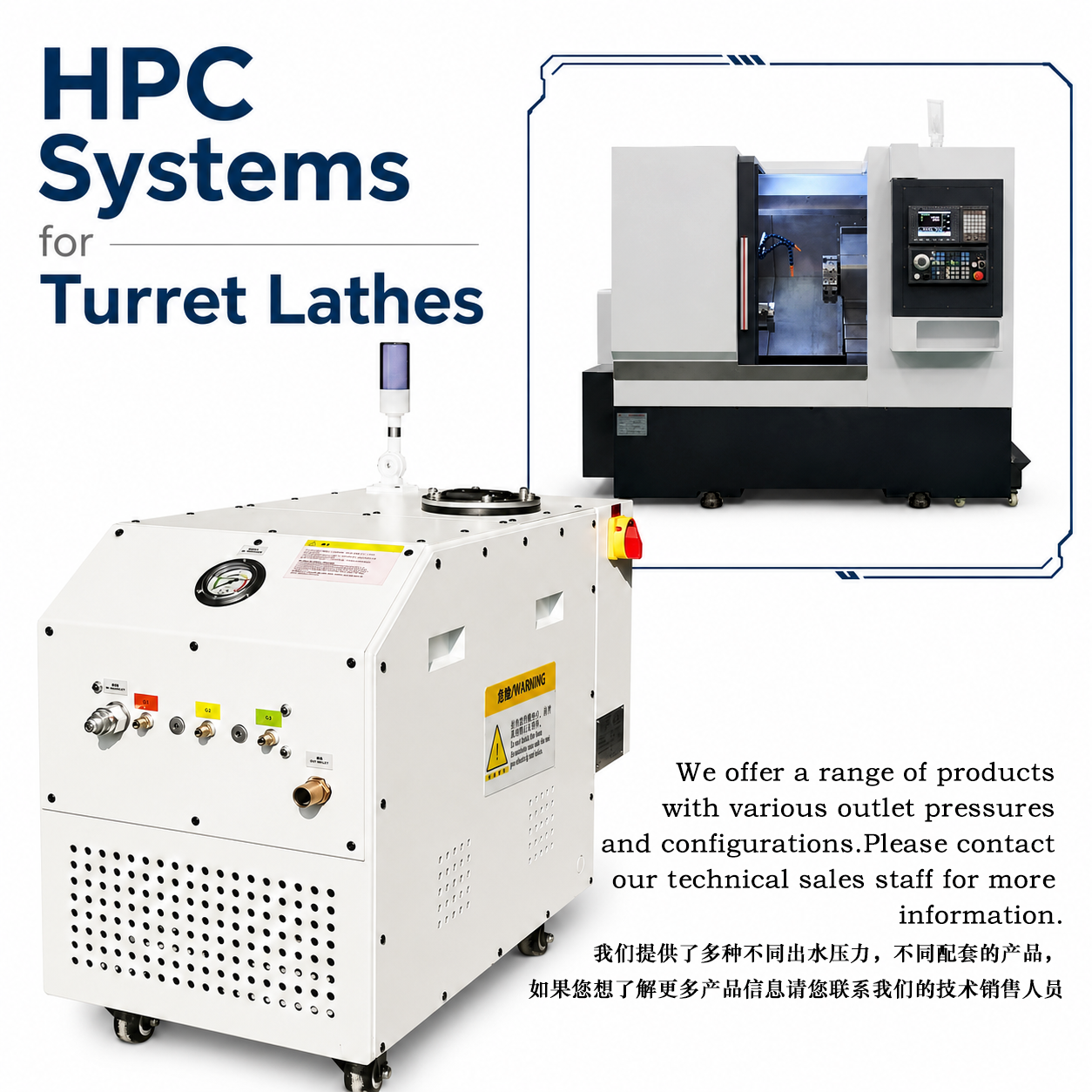

The entire machine is powered by a full-featured High-Pressure Coolant System, which upgrades the traditional low-pressure cooling mode with stable high-pressure output and adjustable precise flow. This industrial-grade coolant system provides sufficient power for deep cutting, inner hole processing and heavy turning scenarios that ordinary cooling systems cannot support. It delivers uniform lubrication and efficient heat dissipation in narrow cutting gaps, reduces cutting resistance and tool friction heat, improves workpiece surface machining quality, and eliminates thermal burrs and cutting scratches to meet high-standard precision machining requirements.
Coordinated with the high-pressure coolant system, the independent High-Pressure Flushing function achieves full-coverage cleaning of the lathe’s working area without dead angles. The high-speed high-pressure coolant jet precisely impacts the turret tool station, workpiece processing surface, spindle area and chip tank, instantly flushing away residual metal chips, fine cutting powder and dirty coolant generated during machining. It avoids secondary scratches on workpieces and tool wear caused by accumulated debris, keeps the internal processing cavity clean at all times, ensures the cleanliness and stability of automated processing, and effectively improves product yield and production continuity.
Built for complex turning working conditions, the integrated Chip Removal & Chip Breaking mechanism perfectly adapts to various metal cutting scenarios including steel, aluminum, copper and alloy materials. In conventional turning processes, long continuous chips are prone to winding around tools, workpieces and turrets, resulting in tool damage, workpiece scrapping and equipment jamming. This system can actively break long strip chips into uniform short chips during cutting, and cooperate with high-pressure flushing to complete rapid and thorough chip discharge. It completely solves chip accumulation and blockage problems, greatly improves the automation level of the High Performance CNC Turret Lathe Systems, and reduces manual intervention in production.
To meet high-precision deep hole and finish machining demands, the lathe systems are fully compatible with Through-Coolant Tool configuration, achieving accurate zero-distance cooling at the cutting point. Different from traditional external spray cooling that is easily affected by cutting debris and airflow, coolant penetrates the internal channel of the tool and directly acts on the tool tip cutting area. This targeted cooling and lubrication method maximizes cooling efficiency, effectively reduces tool tip temperature, improves the finish of deep hole inner walls, and ensures stable precision in repeated batch processing.
Equipped with advanced Through-Spindle Coolant technology, the equipment builds a three-dimensional and all-round closed-loop cooling system. The high-pressure coolant is stably transported through the spindle interior, realizing synchronous cooling of the spindle core, fixture, workpiece deep processing area and cutting tools. It effectively controls the overall temperature rise of the spindle and the whole machine during high-speed and heavy-load operation, restrains equipment thermal deformation, ensures the high-precision rotation stability of the spindle, and lays a solid foundation for long-term high-speed and high-precision turning.
In conclusion, the excellent performance of High Performance CNC Turret Lathe Systems stems from the perfect collaborative operation of multiple core technologies. The organic combination of Tool Cooling, High-Pressure Coolant System, High-Pressure Flushing, Chip Removal & Chip Breaking, Through-Coolant Tool and Through-Spindle Coolant endows the lathe with stronger cutting stability, higher machining precision and better continuous production capacity. It is an ideal high-efficiency and high-reliability processing equipment for modern industrial precision batch manufacturing and heavy-duty turning production.
| Specification |
JY-C70 |
JY-C100 |
HY-C150 |
| Applicable Series |
TD-S70 |
TD-S100 |
TD-S150 |
| Motor Power |
2.2 kW |
3 kW |
4 kW |
| Weight |
85 kg |
105 kg |
120 kg |
| Dimensions (L×W×H) |
785 × 390 × 530 mm |
860 × 450 × 660 mm |
900 × 500 × 700 mm |
| Outlet Pressure |
70–90 kg (Adjustable) |
70–90 kg (Adjustable) |
70–90 kg (Adjustable) |
| Pump Form |
Vane / Plunger Pump (Optional) |
Vane / Plunger Pump (Optional) |
Vane / Plunger Pump (Optional) |
