High Speed Gang Tool Slant Bed CNC Lathe - Ultimate Cooling & Chip Control Precision Machining
Redefine high-efficiency precision turning with our High Speed Gang Tool Slant Bed CNC Lathe. Engineered for high-volume, high-precision machining of small and medium-sized precision parts, this gang-tool slant bed lathe integrates rigid structural design, ultra-fast tool switching, and a full-set advanced cooling and chip management system. It perfectly solves common industrial pain points such as tool wear, thermal deformation, unsmooth chip discharge, and poor workpiece surface finish, delivering stable, efficient, and high-quality machining output for automotive, electronics, medical, and hardware precision manufacturing industries.
Excellent Tool Cooling performance is the core guarantee of long-term stable operation and continuous precision machining of the equipment. Traditional lathes often suffer from excessive tool temperature rise during high-speed cutting, which leads to accelerated tool aging, reduced machining accuracy, and shortened service life. This model is equipped with a professional integrated cooling solution, which can continuously and evenly take away the massive heat generated by high-speed friction between the tool and the workpiece. It effectively suppresses tool thermal deformation, maintains consistent cutting precision for a long time, reduces tool loss, and lowers production and maintenance costs while supporting uninterrupted high-intensity processing.

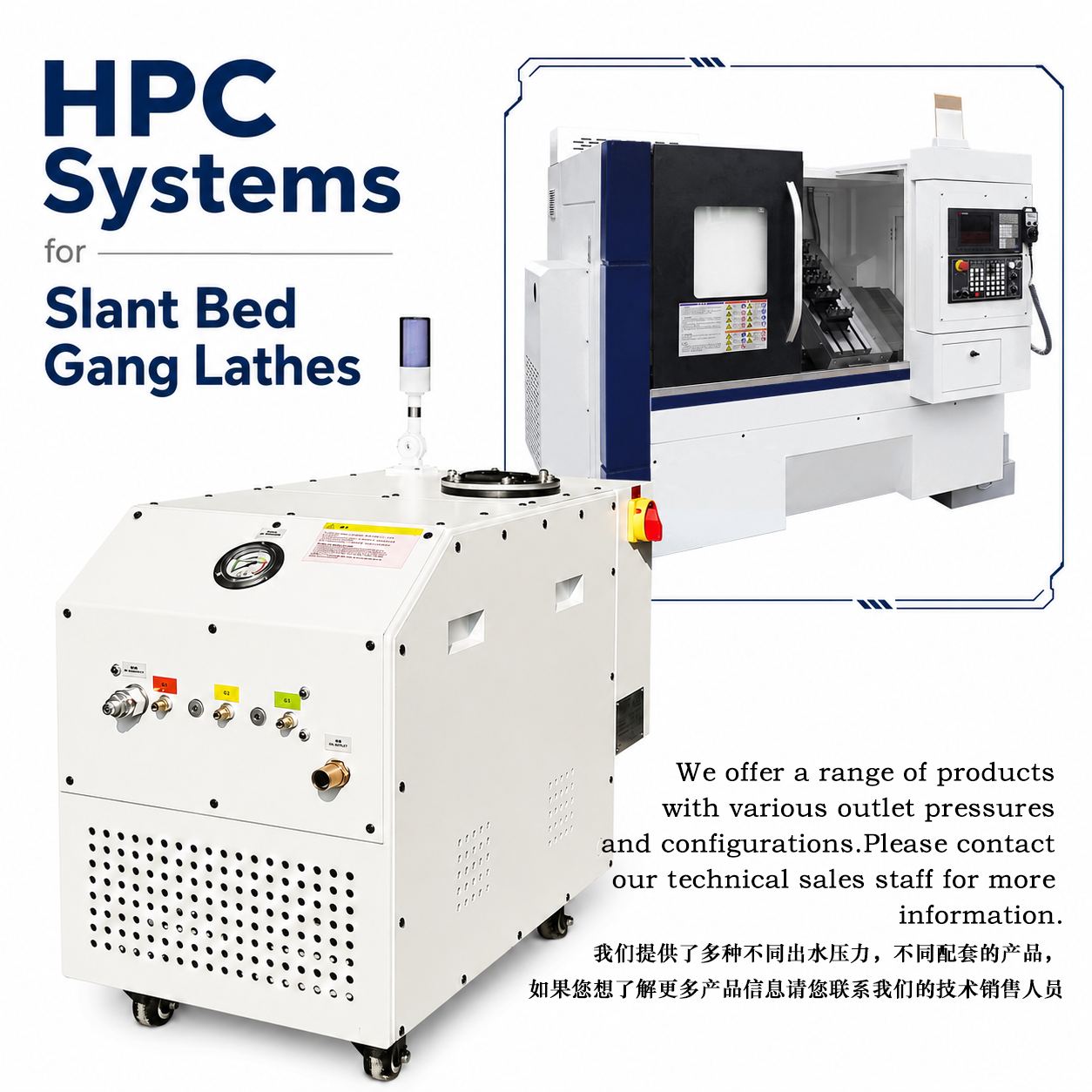

Backed by a professional High-Pressure Coolant System, the equipment achieves upgraded cooling and flushing capabilities far exceeding ordinary lathes. The system outputs stable and powerful high-pressure coolant flow with adjustable pressure, which can quickly penetrate the cutting contact area that is difficult for conventional cooling to reach. It realizes comprehensive heat dissipation, instantaneous cutting temperature reduction, and effective lubrication of the cutting interface, greatly improving the surface finish of workpieces and enhancing the smoothness of high-speed cutting. Whether processing hard alloys, stainless steel or other difficult-to-cut materials, it can maintain excellent cooling and lubricating effects.
Cooperating with the core cooling system, the High-Pressure Flushing function realizes full-coverage cleaning of the cutting area and the machine tool working area. The high-speed high-pressure coolant impact can instantly wash away residual cutting debris, metal powder and cutting oil stains generated during processing, avoid debris accumulation causing secondary scratching on the workpiece surface and tool abrasion, and keep the working area clean and tidy at all times. This function greatly reduces manual cleaning workload, improves production continuity, and effectively avoids machining defects caused by residual chips.
In terms of chip management, the built-in efficient Chip Removal & Chip Breaking mechanism perfectly matches the slant bed structural advantage. The slant bed design relies on gravity to assist chip sliding, while the professional chip breaking structure can actively break long strip continuous chips produced in high-speed turning into uniform short chips. Combined with high-pressure flushing linkage, it realizes rapid and thorough Chip Removal, completely solving the problems of chip winding, blockage and accumulation that plague traditional lathes. It ensures unobstructed machining stroke, avoids tool jamming and workpiece damage caused by chip winding, and significantly improves the stability and automation level of batch production.
This lathe is fully equipped with Through-Coolant Tool configuration, enabling in-tool directional cooling that traditional external spray cooling cannot achieve. The coolant directly reaches the tool tip cutting point through the internal tool channel, achieving zero-distance heat dissipation and targeted lubrication for the core cutting area. This targeted cooling method maximizes cooling efficiency, effectively inhibits tool tip wear and thermal fatigue, and greatly improves the tool's continuous processing capacity and service life, especially suitable for deep hole turning, precision finishing and long-time continuous cutting processes.
Equipped with the advanced Through-Spindle Coolant technology, the equipment realizes internal spindle penetrating cooling, forming a three-dimensional and all-round cooling system together with through-tool cooling and high-pressure flushing. The coolant is delivered stably through the spindle interior, with stable pressure and smooth flow, which can fully cool the spindle, fixture and deep processing parts. It effectively controls the overall temperature rise of the equipment during high-speed operation, ensures the spindle’s high-speed rotation accuracy and structural stability, and lays a solid foundation for long-term high-precision and high-efficiency batch machining.
Overall, this High Speed Gang Tool Slant Bed CNC Lathe relies on the perfect combination of full-process cooling technology and intelligent chip management system. The organic collaboration of Tool Cooling, High-Pressure Coolant System, High-Pressure Flushing, Chip Removal & Chip Breaking, Through-Coolant Tool and Through-Spindle Coolant solves multiple bottlenecks of high-speed precision turning. Coupled with the advantages of fast gang tool switching, rigid slant bed structure and stable operation, it becomes an ideal high-efficiency processing equipment for modern precision batch manufacturing, helping enterprises improve production efficiency, optimize processing quality and reduce comprehensive production costs.
| Specification |
JY-C70 |
JY-C100 |
HY-C150 |
| Applicable Series |
TD-S70 |
TD-S100 |
TD-S150 |
| Motor Power |
2.2 kW |
3 kW |
4 kW |
| Weight |
85 kg |
105 kg |
120 kg |
| Dimensions (L×W×H) |
785 × 390 × 530 mm |
860 × 450 × 660 mm |
900 × 500 × 700 mm |
| Outlet Pressure |
70–90 kg (Adjustable) |
70–90 kg (Adjustable) |
70–90 kg (Adjustable) |
| Pump Form |
Vane / Plunger Pump (Optional) |
Vane / Plunger Pump (Optional) |
Vane / Plunger Pump (Optional) |
