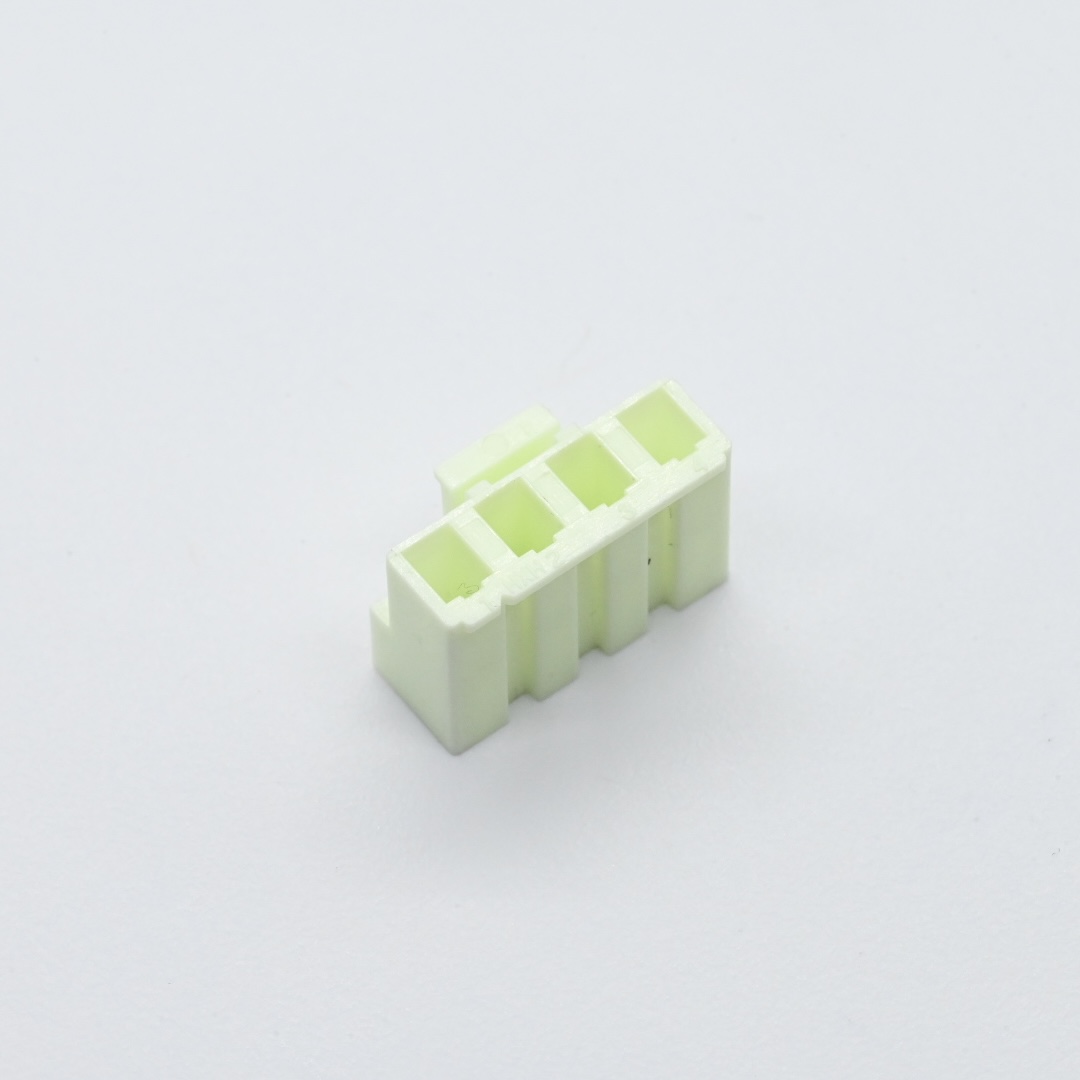

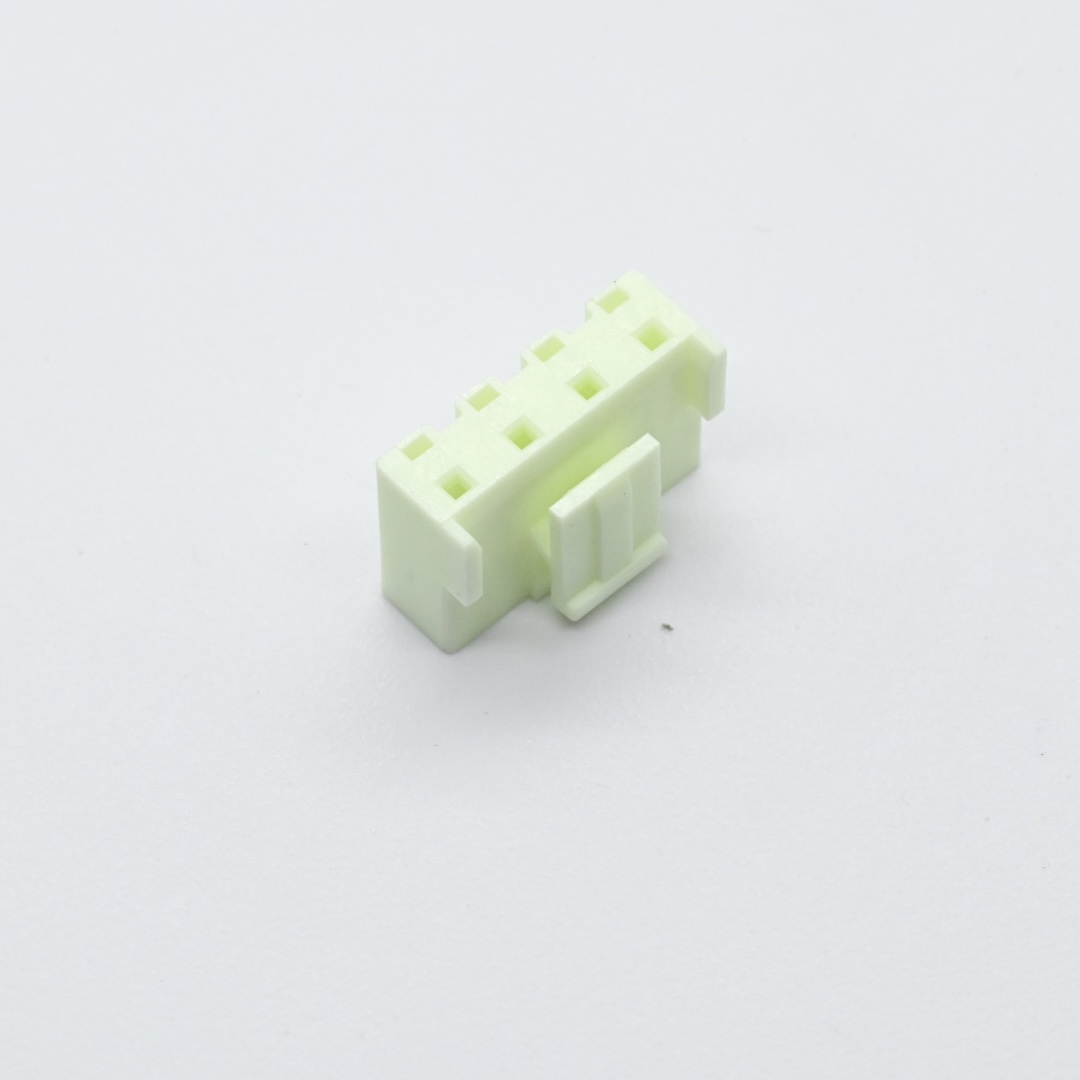

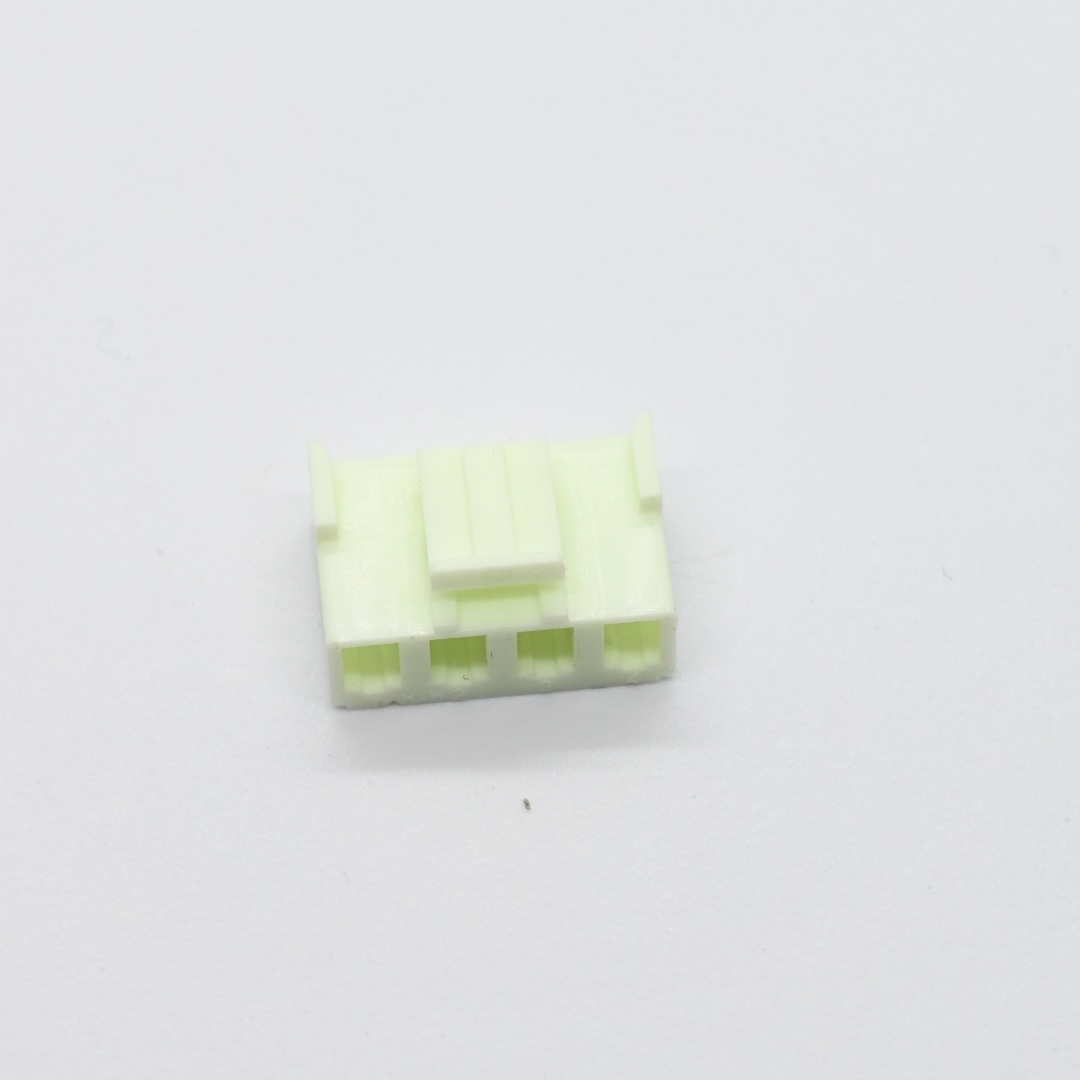

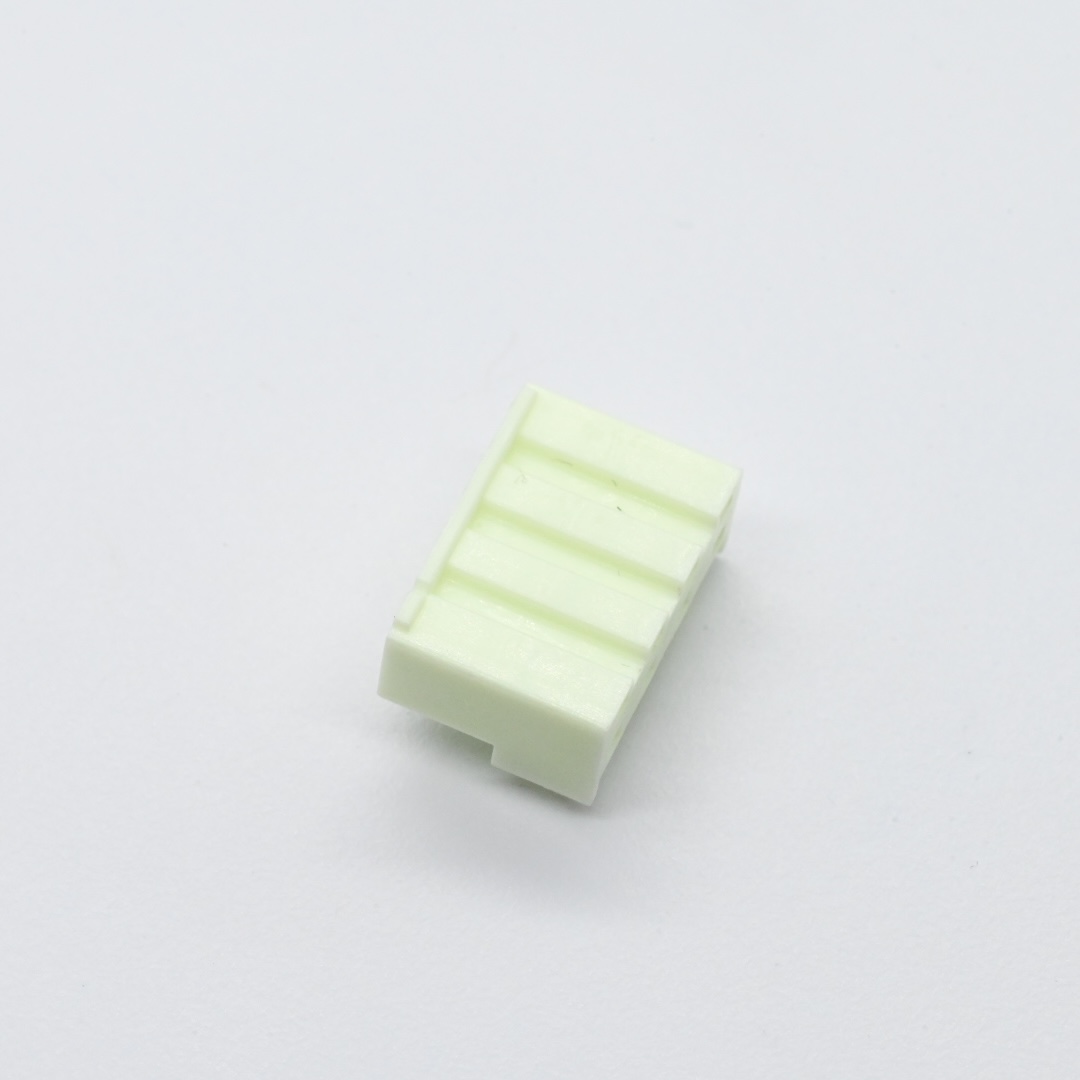

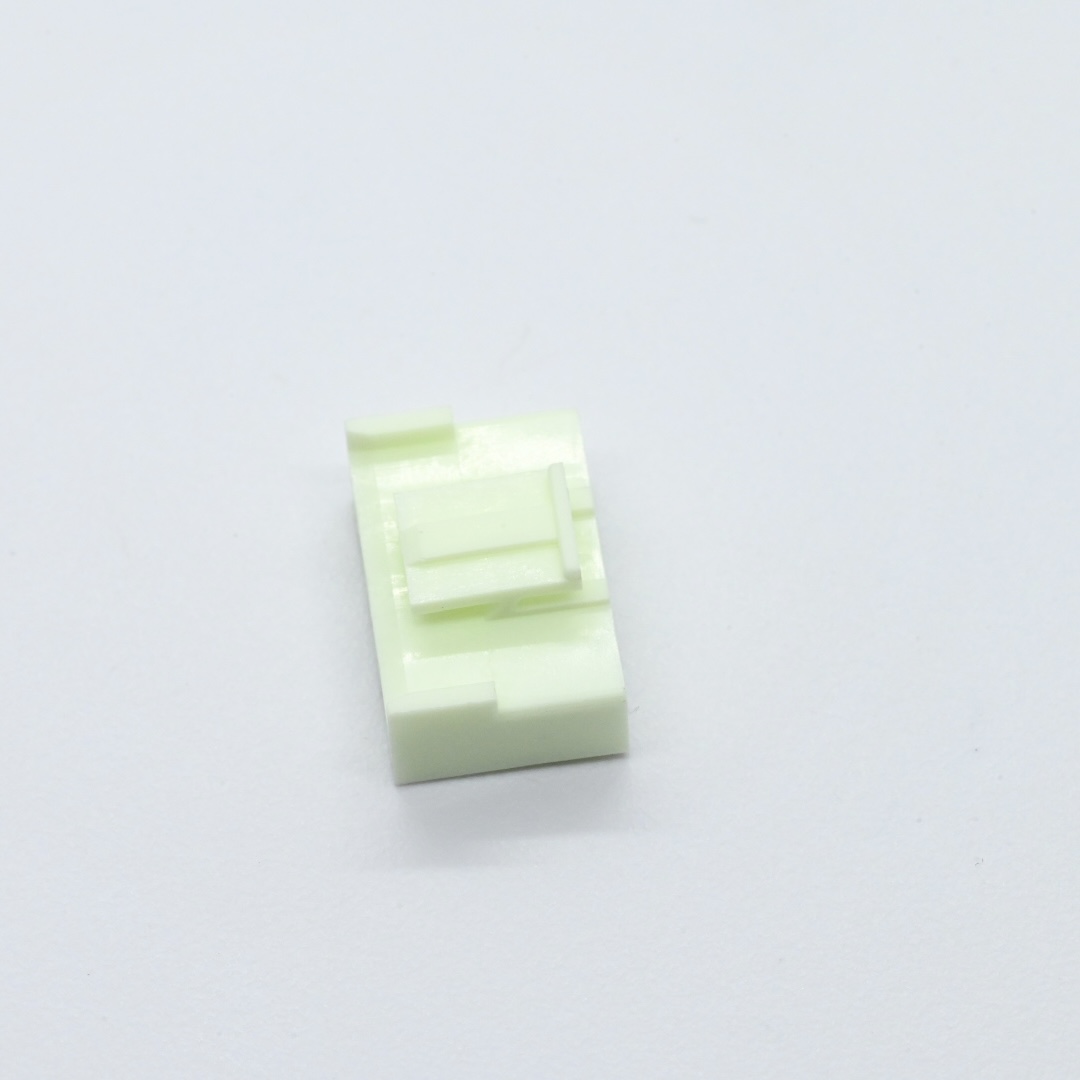

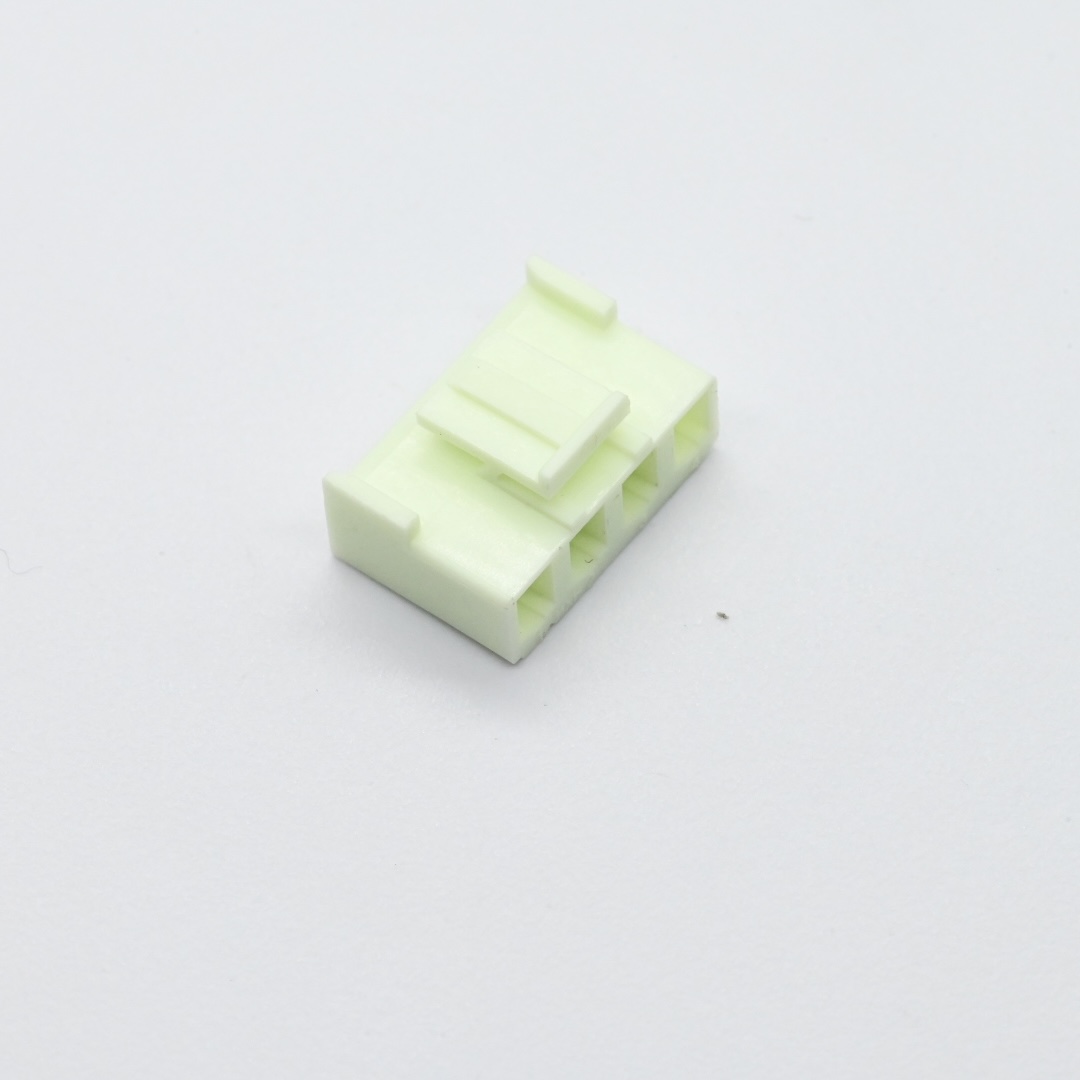

Huizhou Antenk Electronics Co., Ltd. manufactures AH5001-XP 5.00mm pitch straight 180 degree connector housing designed for reliable wire-to-wire power and signal transmission by matching AT5083 series terminals to form complete wiring harness connection assemblies for various electronic equipment. This connector housing adopts UL94V0 flame retardant Nylon66 as insulating body with brass pins finished with tin flash plating to maintain stable conductive performance, fixed 5.00mm pin pitch and customizable circuit counts starting from 2 circuits with unified dimensional tolerances including pitch tolerance ±0.10, height tolerance ±0.20 and overall length tolerance ±0.25, matched standard housing outline dimensions of 6.20mm height, 13.50mm width and 7.80mm side thickness to fit automated wire crimping and assembly equipment. This 5.00mm nylon housing is widely applied in digital household appliances industrial control equipment communication modules liquid crystal display equipment electronic toys motor control units and precision measuring instruments. Operators must adopt matched AT5083 series terminals for crimp assembly strictly following official dimensional drawings, avoid over extruding nylon housing to prevent plastic cracking and store finished housings in dry dust-free warehouse to avoid moisture absorption and tin plating corrosion. Unlike competitors outsourcing mold making and plastic injection molding Antenk implements full independent production workflow covering self-developed precision plastic and metal mold fabrication brass terminal high speed stamping Nylon66 injection molding tin electroplating and complete laboratory insulation and conductive reliability testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications while fully complying with RoHS HSF and REACH international environmental protection standards. We own hundreds of self-developed precision molds, provide customizable circuit quantity solutions, deliver round the clock professional engineering technical support, and more than seventy percent of our wire harness connector housings are exported globally relying on our Guangdong Famous Trademark ANTENK and consistent stable mass production quality.

UL94V0 Nylon66 Insulator Housing provides excellent flame retardant and anti-moisture performance for long-term wiring harness connection.

Tin Flash Plated Brass Contact Pin delivers stable conductive transmission and lowers production cost for wire-to-wire connector assemblies.

Multi Circuit 5.00mm Pitch Housing supports flexible circuit customization to satisfy diverse wiring layout demands of electronic devices.

1. Material & Surface Plating

1.1 Housing Material: Nylon66 with UL94V0 flame retardant grade

1.2 Contact Pin Base Material: Brass

1.3 Contact Surface Treatment: Tin-Flash plating

1.4 Matching Terminal Model: AT5083-1XX, AT5083-2XX series terminals

2. Dimensional Parameters (Unit: mm)

2.1 Standard pitch: 5.00, tolerance ±0.10

2.2 Fixed housing height: 6.20, tolerance ±0.20

2.3 Fixed housing width: 13.50, tolerance ±0.25

2.4 Side wall thickness: 7.80, tolerance ±0.25

2.5 Bottom structural thickness: 0.65

2.6 Overall length A tolerance: ±0.20

2.7 Side outline size B tolerance: ±0.25

2.8 Optional circuit counts: 2P, 4P

3. Environmental Standard

3.1 Fully compliant with HSF and RoHS lead-free standards

4. Application Scenarios

4.1 Household digital appliances

4.2 Industrial control equipment

4.3 Communication signal modules

4.4 Liquid crystal display devices

4.5 Electronic toys

4.6 Motor drive control units

4.7 Precision measuring instruments

5. Usage Precautions

5.1 Only use matched AT5083 series terminals for crimp assembly

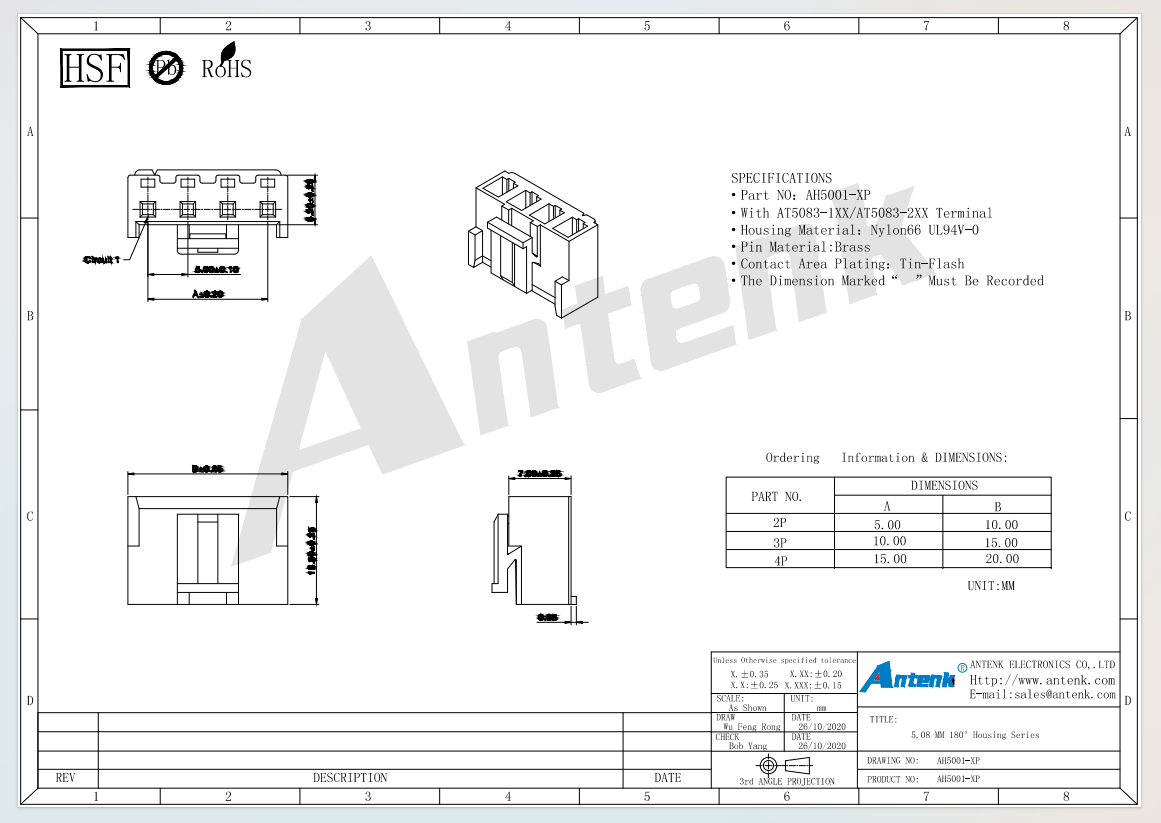

5.2 Strictly follow official dimension drawing for production and assembly

5.3 Avoid strong impact or squeezing to prevent Nylon66 housing cracking

5.4 Store finished housings in dry dust-free warehouse to avoid moisture absorption and plating corrosion

5.5 Record all marked key dimensions during incoming inspection and production testing
