3.81mm PCB Screw Terminal Block AT303V

3.81mm PCB Screw Terminal Block AT303V

3 week ago

0 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Product Description：

Huizhou Antenk Electronics Co., Ltd. manufactures AT303V series 3.81 millimeter pitch PCB screw terminal block to achieve reliable wire to board electrical connection by screw clamping structure for secure conductor fixing on printed circuit boards, complying with official drawing dimension standards to guarantee stable assembly and consistent electrical performance. This screw type terminal block adopts PA66 233GF insulator housing with UL94V 0 flame retardant grade available in green blue black gray and orange colors, tin plated brass terminals and M2.0 nickel plated steel screws with recommended 0.2N m tightening torque. It is electrically rated for 130V voltage and 9 Amp current, supports wire gauge ranging from 24 AWG to 16 AWG or 1.5 square millimeter cross section, and satisfies RoHS and HSF environmental standards. This terminal block covers pole counts from 2 to 24 positions to match diversified PCB layout requirements and fits automated mass production assembly. It is widely used in industrial control panels, communication hardware, power supply modules, digital household appliances, computer peripherals and precision measuring instruments. Operators need to select suitable pole number and insulator color for actual projects, apply correct 0.2N m screw torque to avoid loose wire or thread damage, match proper wire size and store finished products inside dry sealed packages to prevent metal component oxidation. Unlike competitors outsourcing stamping molding and plating services Antenk implements full in house production including independent plastic and metal mold development, brass terminal high speed stamping, PA66 injection molding, multi grade electroplating and comprehensive laboratory reliability verification. We hold ISO9001 ISO14001 IATF16949 and UL E472792 certifications complying with REACH rules, own over two hundred fifty plastic connector molds and one hundred eighty metal terminal molds, provide custom solutions and round the clock engineering support, and over seventy percent terminal block products are exported globally with stable ANTENK brand production quality.

1. Screw Clamp Terminal Block delivers firm wire locking performance to establish dependable wire to board electrical connections on PCBs.

2. PA66 Insulated Terminal Housing provides excellent flame retardant and mechanical strength for long term industrial application scenarios.

3. M2.0 Ni Plated Screw ensures stable clamping force and effective corrosion resistance under specified 0.2N m tightening torque.

Detailed Specifications：

1. Electrical Specifications

1.1 Rated voltage: 130V

1.2 Rated current: 9A

1.3 Applicable wire range: 24 AWG‑16 AWG, up to 1.5mm² cross‑section area

2. Mechanical Specifications

2.1 Pitch: 3.81 mm

2.2 Recommended screw tightening torque: 0.2N·m

2.3 Available pole quantity: 2 poles to 24 poles

3. Material & Finishing

3.1 Housing material: PA66‑233GF, UL94V‑0 flame retardant

3.2 Terminal material: Brass with tin plated surface

3.3 Screw material: Steel M2.0 with nickel plated finish

3.4 Insulator color options: Green, Blue, Black, Gray, Orange

4. Dimensional Parameters (Unit: mm)

4.1 Pitch dimension: 3.81

4.2 Main body height: 9.20

4.3 Body width single pole: 3.75

4.4 Pin thickness: 0.60

4.5 All dimensions follow drawing specified tolerances

5. Compliance Standard

5.1 Compliance: RoHS and HSF compliant

6. Application Scenarios

6.1 Industrial control panels and power supply modules

6.2 Communication hardware and digital household appliances

6.3 Computer peripherals and precision measuring instruments

7. Operation & Storage Precautions

7.1 Select correct pole count and insulator color according to actual project requirements

7.2 Apply 0.2N·m tightening torque for M2.0 screw, avoid over‑torque or insufficient tightening

7.3 Use wires within the specified wire gauge range to guarantee stable electrical connection

7.4 Store terminal blocks in dry sealed packages to prevent oxidation of brass and steel metal parts

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

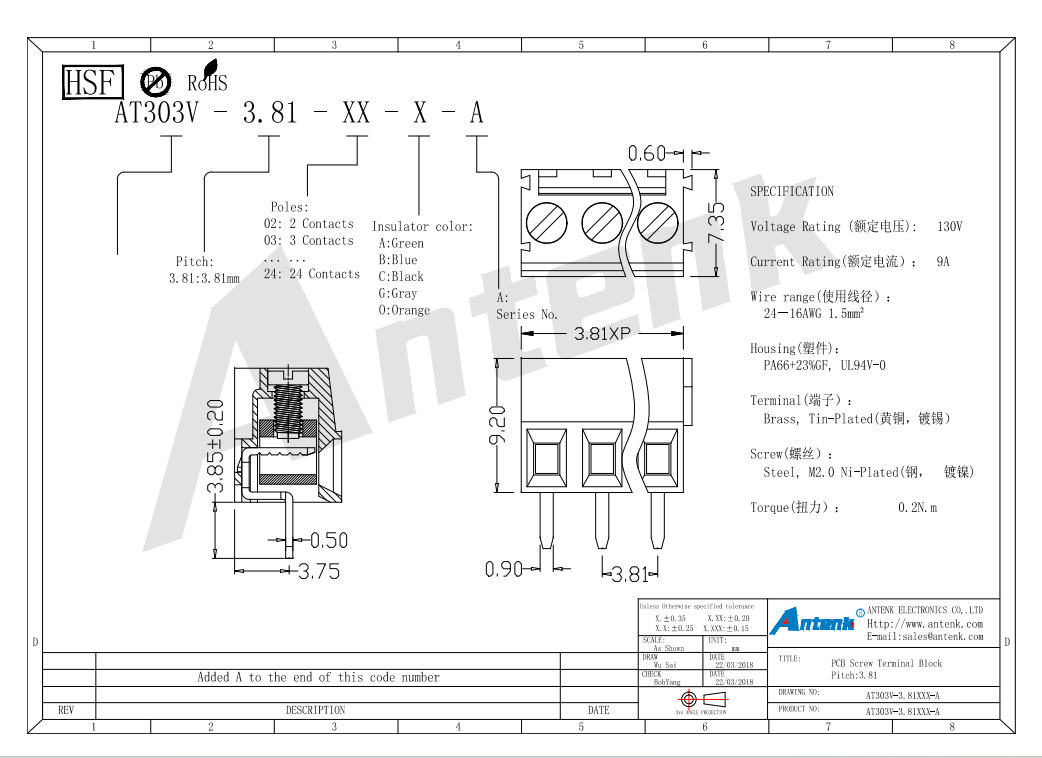

Product Drawing：

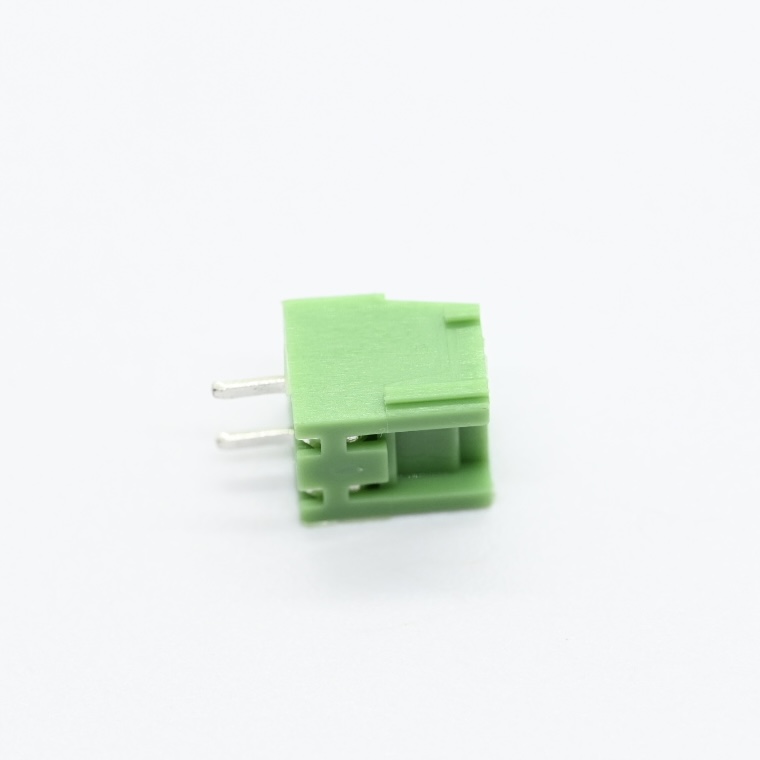

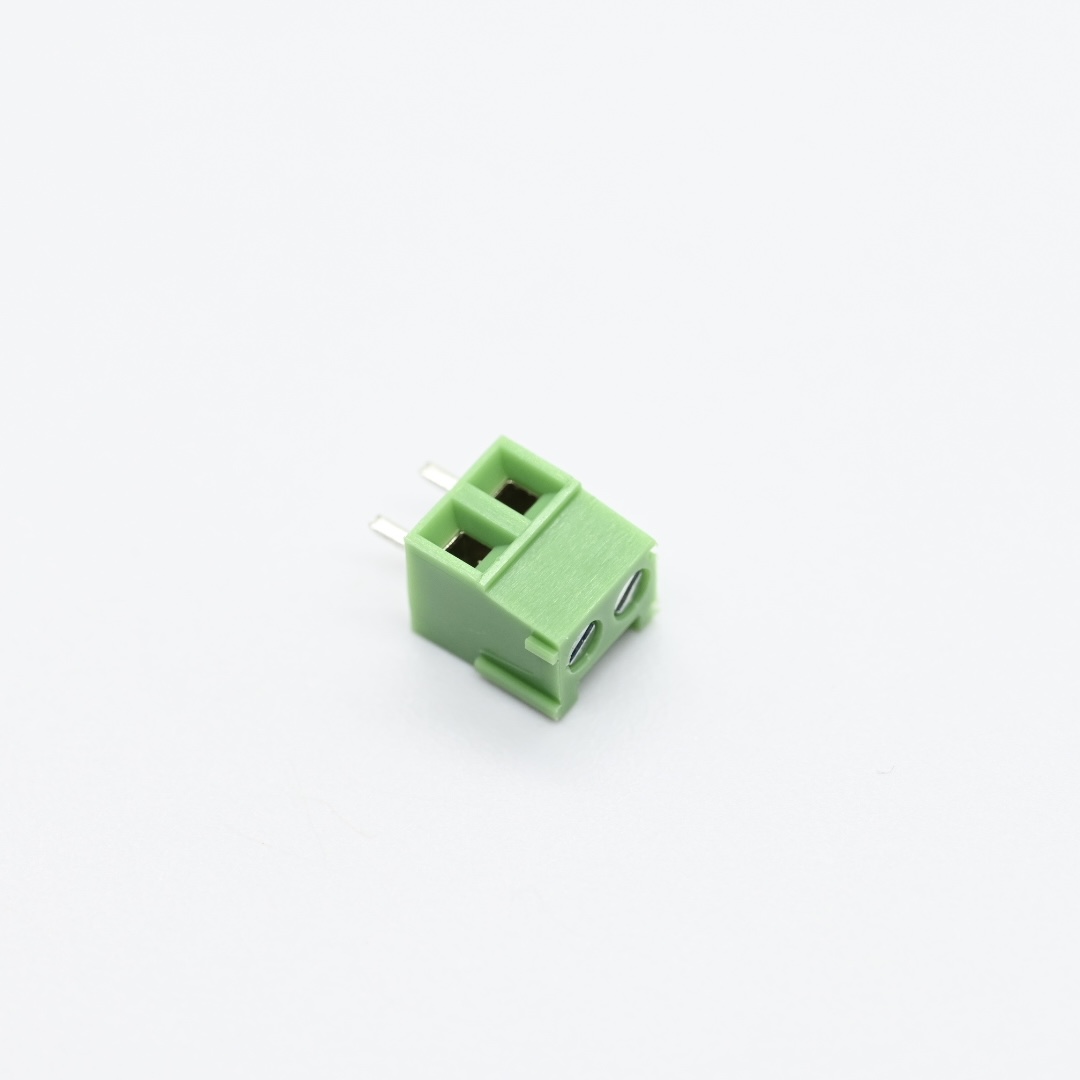

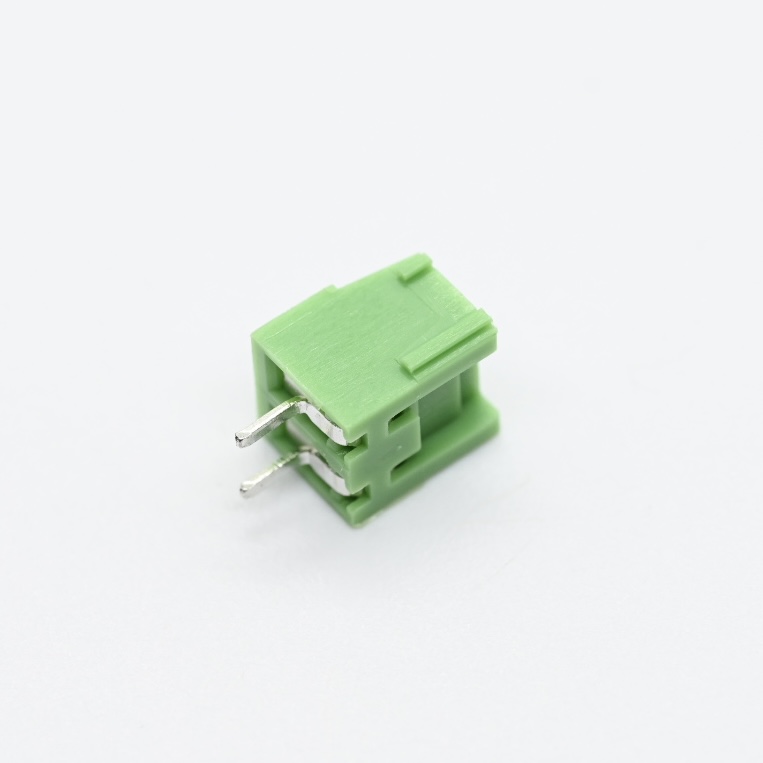

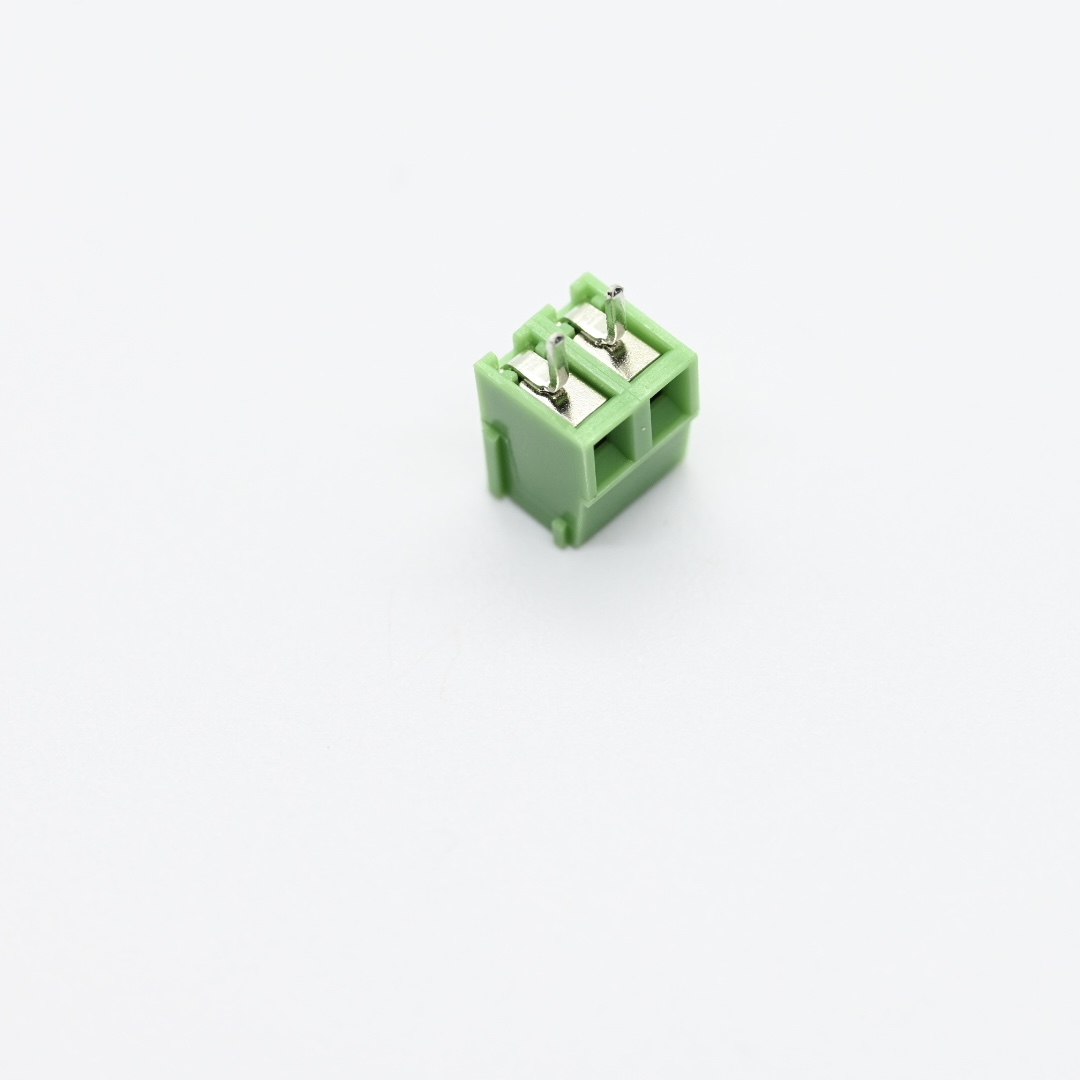

AT303V-3.81-02-A-A+PCB Screw Terminal Block Pitch3.81（1）

AT303V-3.81-02-A-A+PCB Screw Terminal Block Pitch3.81（6）

AT303V-3.81-02-A-A+PCB Screw Terminal Block Pitch3.81（5）

AT303V-3.81-02-A-A+PCB Screw Terminal Block Pitch3.81（3）

AT303V-3.81-02-A-A+PCB Screw Terminal Block Pitch3.81（4）

AT303V-3.81-02-A-A+PCB Screw Terminal Block Pitch3.81（2）
