Bucket two colors screen printer for mineral barrel

2 year ago

48 0

KC Printing Machine (Group) Limited

 10 year year

Product details

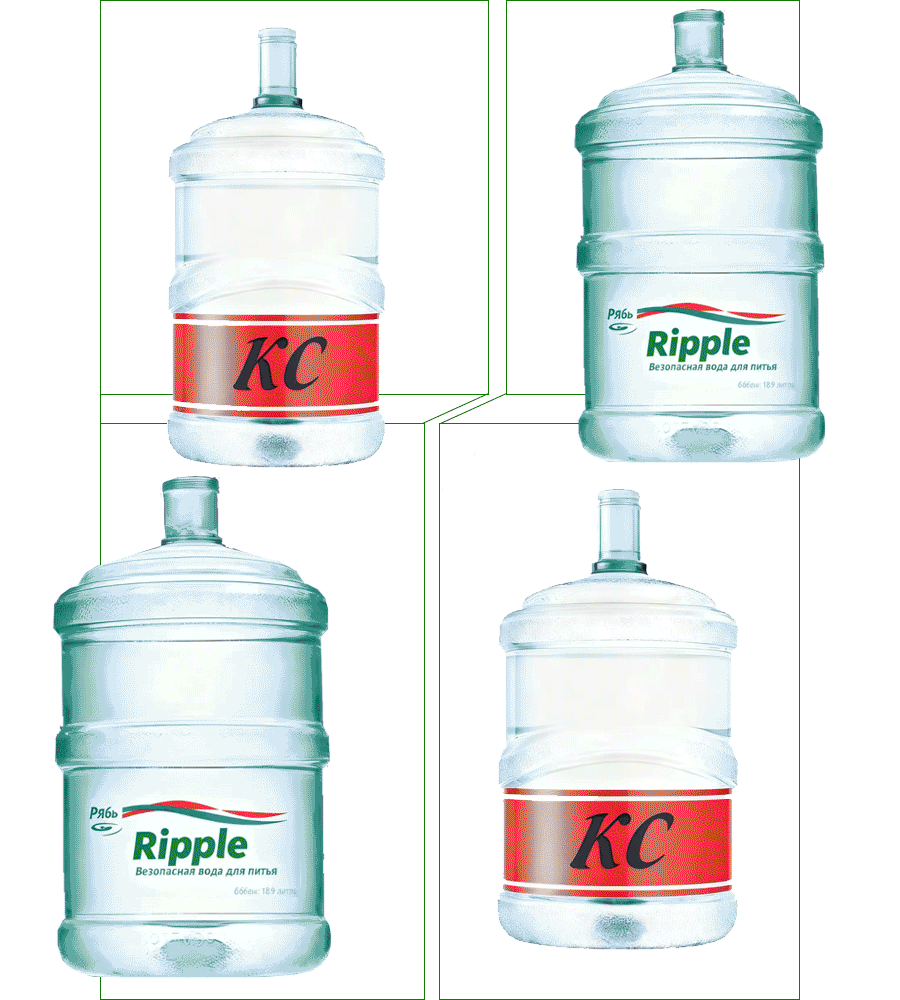

Samples show

Bottled water packaging commonly uses blow-molded food-grade plastic containers, with 5-gallon barrels being the industry standard. Surface printing plays an important role in product branding and information display for water manufacturers.

This fully automatic two-color shuttle screen printing machine is developed specifically for printing on large plastic water barrels. It combines a servo-driven shuttle worktable, dual-color screen printing units, UV LED curing modules, and a modern touchscreen control system for efficient and precise operation.

In operation, the barrel is positioned on the shuttle fixture for the first color print. The shuttle system then transfers the container to a UV LED curing station. Next, it moves to the second printing unit, where a servo indexing mechanism accurately detects the first print position and aligns the second color for precise overprinting. A second curing stage completes the process.

The machine’s open and modular configuration allows for easy upgrades, enabling users to add additional color stations for more complex multi-color printing applications.

Machine description

2 colors automatic screen printing machine for 5-Gallon mineral bucket //Structure
Working table	3-station shuttle -type working table
Shuttle stroke	500mm
Ink Drying system	1000W UVLED
Plate type	Screen plate
2 colors automatic screen printer for 5-gallon mineral barrel //Parameter
Max. plate size: 500×750mm; Max Printing area: 400×600mm; Worktable stroke: 500mm; Max. printing speed: 400pcs/h; Printable colours:2; Stroke of cylinder up-down: 50mm; UVLED wattage: 1000W;
Works supply	110V-220VPower supply; 5-7Bar Compress air;	Package dimension:3.150×1.340×1.910m; Gross weight: 875kg; CBM: 6.36215
H.S.Code	8443198000	CE
2 colors automatic screen printing machine for mineral barrel //Advantage
Function	Touch screen program controlling operating technique ; Servo shuttle type worktable Automatic servo positioing system UVLED dying system Two colors screen printing device

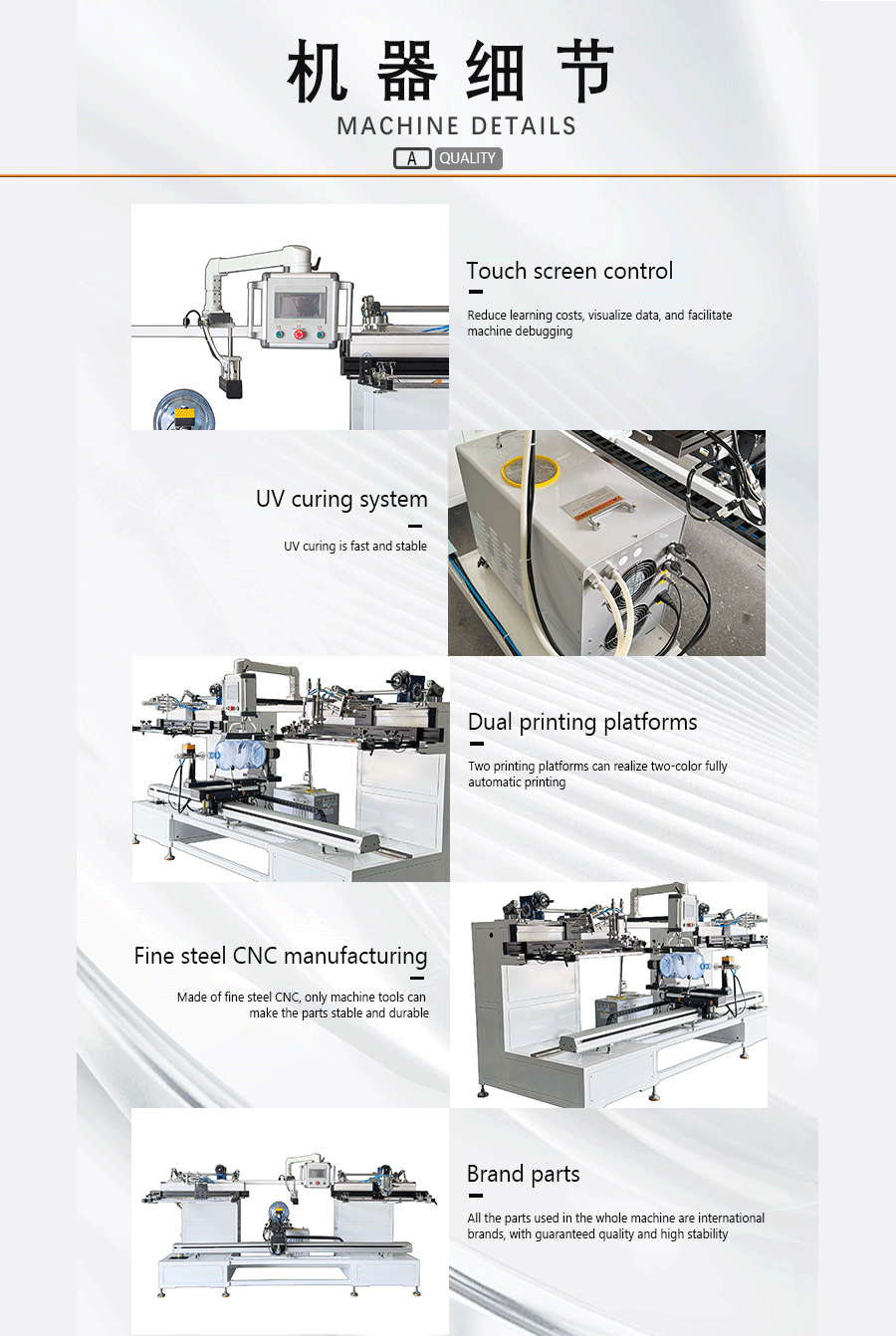

Machine details
