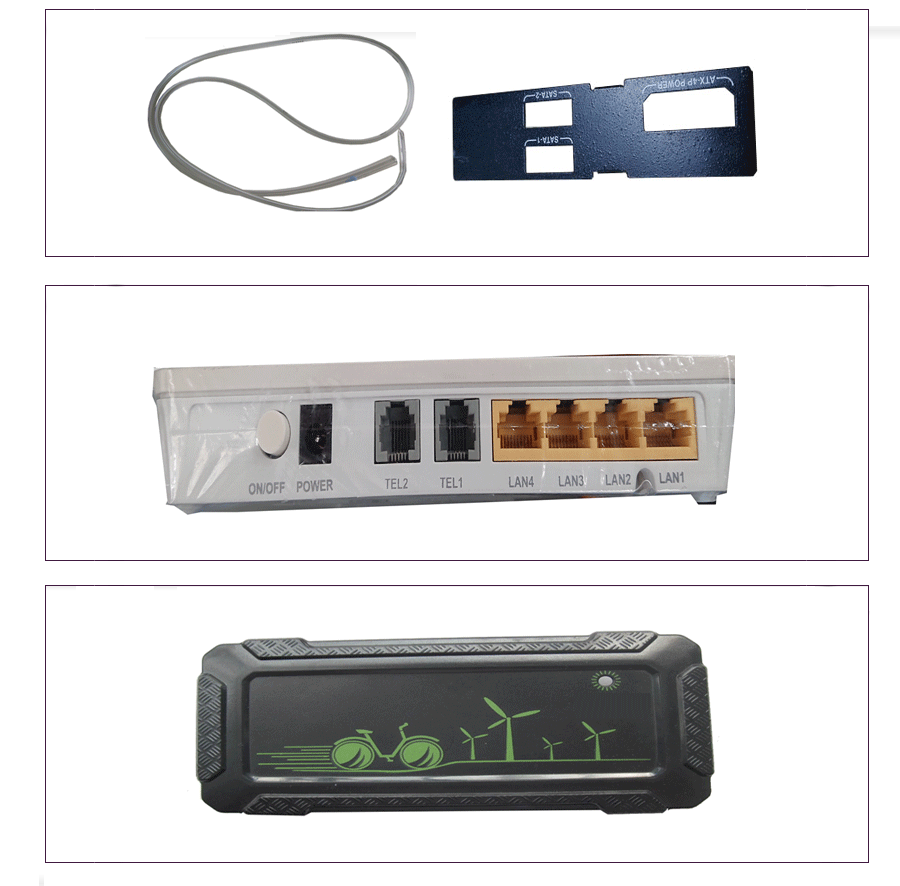

Samples

Pad printers are more suitable for small-sized products. Usually, we call products with an outer size of less than 150mm*150mm small products. If the size exceeds this, the printing difficulty of the pad printer will increase and the cost will increase significantly. This is relative to the screen printer. At present, the pad printer with the largest printing area is the pad printer for printing ceramic tableware. There is also a type of product that is long and narrow, that is, one side is relatively small, less than 150mm, and the other side is relatively long, more than 500mm. If you choose a pad printer, you can consider a pad printer with an oil cup moving left and right. For operators, we prefer to stand in front of the pad printer to adjust the pad printer.

The pad printer with an oil cup moving left and right can obviously reach a longer distance, which is why it is more suitable for long strip products. There is no technical problem in manufacturing 90mm oil cups and 150mm oil cups. If it exceeds this size, the difficulty of manufacturing the pad printer will increase.

You will find the characteristics of such a pad printer:

1) The oil cup is driven by an independent cylinder, so the ink is scraped relatively cleanly:

2) Since the size is expanded in one direction, if it is used to print small-sized products, many can be printed at a time, and the production efficiency will be doubled;

3) In order to complete the printing of multiple products at a time, a combined rubber head can be used, that is, many small-sized rubber heads are combined to print different products;

4) The oil cup sliding pad printer has been used to print many products such as nail art, keyboards, rulers, and golf clubs.

Technical data

P1-420CPK Pad printer with slide closed cup //Parameter
Technical parameters	Max. plate size: 100×500mm; Max. worktable area: 165x500mm; Sealed cup diameter: Φ90mm Max. printing speed: 400pcs/h Printable colours:1 Max print area: 80mm×350mm;
Works supply	110V-220VPower supply; 5-7Bar Compress air;
Package list	Package dimension: 1.160×1.320×1.520mm CBM: 2.18 Gross weight: 310kg
H.S.Code	8443198000
Certicate	CE
pad printer with slide inkcup //Advantage
Function	Touch screen controlling operating technique ; Streamline design ensure dexterous Appearance impressions; Coin aluminum structure frame coated Gross-Green color paint; Working table installed to install fixture and products Independency pressure adjustment of pad press-printing and picking up ink; Closed cup to store and coating ink , save ink and protect environment . Automatism digital count function; Closed cuo move from right to left , suitable for longer products Independent cup driven cylinder ensure ink remove clean.

Machine details

What is advantage of closed cup pad printer?

The oil cup pad printer is a unique type of pad printer, named because it uses an inverted oil cup on a steel plate as an ink supply system.

Good ink printing suitability

The ink contains resin, pigment, binder, solvent, etc. To ensure stable suitability, the volatilization of the solvent should be uniform. The ink exposed to the air is greatly affected by the flow of air and the changes in external temperature and humidity. The oil cup pad printer seals the ink and is less susceptible to external interference, so it has better stability.

Stable ink supply

The oil cup provides a relatively closed space for the ink. The contact surface between the ink and the steel plate is basically a fixed 90mm circular surface. Through the rotation of the oil cup and the cooperation of the scraper, it can provide a uniform and appropriate amount of ink to the pad printing rubber head every time it prints, ensuring the color consistency and clarity of the printed pattern.

Good environmental performance

The solvent in the ink is a volatile substance. If it enters the air around the operator, it will cause certain damage to the operator's respiratory system. The ink of the oil cup pad printer is in a closed state, and the proportion of its volatilization into the air is very low, so it is a very environmentally friendly pad printer.

Easy to operate

The structure of the oil cup pad printer is relatively simple. It can print by simply sliding it on the steel plate. The open pad printer uses a scraper structure. The pressure of the scraper and the steel plate is difficult to balance, and there will always be defects such as unclean scraping of ink.
