High Speed CNC Drill Tap Center with CTS - Ultimate Precision & Efficient Machining Solution
Engineered for high-efficiency, high-precision drilling and tapping operations across industrial manufacturing scenarios, the High Speed CNC Drill Tap Center with CTS integrates advanced cooling and chip management technology to solve core machining pain points such as chip entanglement, tool wear, thermal deformation and low production throughput. Equipped with a professional High-Pressure Coolant System and matureThrough-Spindle Coolant solution, this equipment delivers stable, reliable and automated processing performance, perfectly adapting to flat bed gang tool lathes, slant bed gang tool lathes, turret lathes, 5-axis CNC and various machining centers for diversified production demands.
At the core of its superior performance lies the optimized Tool Cooling mechanism, which works in tandem with the exclusive Through-Coolant Tool configuration. Different from traditional external cooling methods, the Through-Spindle Coolant design enables cutting fluid to pass through the spindle interior and accurately reach the tool’s cutting edge in real time. Supported by adjustable outlet pressure ranging from 70-90kg, the High-Pressure Coolant System provides powerful and constant-temperature cooling assistance. Optional industrial oil coolers maintain stable cutting fluid temperature during long-term continuous operation, while standard 100~150μm filtration precision (upgradable to two-stage or three-stage deep filtration) effectively purifies cutting fluid, avoiding pipeline blockage and ensuring sustained and efficient Tool Cooling effects. This design greatly reduces high cutting heat and tool friction wear, effectively extending tool service life, lowering tool replacement frequency and overall production costs.
Coordinated with precise High-Pressure Flushing, the equipment realizes efficient Chip Removal & Chip Breaking throughout the machining process. The high-pressure cutting fluid sprayed from the tool tip instantly breaks and flushes away metal chips generated during drilling and tapping, completely eliminating chip entanglement, tool wrapping and workpiece scratching problems that commonly occur in traditional processing. It avoids unexpected machine downtime caused by chip accumulation, while minimizing secondary chip cutting and workpiece thermal deformation. This significantly improves workpiece dimensional accuracy and surface finish, effectively reducing product scrap rates and stabilizing processing quality.

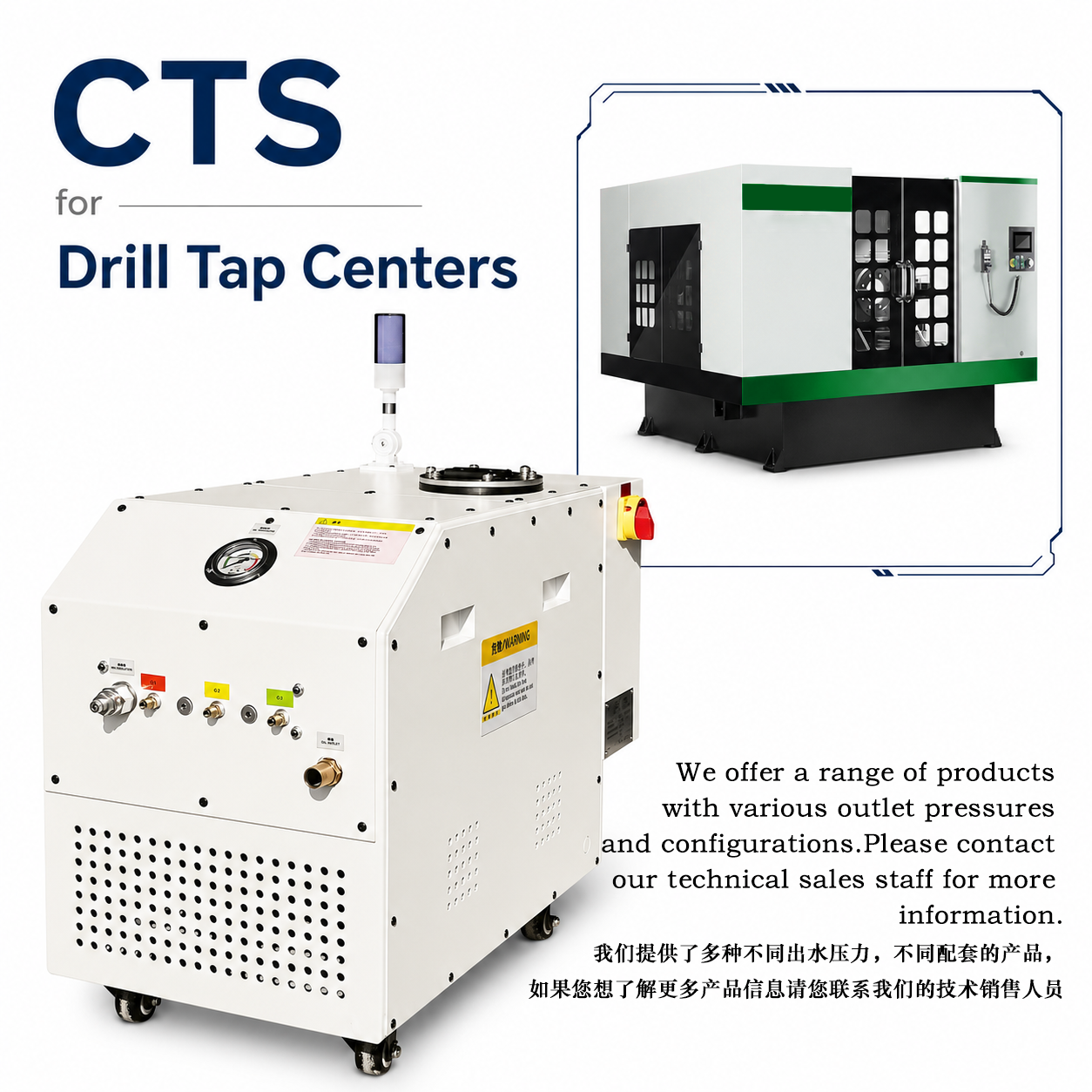

Featuring flexible and practical configuration, the High Speed CNC Drill Tap Center with CTS supports 1-10 adjustable water outlets to meet diverse machining scenarios. It offers optional vane pump and plunger pump structures to match different processing intensity requirements, with multiple voltage options of 220V/380V for flexible factory deployment. All core electrical box components adopt renowned Chint brand, ensuring stable operation, low noise and long service life. The product covers three mainstream models including JY-C70, JY-C100 and HY-C150, with motor power ranging from 2.2kW to 4kW and compact and reasonable dimensions, balancing equipment stability and production flexibility.
Widely compatible with CNC lathes, deep-hole drills, Swiss-type lathes and various machining equipment, this CTS-equipped drill tap center comprehensively boosts production efficiency. Its excellent cooling and chip removal performance allows the adoption of higher cutting parameters, reduces manual cleaning and equipment idle time, and increases per capita output. Backed by a complete pre-sale, in-sale and after-sale service team, it provides professional center outlet tooling solutions for factories, solves long-standing chip entanglement and tool damage problems in CNC machining, and makes automated industrial production safer, more stable and more efficient.
Core Advantages Overview
- Professional Cooling System: Integrated High-Pressure Coolant System, Through-Spindle Coolant and Through-Coolant Tool realize omnidirectional and precise Tool Cooling
- Efficient Chip Management: Powerful High-Pressure Flushing completes efficient Chip Removal & Chip Breaking to avoid processing defects and downtime
- Stable & Customizable Performance: Multiple pump and pressure configurations, precise filtration and constant temperature cooling adapt to diverse processing needs
- Cost-Efficient Production: Extends tool life, reduces scrap rate and improves overall production efficiency
- Full-Service Support: One-stop customized high-pressure pump processing solutions and complete after-sales guarantee
| Specification |
JY-C70 |
JY-C100 |
HY-C150 |
| Applicable Series |
TD-S70 |
TD-S100 |
TD-S150 |
| Motor Power |
2.2 kW |
3 kW |
4 kW |
| Weight |
85 kg |
105 kg |
120 kg |
| Dimensions (L×W×H) |
785 × 390 × 530 mm |
860 × 450 × 660 mm |
900 × 500 × 700 mm |
| Outlet Pressure |
70–90 kg (Adjustable) |
70–90 kg (Adjustable) |
70–90 kg (Adjustable) |
| Pump Form |
Vane / Plunger Pump (Optional) |
Vane / Plunger Pump (Optional) |
Vane / Plunger Pump (Optional) |
