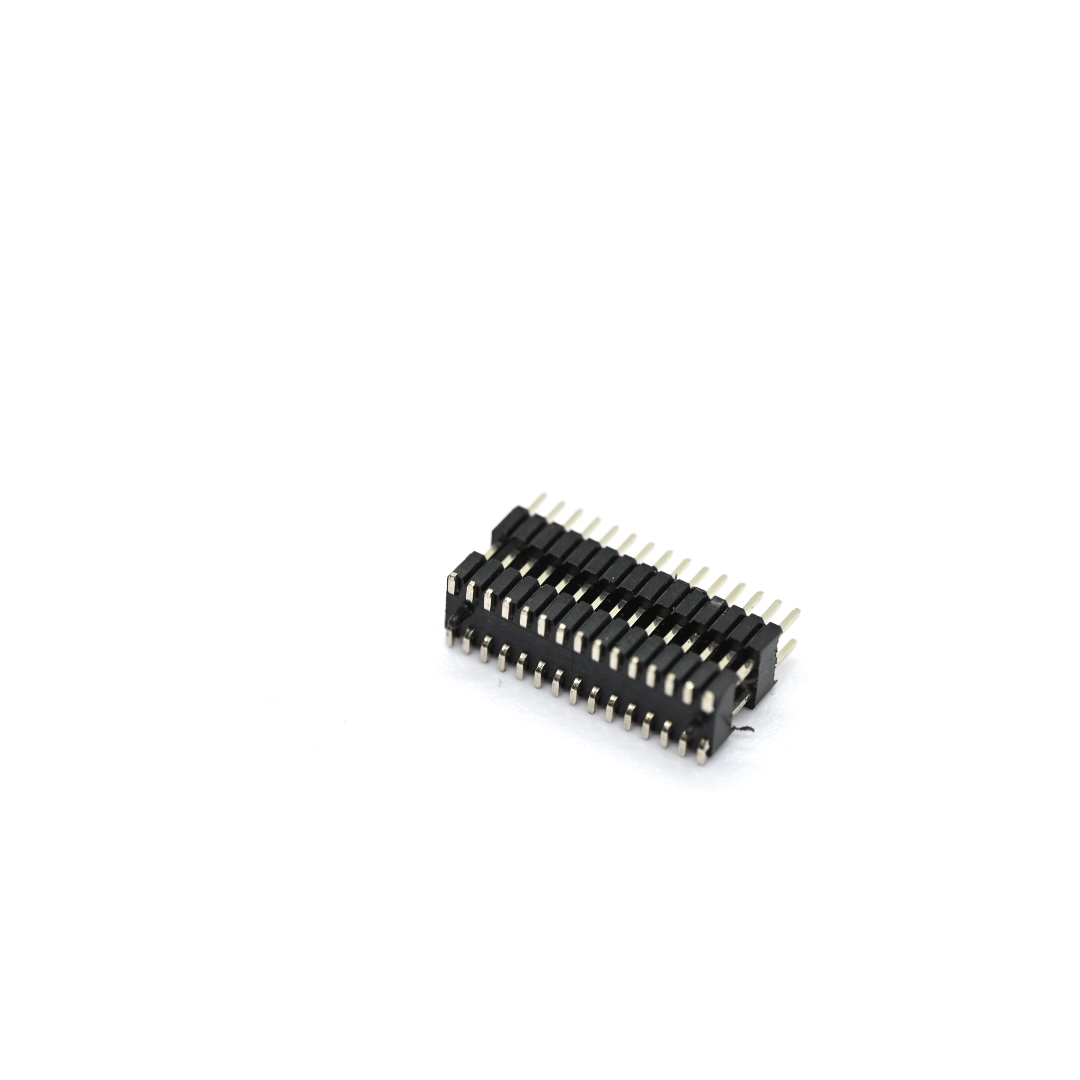

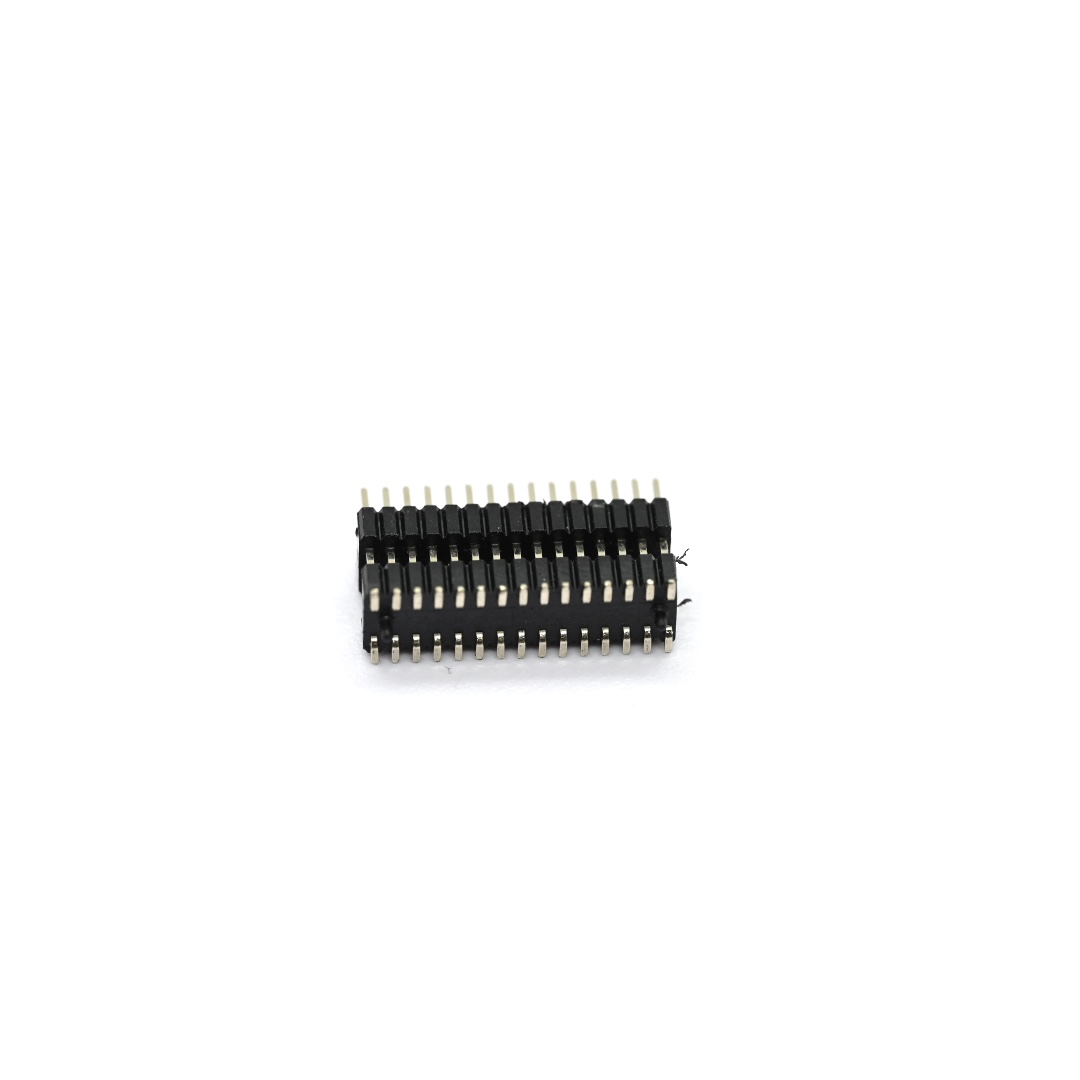

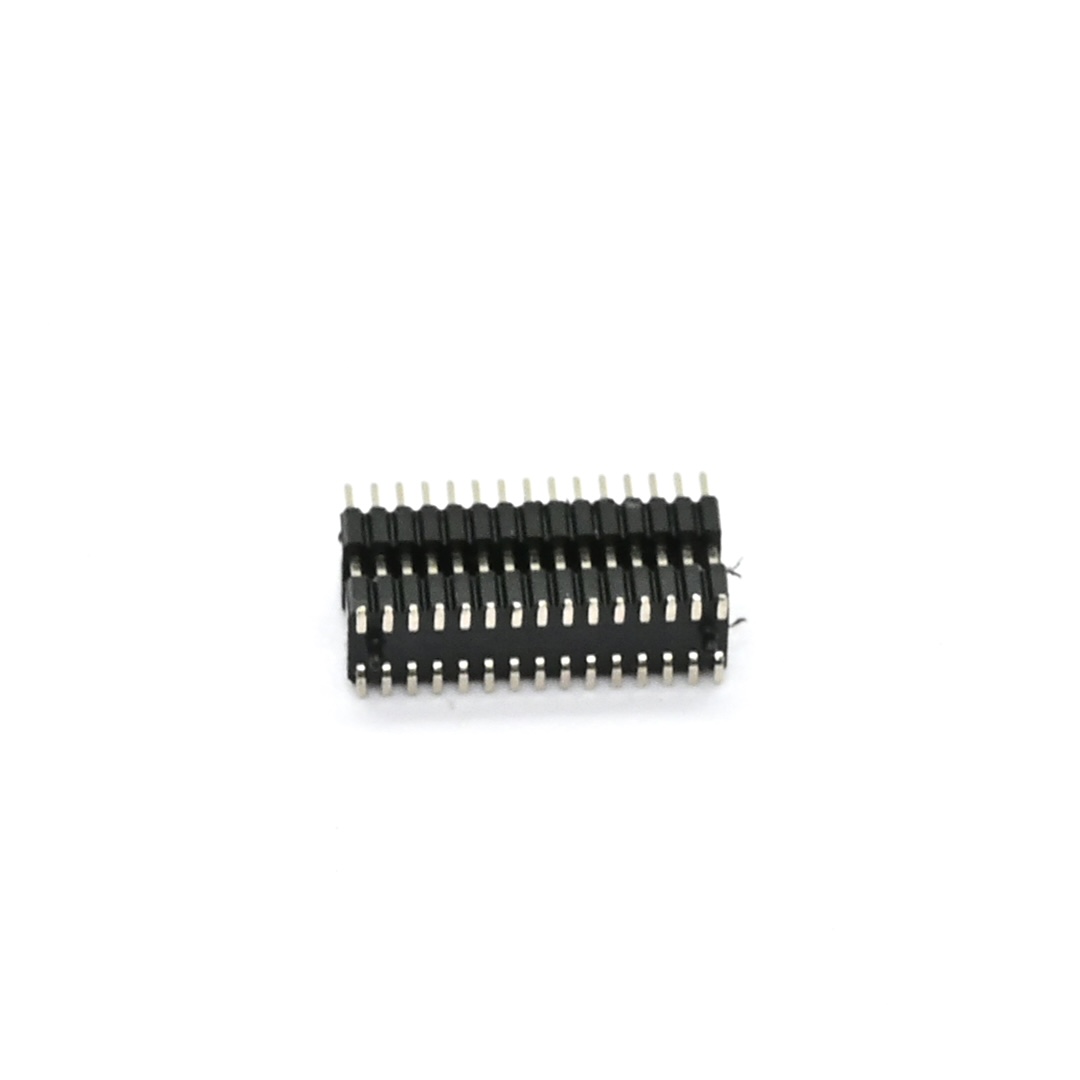

1、Product Description
Manufactured by Huizhou Antenk Electronics Co., Ltd, the PHCM15 series 1.27×2.54mm Pin Header Dual Row Double Plastic SMT Type is an offset dual-row surface mount connector designed for compact PCB signal interconnection. All manufacturing processes strictly comply with dimensional specifications and tolerances on engineering drawings. The double plastic insulator is made of PA66 material meeting UL94V-0 flame retardant standard to withstand high reflow soldering temperatures. Conductive pins are brass with multiple plating alternatives including tin, flash gold and selective gold of different thicknesses to satisfy diverse service life requirements. Rated current reaches 1 Amp, with insulation resistance above 1000 megohms and AC500V dielectric voltage withstand capacity, working stably within -65°C to +125°C. This series supports contact counts ranging from 02 to 100, multiple pin lengths, optional locating pegs and diversified packaging methods. Our complete production workflow covers independent precision mold development, high-speed brass terminal stamping, selective gold electroplating, plastic injection molding, automated pin assembly and full dimensional inspection. Advanced imported production equipment guarantees consistent pitch precision, and all raw materials comply fully with EU RoHS and REACH environmental directives.
This dual row double plastic SMT pin header adopts standard surface mounting assembly flow. Operators place pin headers onto PCB pads and complete reflow soldering for stable fixation, then mate with matched female sockets to form separable electrical circuits. The offset 1.27×2.54mm layout and double plastic structure enhance structural stability while saving PCB layout space, supporting automated mass production. It is widely applied in industrial control boards, communication modules, digital consumer appliances, portable electronic equipment and precision testing instruments. During usage, users shall not exceed the rated 1A current to avoid pin overheating. Excessive mating force should be avoided to prevent pin deformation and insulator cracking. Unused pin headers need dry sealed storage to protect plating layers against oxidation. Most specifications obtain UL certification numbered E472792, and our factory holds ISO9001, ISO14001 and IATF16949 quality management certifications.
Compared with other pin header manufacturers, Antenk independently develops and owns more than 250 sets of plastic injection molds and 180 sets of metal stamping molds, enabling customized contact quantity, pin length, plating type, insulator material and locating peg design for this series. Our 10000 square meter production base employs 250 professional staff, equipped with over 180 automatic assembly machines and 20 sets of professional testing instruments, ensuring stable mass output and on-time delivery for large overseas export orders. As a brand awarded Guangdong Famous Trademark qualification, more than 70 percent of our connectors are exported to Europe, America, Southeast Asia and South America worldwide. We accept small batch orders for standard items without extra mold opening charges.
We implement full-process strict quality inspection for every batch of SMT pin headers, covering incoming raw material inspection, continuous monitoring for stamping, electroplating and injection molding procedures, finished contact resistance testing, voltage withstand testing and plug retention force testing. Each finished batch retains complete lot traceability records for quality tracking. Rigorous multi-layer inspection significantly improves long-term connection stability and anti-vibration performance, lowering circuit failure risks caused by poor contact. We provide free samples, detailed PCB layout drawings and 24-hour online technical support for all global purchasers, establishing long-term trustworthy cooperative partnerships with electronic manufacturers worldwide.

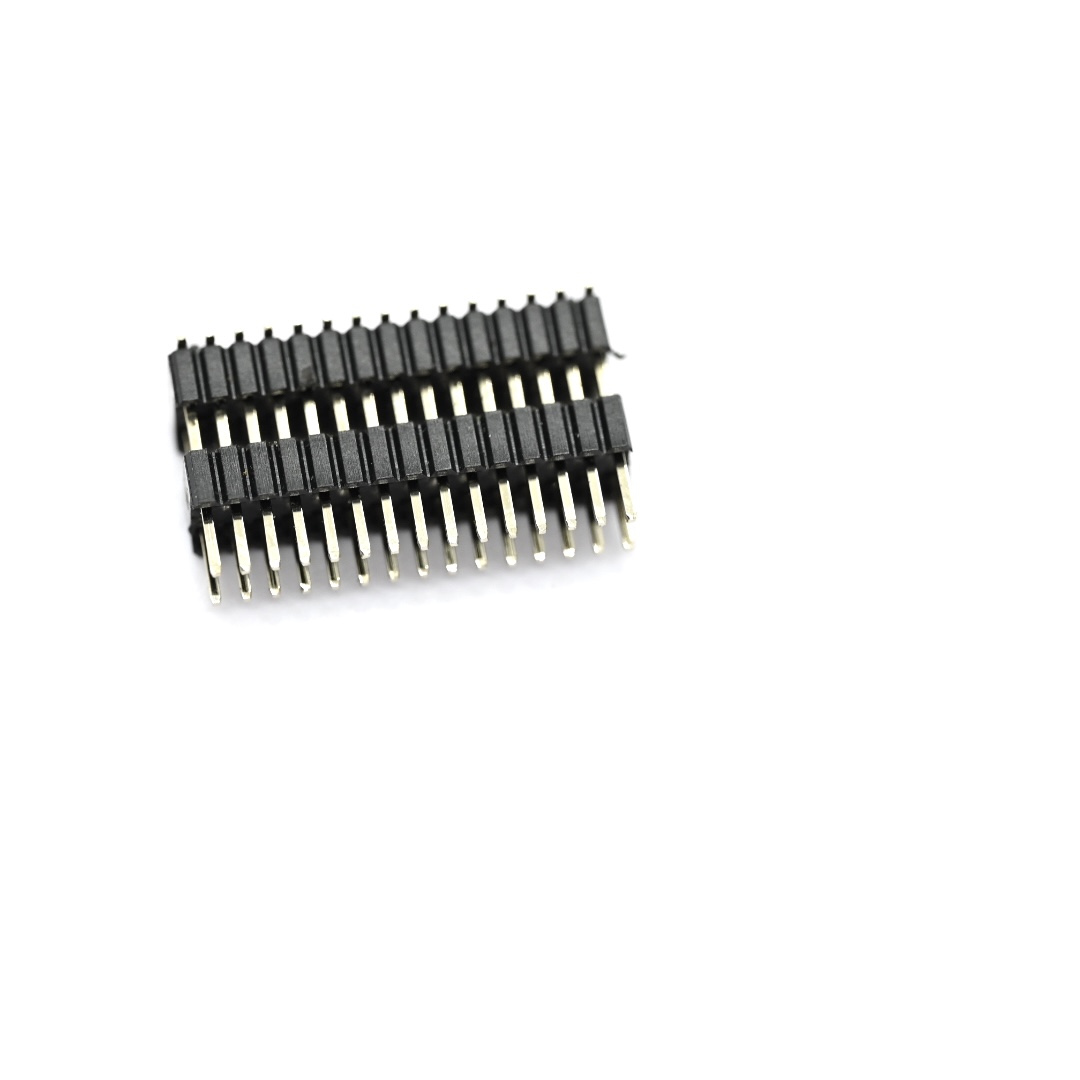

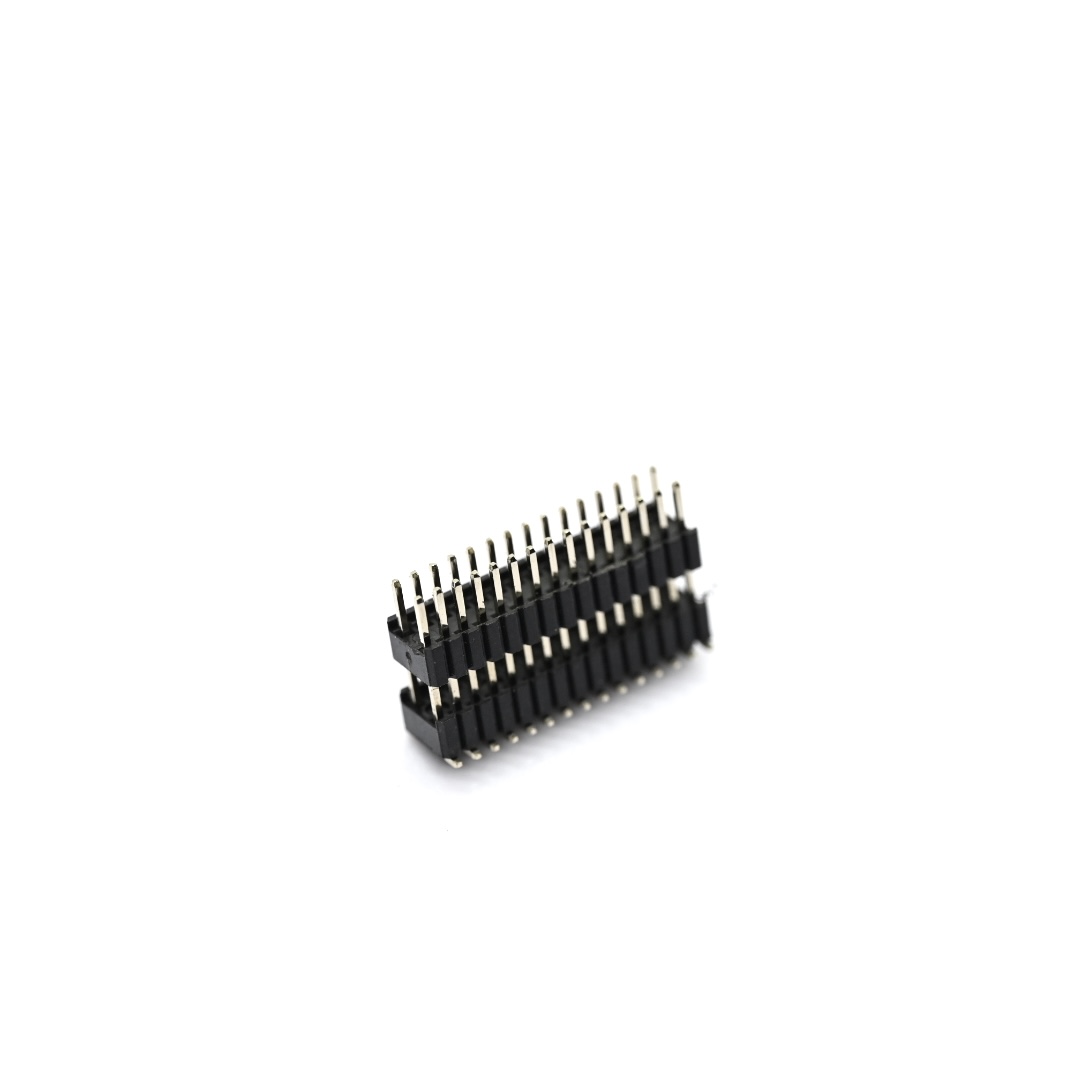

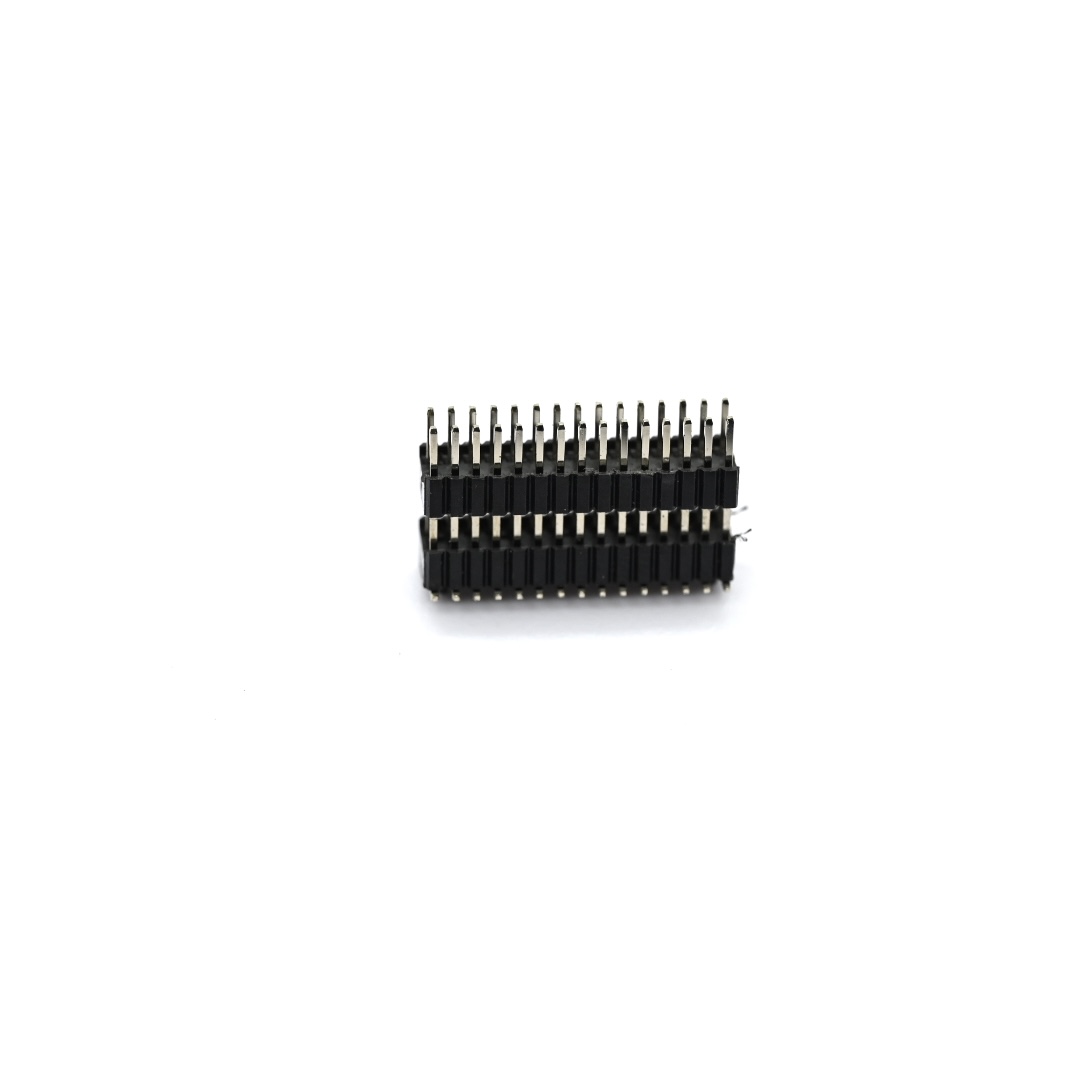

Double Plastic SMT Headers strengthen structural rigidity and avoid deformation during high temperature soldering.
Dual Row Offset Pin Strips realize compact wiring layout for miniaturized printed circuit boards.
Selective Gold Plated Brass Pins reduce production costs while maintaining reliable electrical conductivity.
2、FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

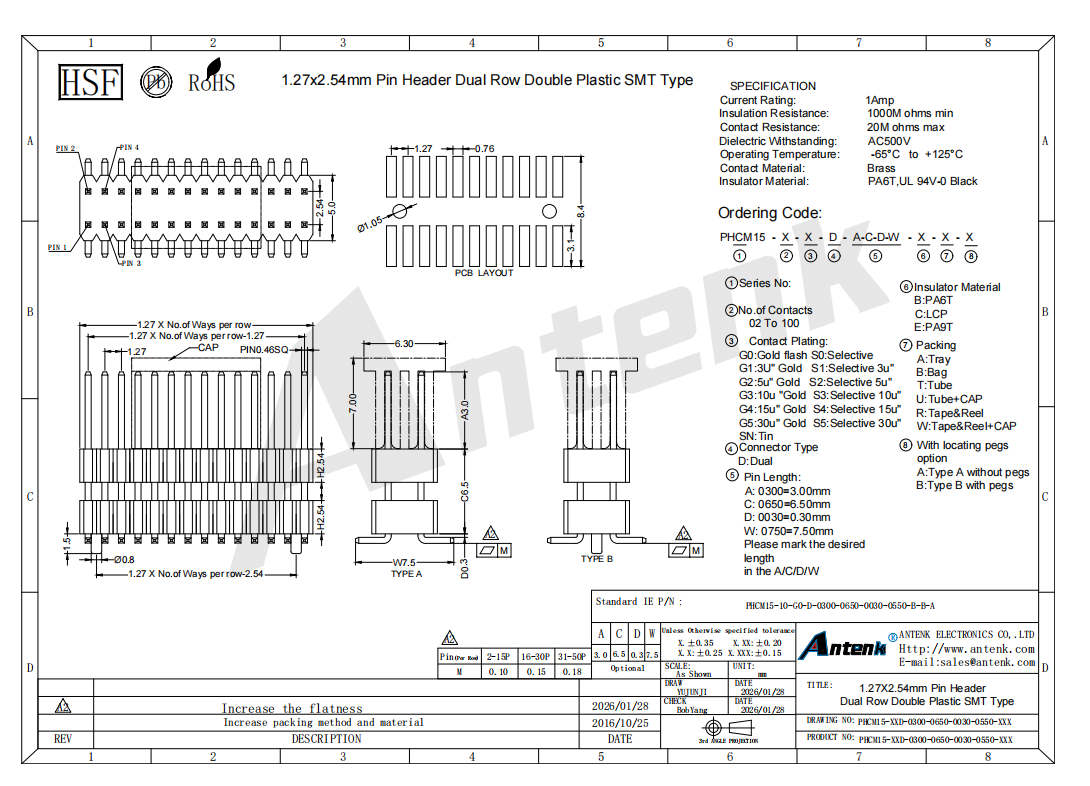

3、Product Drawing
