Product details

Cup Two colors tampon printer with shuttle// Guide

The two-color shuttle pad printer has a large sales volume and is the most cost-effective type of pad printer. The most important feature of the two-color shuttle pad printer is that it has a two-station workbench, which can realize the position switching of two colors to achieve two-color pad printing.

There are two control methods for switching the left and right positions of the workbench of the two-color shuttle pad printer: one is cylinder control and the other is servo motor control. The positioning accuracy of the workbench controlled by the cylinder is not very high, and it can only stay at two designated positions; the pad printer controlled by the servo motor has a high positioning accuracy and can stay at any position of the workbench according to the setting, which shows a very obvious advantage for those products with complex appearance and varied printing positions.

Technical parameters

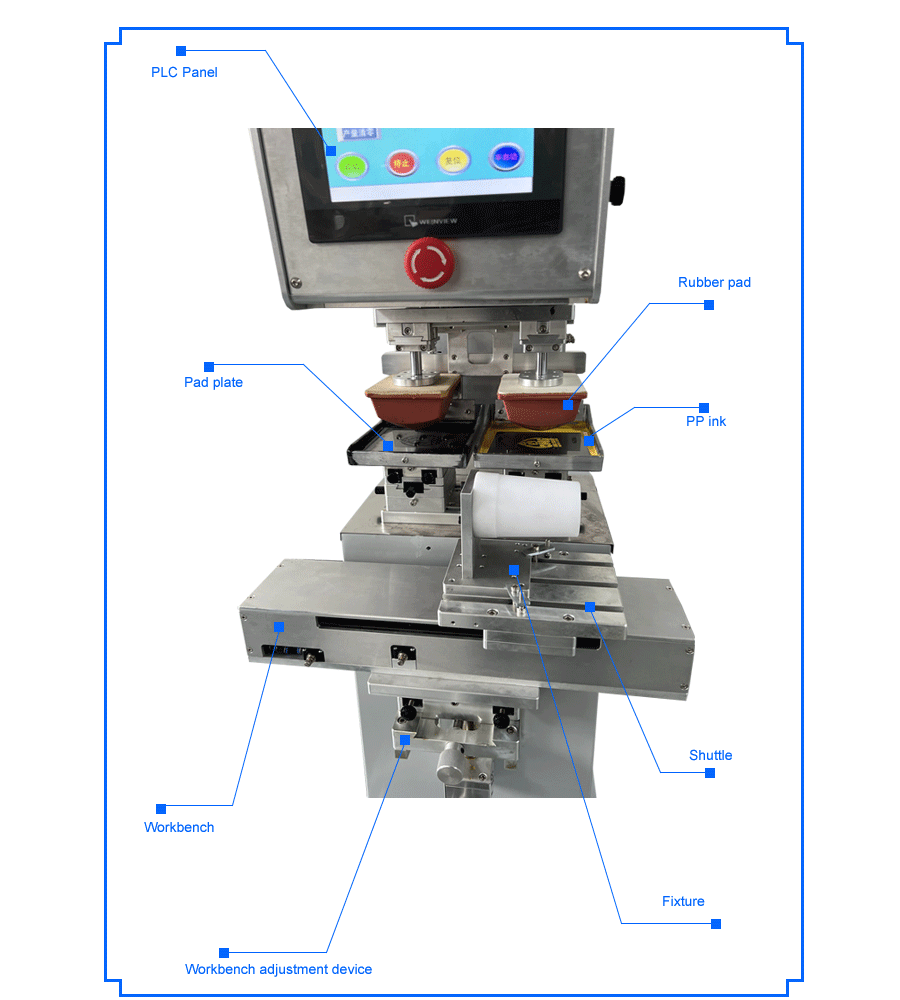

Shuttle workbench, printing a higher precision, a fixture a product printing;
Suitable for large product double pad printing;
Ink tray for ink store, and suitable for the traditional industry, printing ink adjust more convenient, more suitable for a striking observations;
Coin aluminum Structure overall manufacturing, run more smoothly, life more abiding; .
Automatically balanced scraping ink technology, scraping ink clean and easy to change;
Shuttle stroke for 200 mm, can print most products, which are widely applied in electronics, metal, plastic, gifts, furniture, household appliances, toys, jewelry, and other industrial areas;
Electromagnetic valve and cylinder with the German and Taiwan products

Coffee Cups Two colors tempo printer with shuttle //Application fields

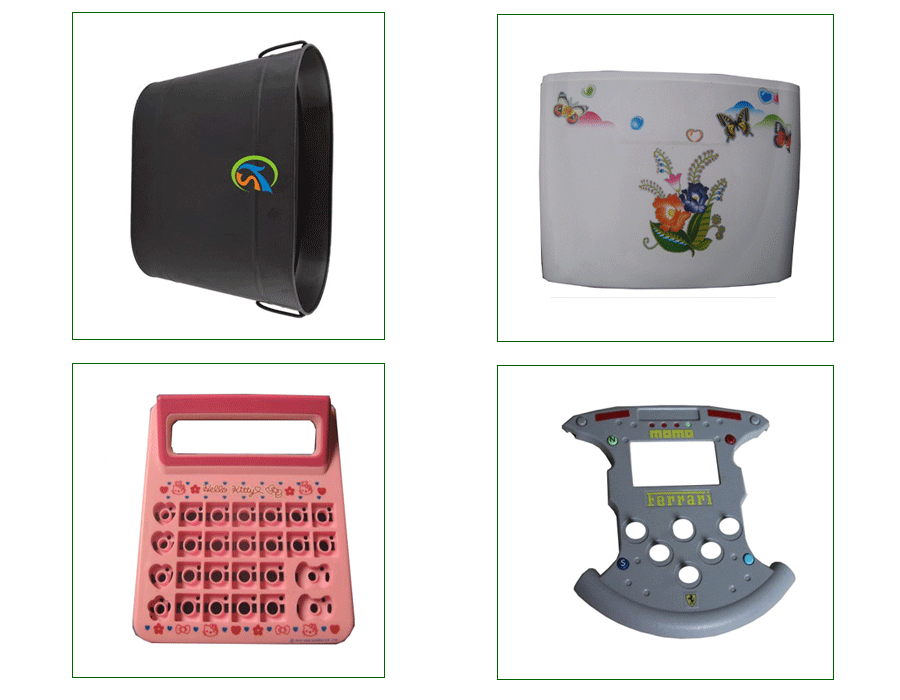

Electrons, hardware, autos, toys, gifts, Plastics, household appliances, artwork, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, etc., industrial field.

Milk-tea cups Two colors tampon printer with shuttle//Parameter

P2-606	P2-610	P2-612
Max. plate size: 150×150 mm; Max. worktable area: 170×200mm; Max. printing speed: 850pcs/h; Printable color :2; Max printing area:130×130mm; Shuttle stroke: 200mm.	Max. Plate size: 150 X 250 mm ; Max. Worktable area : 160 X 200 mm ; Max. Printing area : 130×220mm ; Max printing speed : 700pcs/h ; Printable color :2; Stroke of table shuttle: 200mm.	Max. plate size : 150 X 300 mm ; Max. worktable area : 160 X 200 mm ; Max. printing area : 130×270mm ; Max printing speed : 700pcs/h ; Printable color :2; Stroke of table shuttle: 200mm

Mug Two colors tampon printer with shuttle//Advantage

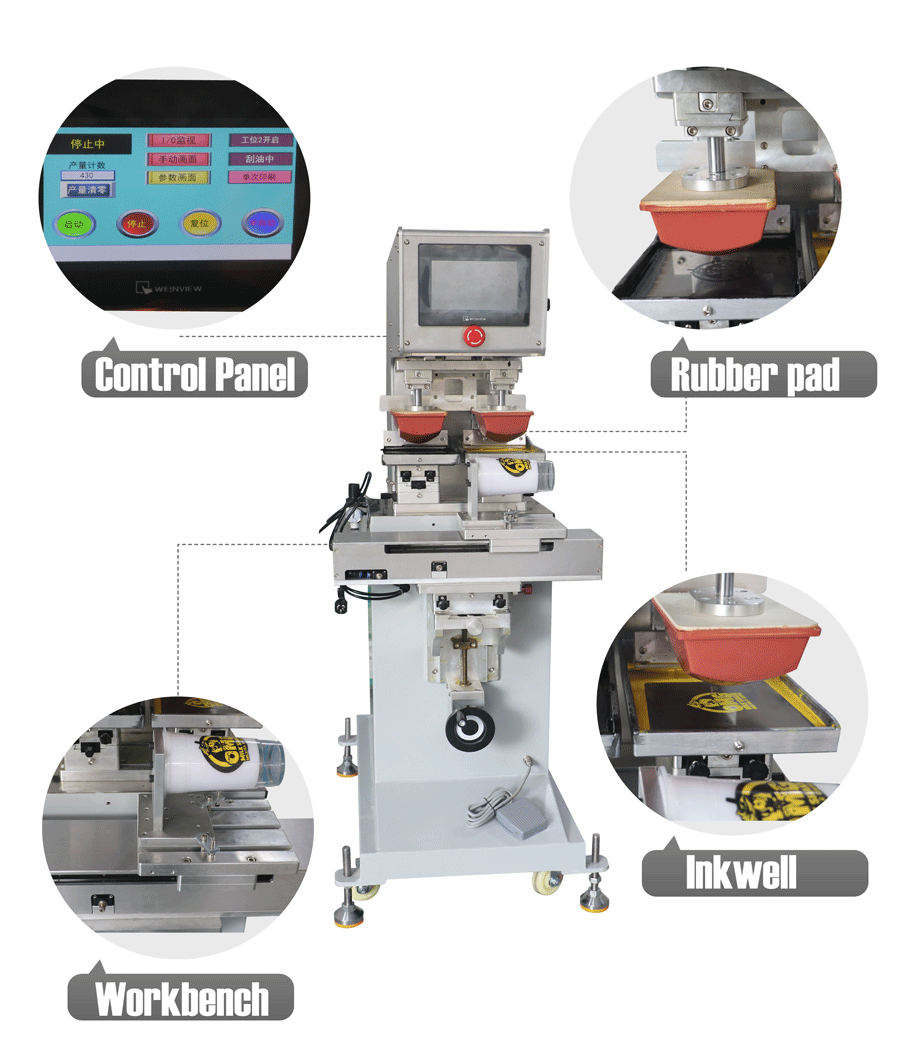

Microcomputer program controlling operating technique ;
Streamline design ensure dexterous Appearance impressions;
Coin aluminum structure frame coated Gross-Green color paint;
Shuttle working table installed to get more precision overprint;
Independency pressure adjustment of pad press-printing and picking up ink;
Either testing or running mode to operate ;
Opened inkwell to store and coating ink , easily adjust the character of pad ink.
Automatism digital count function;
Double colors pad printing with drying through blowing hot air:
Ten grade printing speed setting, auto, semi-auto, testing operation mode setting;
The function of blade only move front to back for mixing ink ;
Automatics balance blade to remove the ink completely;
Widen ink-tray installed to print more larger dimension.

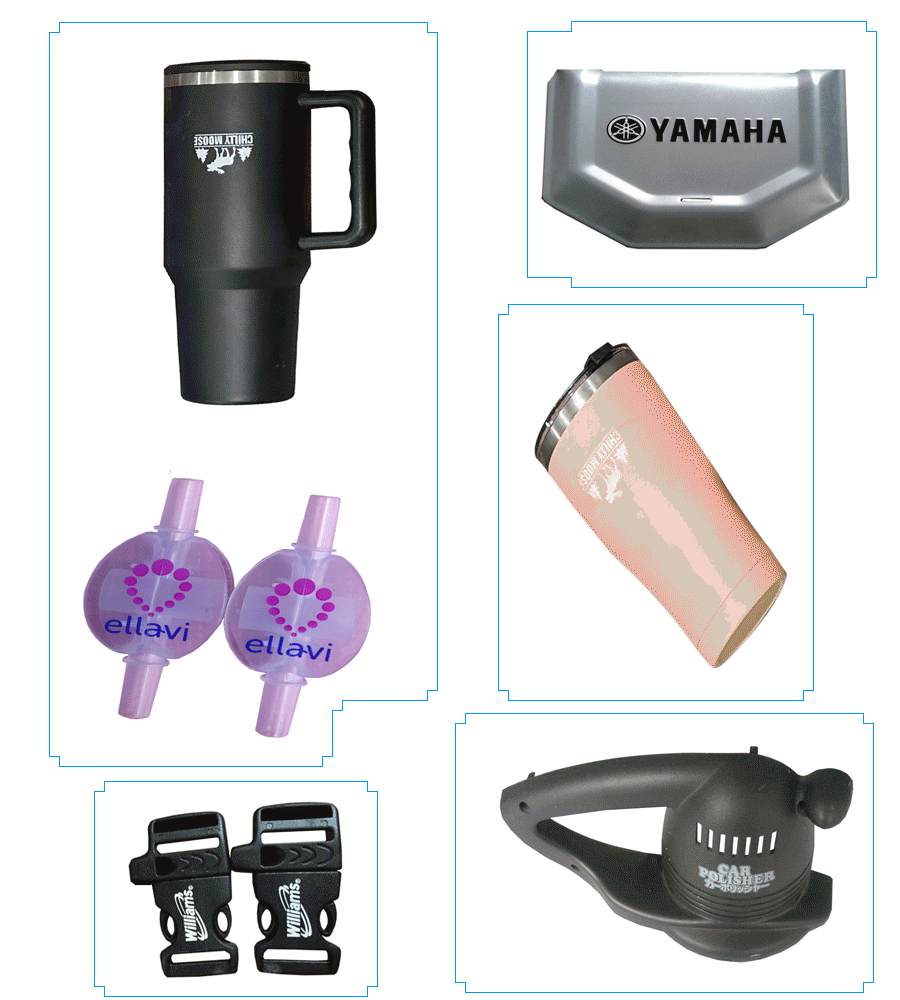

How does a two-color shuttle pad printer print cups?

It is common to use a screen printer to print cylindrical cups because it can cover the entire circumference of the cup. Due to the huge amount of cups, semi-automatic curved cup screen printer and fully automatic curved screen printer have been in hot sales in recent years.

Can pad printer be used to print cups? The answer is yes. Pad printers have the following characteristics when printing cups:

1) Making fixtures

There are two ways to make fixtures for cups: One is to make a fixed fixture, with the side of the cup to be printed facing up. At this time, the two-color pad printer can print two colors on the cup, and its size is roughly equivalent to one-third of the circumference of the cup; the other is to make a rotating fixture. During the printing process, the rubber head is pressed down to keep and the cup rotates, and the printing length will be extended, which is equivalent to a curved pad printer. The accuracy of pad printers in printing cups is not as high as that of screen printers. If the diameter of the cup is too large, the cost of pad printers will also increase.

2) Pattern deformation

The pattern on the steel plate is flat, and the pattern will be deformed after being transferred to the cup. This is the characteristic of the pad printer. The precision of the screen printer lies in the fact that the pattern on the screen printer can completely overlap with the pattern on the cup at a ratio of 1:1, which the pad printer cannot do. Although the curved pad printer can reduce this deformation, the deformation of the rubber head itself is unavoidable.

3) Color registration problem

The two-color pad printer can perform two-color registration, which is the advantage of the pad printer. This is difficult for the curved screen printer to do with low-cost investment. If the curved screen printer performs color registration, it is necessary to replace the ink and screen, or use a two-color fully automatic screen printer, the cost of the machine will increase significantly. The pad printer can do it easily. As mentioned earlier, the pad printer can only print two colors on one side of the cup. If the fixture can control the cup to rotate 45 degrees, 90 degrees, and 135 degrees, the two-color pad printer can print two colors on the four symmetrical sides of the cup, and the added value of the cup will be improved.

4) Efficiency problem

The speed of semi-automatic screen printing machine is not high. It can print 1,000 cups per hour, and the two-color pad printing machine can print 800. The efficiency is relatively low. Under the premise of increasingly fierce market competition, improving speed is a direction, which requires the use of fully automatic cup pad printing machine and fully automatic cup screen printing machine.
