1、Product Description
Manufactured by Huizhou Antenk Electronics Co., Ltd, the AT2500F series 7.62mm pitch plug-in terminal block is a detachable wire splicing component built for high voltage and high current power circuit connection in industrial electrical equipment. Produced fully in line with official drawing parameter standards, this terminal block supports 2 to 24 poles with fixed 7.62mm spacing. The insulating housing adopts UL94V-0 grade PA66 material that retains stable mechanical and insulating performance within a working temperature range of minus 40 degrees Celsius to plus 105 degrees Celsius. Conductive contacts are made of copper alloy with full nickel plating, supporting a maximum rated current of 15A and rated voltage up to 400V, withstanding impulse voltage of 6000V and 1600V dielectric strength for one minute, compatible with wire cross sections from 0.5mm² to 2.5mm² and wire gauge AWG24 to AWG12. Our complete standardized production flow covers independent custom mold development, high-temperature plastic injection molding, copper alloy terminal high-speed stamping, anti-rust nickel electroplating, automatic pole assembly and finished dimensional inspection. Imported Taiwan high-speed stamping machines and Japanese injection molding equipment guarantee uniform pole spacing and tight plug-in retention force during mass continuous production, eliminating loose contact and overheating risks under heavy load. All raw materials meet EU RoHS and REACH hazardous substance control standards.
This pluggable terminal block is operated by stripping 9 to 10 millimeters of wire insulation, inserting wires into the wire clamping cavity of the plug module and tightening fixed screws, then inserting the plug unit into the matched socket base mounted on PCB or control panels to form separable power transmission circuits. It is widely applied in industrial control cabinets, switching power supplies, household electrical control modules, new energy charging equipment, communication power distribution units and precision testing instrument wiring systems. During wiring and assembly, operators must match wires within the 2.5mm² maximum cross section to avoid overload heating. Do not apply excessive force during plugging and unplugging to prevent plastic housing cracking and contact spring deformation. Unused terminal blocks should be stored in dry sealed environments to avoid nickel plating corrosion. Most specifications obtain UL certification numbered E472792, and our factory holds ISO9001, ISO14001 and IATF16949 automotive industry quality management certifications to support stable application in industrial and power equipment scenarios. Multiple optional housing colors are provided to distinguish different circuit loops.
Compared with other terminal block manufacturers in the industry, Antenk independently develops and owns more than 250 sets of plastic injection molds and 180 sets of precision copper stamping molds, supporting personalized customization of pole quantity, housing color, contact plating thickness and overall length for this 7.62mm plug-in terminal block series. Our 10000-square-meter production base with 250 professional staff is equipped with over 180 automatic assembly machines and 20 sets of professional electrical performance testing instruments, ensuring stable batch product quality and punctual delivery for large-volume overseas export orders. As a brand certified as Guangdong Famous Trademark, more than 70 percent of our terminal blocks and matching connector products are exported to global overseas markets. We implement full-process quality inspection covering incoming PA66 and copper raw material inspection, in-process molding and stamping monitoring, high voltage withstand testing and finished plug retention force sampling test, greatly improving long-term connection stability and load resistance, cutting hidden circuit safety hazards caused by poor wiring contact, and establishing long-term trustworthy cooperative partnerships with electronic manufacturing clients across Europe, America, Southeast Asia and other international regions worldwide.
2、FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

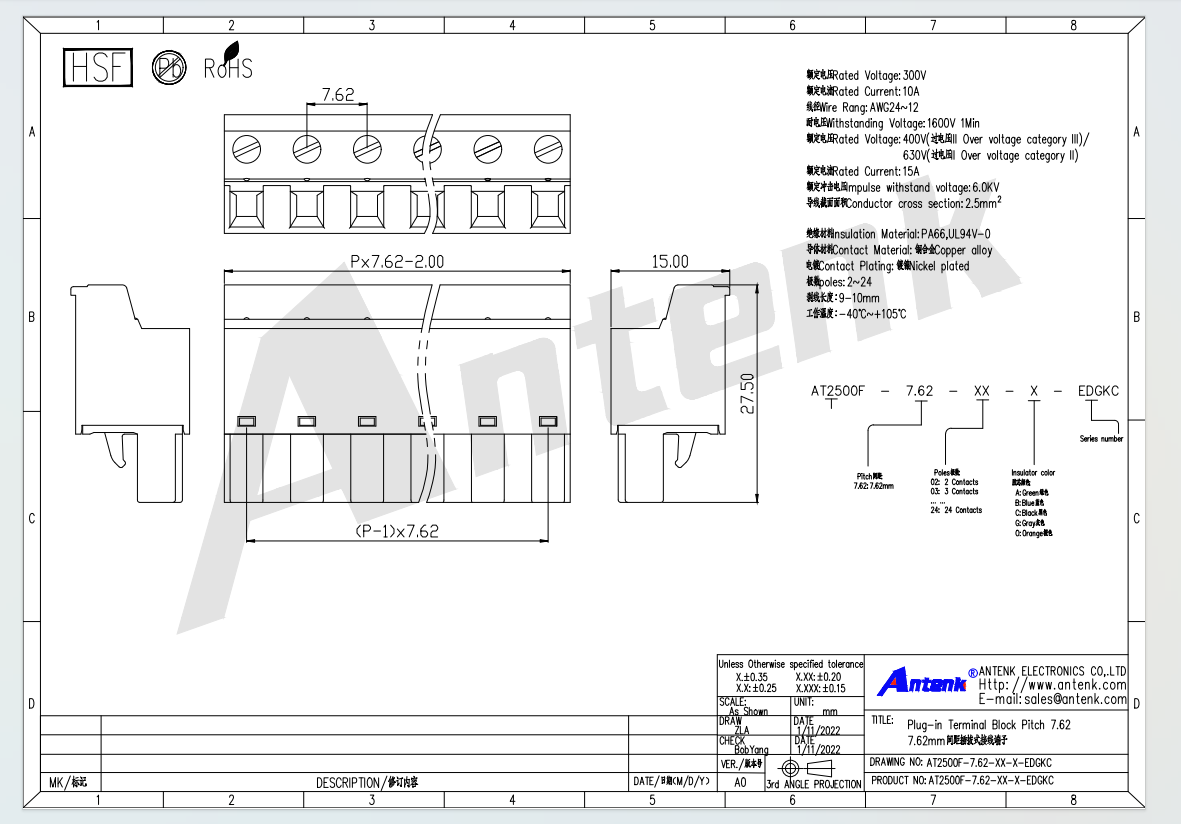

3、Product Drawing
