10.5mm Short Body Vertical DIP USB A Female

10.5mm Short Body Vertical DIP USB A Female

2 month ago

5 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Huizhou Antenk Electronics Co., Ltd. manufactures UAFS11 series vertical DIP USB A female connectors with ultra-short 10.5mm body and three grounding pegs to deliver stable USB2.0 data transmission and power supply for compact PCB equipment, with standardized dimension tolerances and dedicated PCB layout for accurate through-hole soldering. This USB receptacle housing adopts UL94V0 flame retardant black LCP thermoplastic, contact terminals are made of 0.30mm thick copper ferroalloy alloy with full nickel underplating, contact area features gold plating and solder area adopts tin plating, multiple gold thickness options including gold flash, 3u",5u",10u",15u",30u" are available, metal shell can be selected from brass, iron or stainless steel materials, electrically rated at maximum 1.5A current, 100V AC dielectric withstand voltage, below 30 milliohm contact resistance and over 100 megohm insulation resistance, total mating force below 3.57kgf and unmating force above 1.0gf, supporting stable operation from minus 55 degree Celsius to plus 85 degree Celsius and fully complying with HSF lead-free and RoHS environmental standards, four packaging modes tray bag tube tape & reel match manual and automatic DIP assembly production lines. This three-peg short body vertical USB A female socket is widely applied in liquid crystal display modules, digital cameras, communication modules, industrial control panels, portable storage drives, digital household appliances, electronic toys, computer peripherals, automotive electronic assemblies and precision measuring instruments that require miniaturized USB port layout. Operators should follow official PCB pad drawing to complete through-hole soldering, avoid strong impact to prevent LCP housing cracking and metal terminal deformation, store finished USB sockets in dry sealed packages to prevent nickel gold plating oxidation. Unlike competitors outsourcing mold stamping and plastic injection molding Antenk carries out full independent production workflow covering self-developed plastic and metal precision mold fabrication, high-speed copper terminal stamping, high temperature LCP injection molding, multi-layer nickel gold electroplating and full high-low temperature cycle reliability laboratory testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications while conforming to REACH global environmental regulations. We own more than two hundred fifty proprietary plastic connector molds and one hundred eighty metal terminal molds, provide customizable shell material contact plating thickness and packaging schemes, deliver round-the-clock professional engineering technical support, and over seventy percent of our USB connector products are exported worldwide relying on our Guangdong Famous Trademark ANTENK and consistent stable mass production quality.

UL94V0 LCP USB Housing Shell features high temperature resistance and flame retardancy to withstand DIP soldering thermal impact effectively.

Nickel Gold Plated Copper Alloy Contact offers low contact resistance and superior anti-corrosion performance for stable USB signal and power transmission.

Three Peg Vertical DIP USB Socket equips three positioning pegs to enhance fixing stability after through-hole soldering on PCBs.

1. Electrical Performance Parameters

1.1 Rated Current: 1.5A Max

1.2 Dielectric Withstanding Voltage: 100V AC

1.3 Max Contact Resistance: 30 milliohms

1.4 Min Insulation Resistance: 100 Megohms

1.5 Max Mating Force: 3.57kgf

1.6 Min Unmating Force: 1.0gf

2. Environmental Performance

2.1 Operating Temperature Range: -55°C ~ +85°C

2.2 Compliance Standards: HSF, Pb-free, RoHS

3. Material Composition

3.1 Housing Material: Black glass filled LCP, UL94V-0 flame retardant thermoplastic

3.2 Contact Material: 0.30mm thick copper alloy / ferroalloy alloy

3.3 Shell Material Options: Brass, Iron, Stainless Steel, 0.30mm thickness, full nickel plating

3.4 Contact Plating Structure: Full nickel underlayer, gold plating on contact area, tin plating on solder feet

4. Customizable Gold Plating Thickness

4.1 G0: Gold flash

4.2 G1: 3μ" Gold

4.3 G2: 5μ" Gold

4.4 G3: 10μ" Gold

4.5 G4: 15μ" Gold

4.6 G5: 30μ" Gold

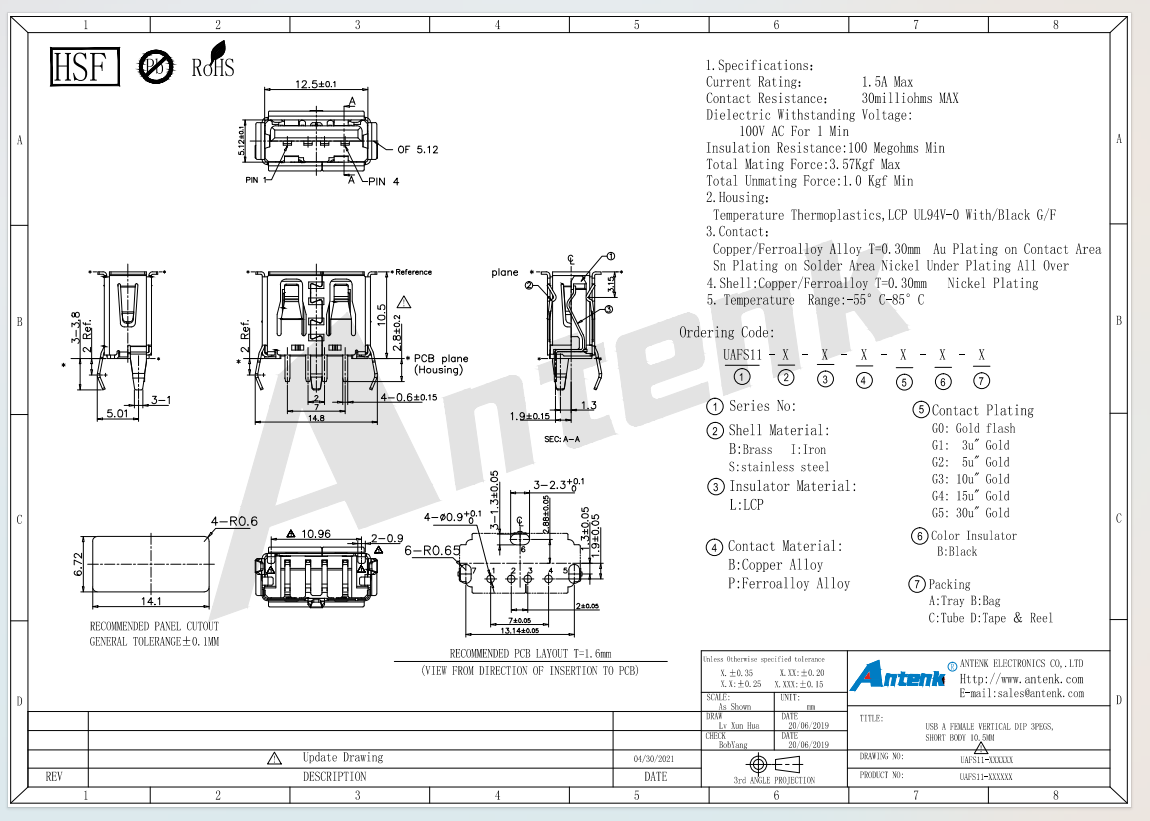

5. Dimensional & Structural Info (Unit: mm)

5.1 Body Height: Short body 10.5

5.2 Mounting Structure: Vertical DIP type with 3 positioning pegs

5.3 General Tolerance Rules: X.±0.35, X.X±0.25, X.XX±0.20, X.XXX±0.15

5.4 PCB board recommended thickness: 1.6

6. Packaging Options

6.1 A: Tray packing

6.2 B: Bag packing

6.3 C: Tube packing

6.4 D: Tape & reel packing

7. Application Scenarios

7.1 Liquid crystal display modules, digital cameras

7.2 Communication equipment, industrial control panels

7.3 Portable storage devices, digital household appliances

7.4 Electronic toys, computer peripheral hardware

7.5 Automotive electronics, precision measuring instruments

8. Operation & Storage Precautions

8.1 Complete vertical through-hole DIP soldering strictly follow official PCB layout drawing

8.2 Avoid heavy impact or extrusion to prevent LCP housing crack and alloy contact deformation

8.3 Select appropriate gold plating thickness based on plugging cycles and service life requirements

8.4 Choose shell material according to anti-interference and cost demands

8.5 Store finished USB sockets in dry sealed packages to prevent oxidation of nickel gold plating layers

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

UAFS11-SPBG0BA+USB A FEMALE VERTICAL DIP 3PEGS,SHORT BODY 10.5MM（6）

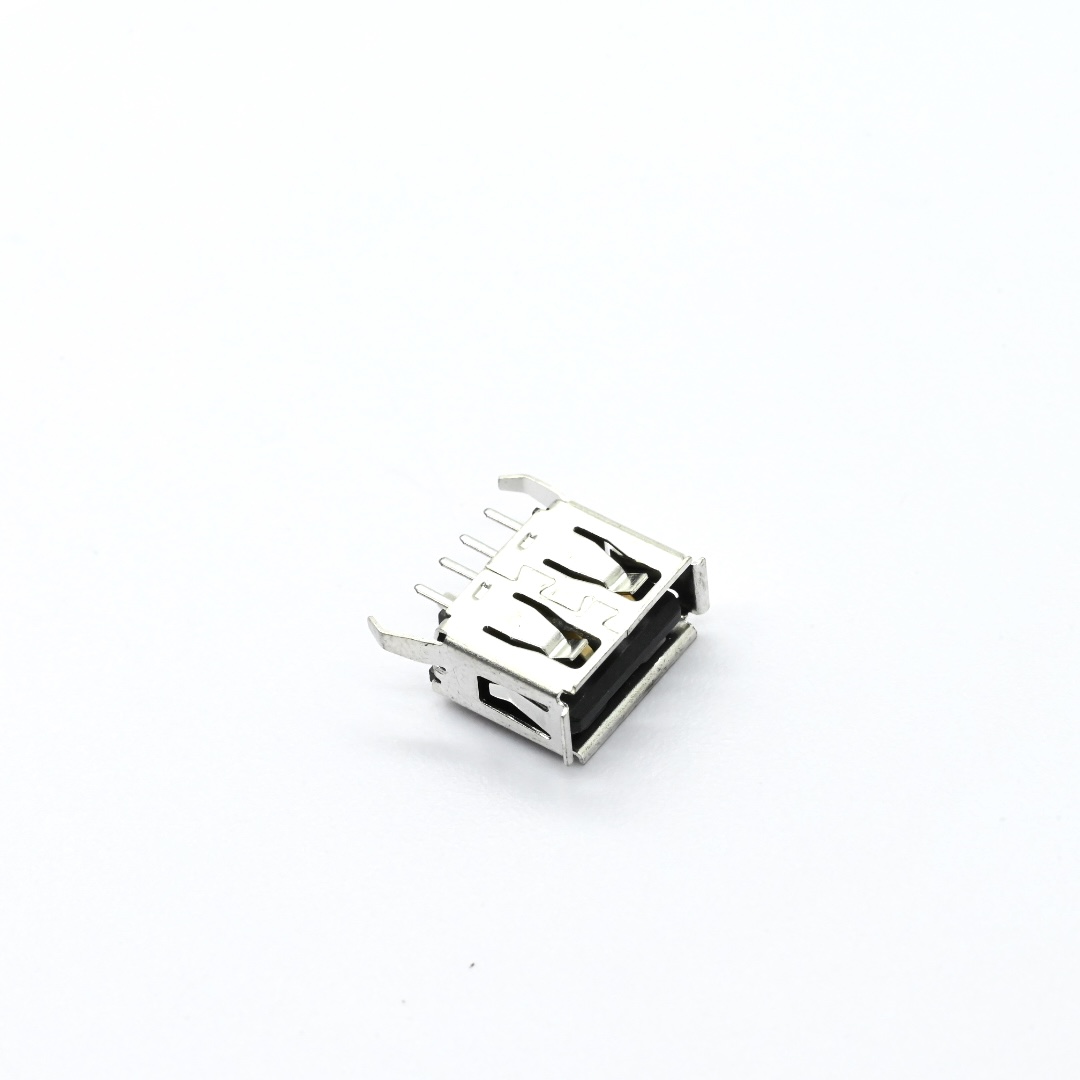

UAFS11-SPBG0BA+USB A FEMALE VERTICAL DIP 3PEGS,SHORT BODY 10.5MM（5）

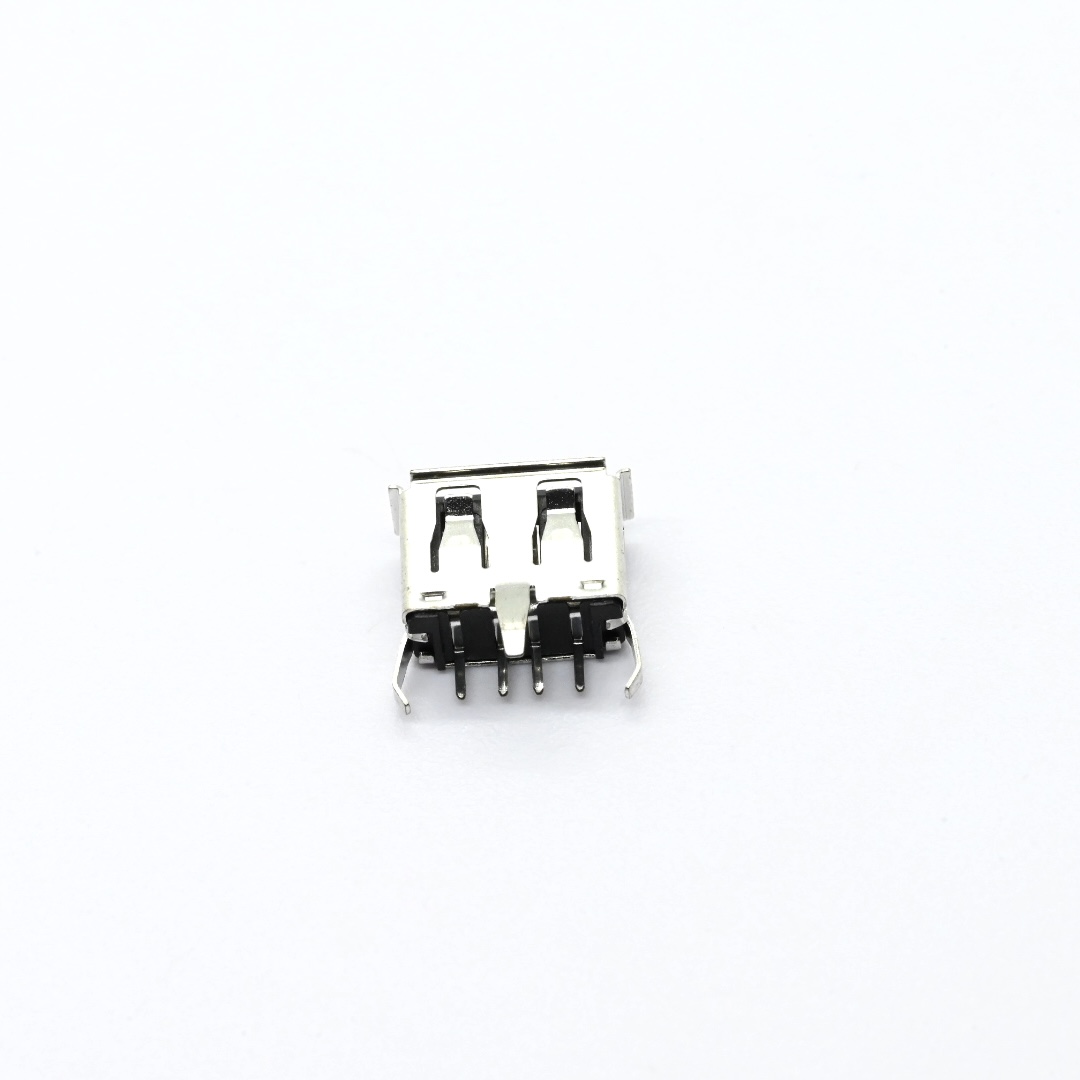

UAFS11-SPBG0BA+USB A FEMALE VERTICAL DIP 3PEGS,SHORT BODY 10.5MM（3）

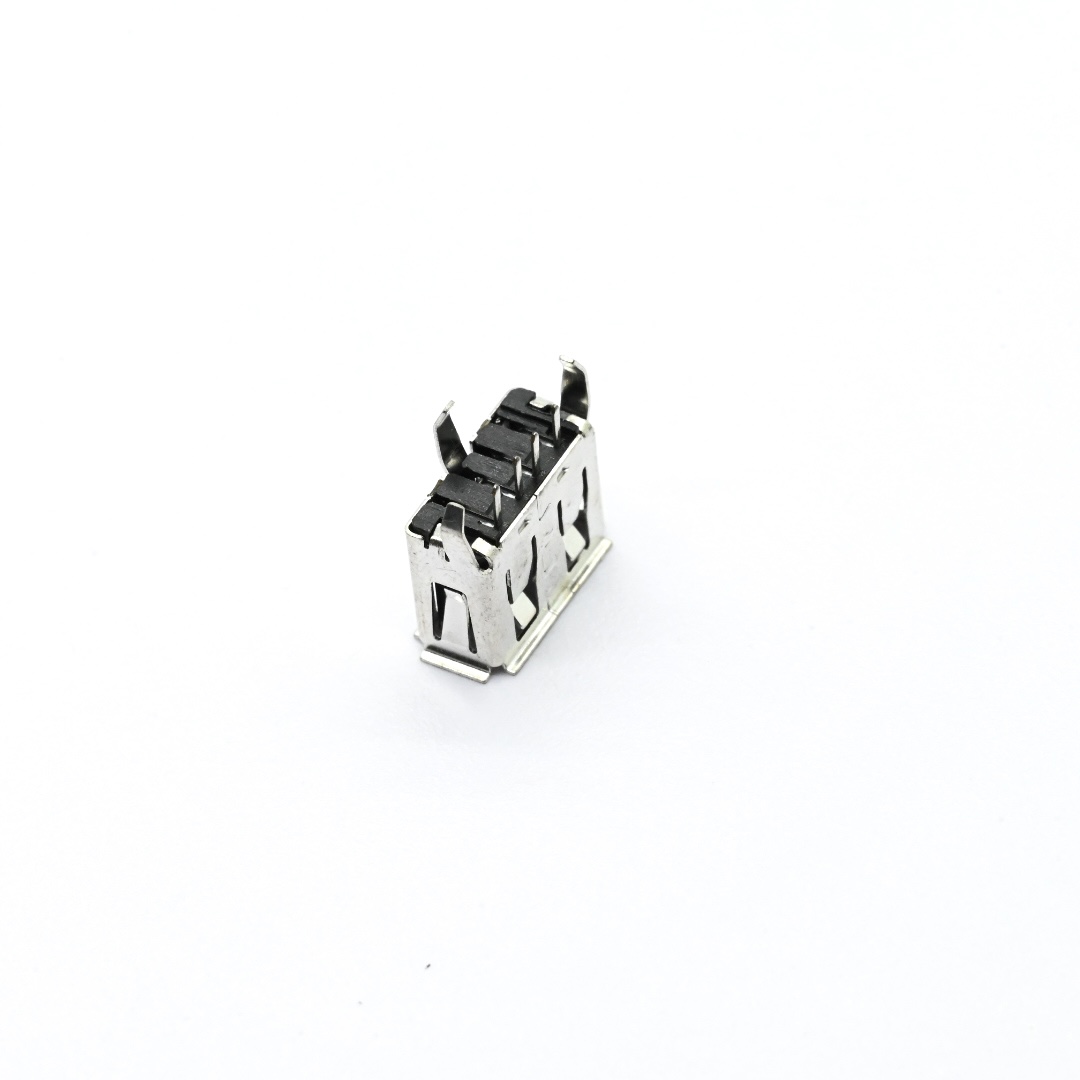

UAFS11-SPBG0BA+USB A FEMALE VERTICAL DIP 3PEGS,SHORT BODY 10.5MM（4）

UAFS11-SPBG0BA+USB A FEMALE VERTICAL DIP 3PEGS,SHORT BODY 10.5MM（2）

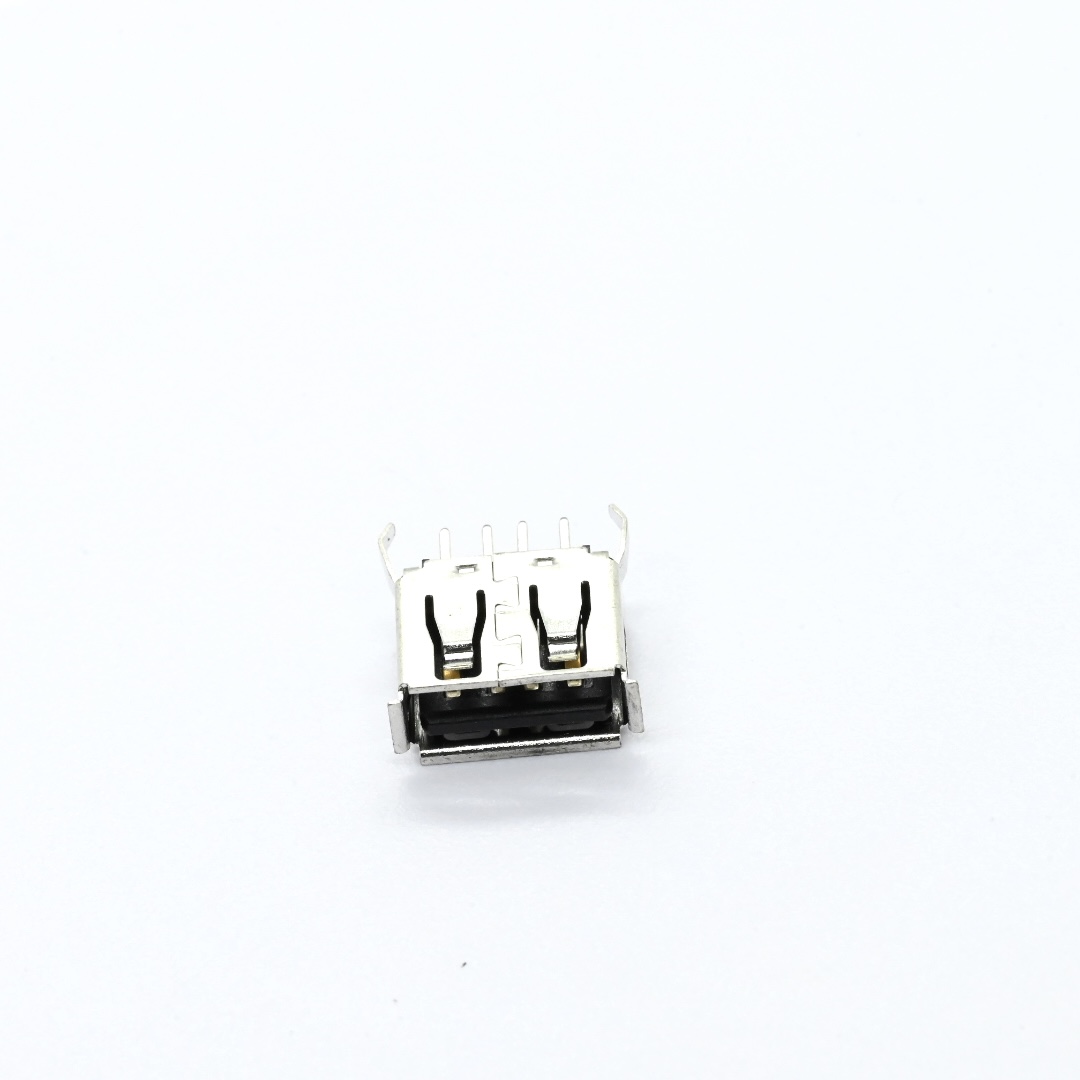

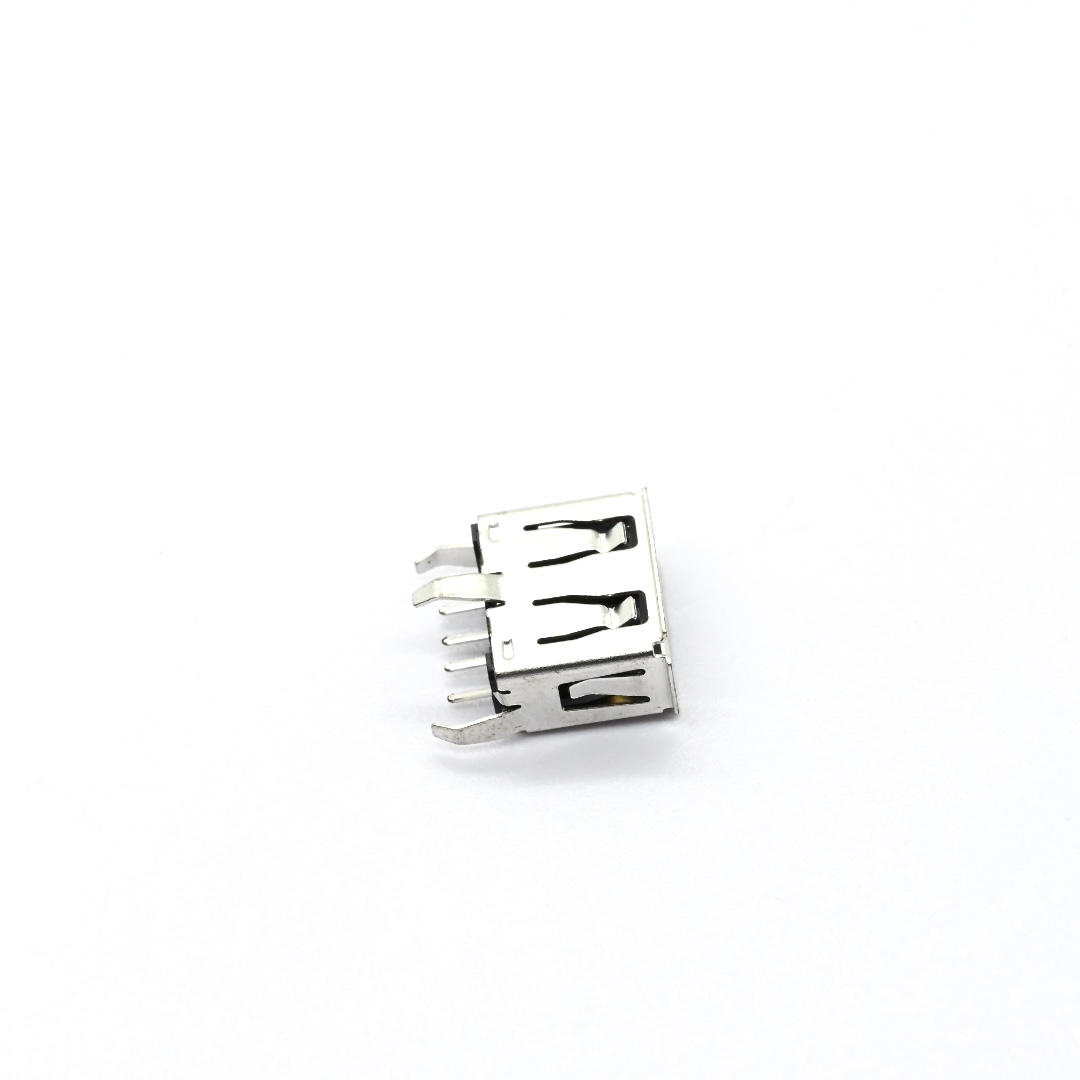

UAFS11-SPBG0BA+USB A FEMALE VERTICAL DIP 3PEGS,SHORT BODY 10.5MM（1）
