Automatic cosmetic caps Screen printing equipment//Usage and characters

The automatic vertical rotary screen printing machine is a high‑speed, high‑precision special printing equipment specially designed for plastic bottle caps, bottle lids, cosmetic caps, beverage caps, and various small round covers. It adopts a vertical turntable structure with continuous rotary indexing, which realizes fully automatic feeding, printing, UV curing, and discharging in one process.

This machine uses a high‑precision cam divider and servo motor control system to ensure stable turntable rotation and accurate color registration. It can be configured with 10-12 printing stations according to production needs, with fast printing speed and stable operation. The vertical structure effectively saves floor space and makes operation and maintenance more convenient.

Equipped with automatic vibrating plate feeding or automatic conveyor feeding, the machine can automatically transport bottle caps to the printing station without manual placement. It supports flame or corona surface treatment to improve ink adhesion on PP, PE, and plastic caps. The integrated UV curing system realizes instant ink drying, avoiding smudging and sticking, ensuring clear and durable printing patterns.

The whole machine adopts a sturdy steel frame structure, with imported pneumatic and electrical components for long‑term stable use. The PLC touch screen control system supports parameter storage, fault alarm, production counting, and one‑key product switching, making operation simple and intelligent.

With high automation, high efficiency, small footprint, and strong stability, this vertical rotary screen printing machine is widely used in beverage, cosmetic, daily chemical, pharmaceutical, and plastic packaging industries for mass‑production bottle cap printing.

Samples show

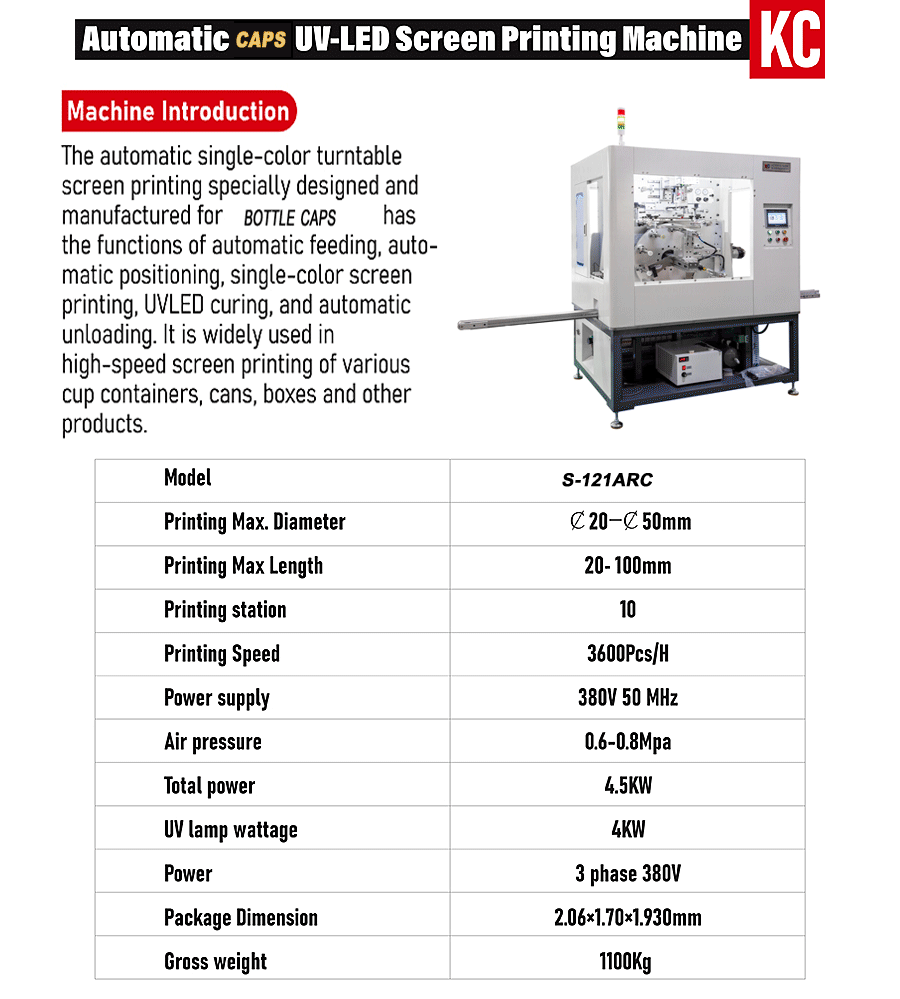

Catalogue of jars automatic screen printing equipment

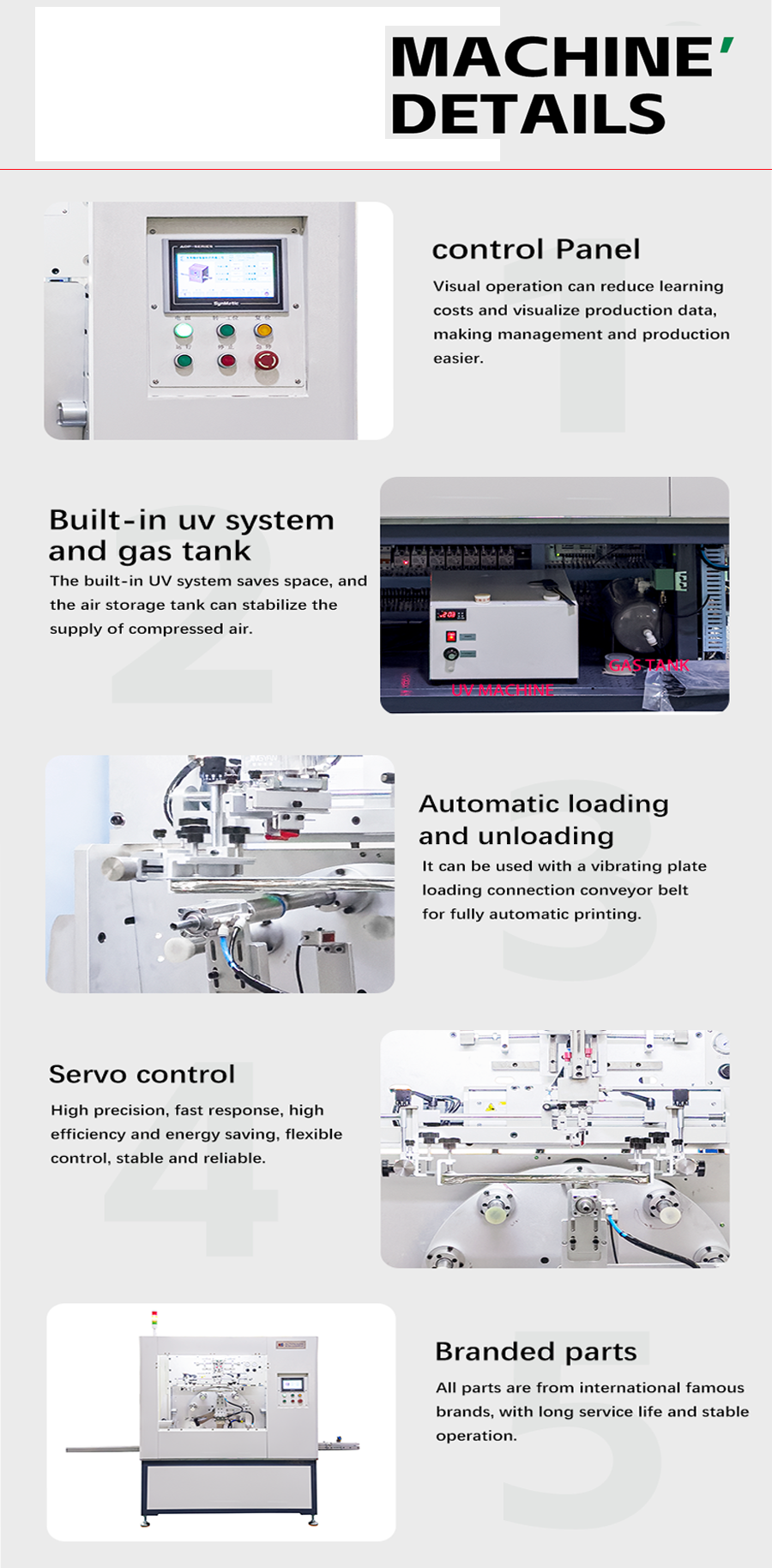

Details photo-Advantage of desktop screen printing equipment

The vertical turntable automatic screen printing equipment is a classic structure of a monochrome automatic Screen Printing machine . It is widely used for monochrome screen printing of cylindrical jars, caps bottles, hoses, cups, cream bottles, and car filters.

Feeding conveyor belt

Narrow PVC or metal conveyor belts are used. Glass paper products will first use stainless steel conveyor belts with equidistant positioning grooves or anti-slip patterns on the surface. The conveyor belt transports the product to the feeding and unloading station, and cooperates with the photoelectric sensor to detect the incoming material position to ensure that the feeding robot accurately grabs it.

Feeding and unloading robot

Most of them are pneumatic grippers or vacuum suction nozzled , and the three-axis robot arm driven by a servo motor places the product on the fixture of the turntable. The feeding robot should be padded with different materials for different materials to avoid damaging the product surface.

Vertical turntable-8-10-12 stations

8-10 fixtures are evenly distributed on the vertical turntable, such as elastic card slots or magnetic positioning seats), driven by servo motors, with adjustable speed, and station identification sensors are set on the edge of the turntable to cooperate with the control system to achieve precise positioning of the printing station.

Flame Treatment device/plasma treatment device

For polyolefin materials, flame treatment or plasma treatment should be carried out; flame treatment generally uses a mixture of combustible gas and compressed air to burn the flame, and sprays it with the outer end of the flame. Plasma treatment uses a high-frequency electric field to generate plasma (such as argon/air), bombarding the surface of the tube body, removing oil stains and increasing surface roughness. It is environmentally friendly and has no open flames, and is suitable for sensitive materials.

Servo screen printing device

The servo drive device has high precision and is easy to adjust. It has become the standard configuration of high-precision screen Printing Machines. The servo drive for screen lifting and scraper movement can control the thickness of the ink layer and show the texture. Most vertical turntable screen printing machines are monochrome, and some models can be upgraded to two-color.

UV drying system or UVLED drying system

According to the material of the product, a UV LED ring light source or a UV light source is used to evenly irradiate the product. The UVLED curing device has a built-in air cooling system, and the light source temperature is controlled below 60°C to avoid some sensitive on-the-job heat deformation;

Unloading manipulator

Similar to the loading manipulator, the gripper has a buffer spring added to it, and it is gently placed on the unloading conveyor belt after grabbing.

Unloading conveyor belt

The unloading conveyor belt has the same structure as the loading conveyor belt, with a receiving trough or buffer platform at the end, and the conveyor belt surface is covered with soft material to prevent the product from being scratched by collision.

Operation panel

The vertical automatic turntable screen printer is operated by PLC with a touch screen for human-computer dialogue, and can easily set and adjust specific parameters such as loading, screen printing, and UV curing.

Machine strutucre
