1、Product Description
Manufactured by Huizhou Antenk Electronics Co., Ltd, the AT2500F series Plug-in Terminal Block Pitch 3.5/3.81 is a compact detachable screw-type wiring connector designed for reliable power and signal interconnection on PCBs. All production strictly complies with engineering drawing dimensional specifications. The housing is made of PA66 filled with 23 percent glass fiber and meets UL94V-0 flame retardant standard, providing stable insulation and high temperature resistance during soldering and long-term operation. Conductive terminals are nickel-plated phosphor bronze, matched with nickel-plated brass wire cages and M3.0 nickel-plated steel screws. It is rated for 300V and 12A, suitable for 18 to 12AWG wires up to 2.5mm² with a recommended tightening torque of 0.4N.m. This series supports 2 to 16 poles and multiple optional insulator colors for circuit differentiation. Our complete manufacturing workflow includes in-house mold development, high-temperature injection molding, precision terminal stamping, multi-layer metal electroplating, automatic assembly and full dimensional inspection. Imported Japanese and Taiwanese equipment ensures consistent pitch accuracy and stable clamping force, and all raw materials comply with EU RoHS and REACH environmental standards.
This plug-in terminal block adopts simple assembly procedures. Users loosen built-in screws, insert stripped wire conductors into wiring cavities, tighten screws at 0.4N.m torque to fix wires securely, and plug the terminal module into the matched PCB header to form separable electrical circuits. Its compact dual-pitch design saves valuable PCB space, making it ideal for miniature electronic equipment. The product is widely used in industrial control modules, small switching power supplies, household appliances, communication equipment and precision testing instruments. During operation, users shall not exceed the rated 12A current to avoid thermal overload damage. Over-tightening screws is forbidden to prevent housing cracking and thread slipping. Unused terminal blocks should be stored in dry sealed environments to prevent nickel plating oxidation. Most specifications have UL certification numbered E472792, and our factory holds ISO9001, ISO14001 and IATF16949 quality management certifications.
Compared with other terminal block manufacturers, Antenk independently develops and owns over 250 sets of plastic injection molds and 180 sets of metal stamping molds, supporting customized pole numbers, housing colors and plating parameters for this dual pitch terminal block series. Our 10000 square meter production base employs 250 professional staff and is equipped with more than 180 automatic assembly machines and 20 sets of professional testing instruments, ensuring stable mass production and on-time delivery for overseas export orders. As a brand awarded Guangdong Famous Trademark qualification, more than 70 percent of our connectors and terminal blocks are exported to global markets covering Europe, America, Southeast Asia and South America.
We implement strict full-process quality inspection for every batch of plug-in terminal blocks, covering incoming raw material inspection, continuous monitoring for injection molding, stamping and electroplating, finished dielectric strength testing, clamping force testing and salt spray corrosion testing. Each batch retains complete lot traceability for quality tracking. Rigorous multi-stage inspection greatly improves long-term connection stability and anti-vibration performance, lowering circuit failure risks caused by loose wiring. We supply free samples, 2D and 3D CAD drawings and 24-hour professional technical support for all global purchasers, establishing long-term trustworthy cooperative partnerships with electronic manufacturers worldwide.
Nickel Plated Phosphor Bronze Terminals deliver excellent electrical conductivity and reliable anti-corrosion performance for plug-in terminal blocks.
Mini Dual Pitch Terminal Blocks adopt 3.5mm and 3.81mm pitches to meet the wiring demands of compact electronic equipment.
12A Screw Clamp Connectors realize firm wire fixing and stable power transmission for various industrial control devices.
2、FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

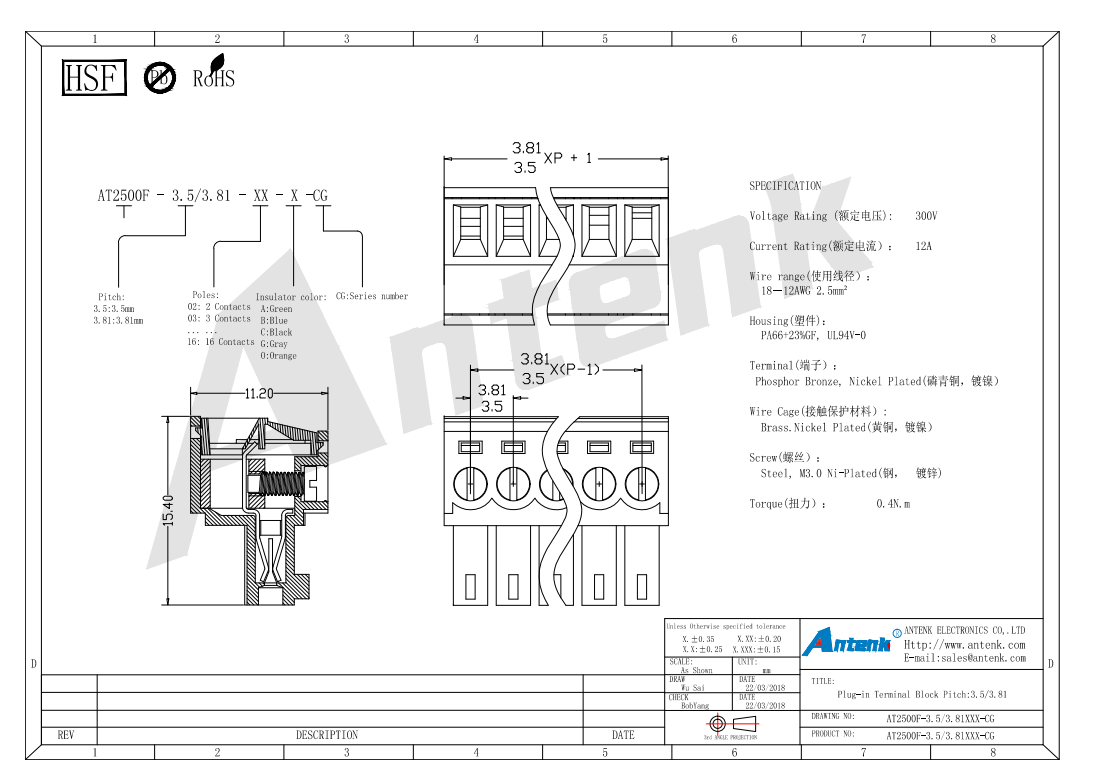

3、Product Drawing
