1、Product Description
Manufactured by Huizhou Antenk Electronics Co., Ltd, the AT2500F series back hook plug-in terminal block with 5.0 and 5.08mm dual pitch is a reliable screw locking wiring connector designed for power and signal circuit connection in industrial electrical equipment. All manufacturing procedures strictly follow dimensional tolerance standards defined on official engineering drawings. The insulating housing is made of PA66 material filled with 23 percent glass fiber, conforming to UL94V-0 flame retardant specification for outstanding heat resistance and insulation performance. Conductive terminals are phosphor bronze with full nickel plating, paired with nickel-plated brass wire cages and nickel-plated steel M3.0 locking screws, with a standard tightening torque of 0.4 Newton meter. This terminal block is rated 300V voltage and 12A current, compatible with 18AWG to 12AWG wires up to 2.5 square millimeters cross section, supporting 2 to 24 poles and multiple optional insulator colors. Our complete production workflow includes independent precision mold development, phosphor bronze terminal stamping, metal surface nickel electroplating, high temperature plastic injection molding, screw assembly and finished comprehensive inspection. Advanced imported Japanese and Taiwanese production equipment ensures stable pitch consistency, and all raw materials fully comply with EU RoHS and REACH environmental norms.
This back hook pluggable terminal block boasts straightforward wiring operations. Users loosen the built-in screws, insert stripped wire ends into the wiring cavity, then tighten screws with specified torque to firmly fix cables inside the block. The rear hook structure enables convenient fixed installation on guide rails, while the pluggable split design allows quick disconnection and maintenance of circuits. It is extensively used in industrial control cabinets, switching power supplies, household electrical equipment, communication devices and precision measuring instruments. During application, users must abide by the rated voltage and current parameters to avoid overheating burnout. Excessive tightening torque is prohibited to prevent thread slipping and housing damage. Unused terminal blocks need dry sealed storage to protect nickel-plated metal parts from oxidation. Most product specifications own UL certification numbered E472792, and our factory has passed ISO9001, ISO14001 and IATF16949 automotive quality management certifications.
Compared with other terminal block manufacturers in the industry, Antenk independently develops and owns more than 250 sets of plastic injection molds and 180 sets of metal stamping molds, supporting customized pole numbers, housing colors and structural styles for this dual pitch plug-in terminal block series. Our 10000 square meter manufacturing plant employs 250 skilled employees, equipped with over 180 automatic assembly machines and 20 sets of professional electrical testing instruments, guaranteeing steady mass production and on-time delivery for large overseas export orders. As a brand awarded Guangdong Famous Trademark qualification, more than 70 percent of our wiring terminals and connectors are exported to Europe, America, Southeast Asia and South America globally. We accept small batch customized orders without extra mold opening costs.
We implement rigorous full-process quality inspection for every batch of plug-in terminal blocks, covering incoming raw material testing, real-time monitoring of stamping, electroplating and injection molding processes, withstand voltage testing, screw torque durability testing and long-term salt spray corrosion testing. Each finished batch reserves complete production lot traceability records for quality tracing. Multi-layer strict inspection greatly improves long-term connection stability, anti-vibration and anti-loosening performance, effectively reducing circuit faults caused by poor contact. We provide free product samples, detailed dimension drawings and 24-hour online technical support for all global purchasers, establishing long-term sincere cooperative partnerships with electronic and electrical manufacturers all over the world.
Screw Clamp Terminal Blocks achieve firm wire fixation and convenient circuit modification for industrial wiring systems.
Dual Pitch Wiring Connectors adapt to 5.0mm and 5.08mm pitches to satisfy diversified equipment layout demands.
Glass Filled PA66 Housings withstand high operating temperature and meet strict flame retardant safety standards.
2、FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

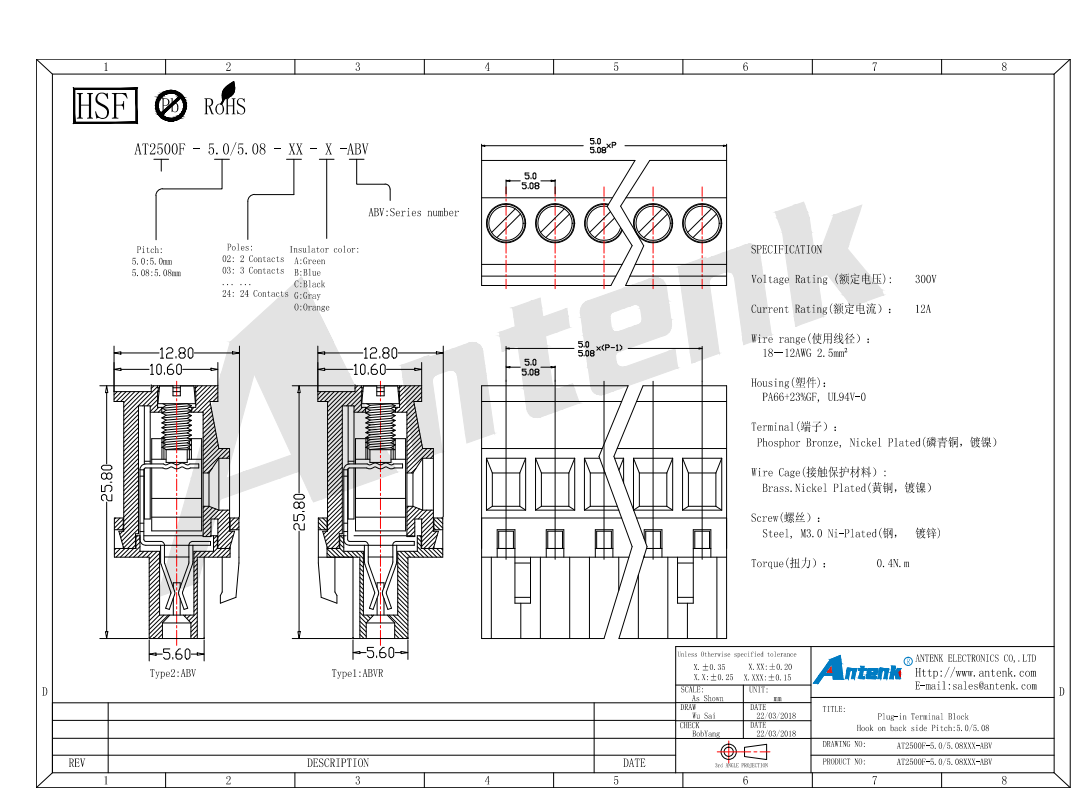

3、Product Drawing
